Machine tools

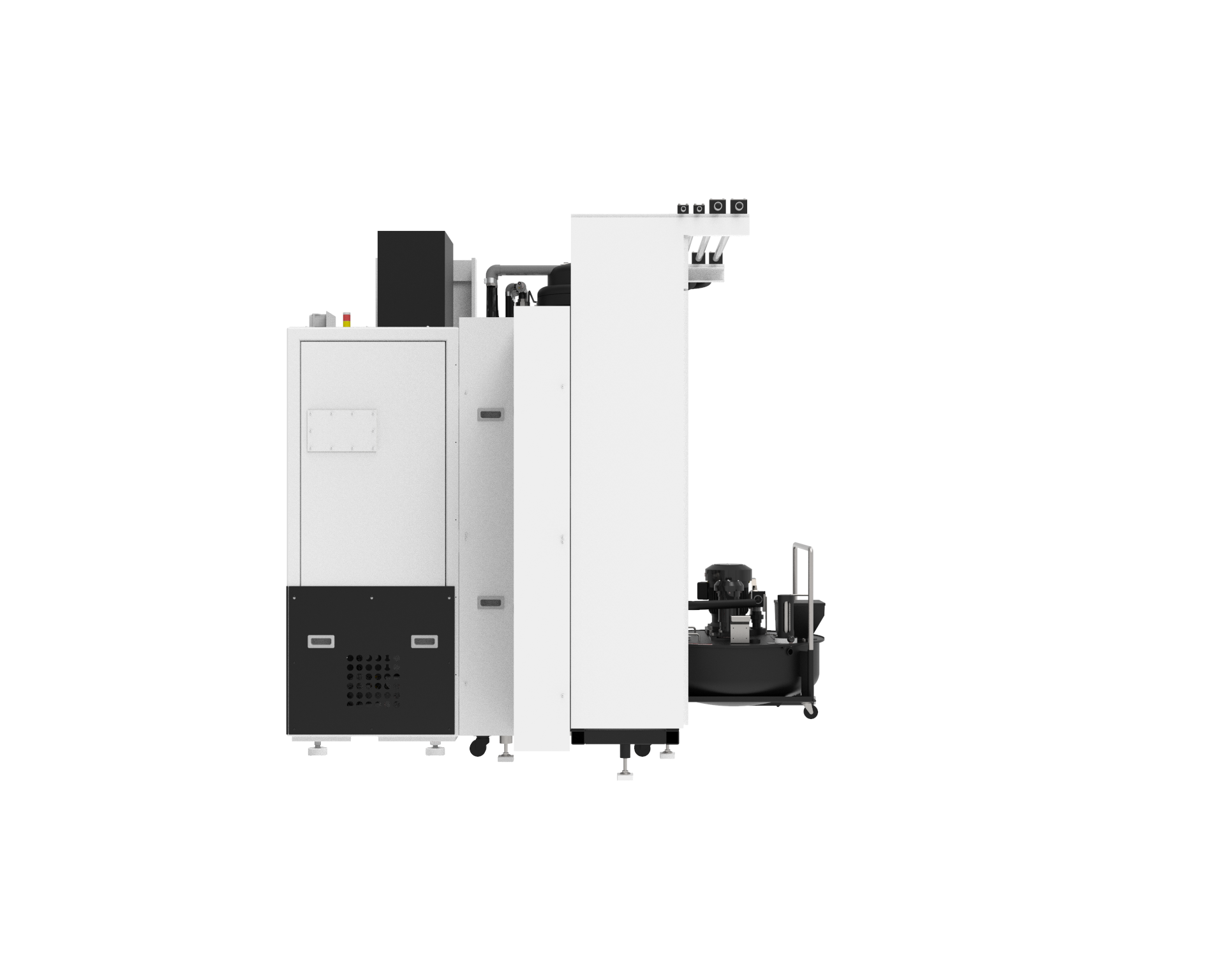

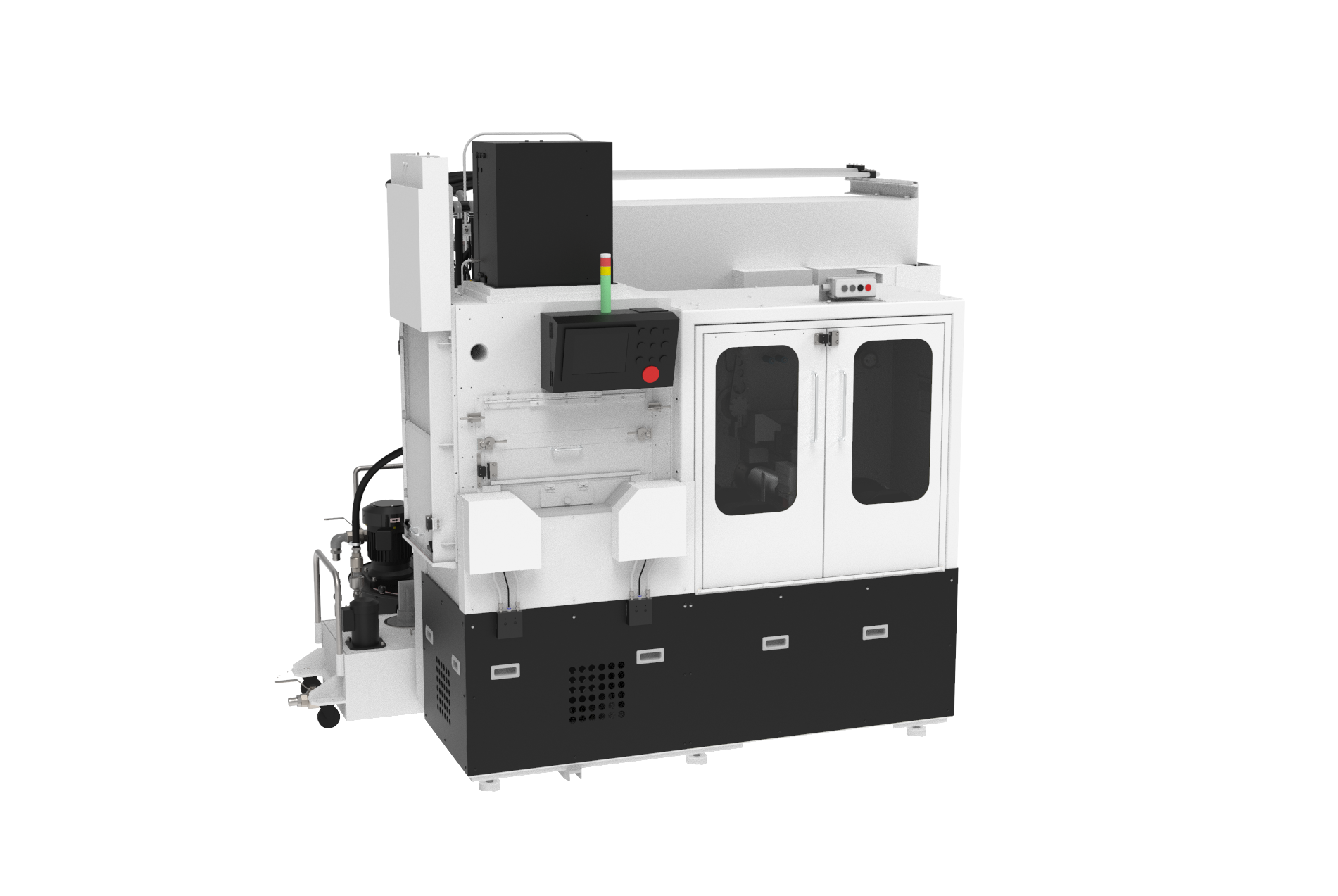

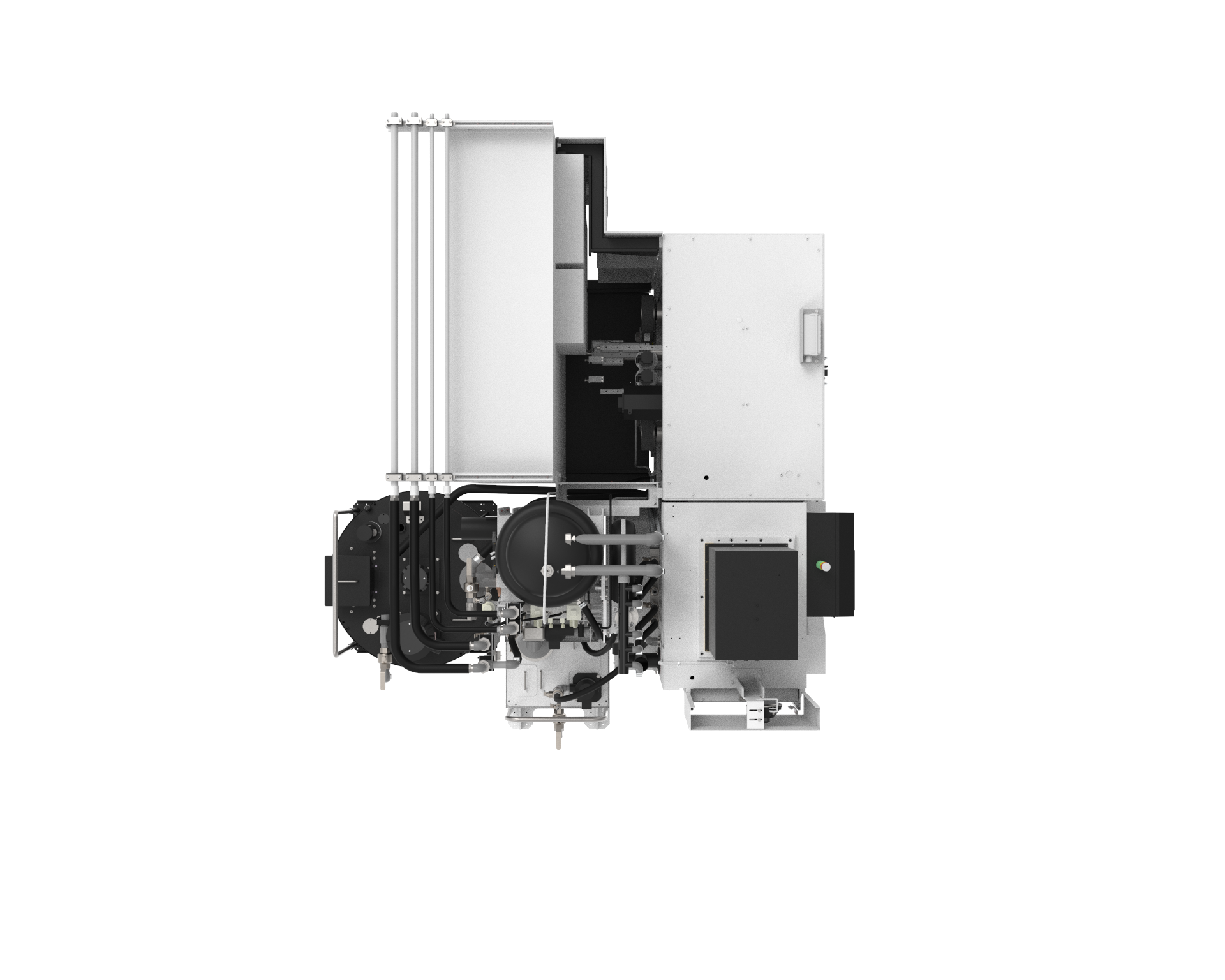

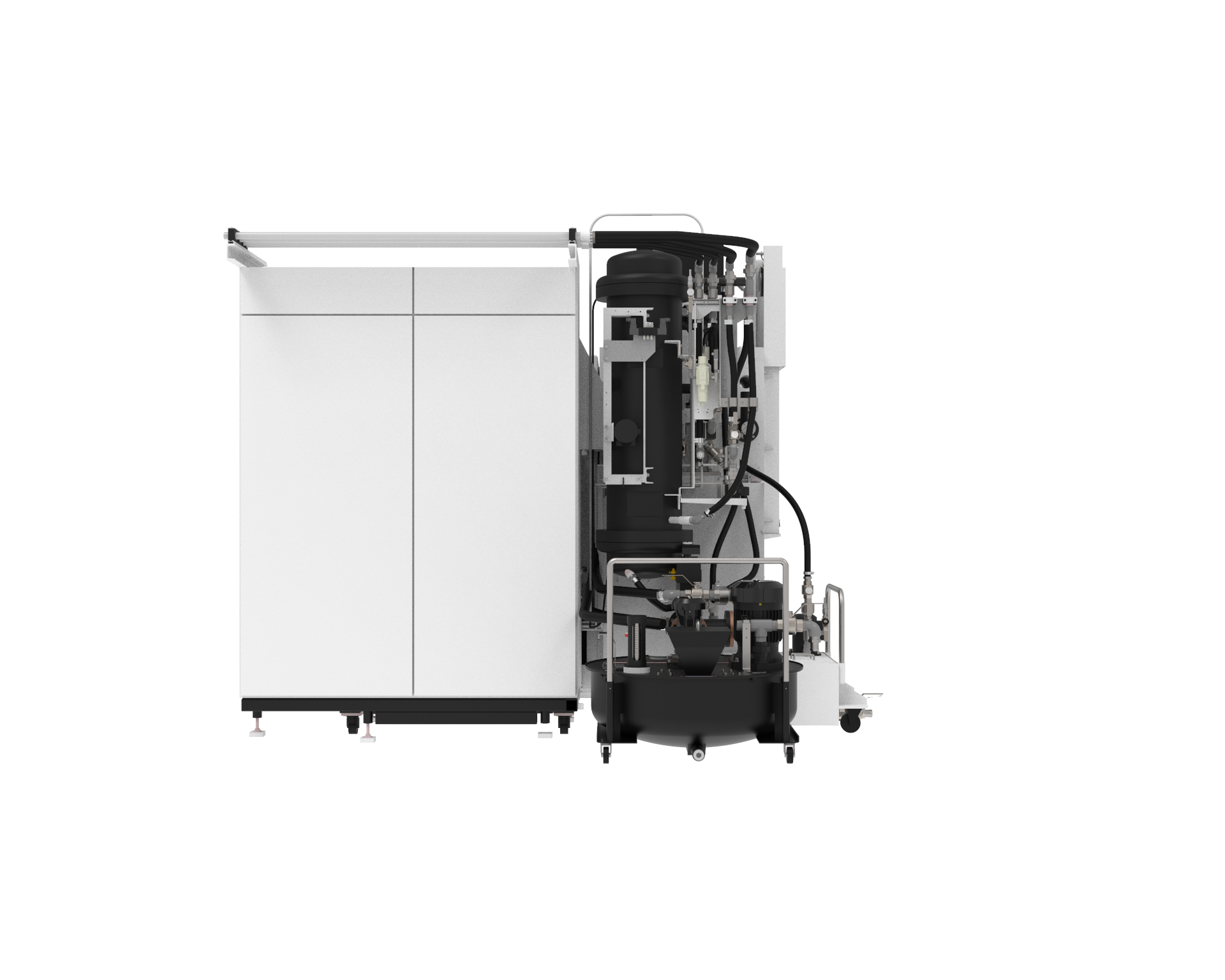

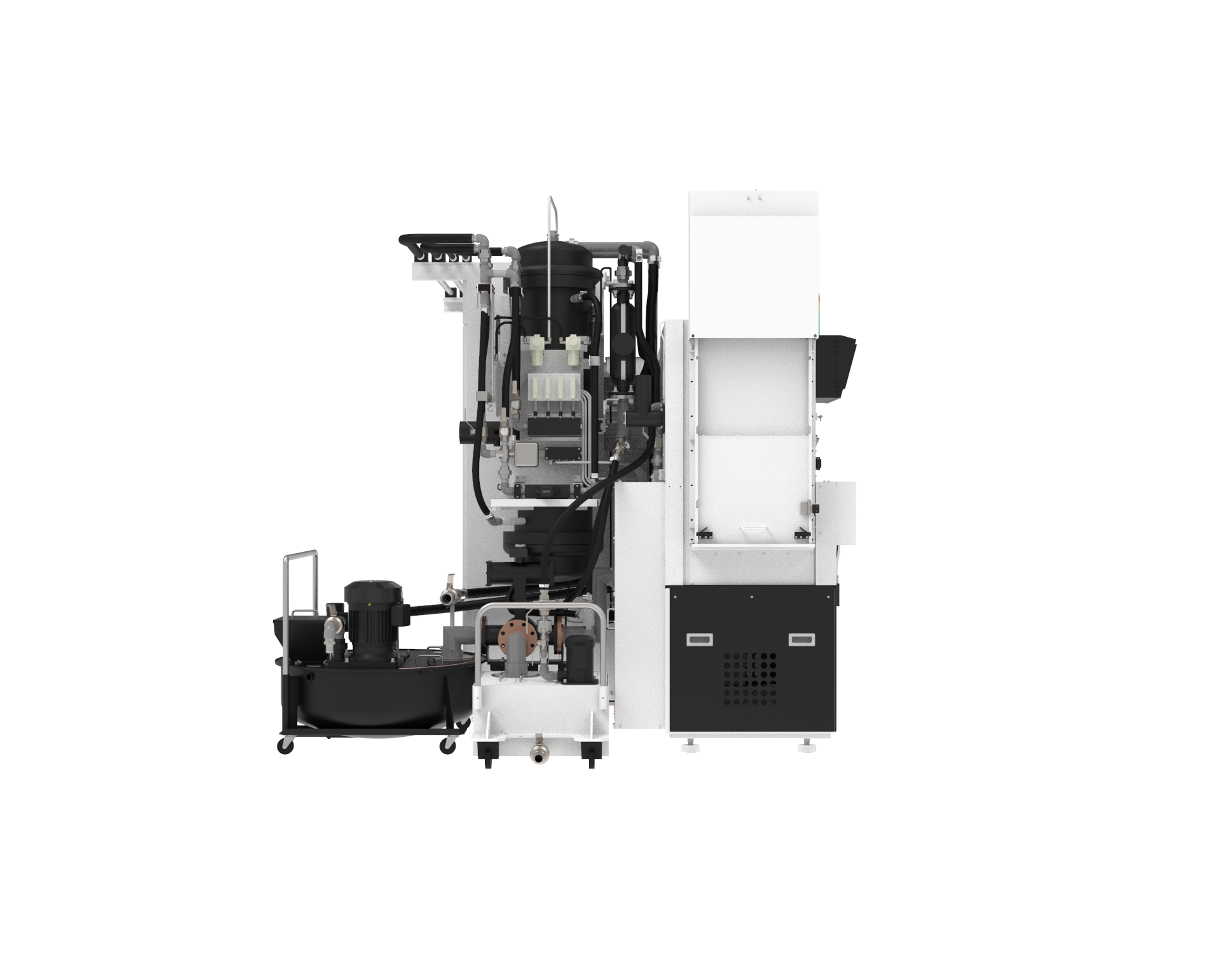

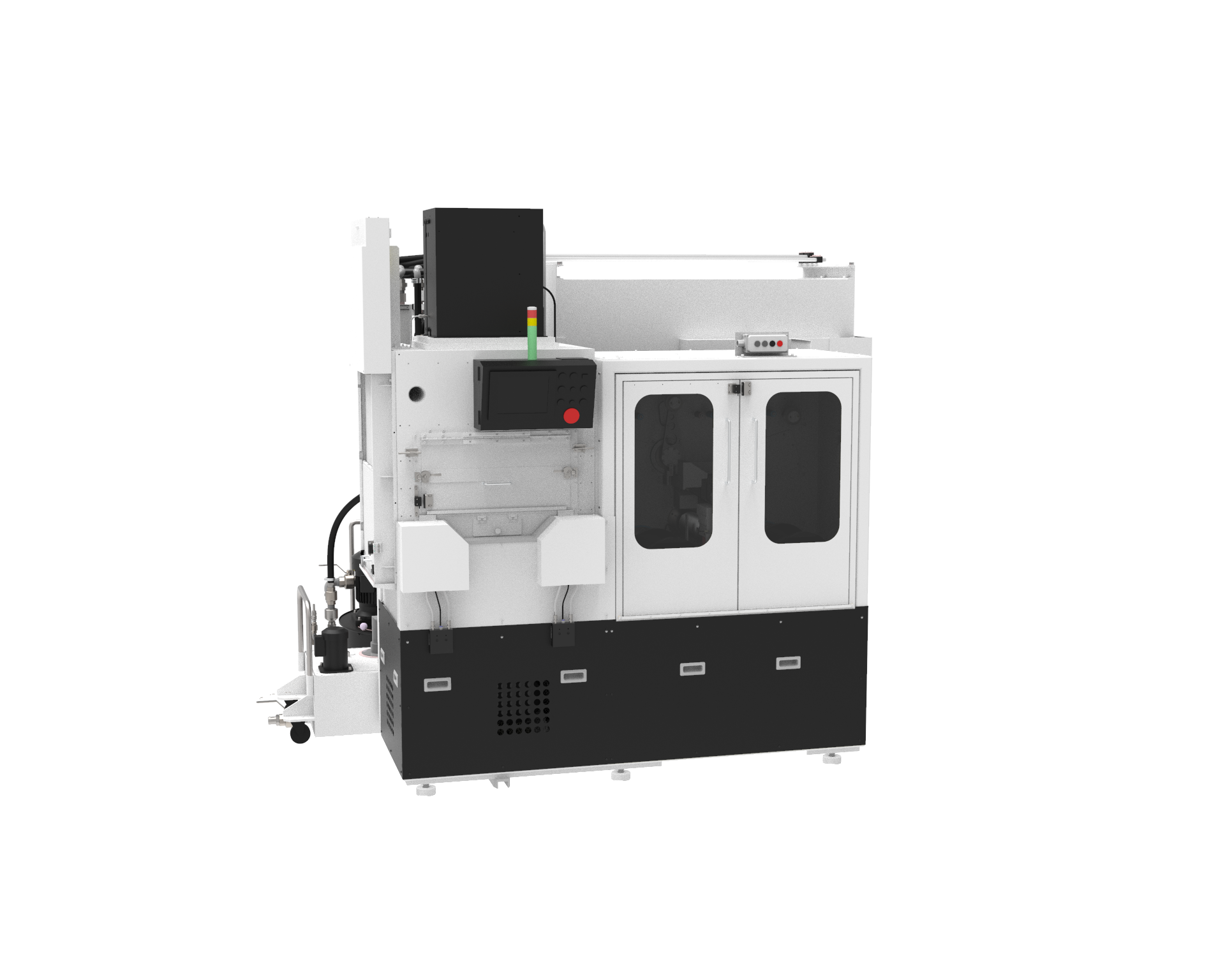

MWM442DM
Wafer manufacturing equipment
- Processing method Slurry
Purchase options
Contact usHigh-productivity compact wire saw ideal for slicing small workpieces
The MWM442DM multi-wire saw was designed for slicing semiconductor wafers and solar cell wafers as well as wafers of a small diameter. The MWM442DM is easy to use because of its compact design and is considered one of our best-selling machines.
- Reasonably priced compact design
- Simultaneous processing increases productivity
- Optimal processing method can be selected
Resources
Features and benefits
Reasonably priced compact design
The industry's smallest class compact machine designed for easy handling of small workpieces. It saves space and energy, and contributes to lower maintenance and management costs at factories.
Optimal processing method can be selected
Wire running can be switched between unidirectional and bidirectional. The running method can be selected according to the required quality. Tooling can be selected to suit the workpiece, such as Φ100 x 3 cutting or Φ200 x 1 cutting.
Simultaneous processing increases productivity
Workpieces can be set in parallel and machined simultaneously. High productivity is realized in spite of its compact size.
Specifications
- Full specs
- Wire running method: Uni-directional/bi-directional/switchable
- Max wire speed (ft/min): 3281
- Max wire speed (m/min): 1000
- Tension range (N): 10-50
- Wire storage capacity: Φ0.12mm × 300km
- Cutting feed speed (in/min): 0.0004-0.098
- Cutting feed speed (mm/min): 0.01-2.50
- Power source used: 200V ± 10%
- Power consumption (kVA): 37
- Compressed air used: 600NL / min, 0.4MPa min
- Equipped NC: FANUC
- Machine size (W x L x H) (mm): 1,800 x 2,650 x 2,615
- Machine size (W x L x H) (in): 71 x 104 x 103
- Machine weight (kg): 5500
- Machine weight (lbs): 12125
- Max workpiece size (D x L x No.) (in): Φ5.9×L11.8×2pc (Standard specifications), Φ3.9×L11.8×3pc (Option), Φ7.9×L11.8×1pc (Special specifications)
- Max workpiece size (D x L x No.) (mm): Φ150×L300×2pc (Standard specifications), Φ100×L300×3pc (Option), Φ200×L300×1pc (Special specifications)
- Specialties: Wire saw
