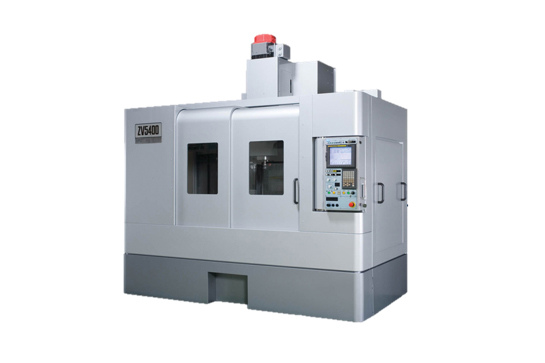

Product Image

Machine tools

ZV5400

Machining centers

  • Stroke X/Y/Z (in) 44.1/22.0/22.0
  • Stroke X/Y/Z (mm) 1,120/560/560
  • Spindle taper type (representative) BT/CAT
  • Max spindle speed (min-1) 12000
  • Machine weight (kg) 8300
  • Machine weight (lbs) 18200

Purchase options

Contact us

Super productivity, high rigidity and ultra performance

The ZV5400 is highly evolved for easy integration into a Flexible Machining Cell. Engineered for multiple machining operations and various kinds of workpieces

  • Machining center for multiple machining operations and various kinds of workpieces.

Resources


Specifications

Metric Imperial (US)
Expand all

  • Stroke X/Y/Z (mm): 1,120/560/560
  • Stroke X/Y/Z (in): 44.1/22.0/22.0
  • Spindle taper type: BT/CAT
  • Spindle speed (min-1): 100-12,000
  • Spindle motor output (kW): 18.5/15
  • Fast forwarding speed (m/min): 6,000 (2,3622.2 inches)
  • Number of tools stored (pcs): 25
  • Max tool length (mm): 340
  • Max tool length (in): 13.4
  • Max tool diameter (in): 3.5 (with adjacent tool) or 7.1 (without adjacent tool)
  • Max tool diameter (mm): 90 (with adjacent tool) or 180 (without adjacent tool)
  • Control unit (maker): FANUC 18iMB
  • Machine mass (lbs): 18200
  • Machine mass (kg): 8300
  • Machine height (mm): 2910
  • Machine height (in): 114.6
  • Required floor space (mm): 3,096 x 3,290
  • Required floor space (in): 121.9 x 129.5

Product features

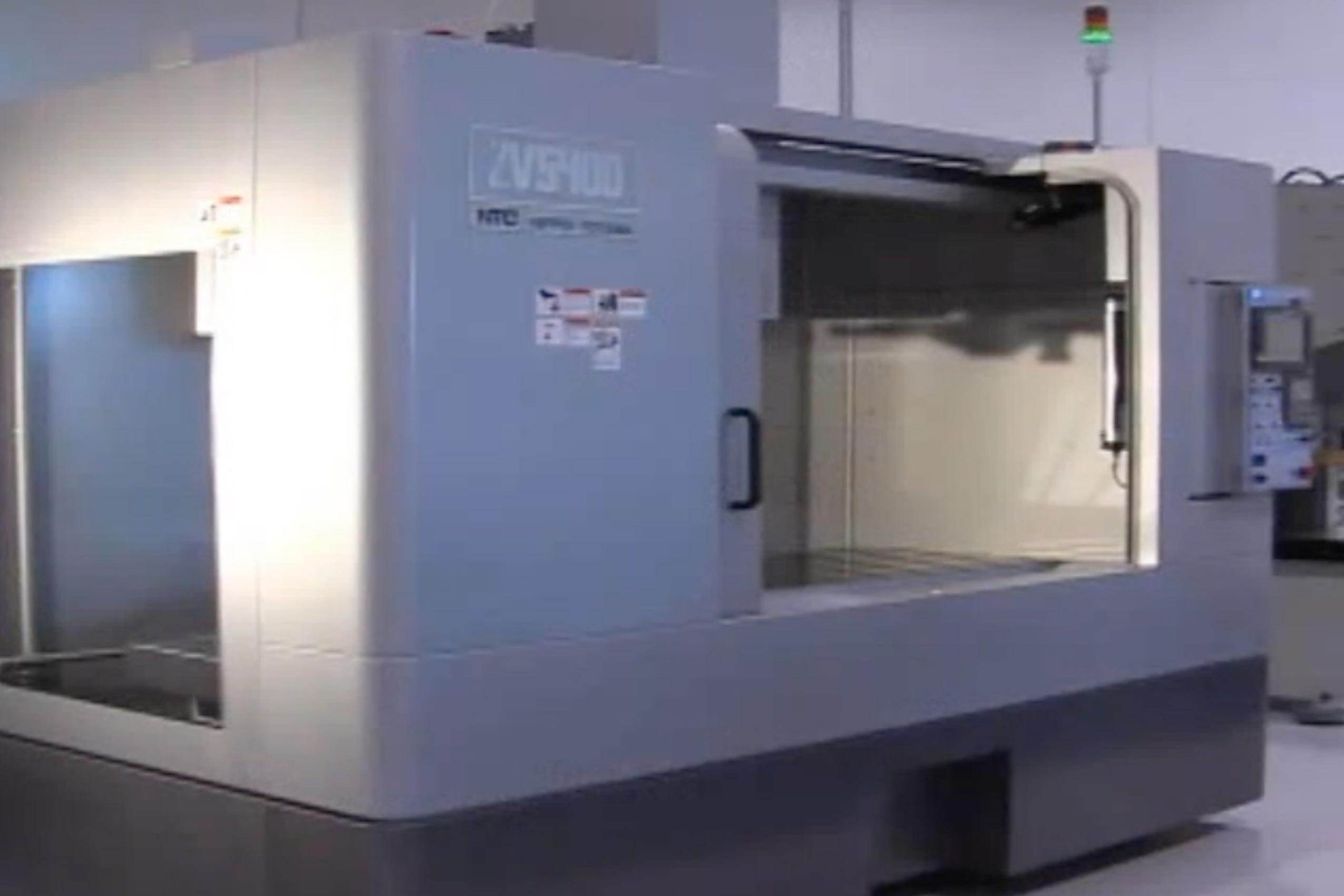

The following video introduces the machine features of the ZV5400

Video thumbnail
