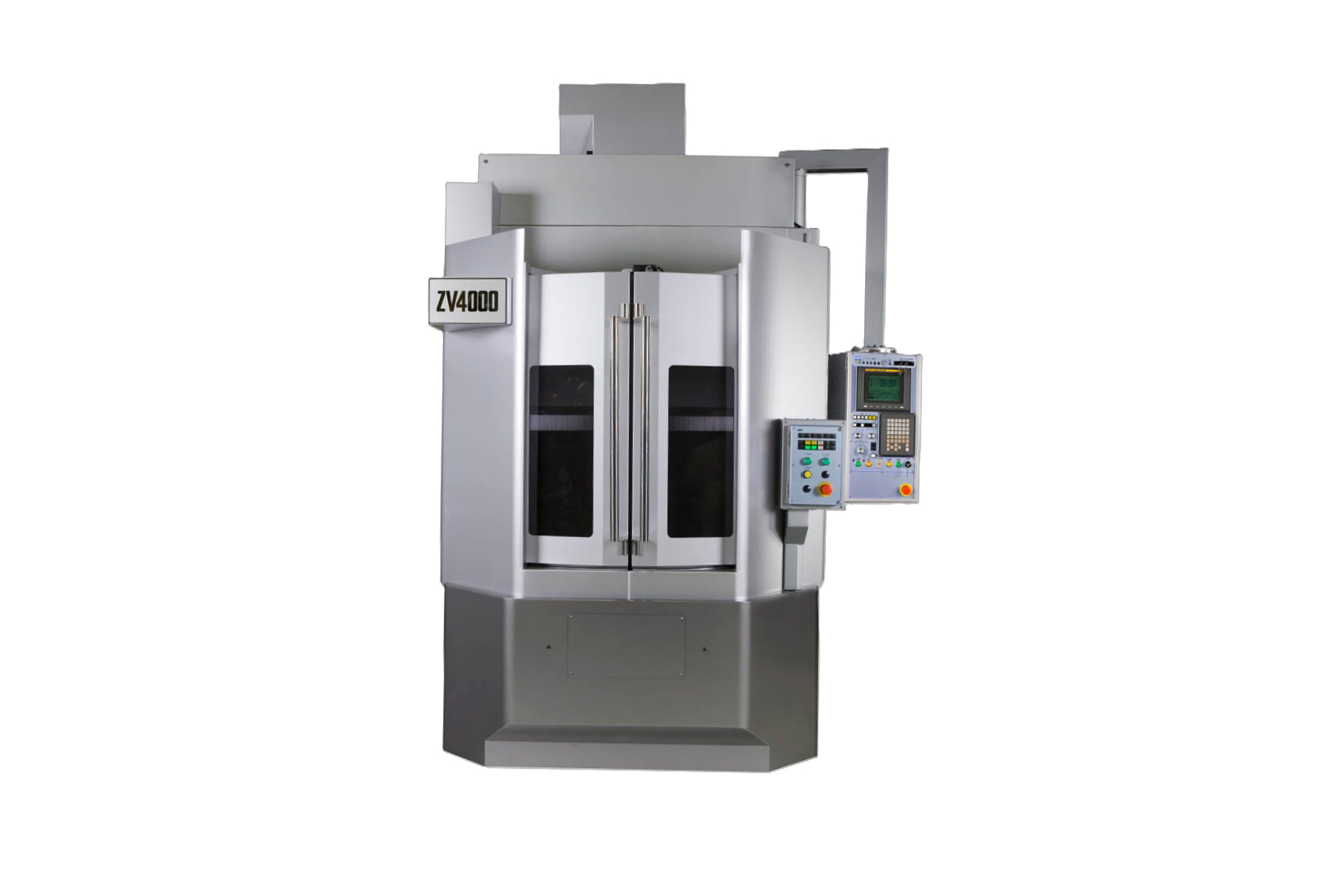

Product Image

Machine tools

ZV4000

Machining centers

  • Stroke X/Y/Z (in) 23.6/17.7/17.7
  • Stroke X/Y/Z (mm) 600/450/450
  • Spindle taper type (representative) BT/CAT
  • Max spindle speed (min-1) 12000
  • Machine weight (kg) 9000
  • Machine weight (lbs) 19800

Purchase options

Contact us

A highly flexible solution for the crankshaft applications and small steel product machining

The compact #40 Z4000 machine – which demonstrates our expertise in applying space-saving technologies – is ideal for processing small workpieces and steel rod parts.

  • Exhibits exceptional stiffness for stable machining performance.
  • Offers high flexibility to adapt to various production needs.
  • Provides a variety of options to support specific production line requirements.

Resources


Specifications

Metric Imperial (US)
Expand all

  • Stroke X/Y/Z (mm): 600/450/450
  • Stroke X/Y/Z (in): 23.6/17.7/17.7
  • Spindle taper type: BT/CAT
  • Spindle speed (min-1): 100-12,000
  • Spindle motor output (kW): 15/11
  • Fast forwarding speed (m/min): 5,000 (1,968.5 in/min)
  • Number of tools stored (pcs): 32
  • Max tool length (mm): 250
  • Max tool length (in): 9.8
  • Max tool diameter (in): 3.0 (with adjacent tool) or 4.3 (without adjacent tool)
  • Max tool diameter (mm): 75 (with adjacent tool) or 110 (without adjacent tool)
  • Control unit (maker): FANUC 18iMB
  • Machine mass (lbs): 19800
  • Machine mass (kg): 9000
  • Machine size (W x D x H) (in): 19800
  • Machine height (mm): 3135
  • Machine height (in): 123.4
  • Required floor space (mm): 2,075 x 4,215
  • Required floor space (in): 81.7 x 165.9

Product features

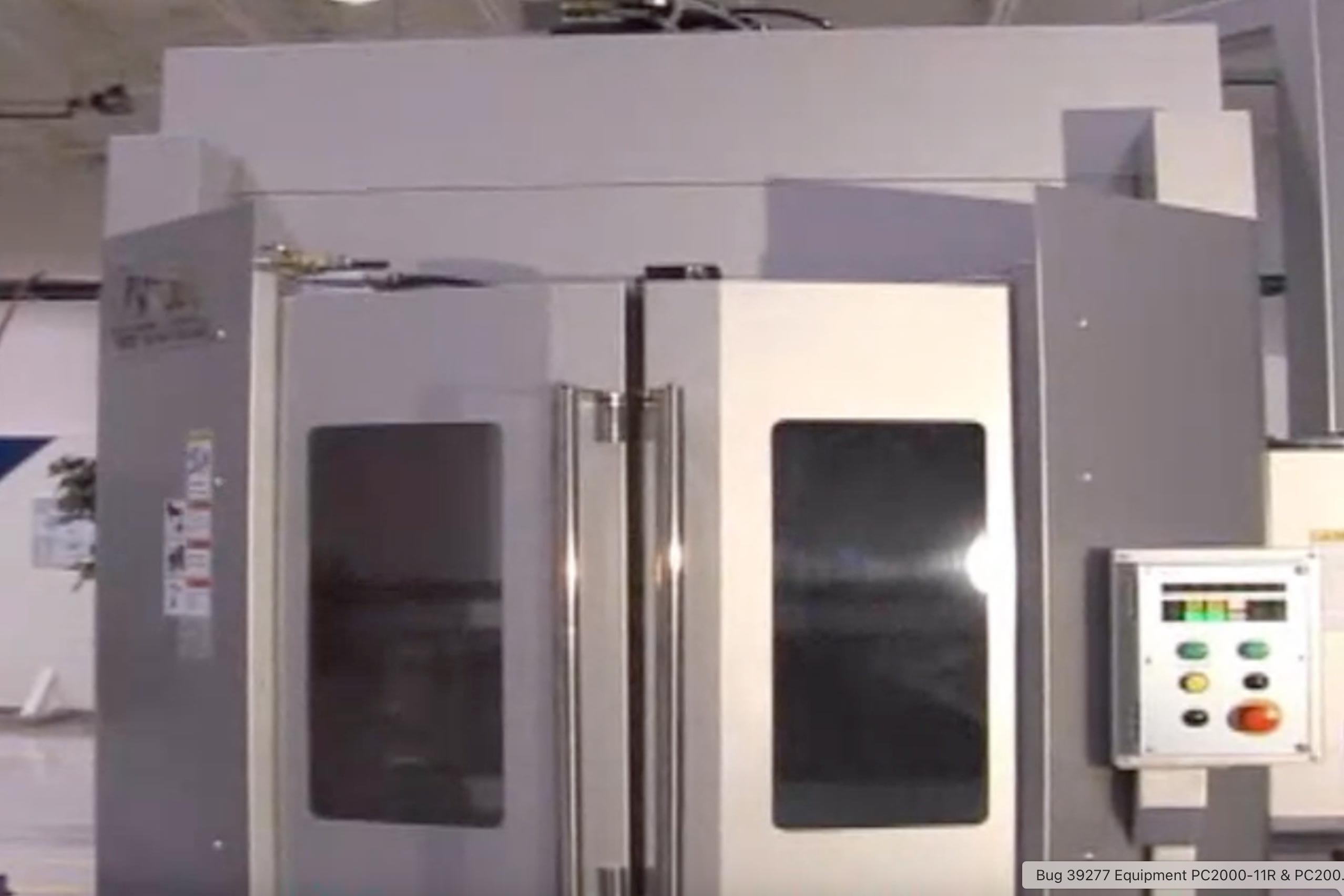

The following video introduces the machine features of the ZV4000
