Machine tools

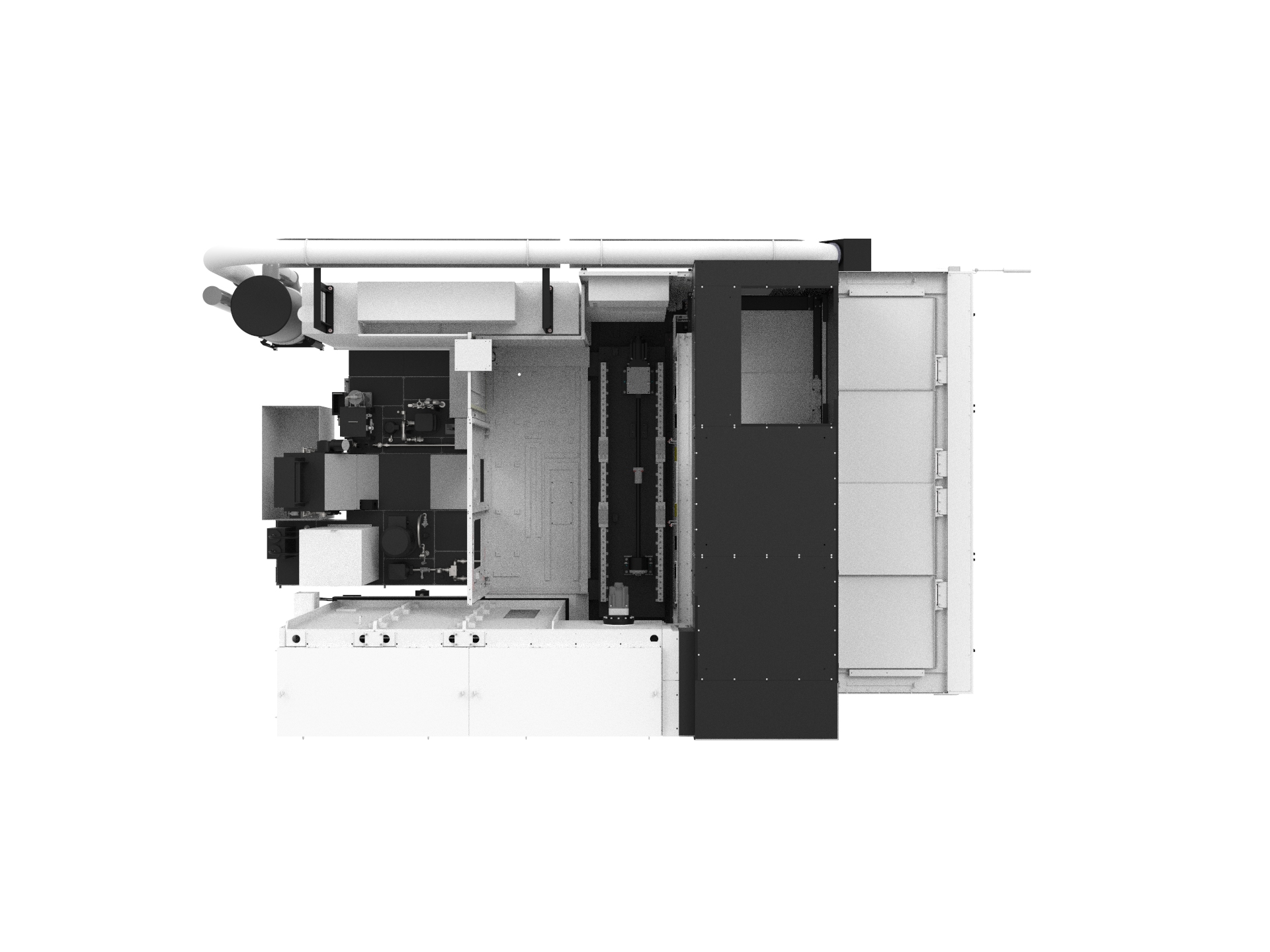

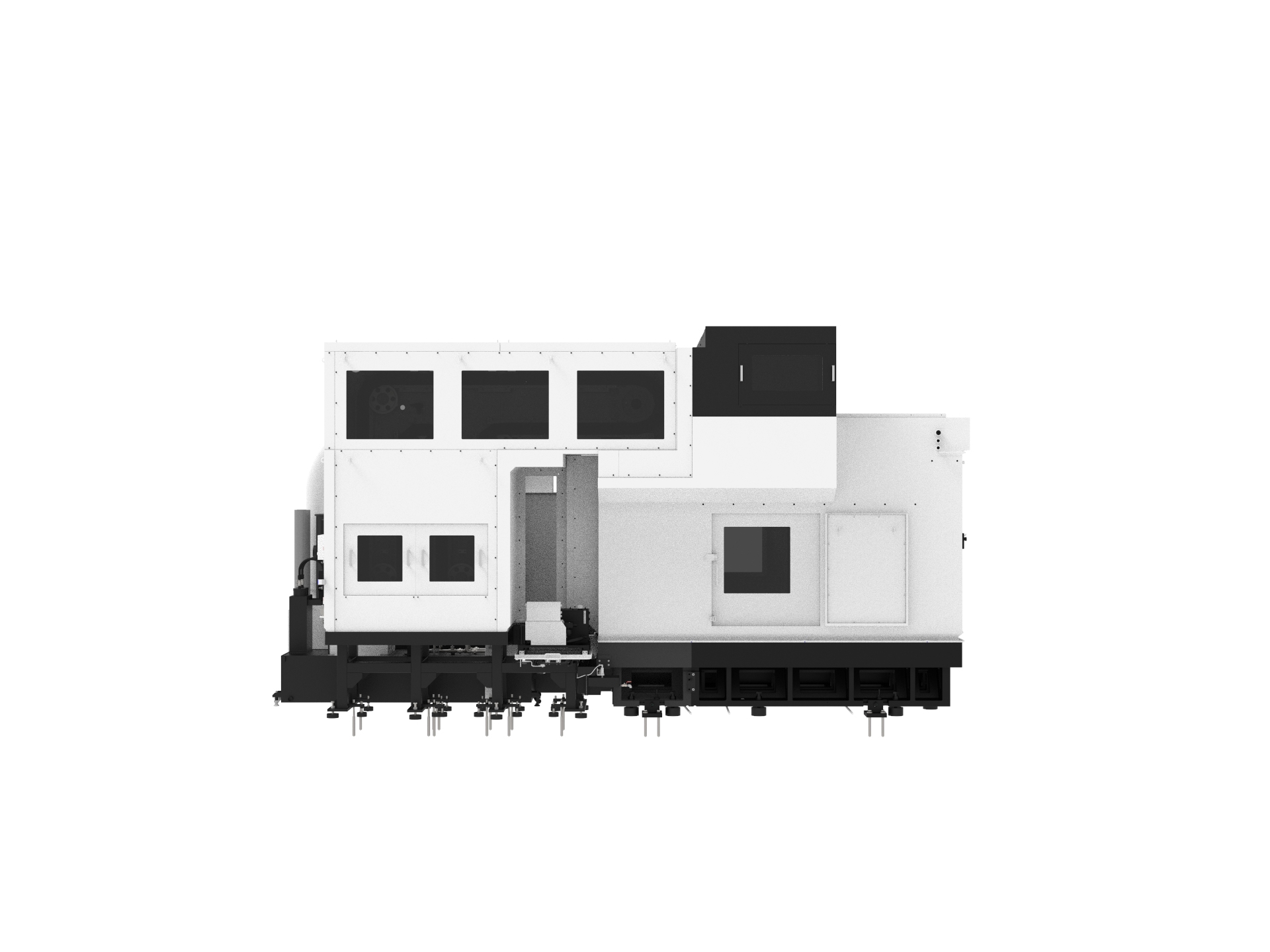

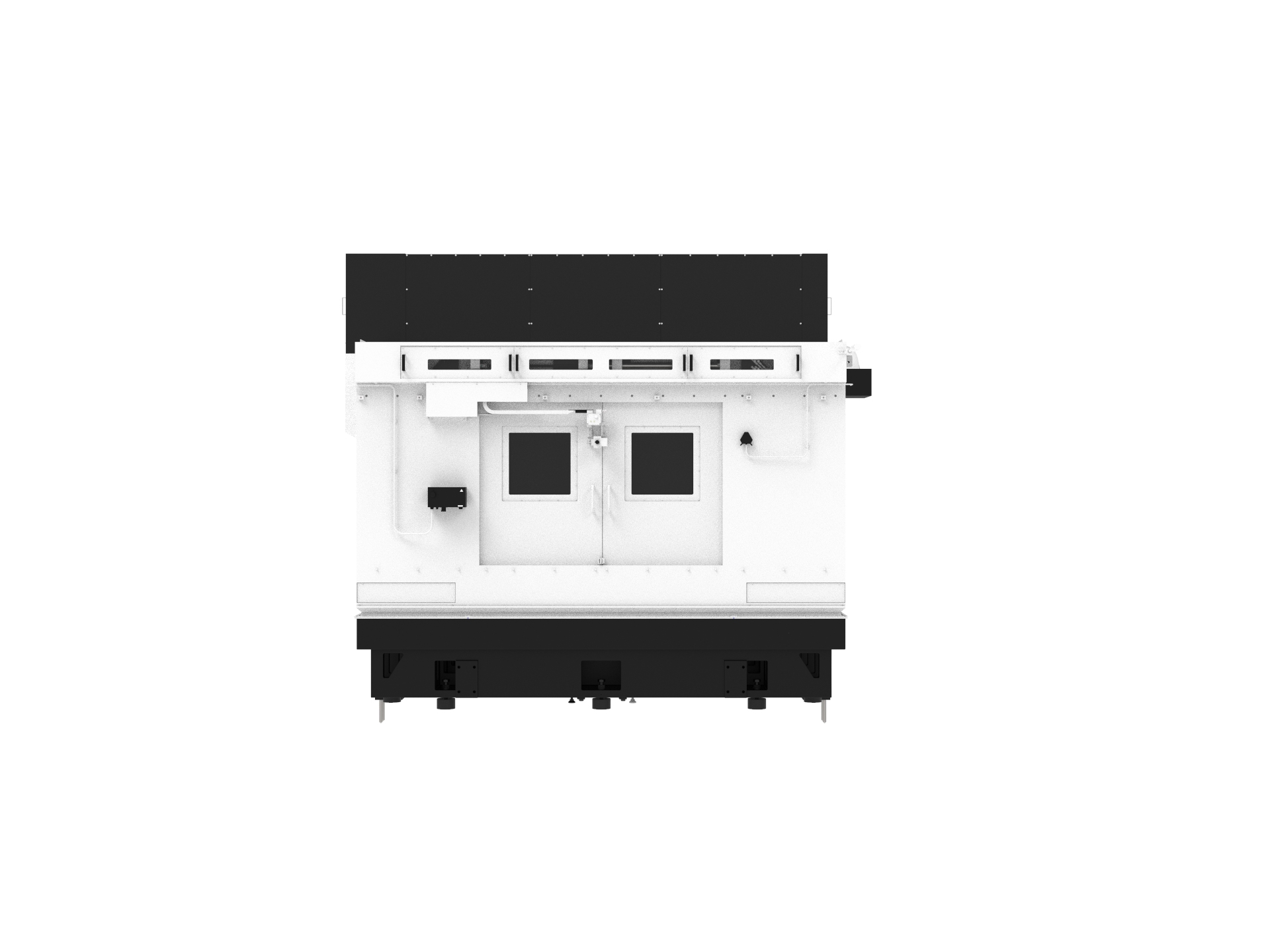

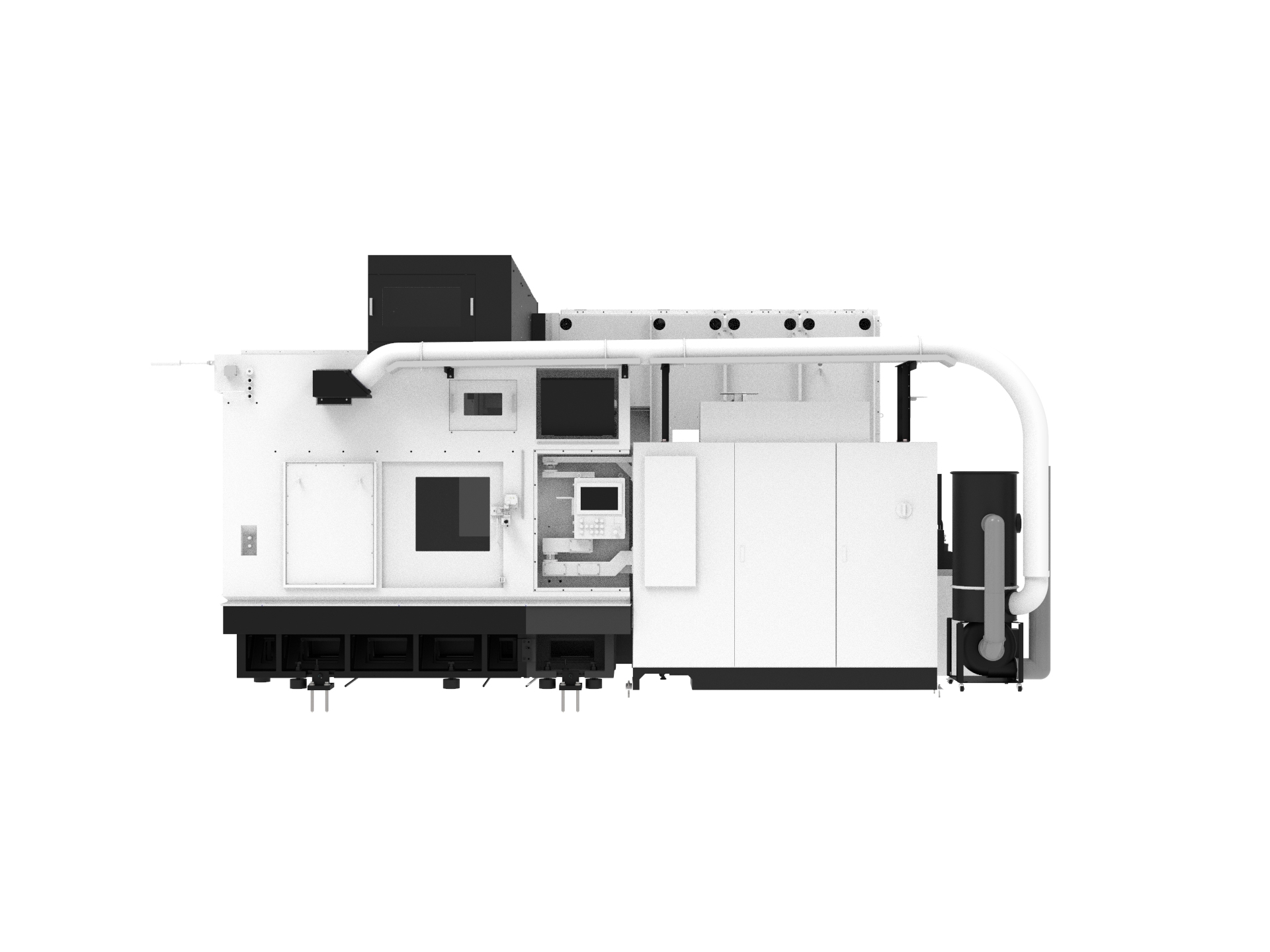

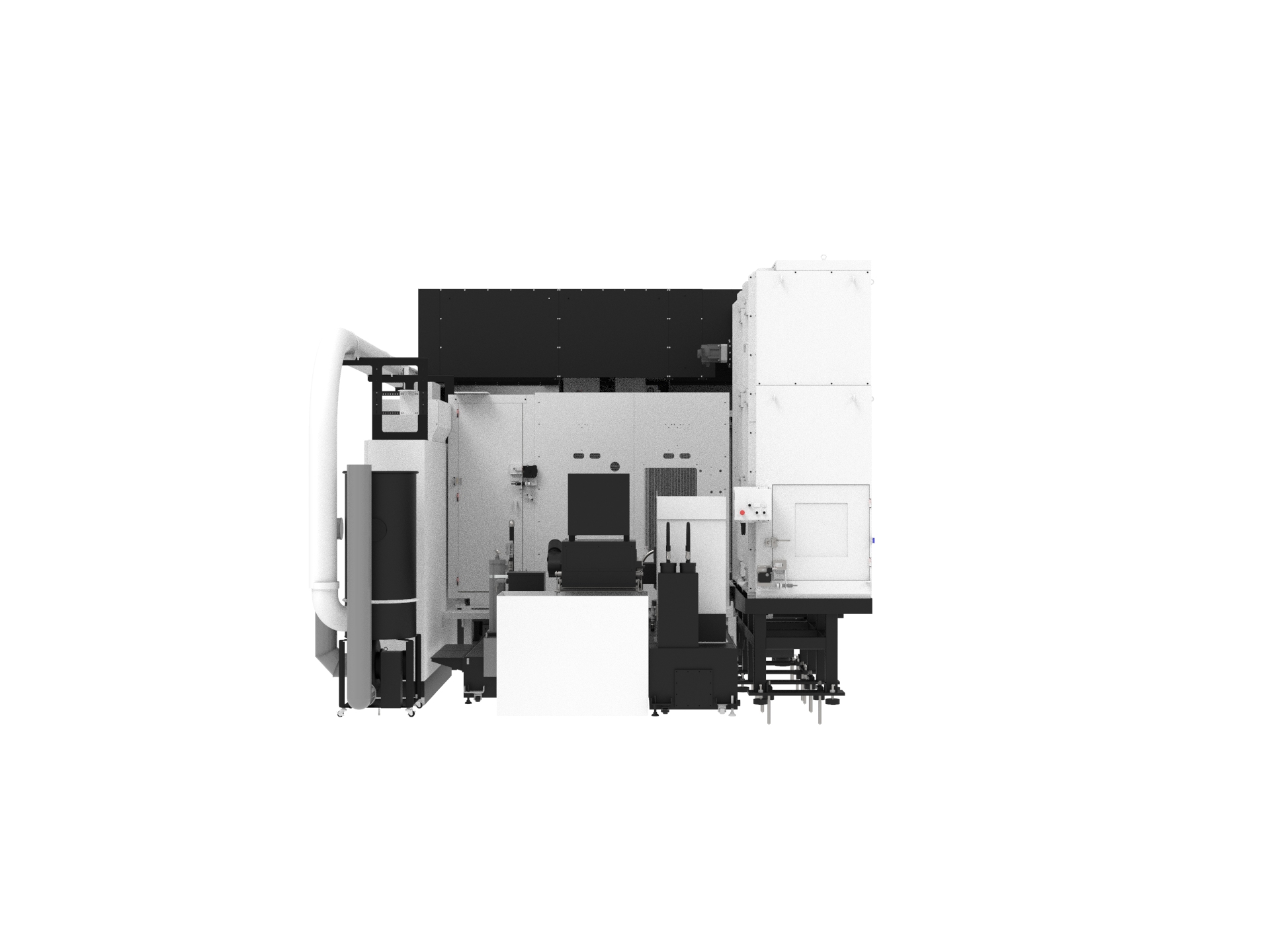

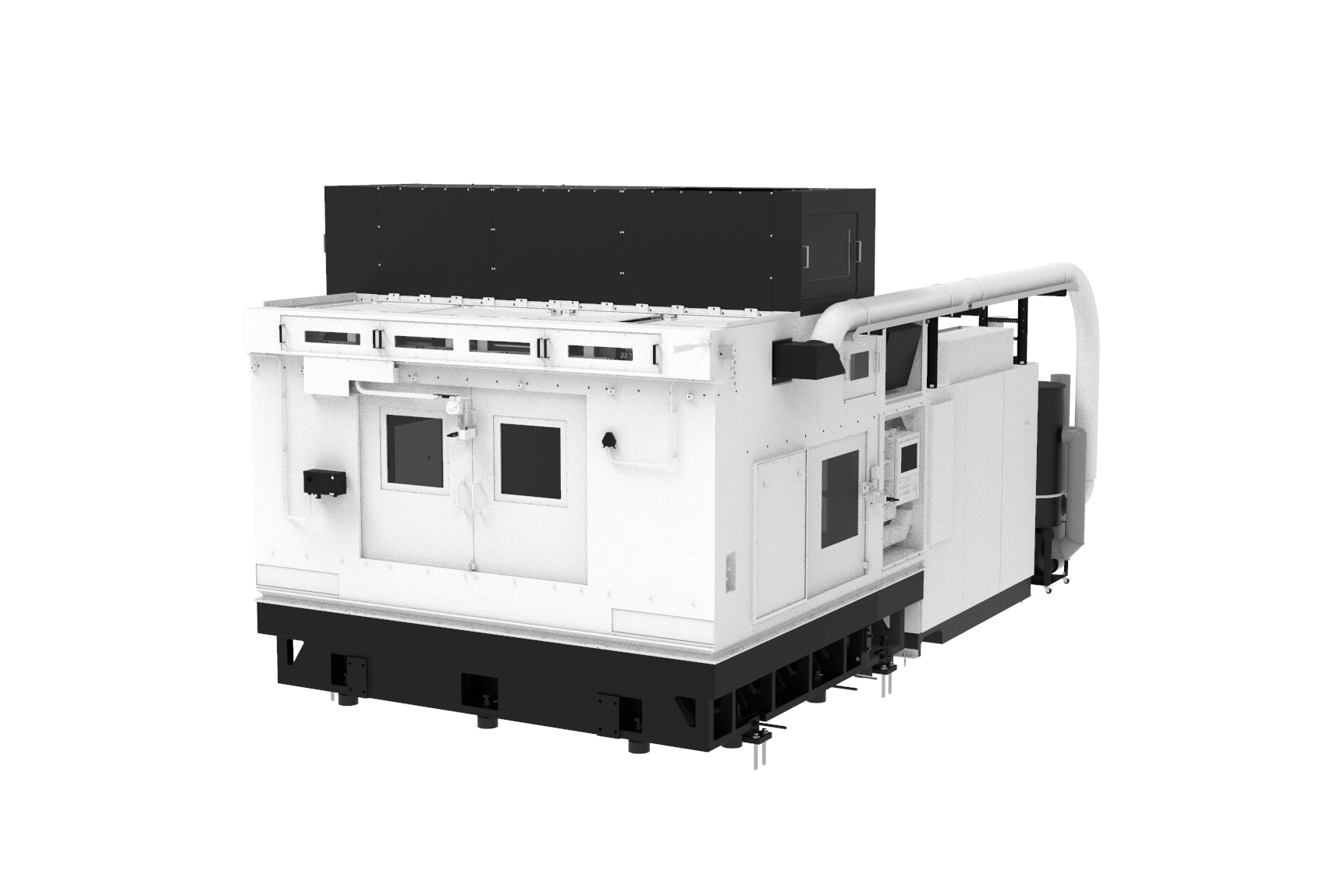

NX500
Machining centers
- Stroke X/Y/Z (in) 59.1/31.5/35.4
- Stroke X/Y/Z (mm) 1,500/800/900
- Spindle taper type (representative) HSK-A100
- Max spindle speed (min-1) 6000
- Number of storage bottles (standard) (pcs) 64
- Machine weight (kg) 43000
- Machine weight (lbs) 94799
Purchase options
Contact usLong-time unmanned operation #50 horizontal MC
Flagship Machining Center "NX Series"
- Provides high precision, high rigidity, and high reliability for demanding machining tasks.
- NX Series structure supports full integration with automation systems to maximize productivity.
- Offers two spindle taper options, #40 and #50, to suit various machining requirements.
Resources
Features and benefits
Wide stroke of 1500 mm on X-axis
Optimized configuration of each axis unit for stable machining of long workpieces. The infeed Z-axis is equipped with double linear guides and twin ballscrews on the left and right sides to improve not only rigidity but also responsiveness and accuracy stability. The additional axis can also be used for TILT & INDEX.
High static rigidity machine is top of its class
The rigidity between the spindle and jig loops has been improved by rigidity analysis. In particular, the Z-axis static rigidity is at the top level in its class, enabling highly efficient machining under high loads.
Intelligent spindle spindle assembly
Highly reliable spindle spindle, cultivated on 24-hour production lines in the automotive industry, is equipped with automatic monitoring devices. The high-precision sensing function that monitors the spindle cutting edge condition has a function to constantly monitor the spindle to prevent quality defects from flowing.
Compatible with SMART-FTL automatic step change system
The NX series has the functions and mechanisms required for a high utilization rate automatic changeover system, enabling sequential changeovers according to an automatic schedule and minimizing waste.
Specifications
- Full specs
- Stroke X/Y/Z (mm): 1,500/800/900
- Stroke X/Y/Z (in): 59.1/31.5/35.4
- Spindle taper type: HSK-A100
- Spindle speed (min-1): 100-6,000
- Spindle motor output (kW): 30/22
- Fast forwarding speed (m/min): X=60, Y/Z=50
- Number of tools stored (pcs): 100
- Max tool length (mm): 600
- Max tool length (in): 25.6
- Max tool diameter (in): 9.8
- Max tool diameter (mm): 250
- Control unit (maker): FANUC
- Machine mass (lbs): 66189
- Machine mass (kg): 30000
- Machine size (W x D x H) (in): 167.3 x 253.9 x 145.7
- Machine size (W x D x H) (mm): 4,250 x 6,450 x 3,700
