Machine tools

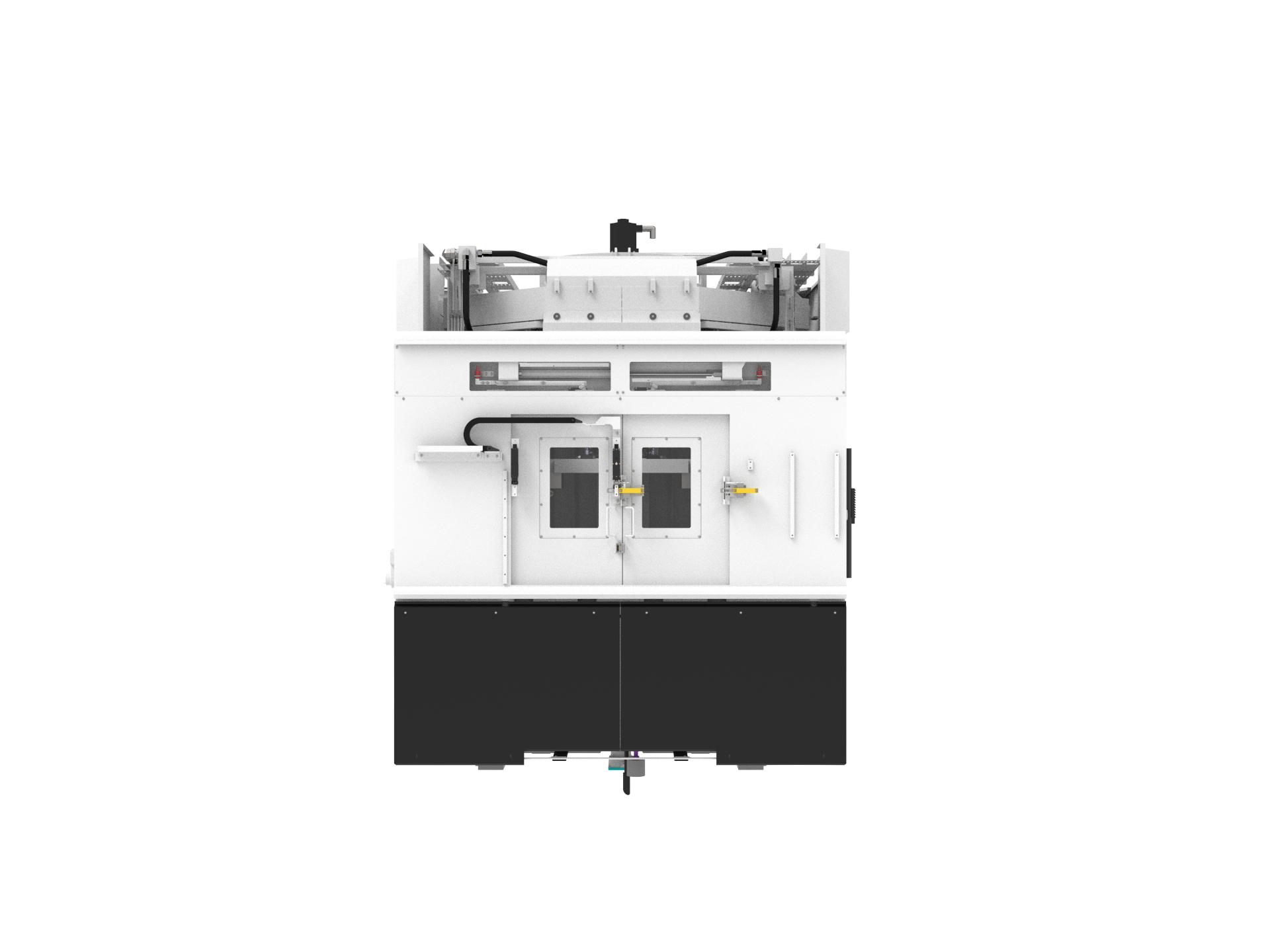

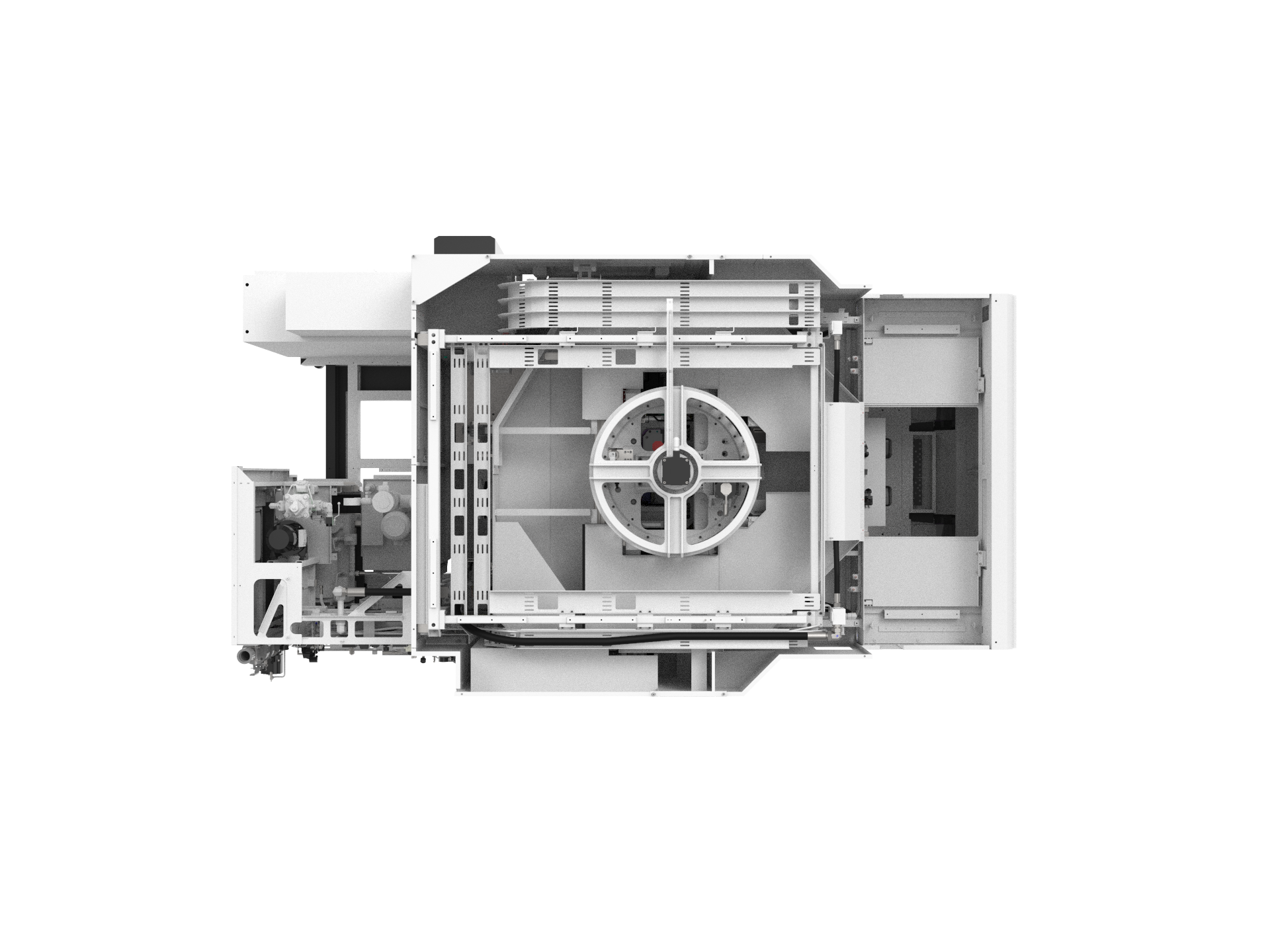

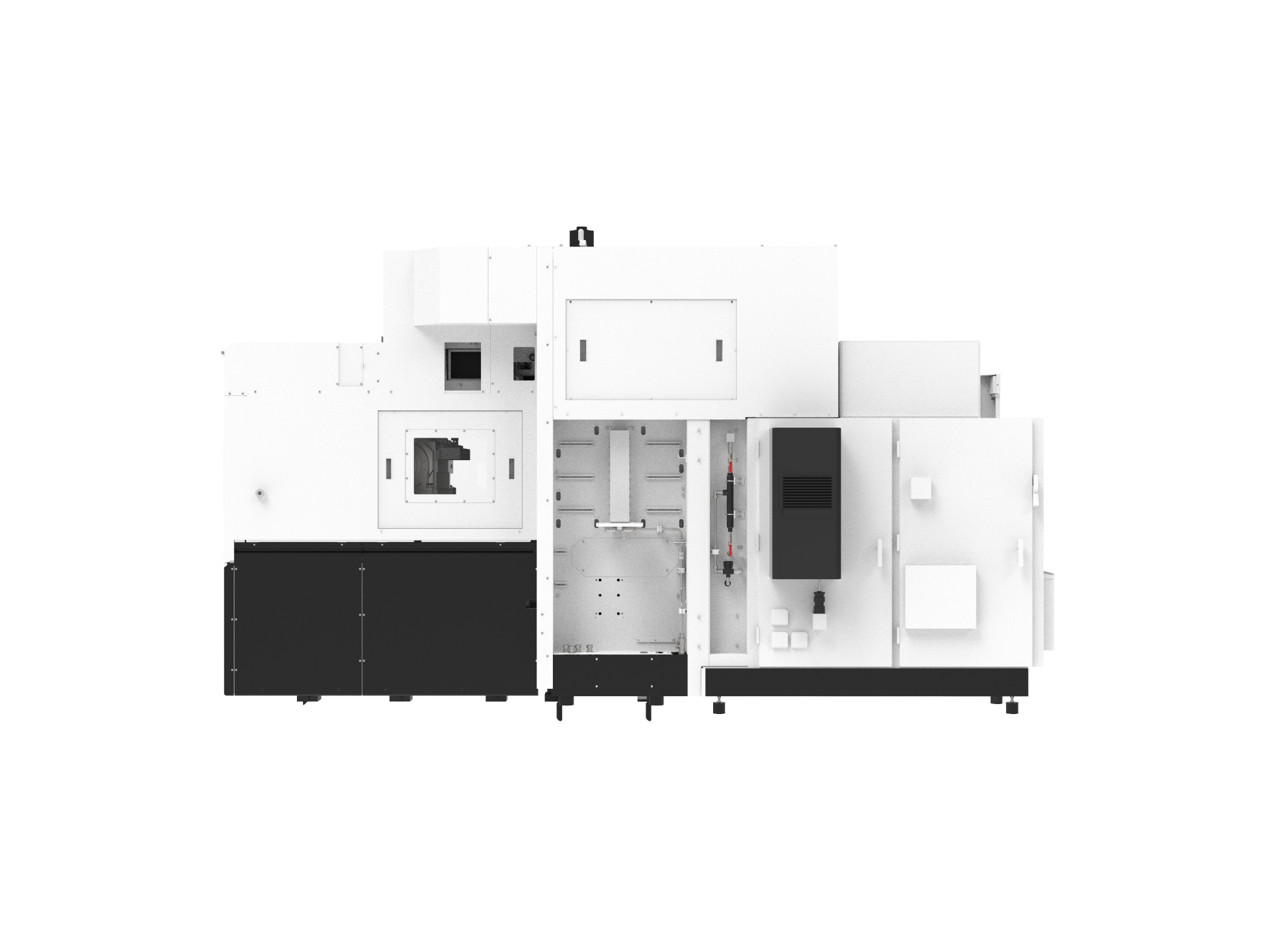

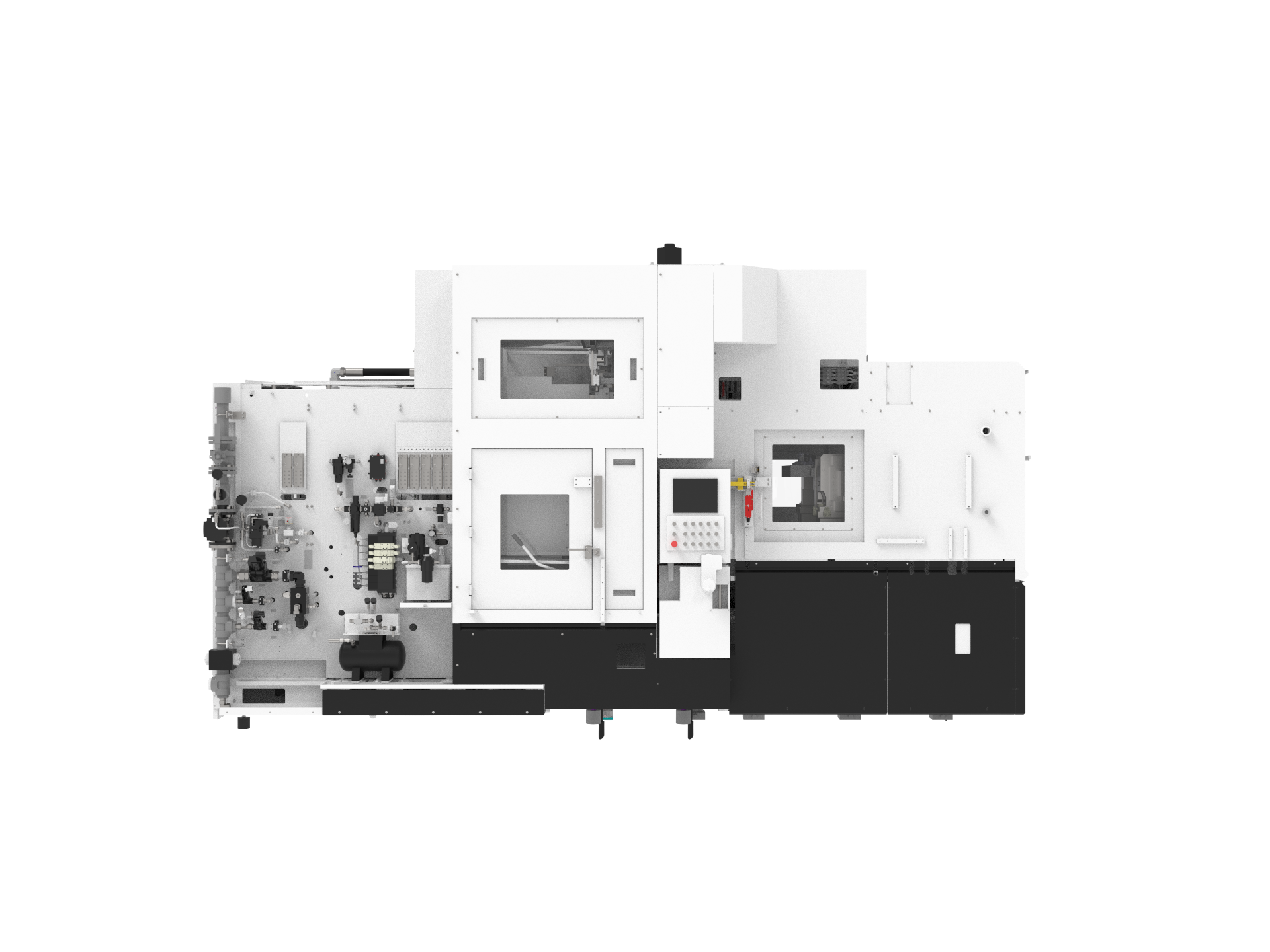

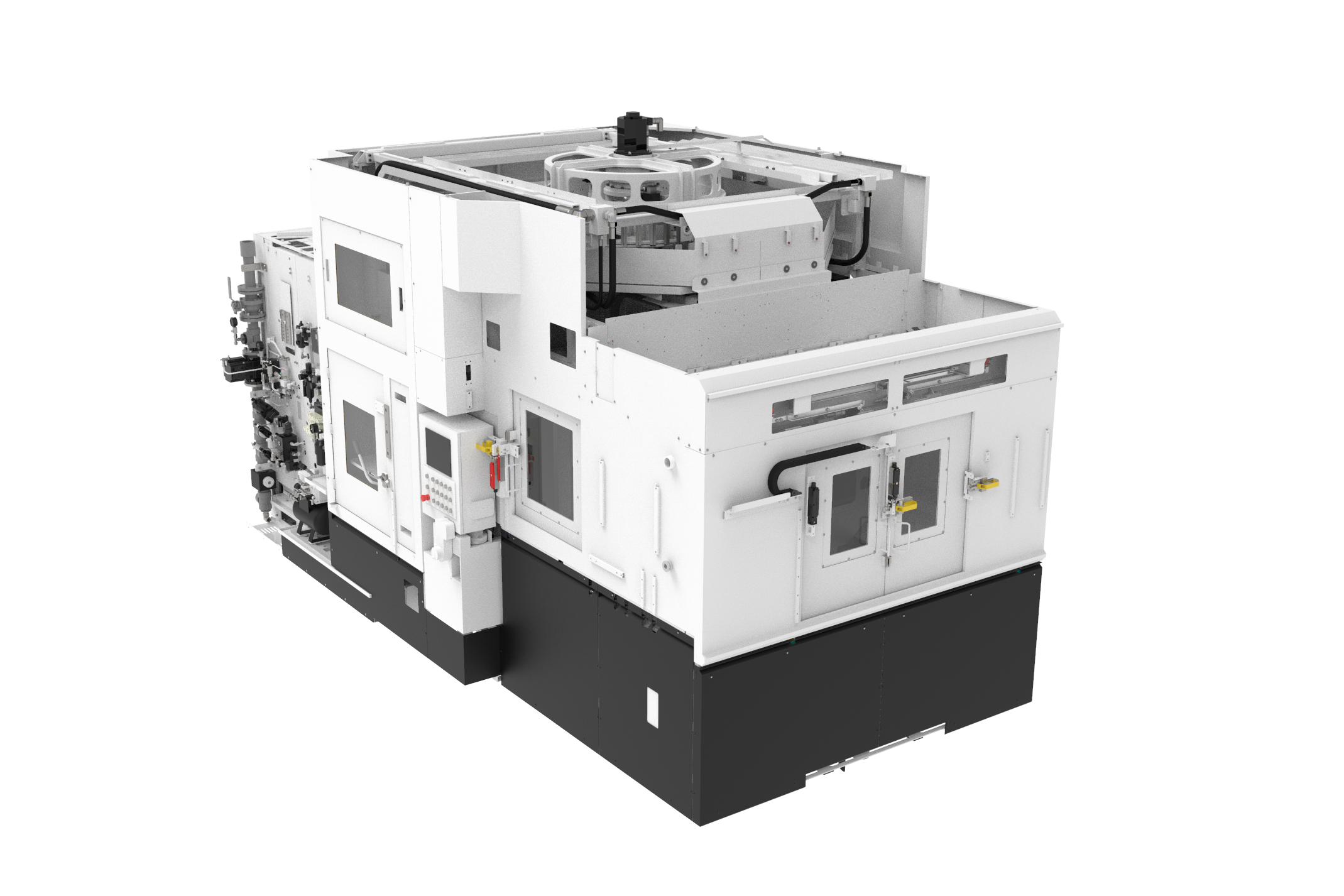

NX400
Machining centers
- Stroke X/Y/Z (in) 23.6/23.6/27.6
- Stroke X/Y/Z (mm) 600/600/700
- Spindle taper type (representative) HSK-A63
- Max spindle speed (min-1) 12000
- Number of storage bottles (standard) (pcs) 39
- Machine weight (kg) 23000
- Machine weight (lbs) 50706
Purchase options
Contact usLong-time unmanned operation #40 horizontal MC
Flagship Machining Center "NX Series"
- Delivers high precision, high rigidity, and high reliability for demanding machining applications.
- NX Series structure supports full integration with automation systems.
- Designed to maximize productivity across fully automated manufacturing lines.
- Two types of spindle tapers #40 and #50 are available for the series.
Resources
Features and benefits
Intelligent spindle spindle assembly
Highly reliable spindle spindle, cultivated on 24-hour production lines in the automotive industry, is equipped with automatic monitoring devices. The high-precision sensing function that monitors the spindle cutting edge condition has a function to constantly monitor the spindle to prevent quality defects from flowing.
Class-leading static rigidity
Rigidity analysis was performed to increase the loop-to-loop rigidity of the spindle spindle and jig, and the Z-axis in particular has a top-class static rigidity, supporting increased productivity through highly efficient machining.
Compatible with SMART-FTL automatic step change system
The NX series has the functions and mechanisms required for a high utilization rate automatic changeover system, enabling sequential changeovers according to an automatic schedule and minimizing waste.
Line monitoring "Kom-mics" & cutting tool condition monitoring "Komtas" can be installed
It enables monitoring of line operation status, processing load status, tool change timing, and various oil levels. The addition of this device will help visualize and reduce waste on the shop floor.
Specifications
- Full specs
- Stroke X/Y/Z (mm): 600/600/700
- Stroke X/Y/Z (in): 23.6/23.6/27.6
- Spindle taper type: HSK-A63
- Spindle speed (min-1): 100-12,000
- Spindle motor output (kW): 11/7.5
- Fast forwarding speed (m/min): 60
- Number of tools stored (pcs): 39
- Max tool length (mm): 300
- Max tool length (in): 11.8
- Max tool diameter (in): 9.8
- Max tool diameter (mm): 250
- Control unit (maker): FANUC
- Machine mass (lbs): 50706
- Machine mass (kg): 23000
- Machine size (W x D x H) (in): 118.1 x 236.2 x 126.0
- Machine size (W x D x H) (mm): 3,000 x 6,000 x 3,200
