Machine tools

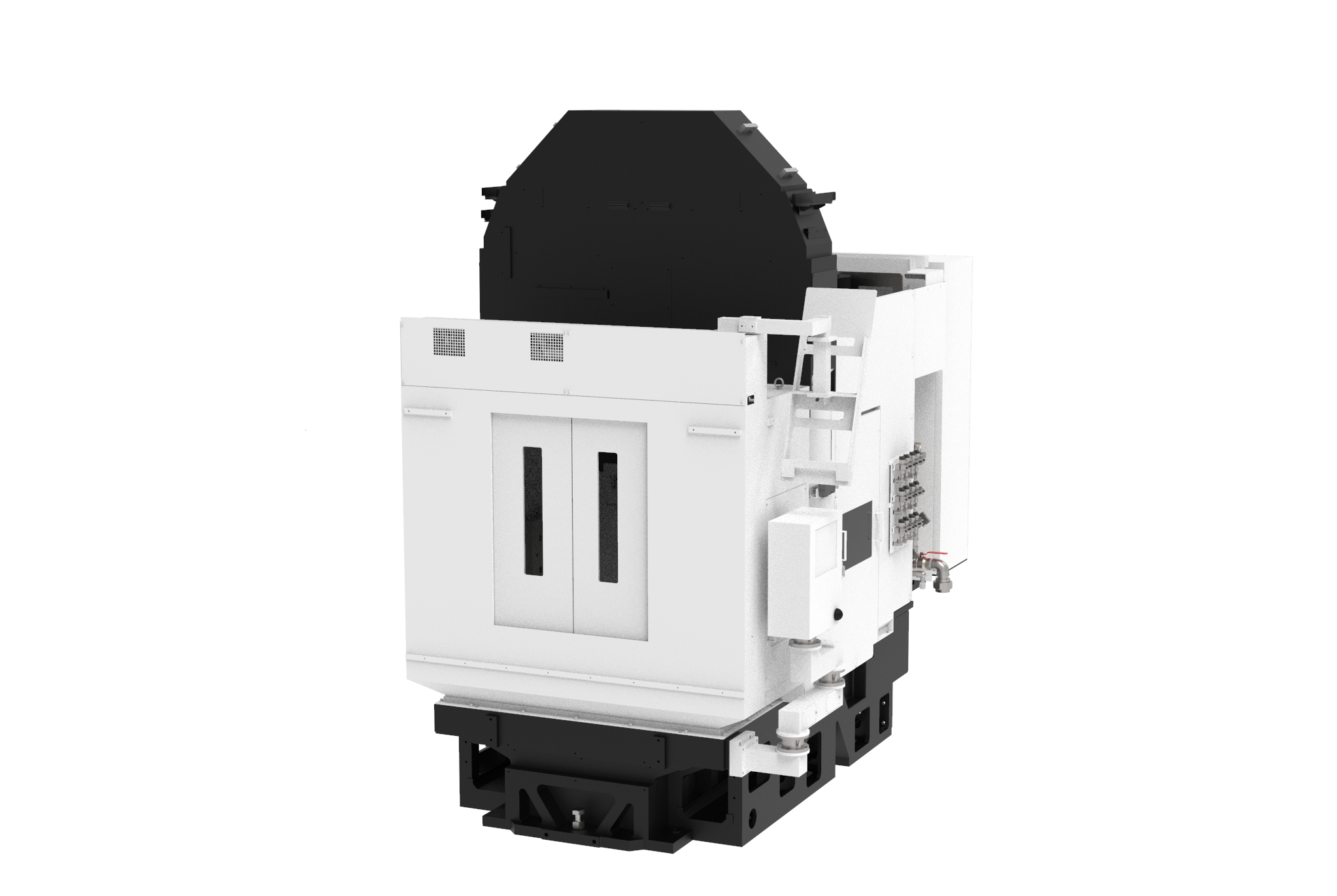

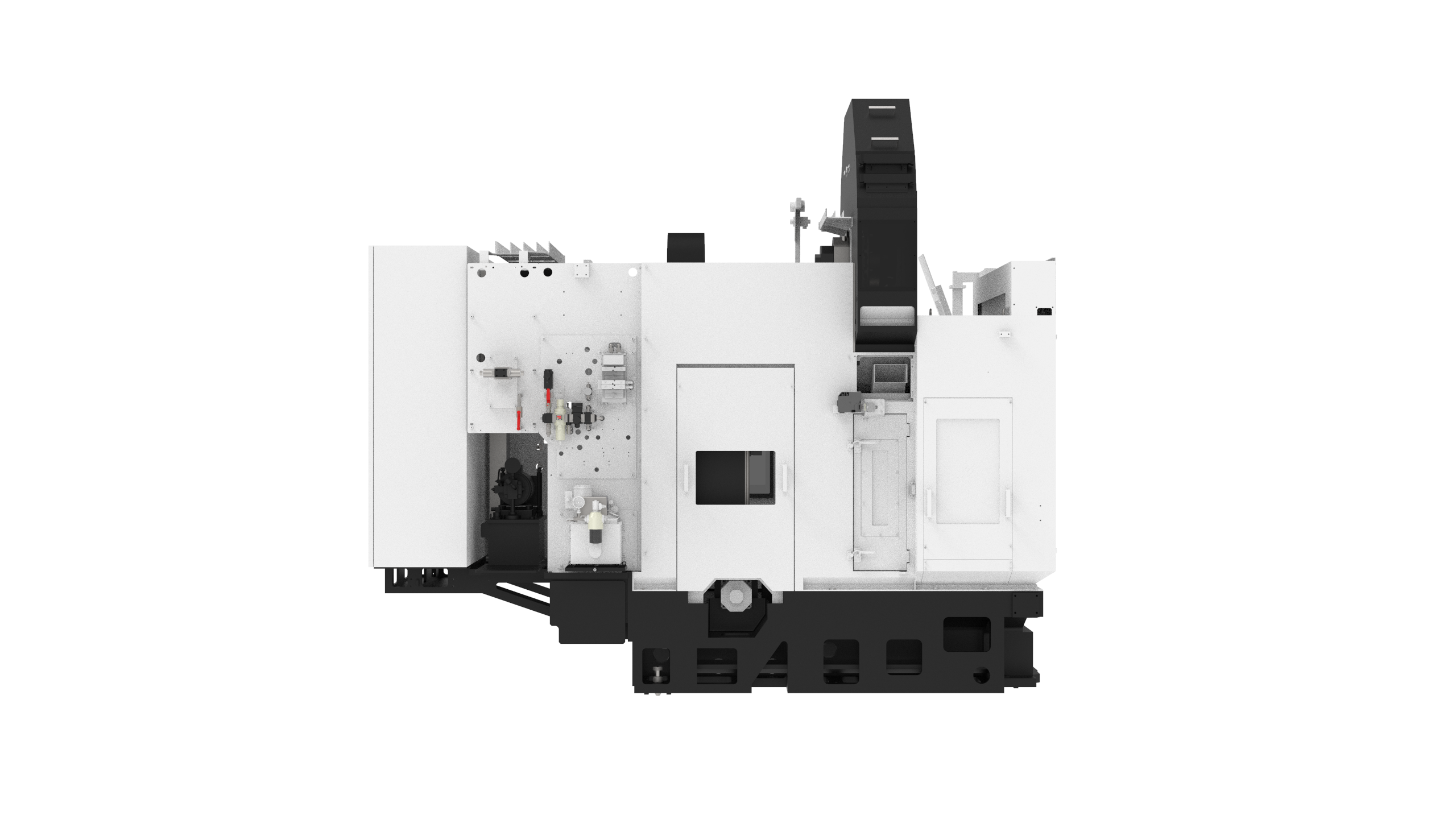

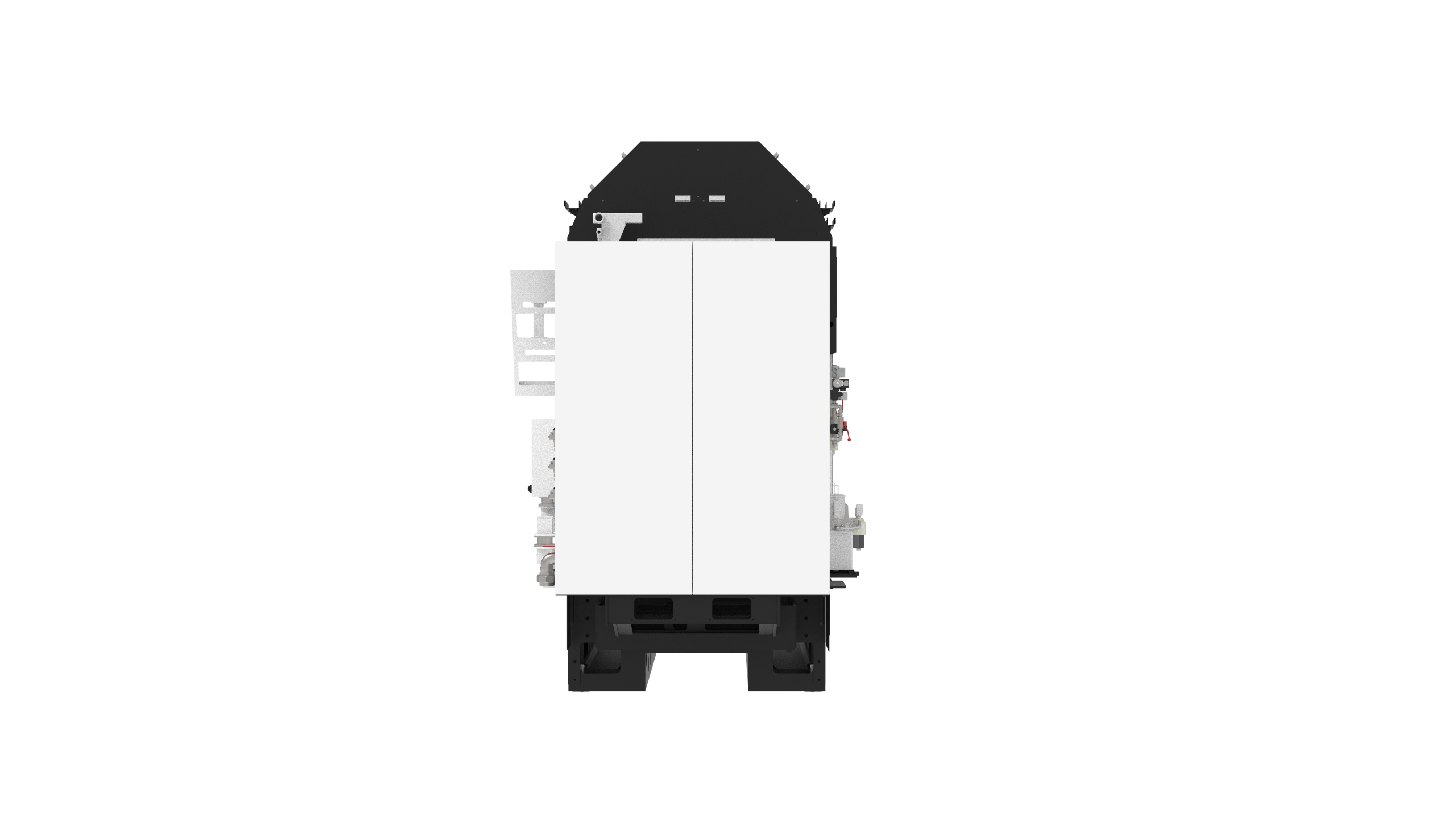

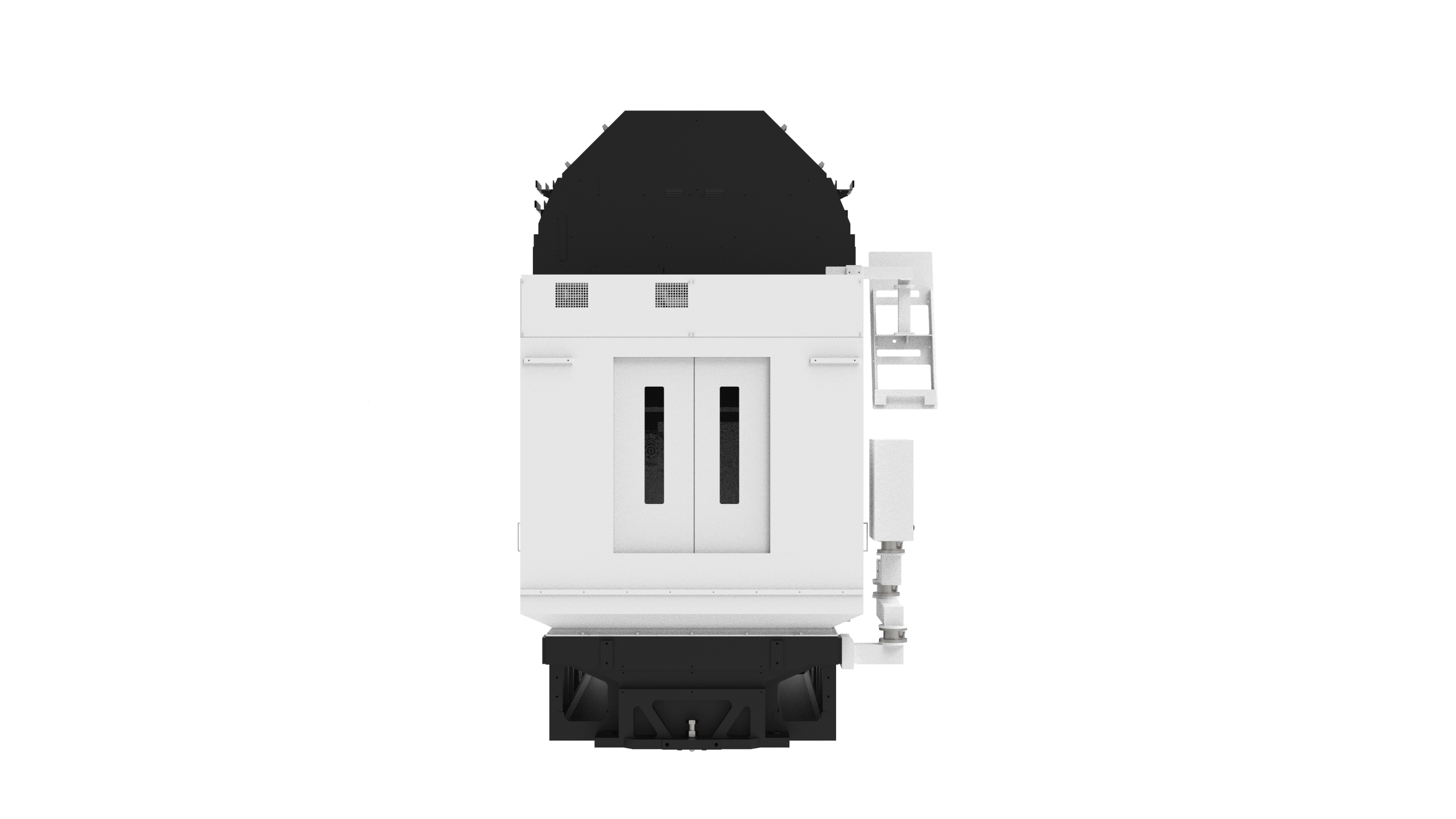

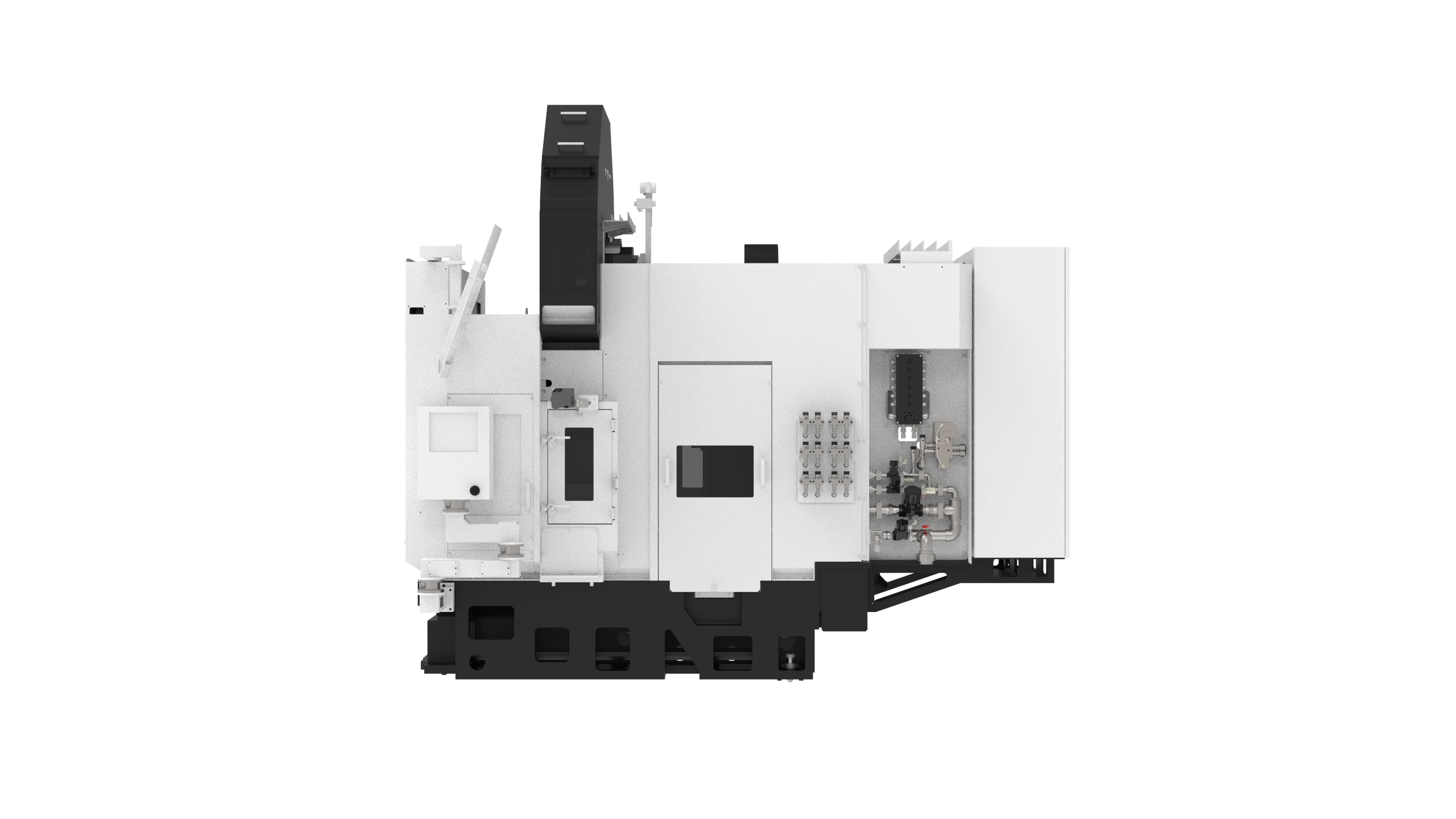

N40Hi

Machining centers

  • Stroke X/Y/Z (in) 19.7/19.7/15.7
  • Stroke X/Y/Z (mm) 500/500/400
  • Spindle taper type (representative) HSK-A63
  • Max spindle speed (min-1) 12000
  • Number of storage bottles (standard) (pcs) 20
  • Machine weight (kg) 12500
  • Machine weight (lbs) 27558

Purchase options

Contact us

Horizontal machining center #40 for mass production

Flexible line-oriented machining center

  • Built for continuous machining that demands high speed and stable performance.
  • Three‑point bed structure that delivers strong rigidity while minimizing machine weight and fewer components.
  • Magazine‑direct tool‑change system reduces mechanical complexity and enables faster, more reliable tool changes.
  • Centralized equipment layout improves accessibility and simplifies routine maintenance.

Resources

Features and benefits

Lightweight, high-speed and stable axis configuration

The Z-axis has a column-feed structure with enhanced loop rigidity. The weight of the Z-axis moving unit is 36% lighter than that of conventional machines. In terms of rigidity, the bed shape is a 3-point support bed with a chip nadir structure and rigidity analysis to enhance stability.

Adoption of direct tool change magazine

To ensure high uptime and stability, the tool change is done by direct magazine change without the use of an arm. The magazine shutter is located at the top of the Y-axis stroke, and the shutter gap is equipped with a coolant stream to prevent chips from entering, ensuring stable and continuous operation.

Improved maintainability

Each unit is designed for quick recovery in case of trouble. The spindle clamping unit can be replaced from the entire surface of the spindle. Each motor can be replaced from the outside of the machine. Detectors are arranged for easy checking and designed to speed up checking and recovery time.

Extensive line support

We can coordinate 4/5 axis tables, 2-sided pallet changers, various automatic transfer devices, jig design and manufacturing, workpiece test processing, jig stockers, workpiece stockers, AGVs, deburring units, and various other lines.


Specifications

Metric Imperial (US)
Expand all

  • Stroke X/Y/Z (mm): 500/500/400
  • Stroke X/Y/Z (in): 19.7/19.7/15.7
  • Spindle taper type: HSK-A63
  • Spindle speed (min-1): 100-12,000
  • Spindle motor output (kW): 11/7.5
  • Fast forwarding speed (m/min): 60
  • Number of tools stored (pcs): 20
  • Max tool length (mm): 270
  • Max tool length (in): 10.6
  • Max tool diameter (in): Φ6.3
  • Max tool diameter (mm): Φ160
  • Control unit (maker): FANUC
  • Machine mass (lbs): 15432
  • Machine mass (kg): 7000
  • Machine size (W x D x H) (in): 67.7 x 150.8 x 109.6
  • Machine size (W x D x H) (mm): 1,720 x 3,830 x 2,785
