Machine tools
N3Q Special-purpose single-spindle
Machining centers
- Stroke X/Y/Z (in) 64.96/16.14/15.75
- Stroke X/Y/Z (mm) 1,650/410/400
- Spindle taper type (representative) HSK-A40
- Max spindle speed (min-1) 12,000
- Number of spindles 1
Purchase options
Contact usDedicated to machining of long aluminum works

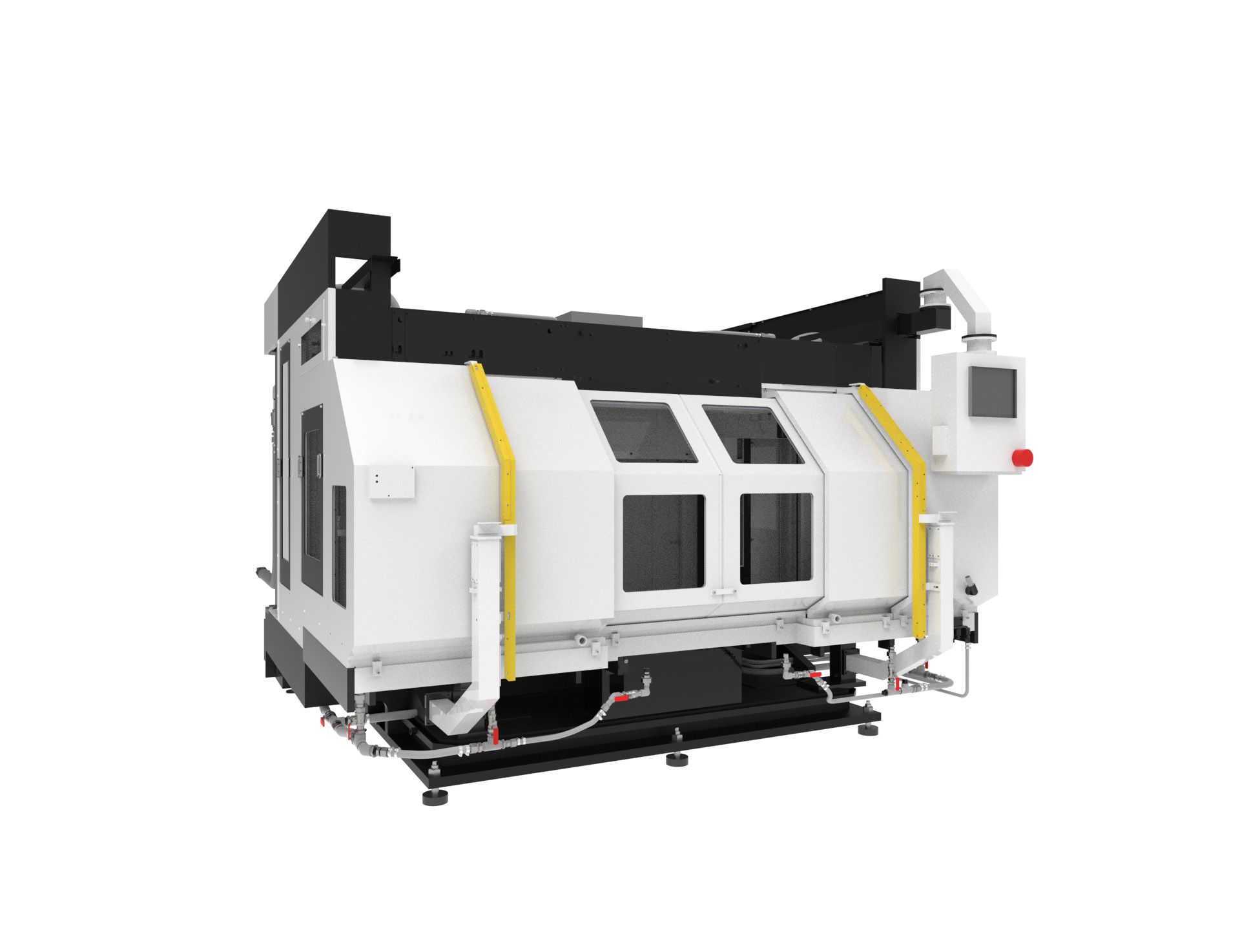

A horizontal machining center specially designed for long aluminum works. Designed for maximum flexibility and process consolidation, featuring a low machine height, extended X-axis stroke, and an embedded tilt-and-index table in the sub-head.
Resources
Features and benefits
Tilt-and-Index Table Dedicated for Long Workpieces
The 360° tilt-and-index table enables machining from top, bottom, and angled surfaces, supporting a wide range of workpieces for flexible production.
Horizontal design enables efficient direct chip evacuation.
The spindle’s horizontal posture, tilt table, and direct chip evacuation design enable good chip management, reduce manual handling, and support long time automated operation.

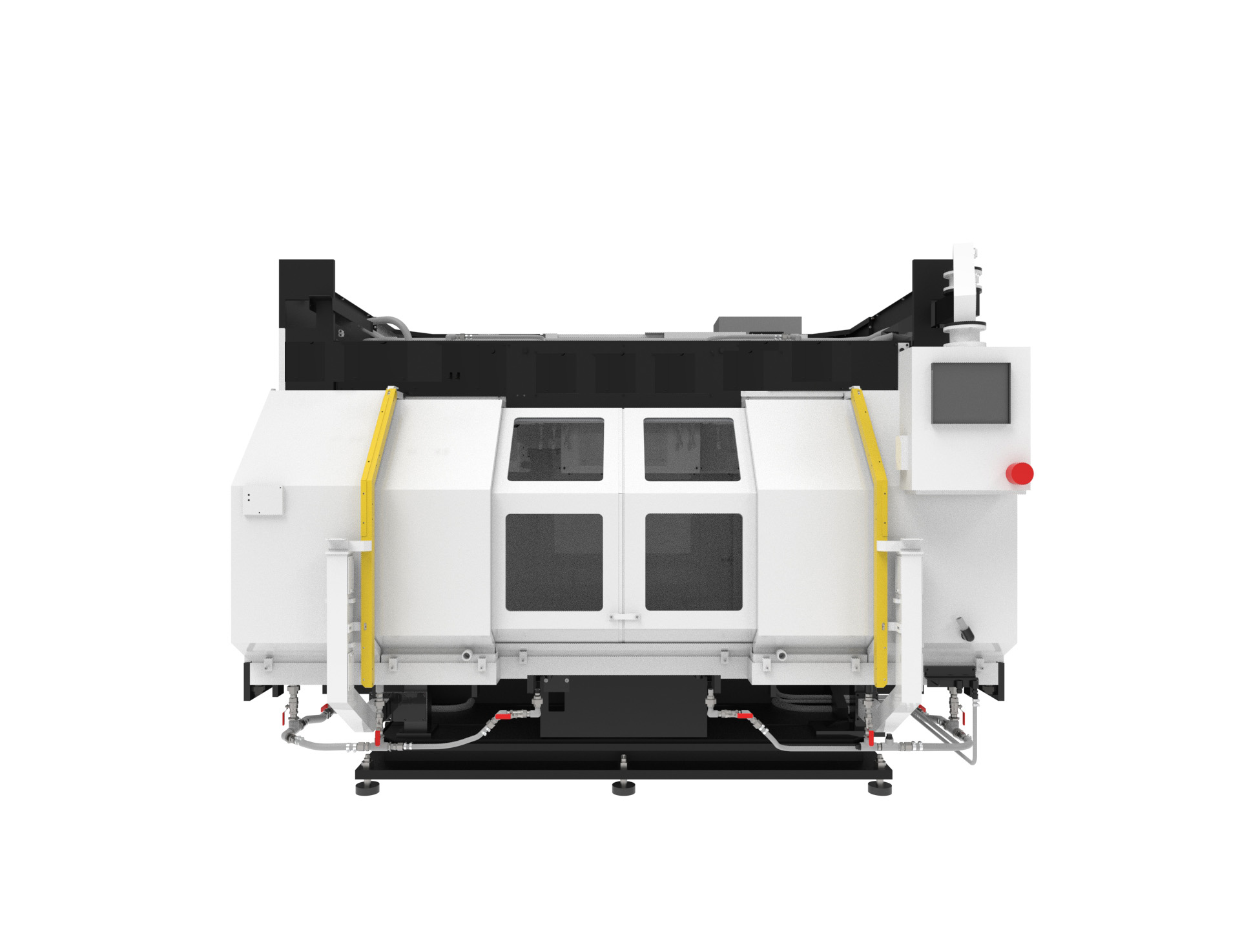

Front Door and Ceiling Integrated Type, Designed for Machining Line Applications
Wide-open front door and integrated ceiling design for flexible transfer applications - supports both robot and gantry systems.
Offering Fixture Design, Manufacturing, and Machining Line Solutions
We offer fixture design and manufacturing tailored to the workpiece, along with machining quality checks and line transfer system proposals. Comprehensive solutions are also available, including deburring and washing processes.
