Machine tools

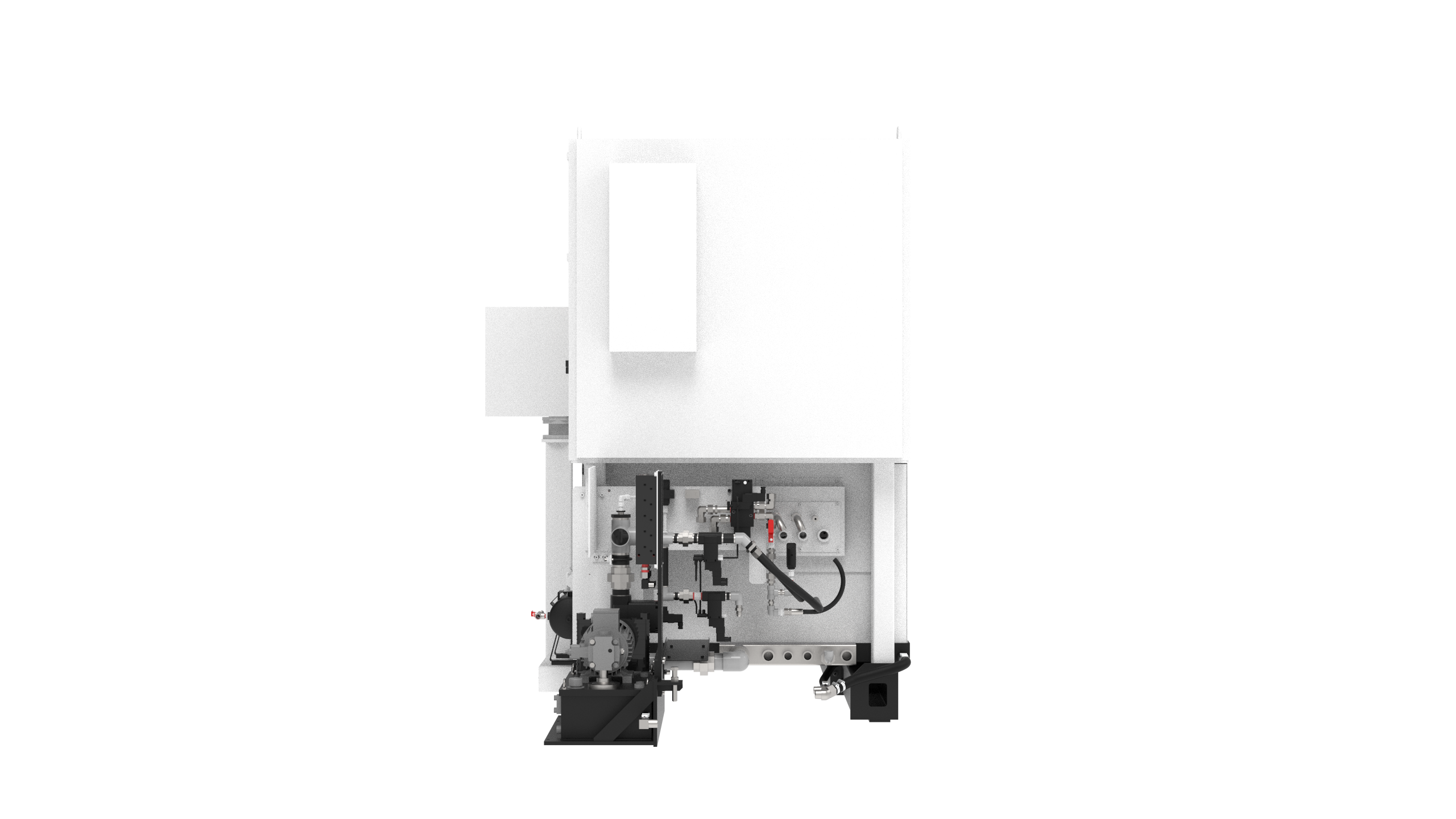

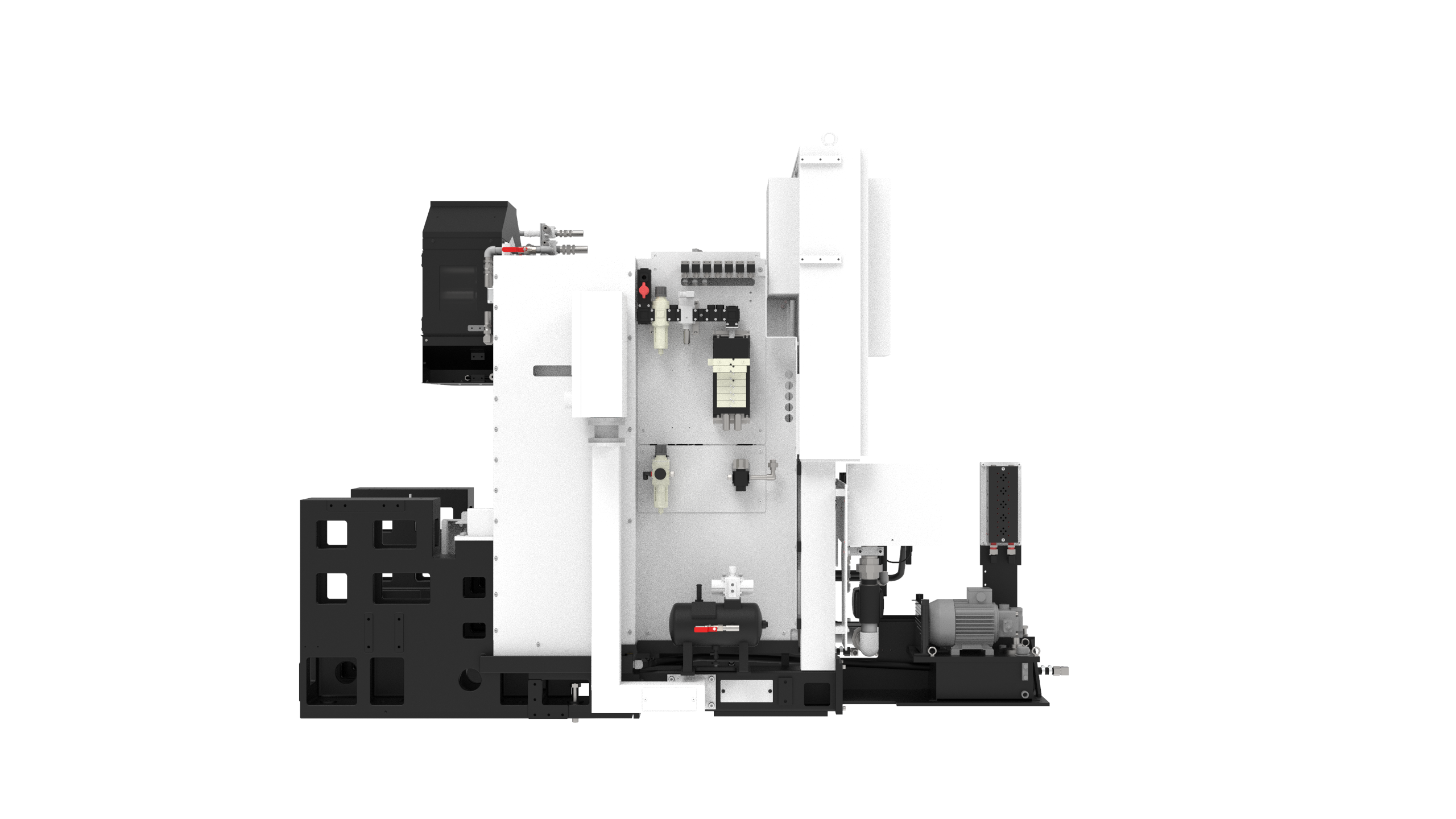

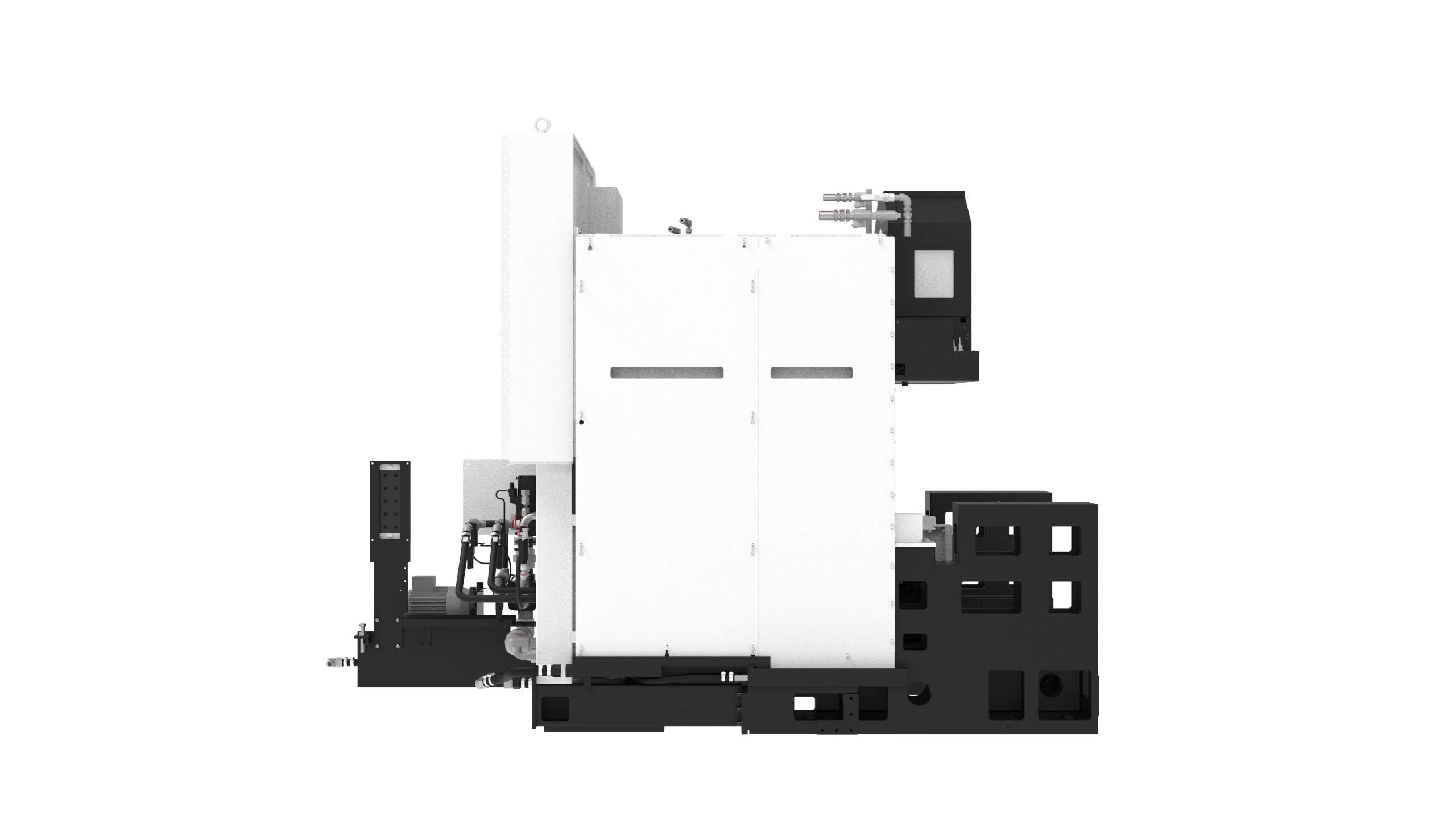

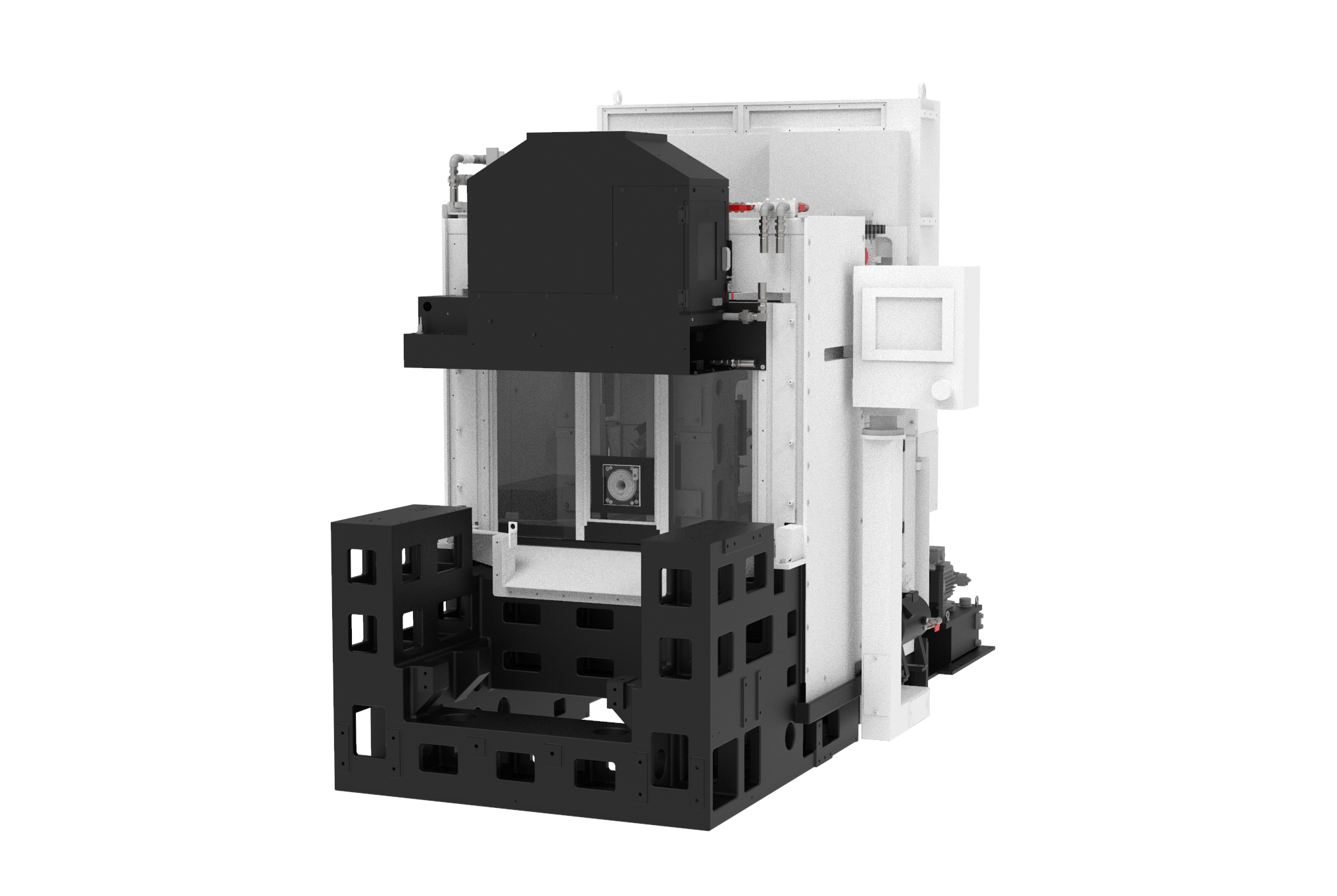

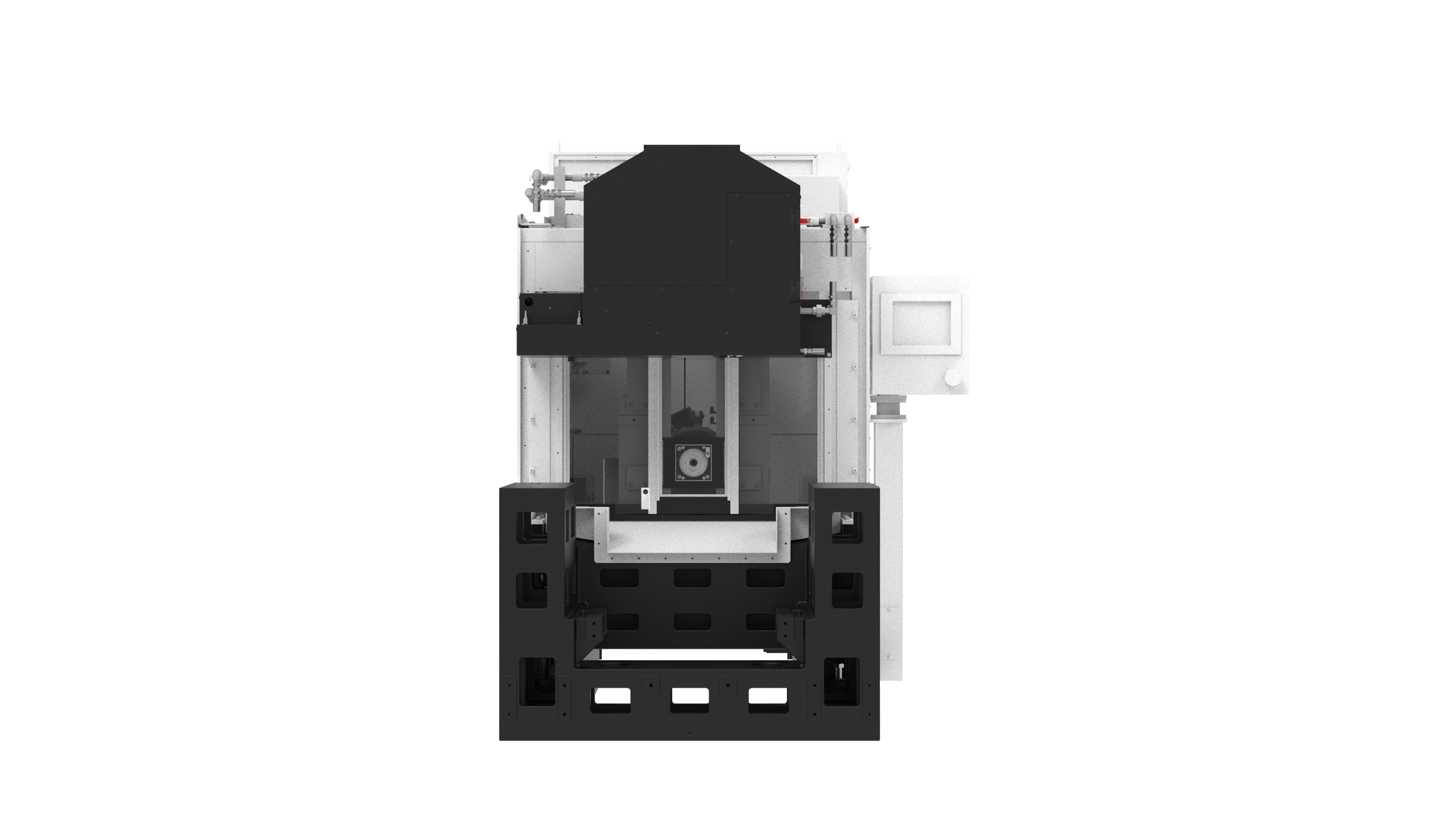

N30Hi

Machining centers

  • Stroke X/Y/Z (in) 15.7/11.8/11.8
  • Stroke X/Y/Z (mm) 400/300/300
  • Spindle taper type (representative) BT30
  • Max spindle speed (min-1) 12000
  • Number of storage bottles (standard) (pcs) 16
  • Machine weight (kg) 2400
  • Machine weight (lbs) 5291

Purchase options

Contact us

Environmentally friendly, energy-saving #30 horizontal machine

Simple, slim and compact machines

  • Energy‑saving, space‑saving machining center designed for small workpieces.
  • Optimized for small workpieces using a low‑profile gantry.
  • Line‑oriented layout supports efficient production lines.
  • Built for the modern era, reducing impact on factories and the environment.

Resources

Features and benefits

Energy conservation

The spindle clamping mechanism is hydraulic-free. The machining chamber is minimized to reduce the amount of coolant, which together with the lack of hydraulic pressure reduces the amount of electricity consumed.

Multi-product jig support

Komatsu NTC's original standard tilt table can be easily used for additional axes. The common jig base supports the common use of jig bases and quick jig changeover.

Simple, slim and compact with low-floor gantry transfer

The combination of minimizing the machine height by minimizing the machining chamber and NTC's low-floor gantry transfer reduces the transfer height to 1650mm. The gantry stroke is shortened to 400 mm, enabling high-speed loading and unloading for higher productivity.

Extensive automation support

We can coordinate 4/5 axis tables, 2-sided pallet changers, various automatic transfer devices, jig design and manufacturing, workpiece test processing, jig stockers, workpiece stockers, AGVs, deburring units, and various other lines.


Specifications

Metric Imperial (US)
Expand all

  • Stroke X/Y/Z (mm): 400/300/300
  • Stroke X/Y/Z (in): 15.7/11.8/11.8
  • Spindle taper type: BT-30
  • Spindle speed (min-1): 200-12,000
  • Spindle motor output (kW): 5.5/3.7
  • Fast forwarding speed (m/min): 48
  • Number of tools stored (pcs): 16
  • Max tool length (mm): 200
  • Max tool length (in): 7.9
  • Max tool diameter (in): Φ3.1
  • Max tool diameter (mm): Φ80
  • Control unit (maker): FANUC
  • Machine mass (lbs): 5952
  • Machine mass (kg): 2700
  • Machine size (W x D x H) (in): 47.2 x 86.6 x 78.7
  • Machine size (W x D x H) (mm): 1,200 x 2,200 x 2,000
