Machine tools

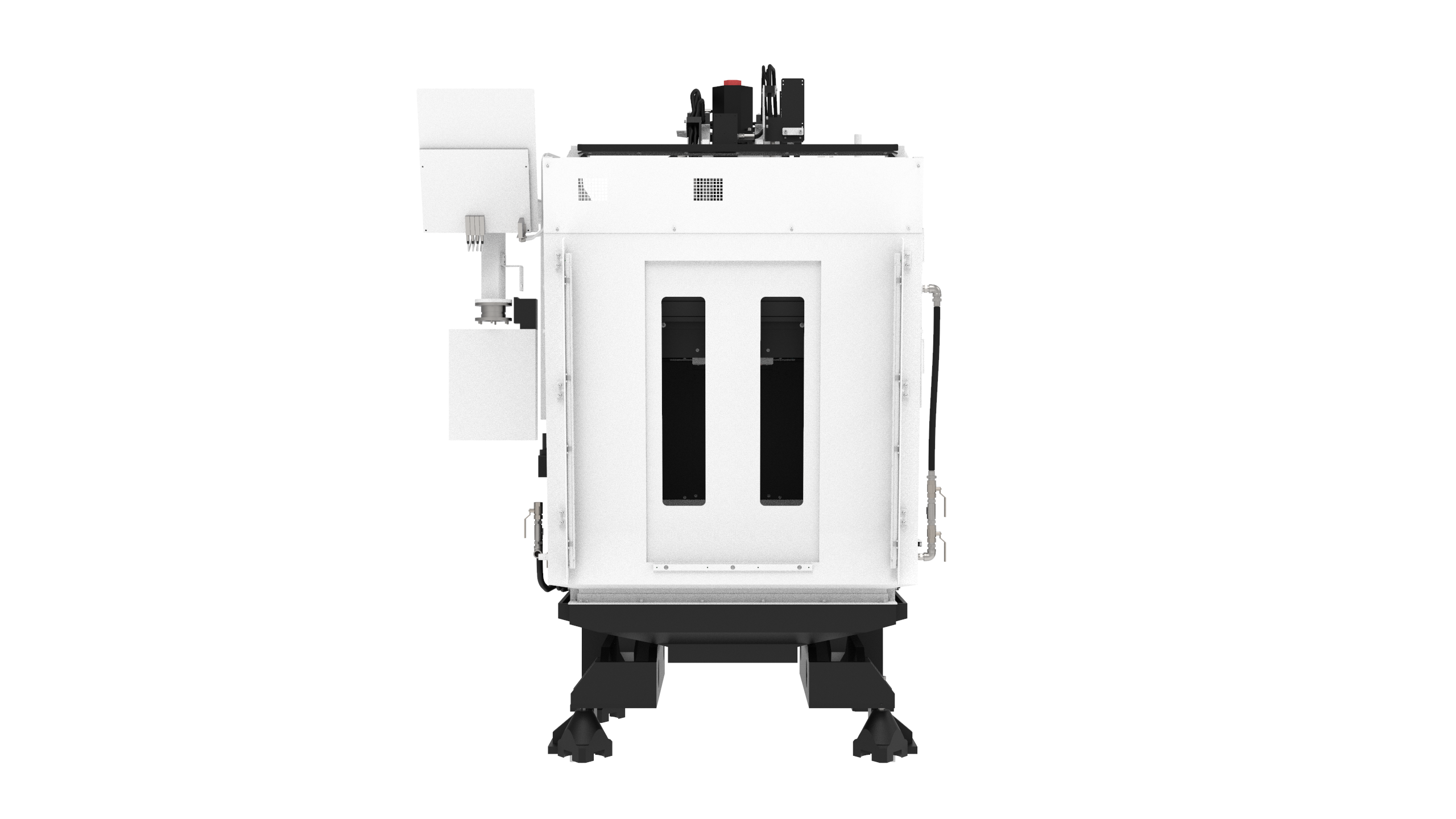

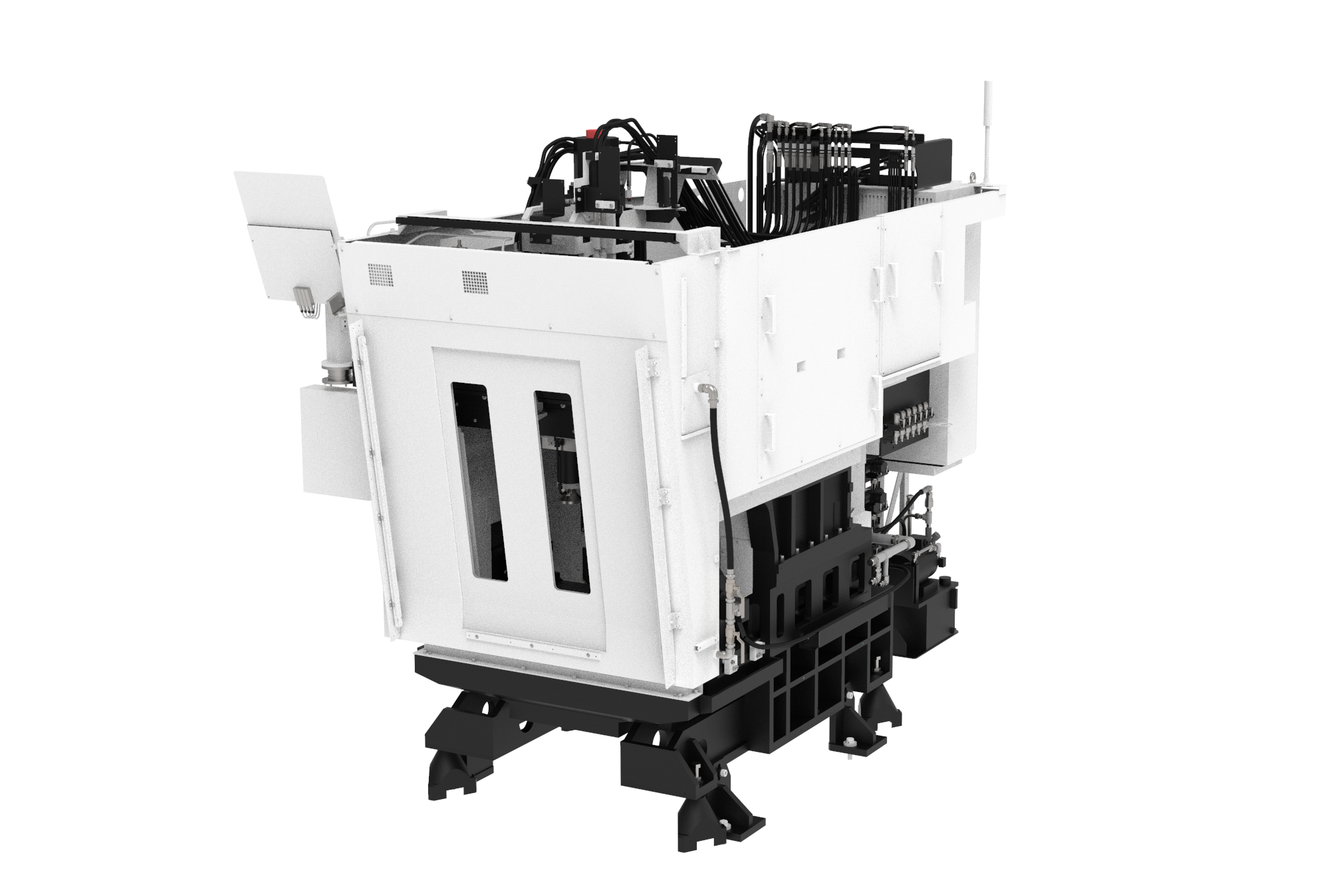

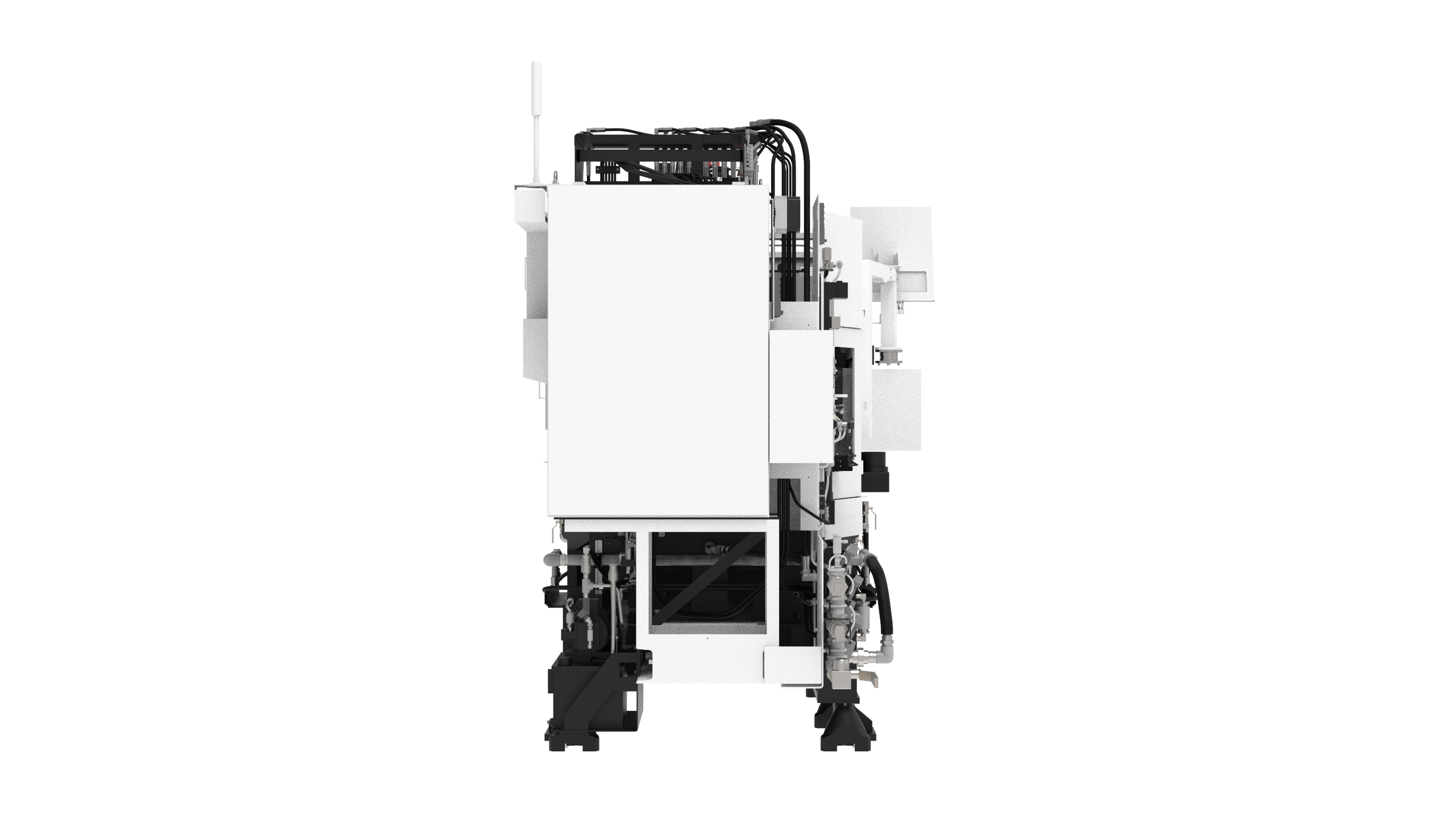

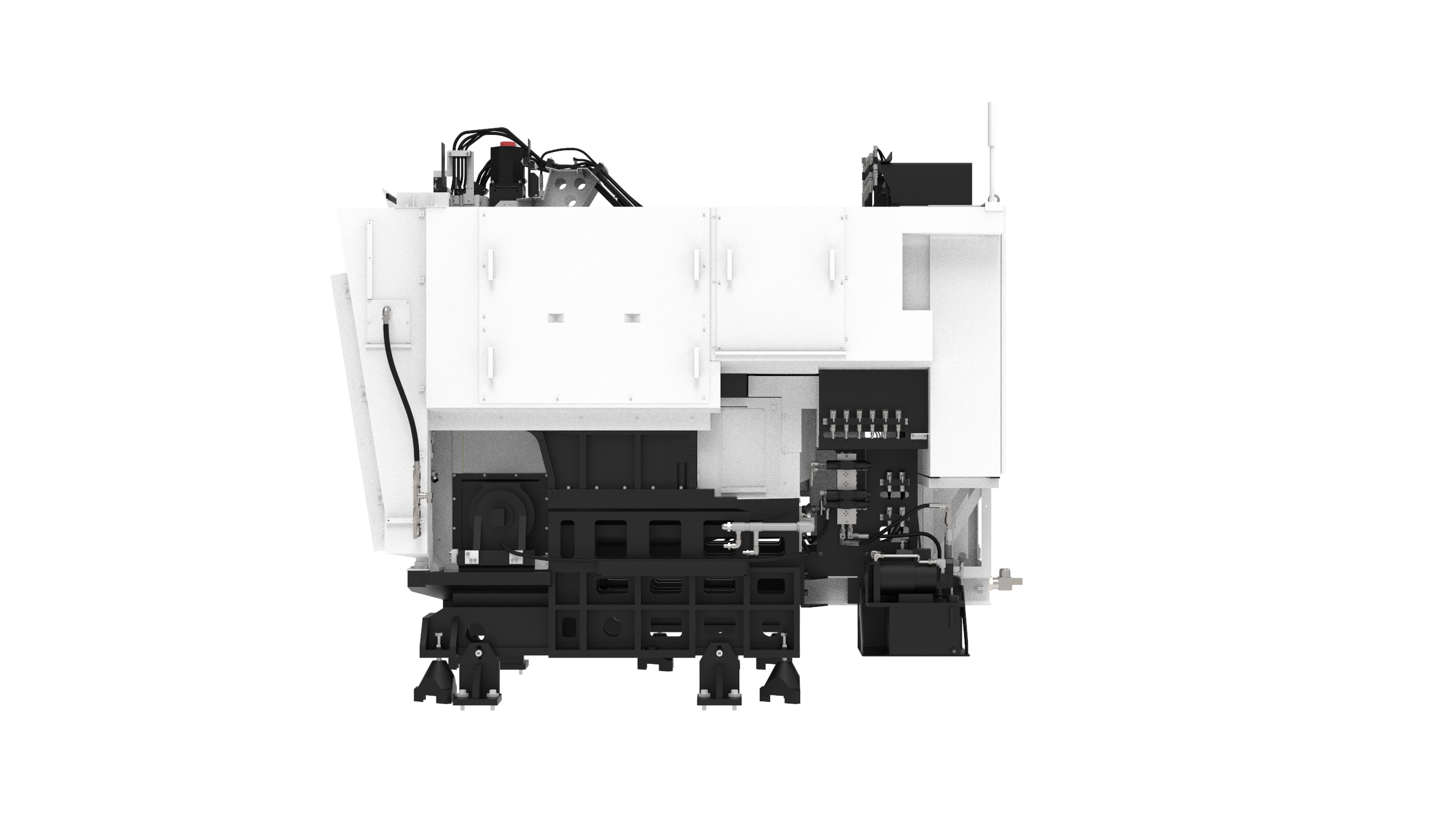

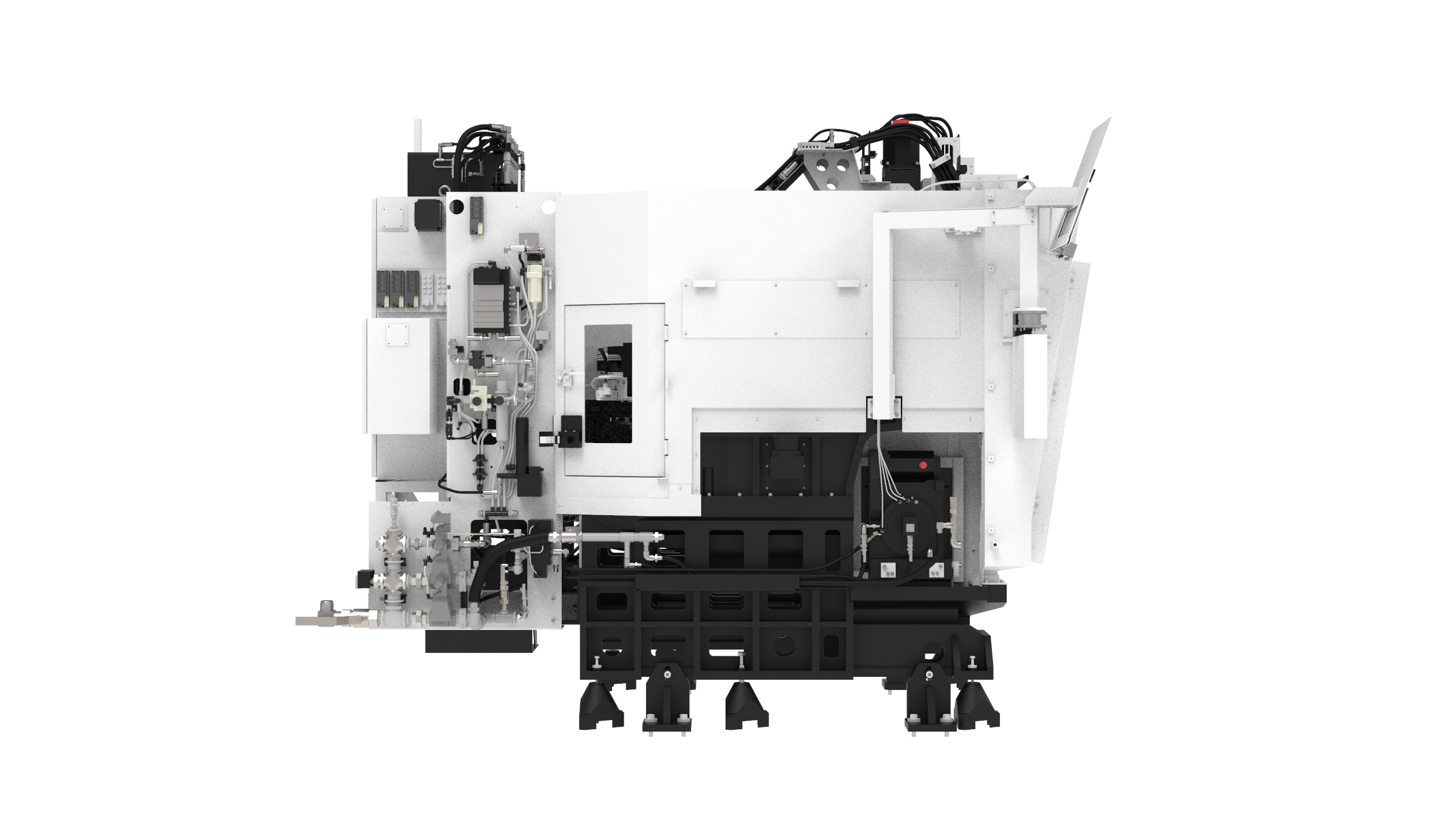

N300V
Machining centers
- Stroke X/Y/Z (in) 19.7/19.7/15.7
- Stroke X/Y/Z (mm) 500/500/400
- Spindle taper type (representative) BT30
- Max spindle speed (min-1) 12000
- Number of storage bottles (standard) (pcs) 25
- Machine weight (kg) 8100
- Machine weight (lbs) 17857
Purchase options
Contact usCase machining #30 vertical machining center
Best-selling machine for housing and case machining
- Developed specifically for machining housings and cases with high stability and precision.
- #30 vertical machining center designed for continuous 24‑hour production.
- Highly reliable platform recognized as a leading model in the NTC lineup.
Resources
Features and benefits
High precision and stability due to rigid flying box structure
The axis drive unit is located above the machining area and has a flying box structure that evenly releases thermal expansion. The machine is highly rigid, with spindle spindle rigidity equivalent to #40, enabling large-diameter tools to be used in a wide range of processes.
Compact machine with reduced machine width
The machine width is reduced to 1600 mm with the column traverse type to reduce the line installation area. Compared to the table traverse type, the line width can be reduced by about 40%, leading to more efficient use of factory space (% is a comparison with our machine).
High productivity and flexibility
A wide range of jig types and tables can be supported by fixing the jig position. Chips are collected directly under the jig to minimize accumulation. The tool change system uses a magazine direct change system to improve stability and productivity.
Automation support by line-oriented
We can coordinate 4/5 axis tables, various automatic transporters, jig design and manufacturing, workpiece test processing, jig stockers, workpiece stockers, AGVs, deburring units, and various other lines.
Specifications
- Full specs
- Stroke X/Y/Z (mm): 500/500/400
- Stroke X/Y/Z (in): 19.7/19.7/15.7
- Spindle taper type: BT-30
- Spindle speed (min-1): 200-12,000
- Spindle motor output (kW): 11/7.5
- Fast forwarding speed (m/min): 60
- Number of tools stored (pcs): 25
- Max tool length (mm): 300
- Max tool length (in): 11.8
- Max tool diameter (in): Φ5.9
- Max tool diameter (mm): Φ150
- Control unit (maker): FANUC
- Machine mass (lbs): 12125
- Machine mass (kg): 5500
- Machine size (W x D x H) (in): 63.0 x 123.2 x 120.1
- Machine size (W x D x H) (mm): 1,600 x 3,130 x 3,050
