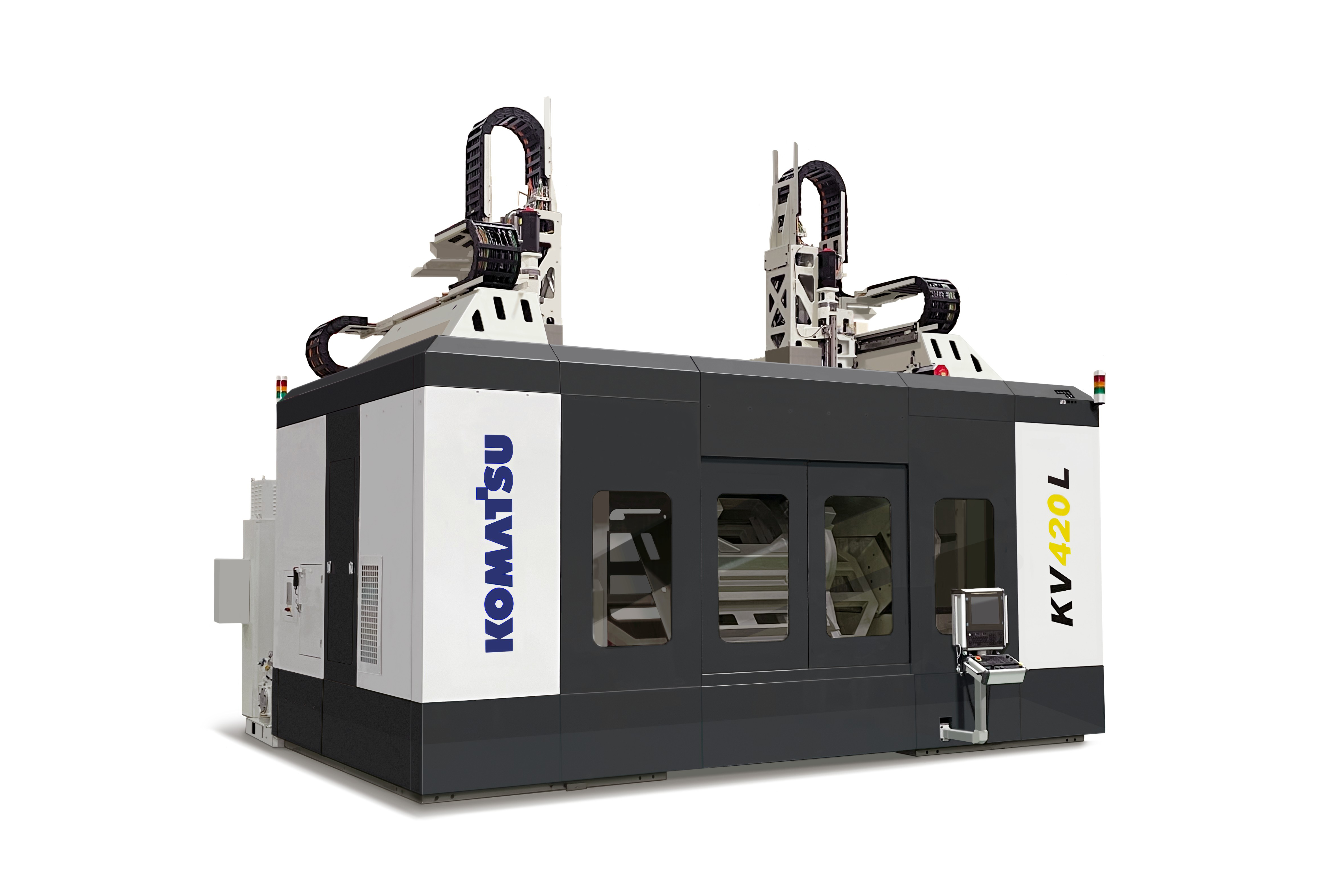

KV420L

Machining centers

  • Stroke X/Y/Z (in) 67.3/47.6/39.4 (unit value per side (left/right))
  • Stroke X/Y/Z (mm) 1,710/1,210/1,000 (unit value per side (left/right))
  • Spindle taper type (representative) HSK-A63
  • Max spindle speed (min-1) 12000
  • Number of spindles 2 (parallel, universal specification)

Purchase options

Contact us

Automobile platform developed by new modulization Large-scale machining center for　"GIGA casting work"

High area productivity by six-sided machining with two heads and one chucking

  • Enables high‑efficiency, single‑chucking six‑side machining of large aluminum parts such as Giga cast components.
  • High‑speed rapid traverse on all axes reduces non‑cutting time and boosts throughput.
  • Space‑saving design maximizes area productivity while handling large workpieces effectively.

Resources

Features and benefits

Equipped with twin universeal heads

High flexibility is achieved through the use of independently controlled right and left spindles, combined with a universal head. This configuration enables efficient one-chucking machining from both sides and supports complex multi-angle hole processing.

Movable 360-degree tilting rotary table

The lattice-structured rotary tilt table offers 360-degree rotation. In addition, Y-axis movement of the tilting unit enables easy rear-side machining with long tools.

High rigidity and fast feed

X, Y and Z axis are designed for high rigidity and high-speed operation, utilizing a linear guide and ball screw drive. This machine offers optional scale feedback and ensures high-rigidity machining across the entire machining area.

High area productivity

By adopting a tandem structure of the Y-axis and tilting axis, this machine achieves both high-speed performance and a compact design. Its space-saving configuration facilitates easy installation, while efficient machining enhances high area productivity.


Specifications

Metric Imperial (US)
Expand all

  • Stroke X/Y/Z (mm): 1,710/1,210/1,000 (unit value per side (left/right))
  • Stroke X/Y/Z (in): 67.3/47.6/39.4 (unit value per side (left/right))
  • Spindle taper type: HSK-A63
  • Spindle speed (min-1): 12,000 (optional: 20,000)
  • Control unit (maker): FANUC i Series
  • Machine footprint (mm): 6,800 x 5,500 x 5,800
  • Machine footprint (in): 268 x 217 x 228
