Machine tools

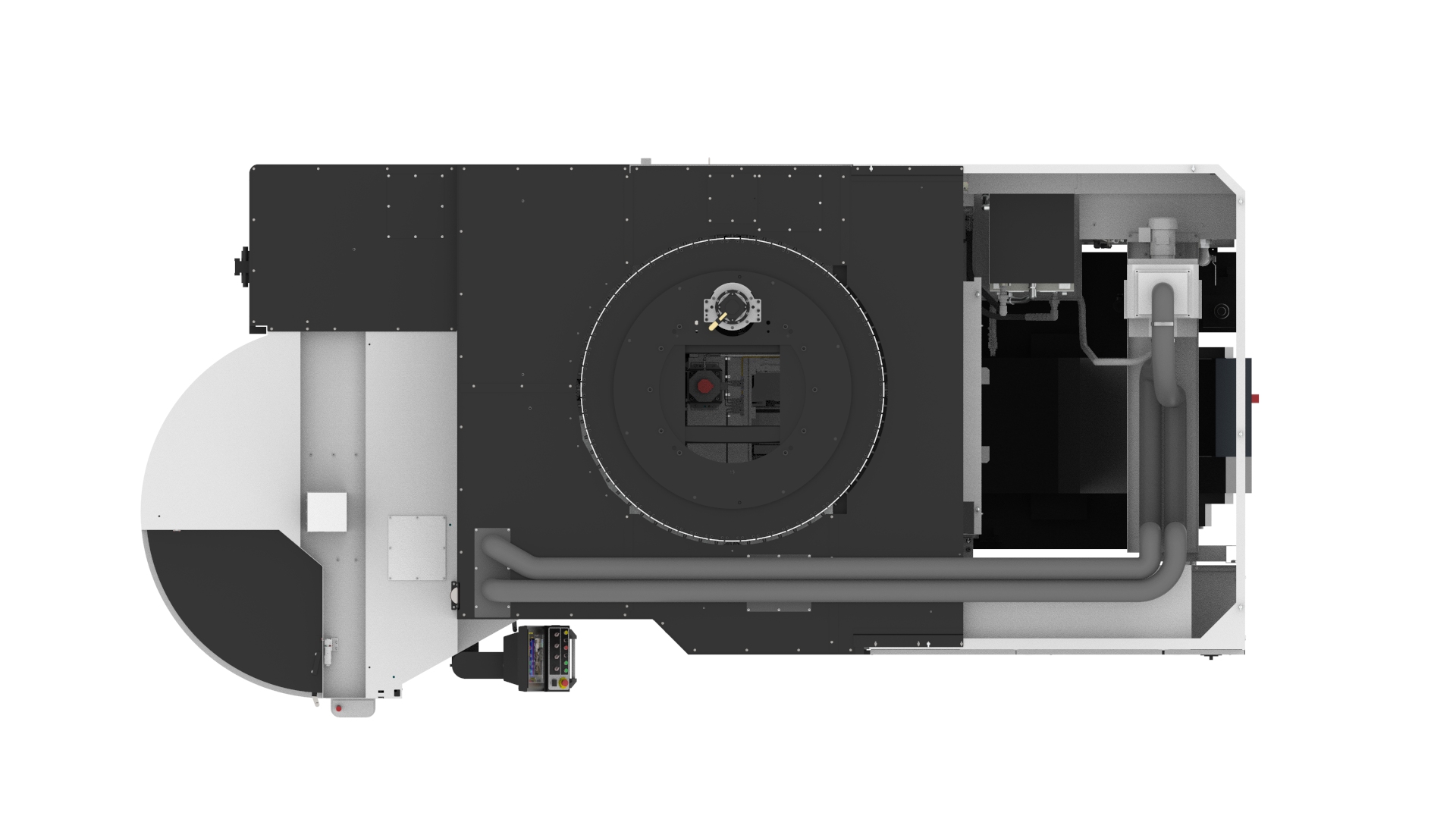

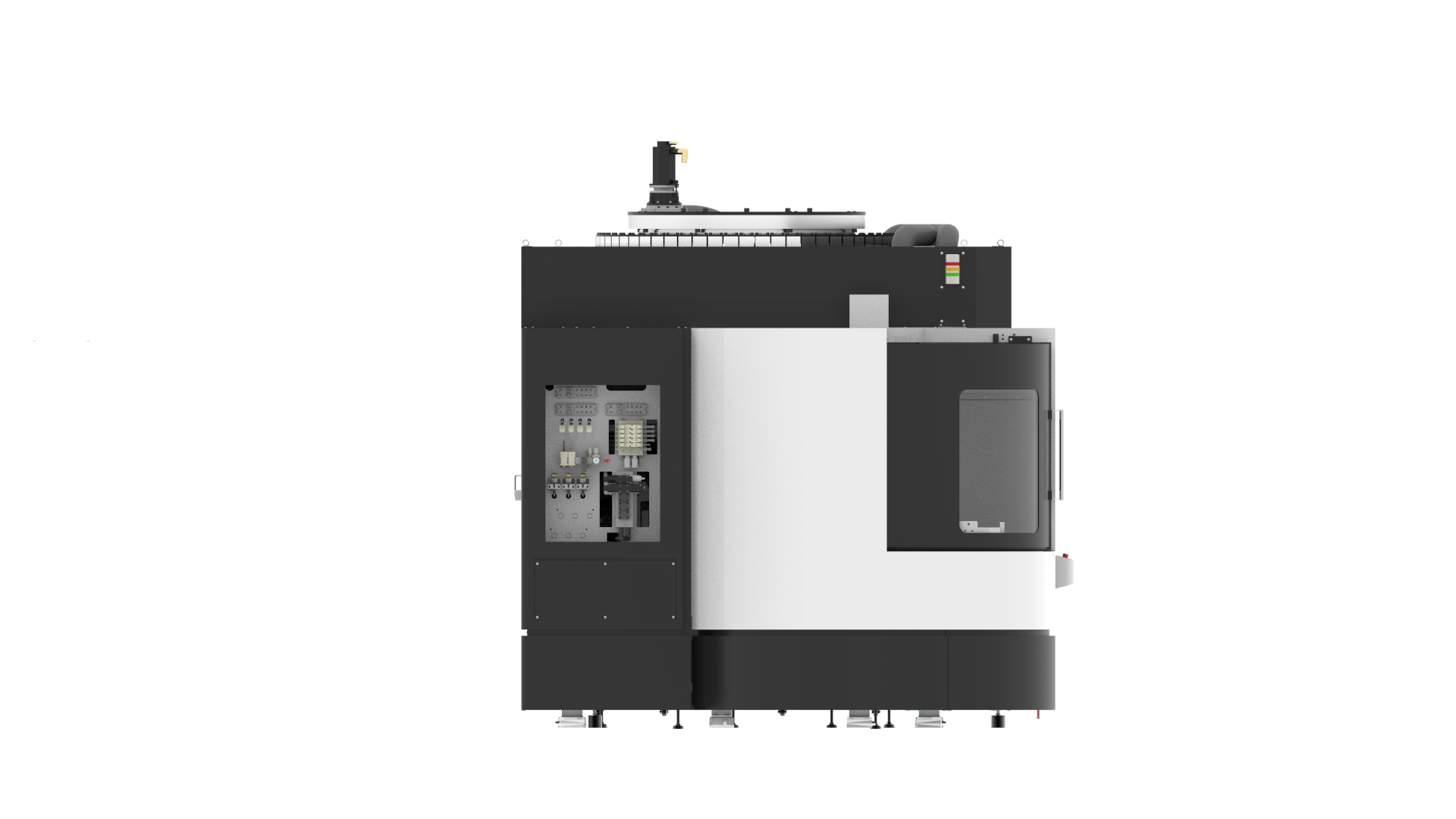

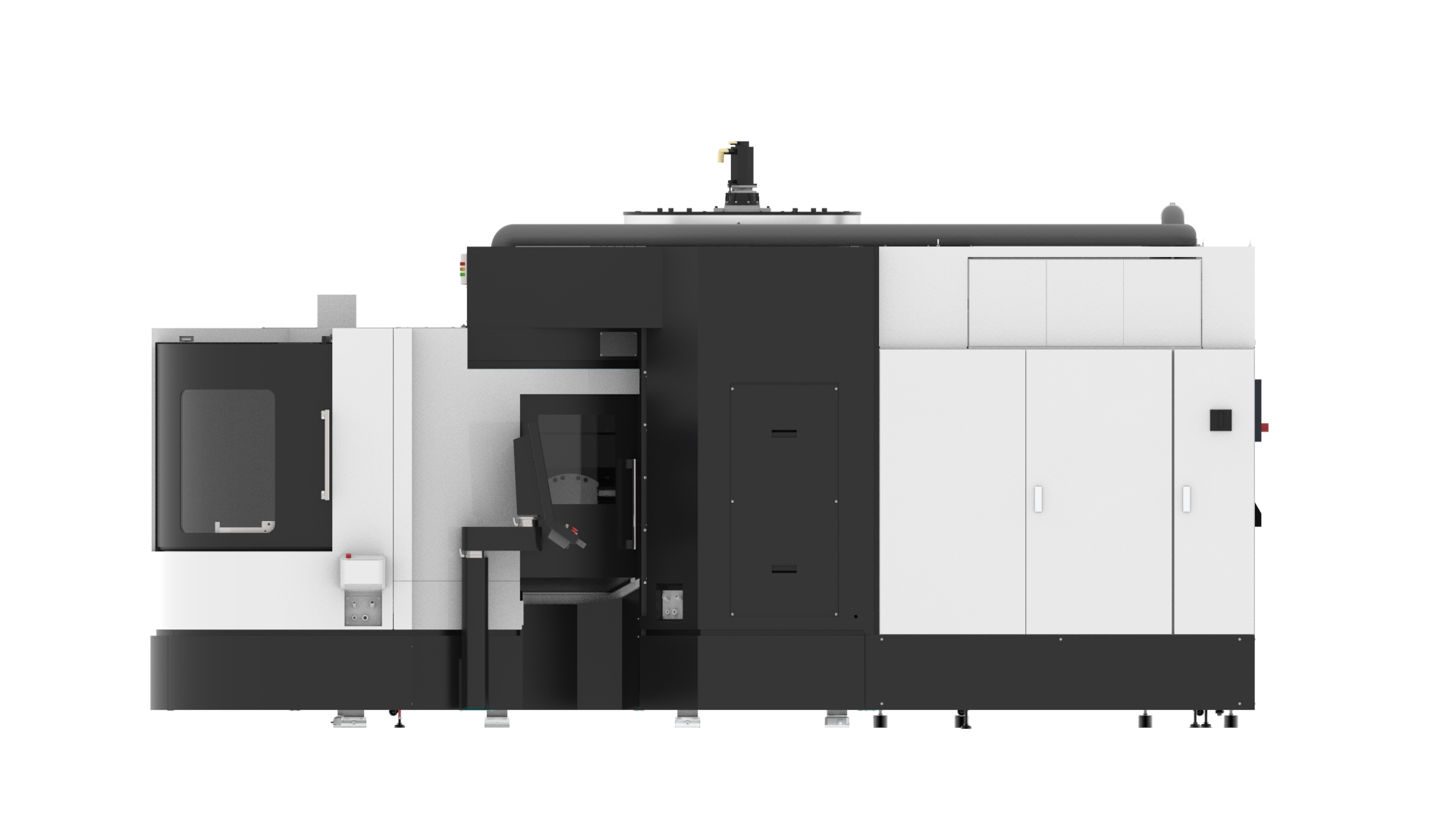

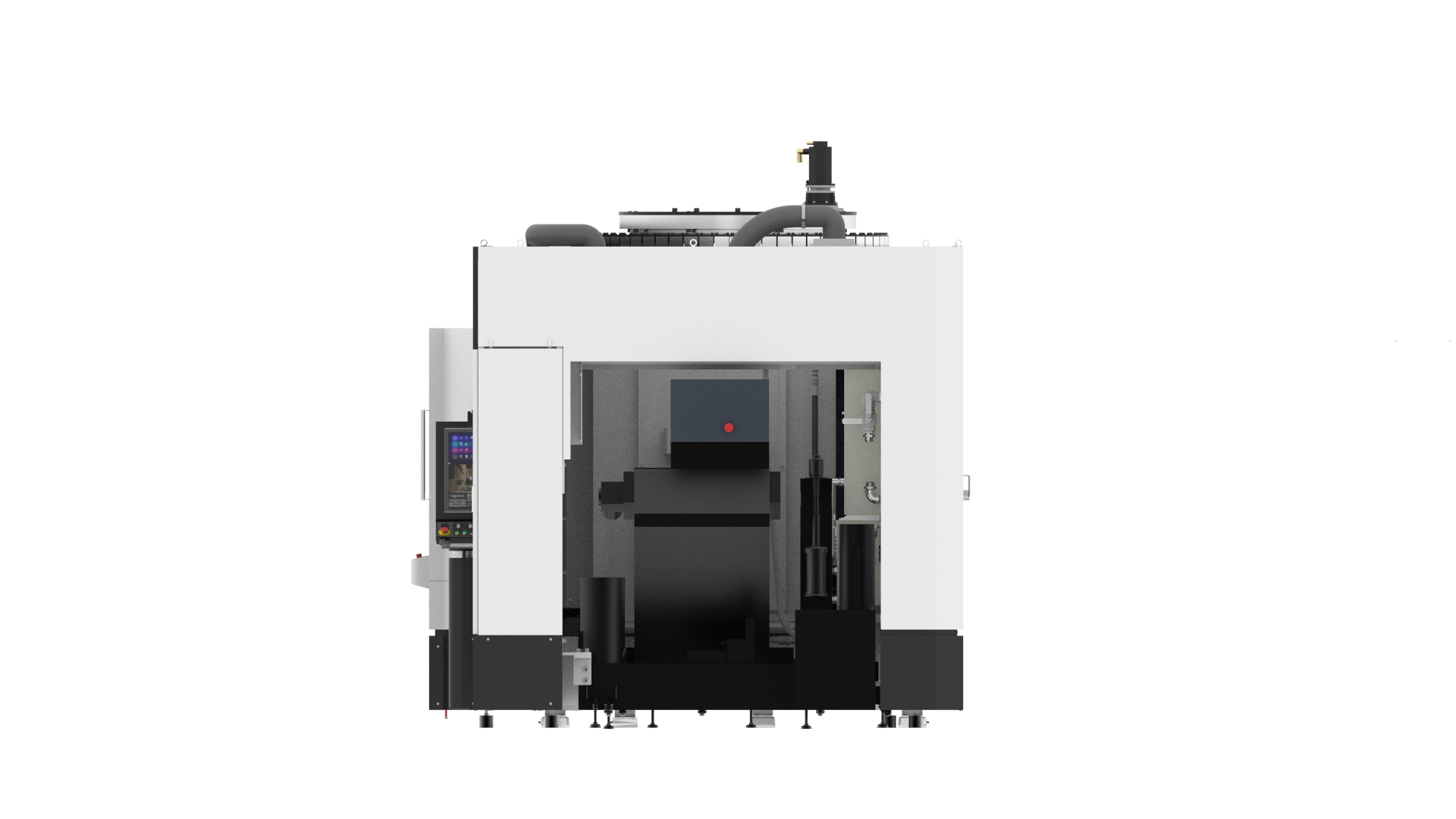

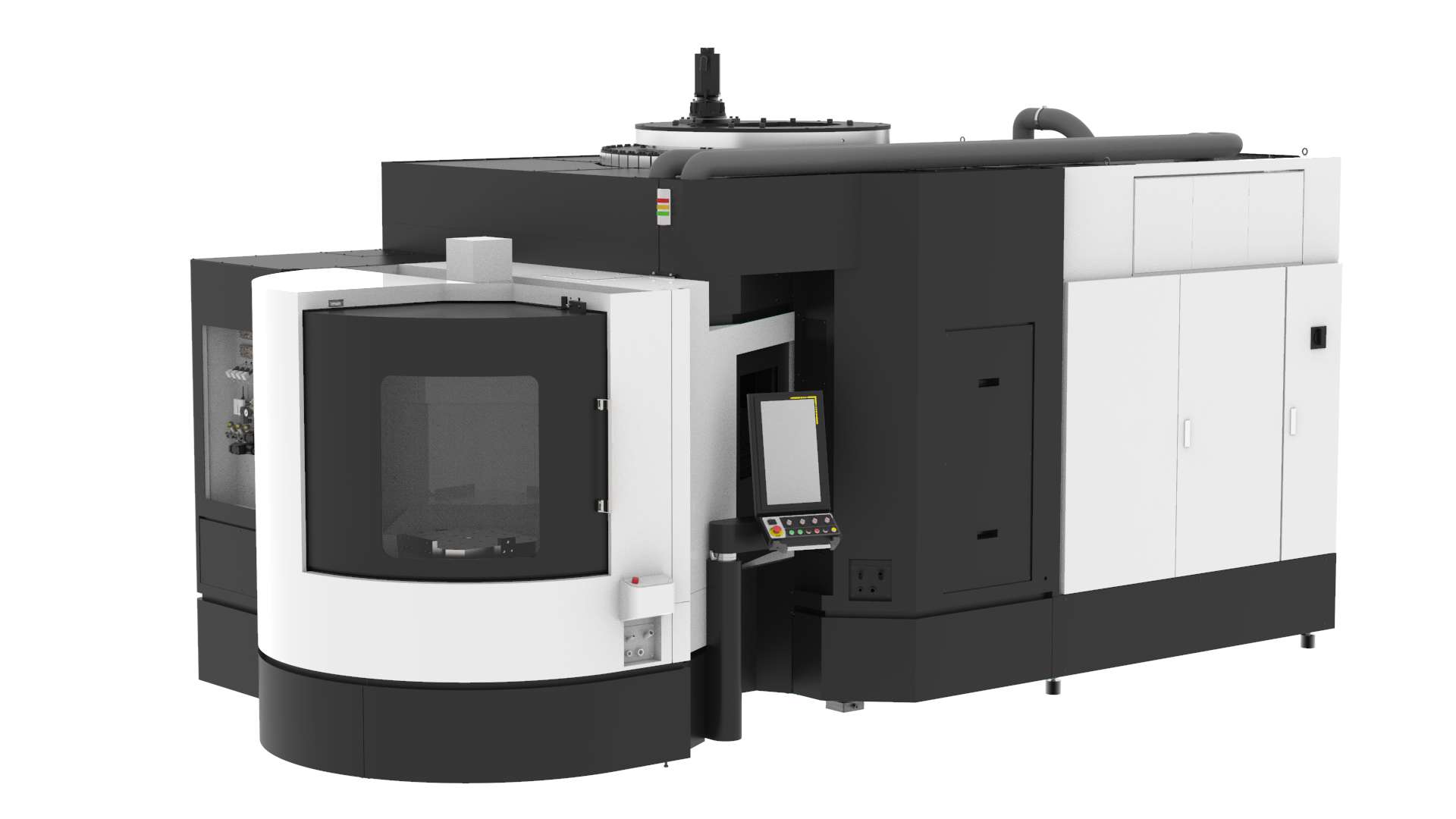

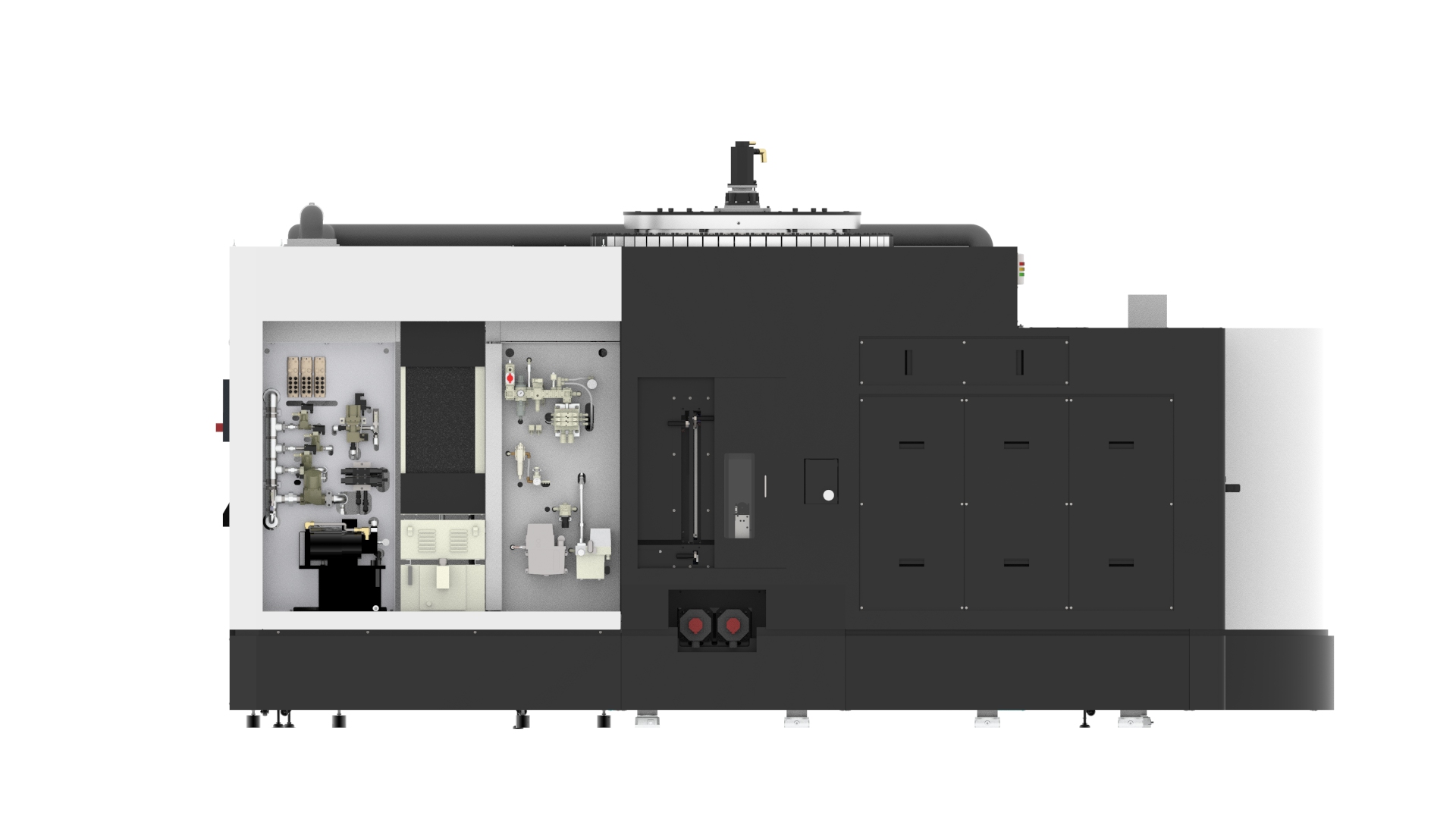

CX500
Machining centers
- Stroke X/Y/Z (in) 31.5/31.5/35.4
- Stroke X/Y/Z (mm) 800/800/900
- Spindle taper type (representative) HSK-A63
- Max spindle speed (min-1) 20000
- Number of storage bottles (standard) (pcs) 60
- Machine weight (kg) 18000
- Machine weight (lbs) 39.683
Purchase options
Contact usHigh-efficiency horizontal 5-axis machining center
All with high efficiency.
- Designed for high precision, safety, and user‑friendly operation with improved spatial accuracy, chip management, and operator consideration.
- Equipped with advanced 5‑axis control for stable, precise machining.
- Optional large‑capacity tool magazine and pallet‑changing system support long, unmanned operation and labor savings.
Resources
Features and benefits

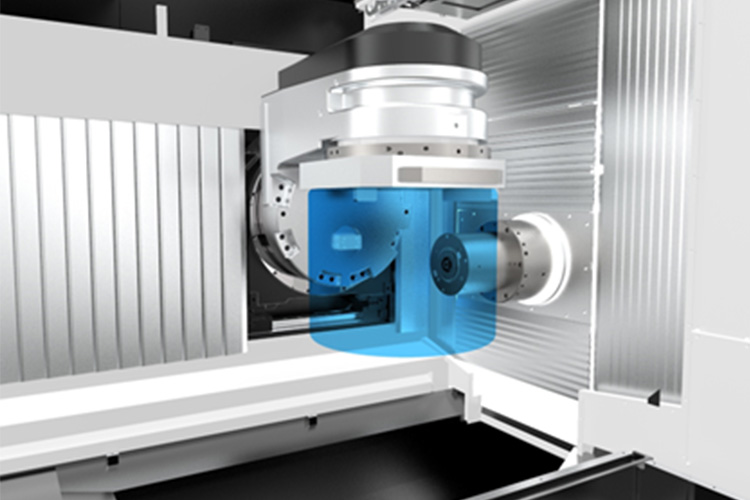

Improved chip evacuation with overhead machining posture
The table is in an upside-down position, allowing chips to settle into the trough directly below without any obstructions. This also reduces the accumulation of chips on the workpiece and jig, which results in a lower failure rate and reduces manual handling for cleaning the machining chamber.

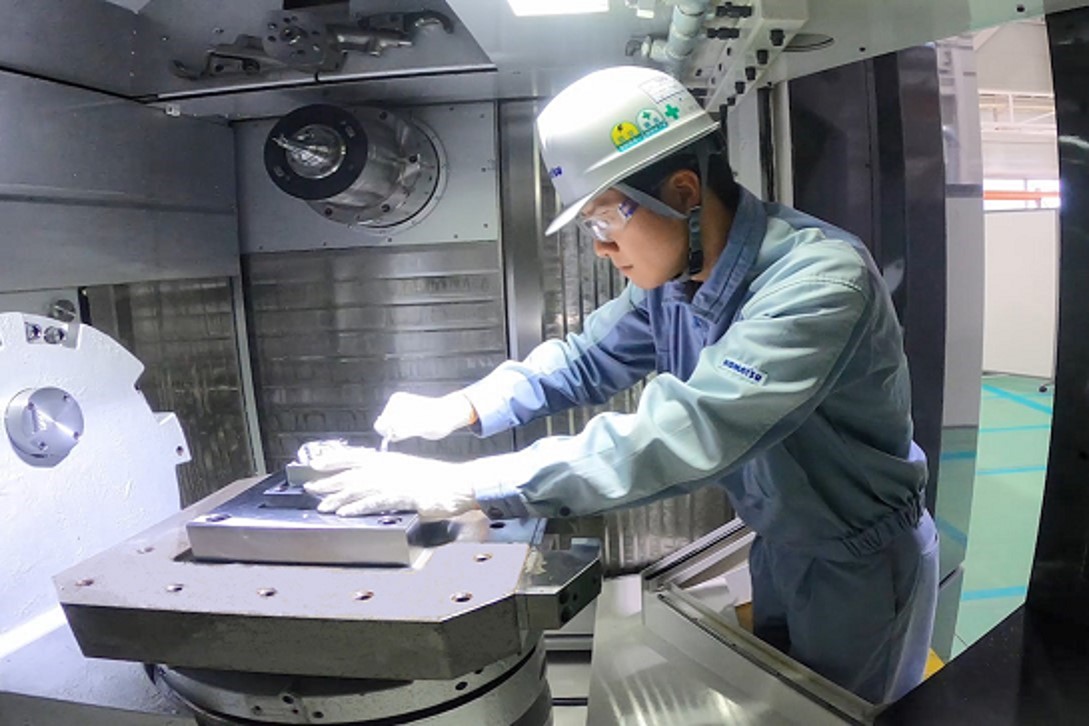

Cantilevered table structure for improved setup
There is no tailstock on the operator's side, which improves operability and confirmability, including centering confirmation. Also, each time the A-axis swings, chips fall from a wide range of angles, preventing chips from accumulating on the jig. A hydraulic port for the jig is also available as an option.

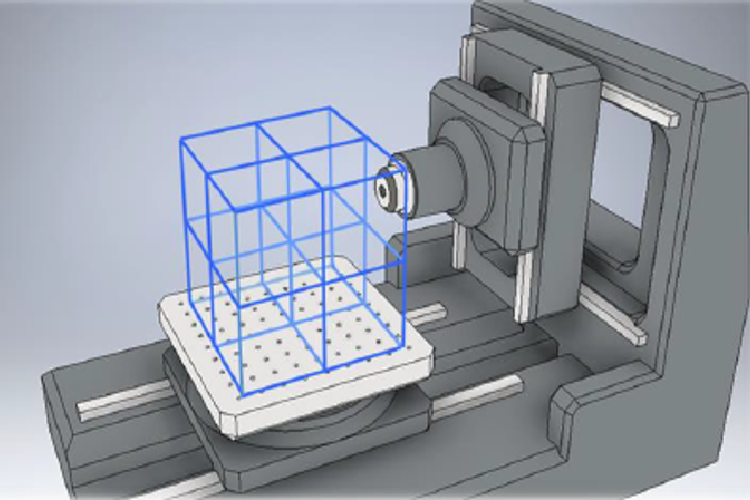

Spatial accuracy compensation improves reliability and work efficiency
Positioning compensation is not limited to the usual one linear XYZ axis, but spatial compensation is numerically input using special software. This makes it easy to use the program output from CAM immediately and improves ease of use and setup.

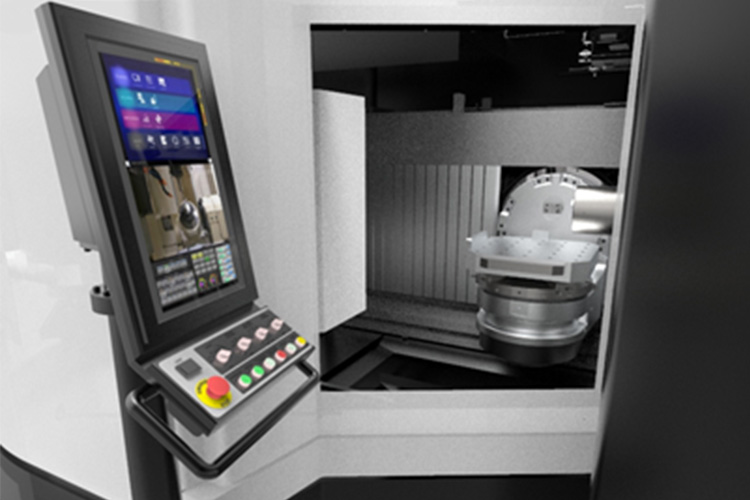

User-friendly
The height from the floor to the top of the pallet is kept at 1,120mm, which is high enough to allow step-less operation, and the door opening on the take-up side of the 2-sided pallet is as wide as 1,250mm, opening in a fan shape at the top. The main operation panel is also located in an easy-to-see position for improved operating efficiency.
Specifications
- Full specs
- Pallet (mm): 500 x 500 (2-sided swivel type, top side:M16 tap)
- Stroke X/Y/Z (mm): 800/800/900
- Stroke X/Y/Z (in): 31.5/31.5/35.4
- Spindle taper type: HSK-A63
- Spindle speed (min-1): 100-20,000
- Spindle motor output (kW): Output (10 min/continuous) 37/26
- Fast forwarding speed (m/min): 60
- Number of tools stored (pcs): 60
- Max tool length (mm): 400
- Max tool length (in): 15.7
- Max tool diameter (in): Φ9.8
- Max tool diameter (mm): Φ250
- Control unit (maker): FANUC 31i-B PLUS series
- Machine mass (lbs): 39.683
- Machine mass (kg): 18000
- Machine size (W x D x H) (in): 117.5 x 243.1 x 129.1
- Machine size (W x D x H) (mm): 2,985 x 6,175 x 3,280
Support you can count on
Videos
Product Features
The following video introduces the machine features of the CX500

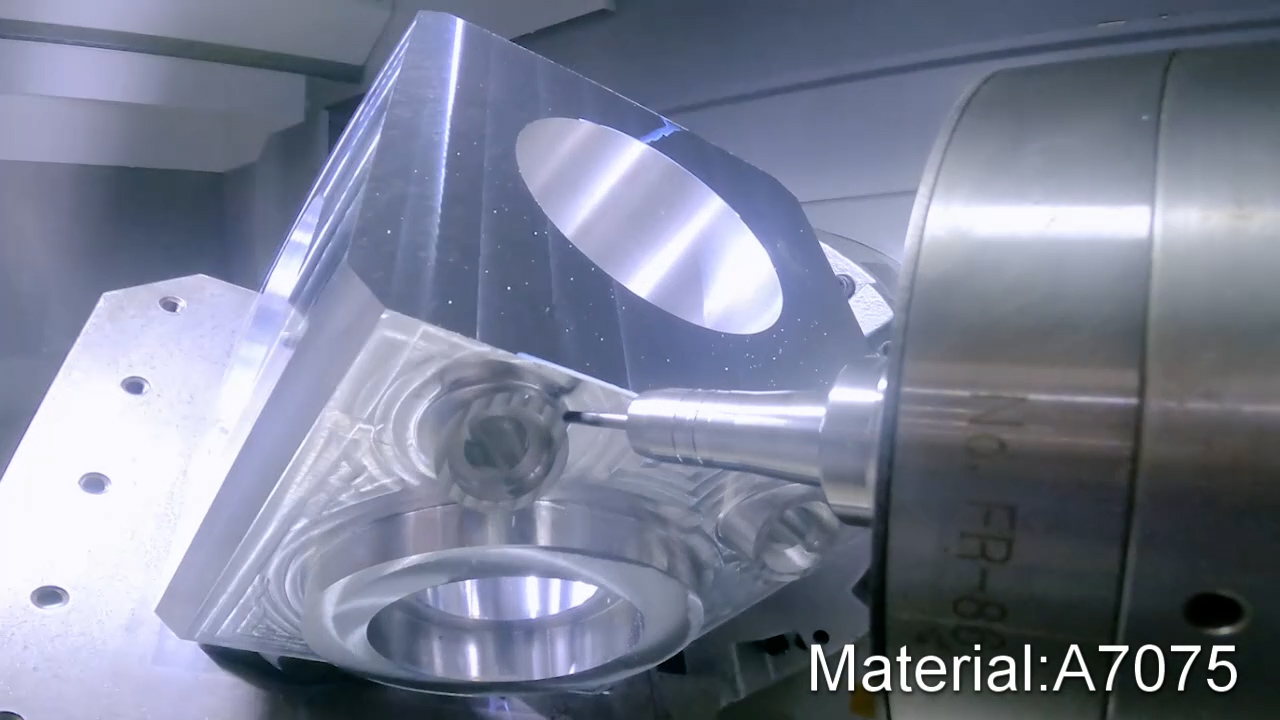

Simultaneous 5-axis machining movie
Model : Vacuum chamber
Material : A7075

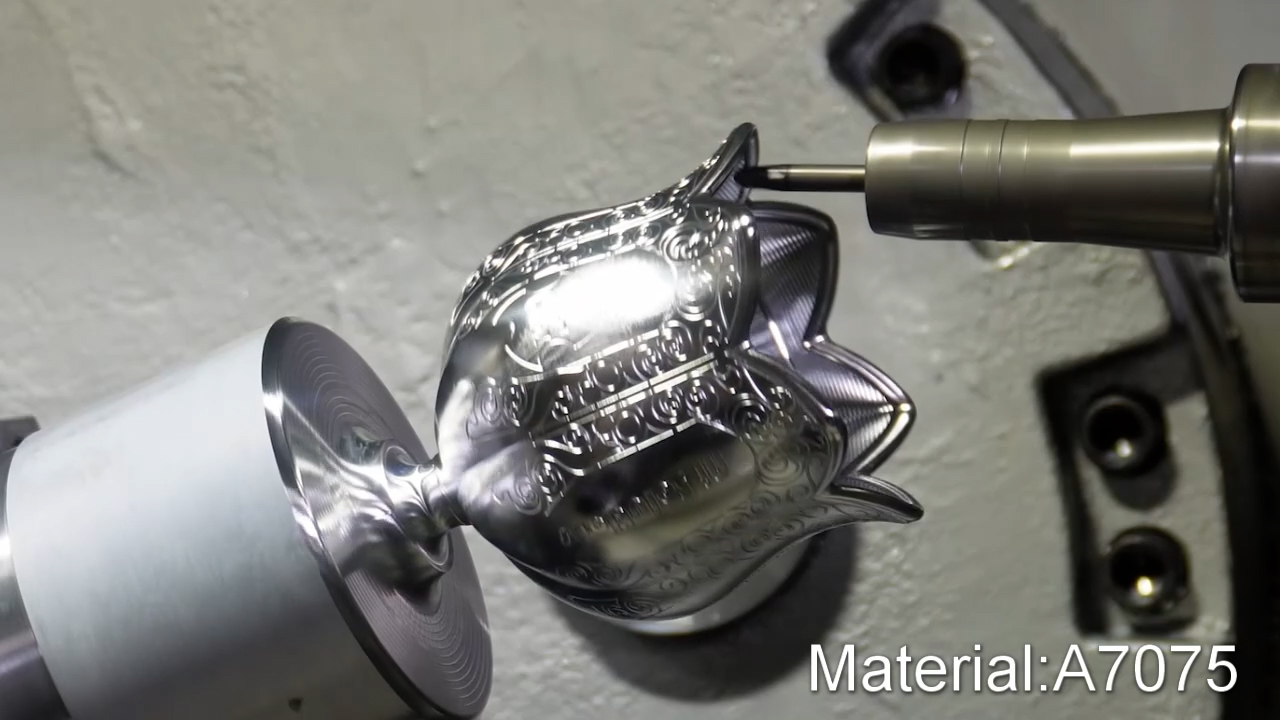

Simultaneous 5-axis machining movie
Model : Glass (Tulip)
Material : A7075
