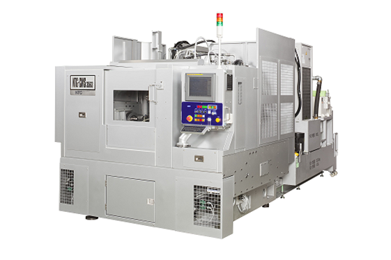

Product Image

Machine tools

NTG-CMS3563

Grinding machines

  • Distance between centers (in) 24.8
  • Distance between centers (mm) 630
  • Swing (in) Φ1.4
  • Swing (mm) Φ350
  • Grinding wheel diameter (in) 13.8, 5.1, 3.9 or 3.1
  • Grinding wheel diameter (mm) 350, 130, 100 or 80
  • Grinding wheel width (in) 2
  • Grinding wheel width (mm) 50
  • Circumferential velocity (ft/s) 393.7 [524.9], 262.5, 236.2 or 196.9
  • Circumferential velocity (m/s) 120 [160], 80, 72 or 60

Purchase options

Contact us

Cam profile grinding

Combination of high-precision technologies

  • Designed for precise cam‑profile grinding using journal‑shaft tracking.
  • Fine‑feed accuracy, strong rigidity, and low‑vibration cutting movement ensure precise cam shaping.
  • Incorporates long‑developed high‑precision technology to support stable production.
  • Compatible with small‑diameter grinding wheels and equipped with complete ancillary systems.
  • Grinding wheel spindle uses hybrid bearings and a belt‑drive system for smooth, stable rotation.
  • Cutting axis with a linear motor and static‑pressure support delivers low vibration, high speed, and high‑precision machining.

Resources


Specifications

Metric Imperial (US)
Expand all

  • Distance between centers (mm): 630
  • Distance between centers (in): 24.8
  • Swing (in): Φ1.4
  • Swing (mm): Φ350
  • Grinding wheel diameter (in): 13.8, 5.1, 3.9 or 3.1
  • Grinding wheel diameter (mm): 350, 130, 100 or 80
  • Grinding wheel width (mm): 50
  • Grinding wheel width (in): 2
