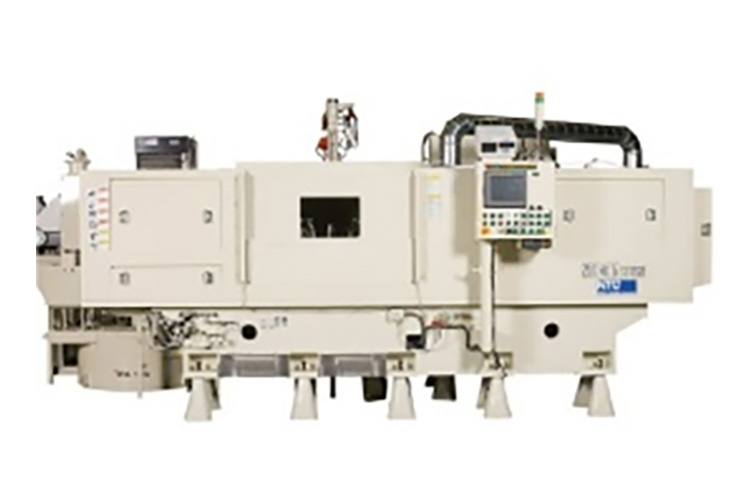

Product Image

Machine tools

NTG-CM28125

Grinding machines

  • Distance between centers (in) 49
  • Distance between centers (mm) 1250
  • Swing (in) Φ11
  • Swing (mm) Φ279
  • Grinding wheel diameter (in) 13.8 or 3.9
  • Grinding wheel diameter (mm) 350 or 100
  • Grinding wheel width (in) 2.4
  • Grinding wheel width (mm) 60
  • Circumferential velocity (ft/s) 394 or 197
  • Circumferential velocity (m/s) 120 or 60

Purchase options

Contact us

Cam profile grinding

Combination of high-precision technologies

  • Designed for precise cam‑profile grinding using journal‑shaft tracking.
  • Fine‑feed accuracy, strong rigidity, and low‑vibration cutting movement ensure precise cam shaping.
  • Incorporates long‑developed high‑precision technology to support stable production.
  • Optimized for large cam grinding
  • Line‑ready, easy‑to‑operate design for efficient production

Resources


Specifications

Metric Imperial (US)
Expand all

  • Distance between centers (mm): 1250
  • Distance between centers (in): 49
  • Swing (in): Φ11
  • Swing (mm): Φ279
  • Grinding wheel diameter (in): 13.8 or 3.9
  • Grinding wheel diameter (mm): 350 or 100
  • Grinding wheel width (mm): 60
  • Grinding wheel width (in): 2.4
