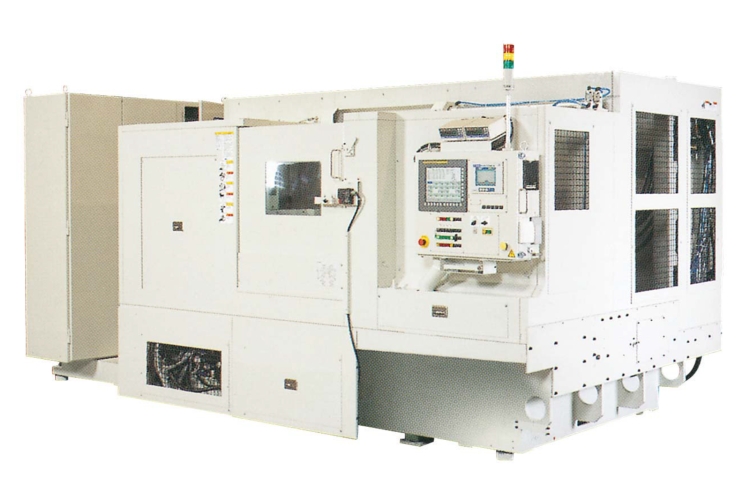

NTG-CKS2 3570

Grinding machines

  • Distance between centers (in) 27.6/39.4
  • Distance between centers (mm) 700/1,000
  • Swing (in) Φ13.8
  • Swing (mm) Φ350
  • Grinding wheel diameter (in) 21.7
  • Grinding wheel diameter (mm) 550
  • Grinding wheel width (in) 1.6
  • Grinding wheel width (mm) 40
  • Circumferential velocity (ft/s) 394
  • Circumferential velocity (m/s) 120

Purchase options

Contact us

Concentration of high-precision technology

Gathers static stiffness, dynamic stiffness and high precision elements

  • Introduced in 2001, the Orbit Crankpin Grinding Machine has continuously evolved with stronger static and dynamic rigidity.
  • Integrated technologies such as heat‑source management, chip handling, synchronization, and stable structural design enhance precision and reliability.
  • Backed by proven technical expertise, the system delivers highly reliable production performance for demanding machining environments.
  • A two‑head grinding machine that uses in‑process gauges to maintain high accuracy throughout grinding.
  • Its machining chamber is separated to reduce coolant usage and prevent unnecessary coolant spread.

Resources


Specifications

Metric Imperial (US)
Expand all

  • Distance between centers (mm): 700/1,000
  • Distance between centers (in): 27.6/39.4
  • Swing (in): Φ13.8
  • Swing (mm): Φ350
  • Grinding wheel diameter (in): 21.7
  • Grinding wheel diameter (mm): 550
  • Grinding wheel width (mm): 40
  • Grinding wheel width (in): 1.6
