Machine tools
NTG-CKS1 90600
Grinding machines
- Swing (in) Φ35.4
- Swing (mm) Φ900
- Grinding wheel diameter (in) Φ59
- Grinding wheel diameter (mm) Φ1,500
- Grinding wheel width (in) 7.1
- Grinding wheel width (mm) 180
- Circumferential velocity (ft/s) 98.4
- Circumferential velocity (m/s) 30
Purchase options

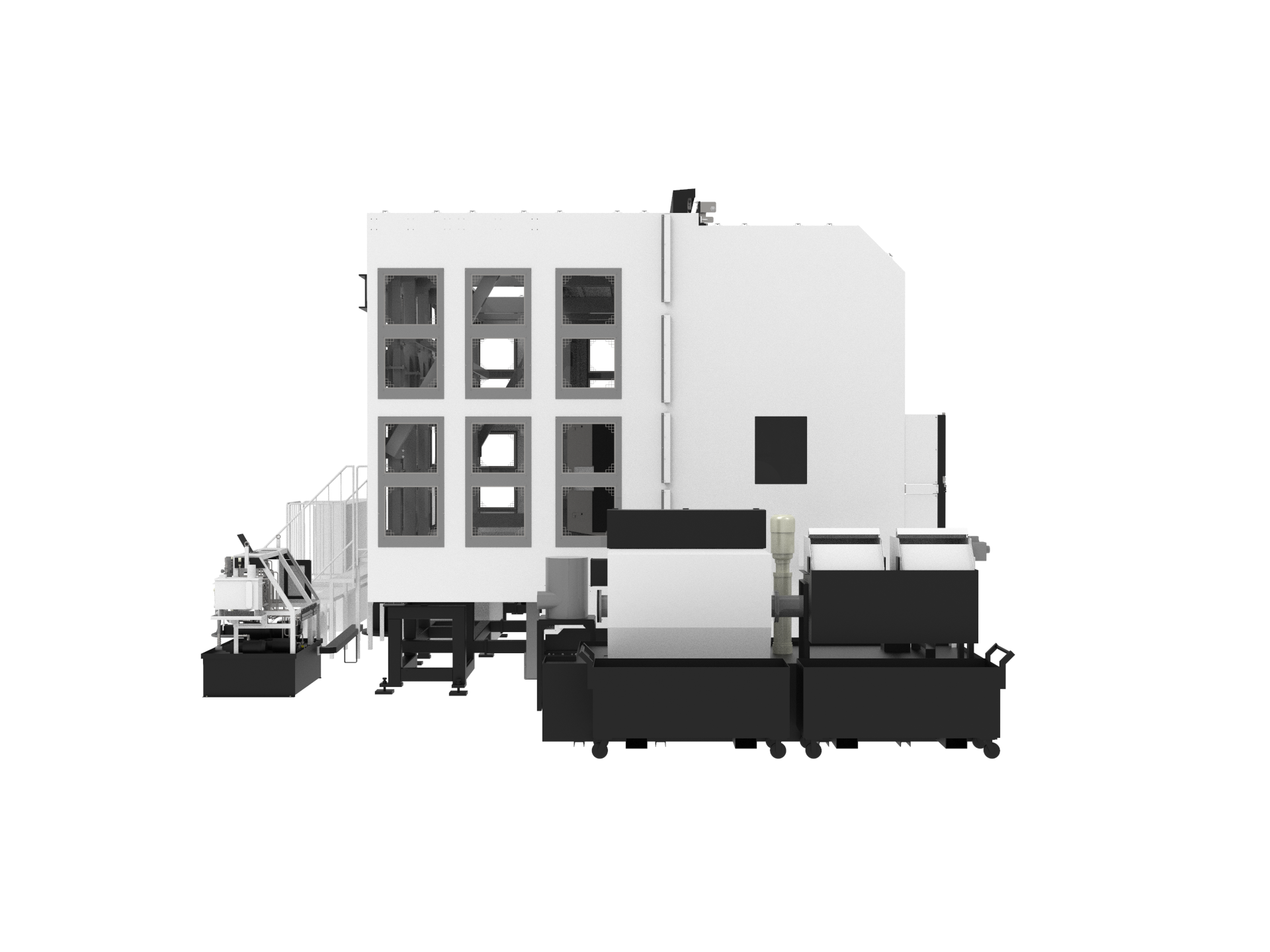

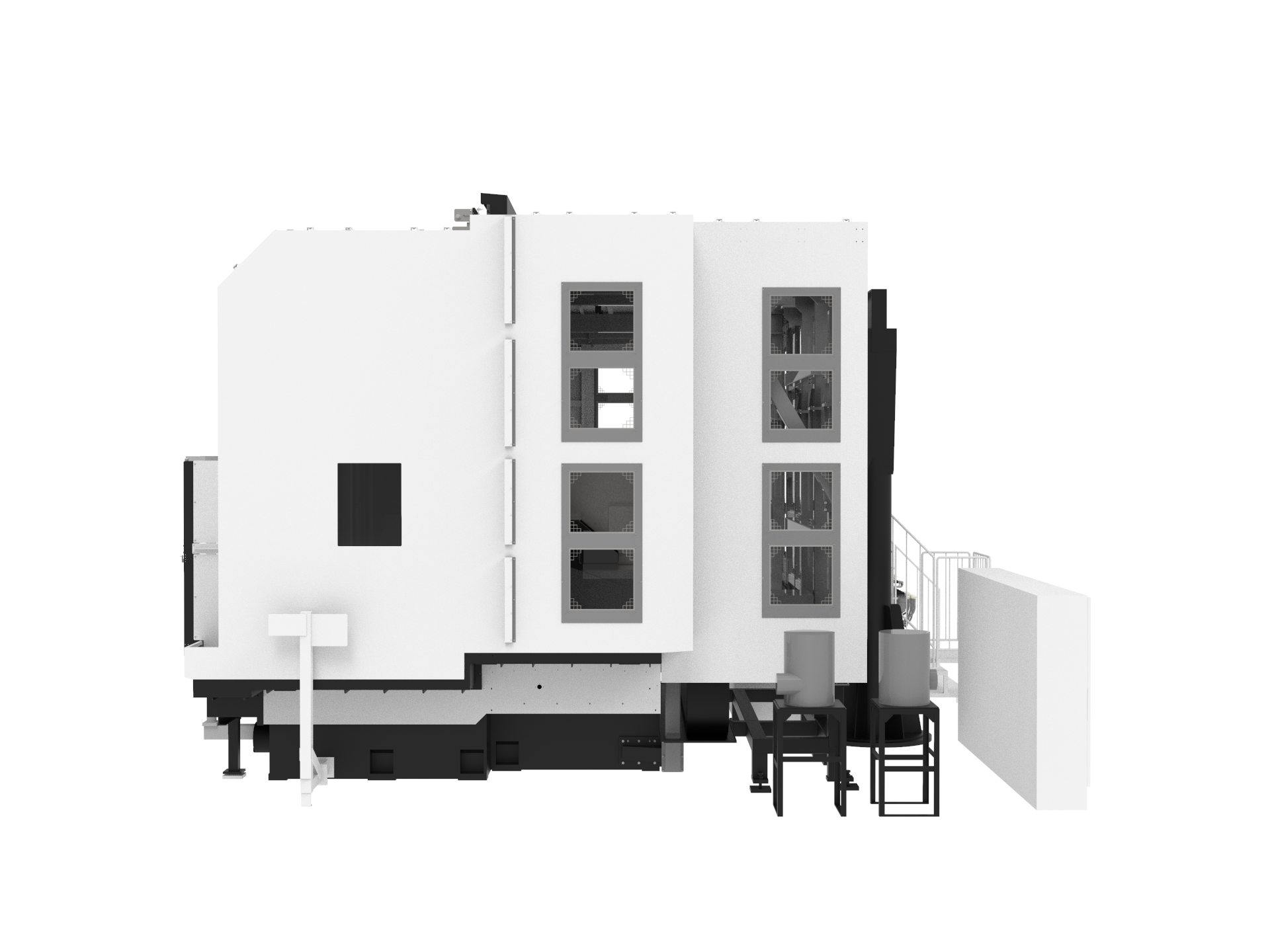

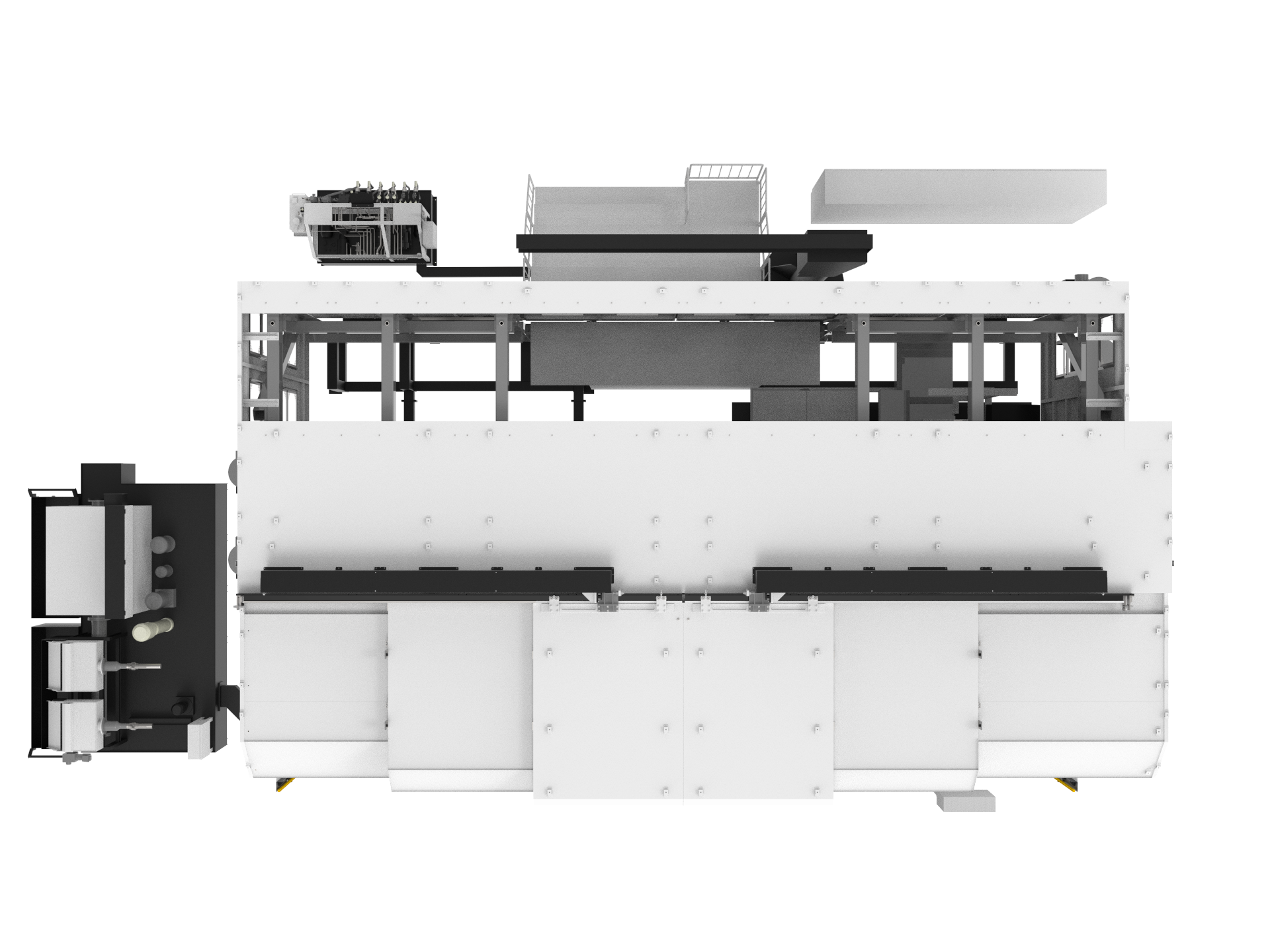

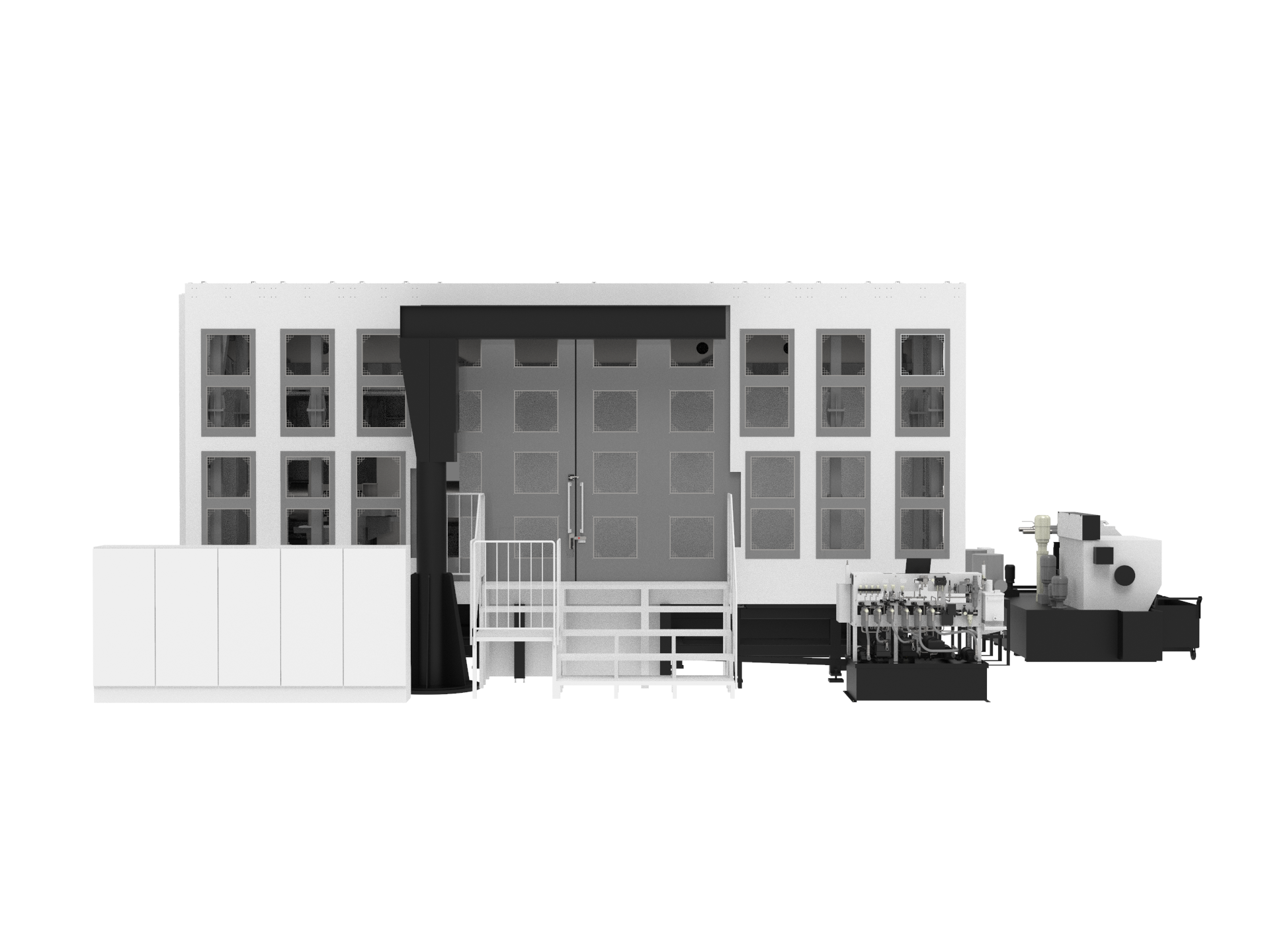

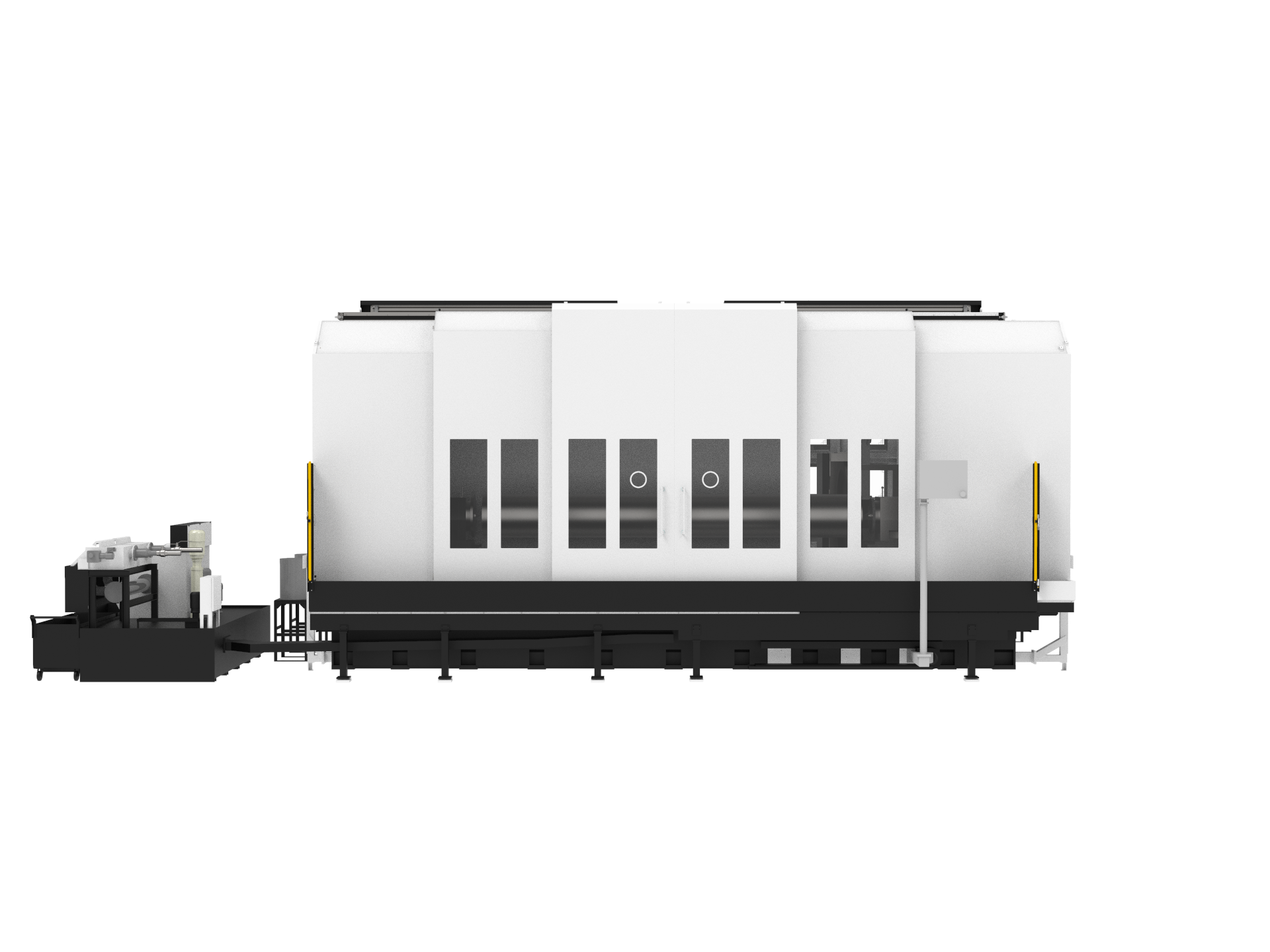

Contact usLarge crankshaft grinding machine for construction machinery, power generation, pumps and marine applications
Capable of large crankshaft grinding
- Large crankshaft grinding machine designed for construction machinery, power generation, pump, and marine applications.
- Capable of high‑precision grinding on large crankshafts with heavy dimensions and demanding tolerances.
- Addresses large‑shaft challenges such as deformation, positioning accuracy, and environmental effects through advanced machine design.
- Komatsu NTC provides stable, reliable production backed by a long track record and extensive technical expertise.
- Ideal for manufacturers seeking consistent accuracy and high productivity in large crankshaft machining.
Resources
Features and benefits
High-precision positioning
The wheel head infeed uses NTC's unique hydrostatic slide and linear motor drive, combined with the NTC roundness correction system, to enable high-speed, high-precision profile grinding with reduced vibration.
High-reliability grinding wheel
The grinding wheel bearings utilize NTC's original hybrid hydro-static bearings with no metal contact, ensuring high rigidity, vibration suppression, and high stability.
Full automatic CNC workrest
All journals are automatically measured to prevent deformation of heavy shafts, and the CNC workrest is set to the optimal position. It can be adjusted to suit the characteristics of the shaft, improving operability and setup.
Environmentally and user friendly
The sealed overall cover and the localized sealed cover for the grinding area prevent the scattering of grinding mist. Besides, the automatic measurement function, correction system, and grinding status monitor support the operator.
Specifications
- Full specs
- Swing (in): Φ35.4
- Swing (mm): Φ900
- Grinding wheel diameter (in): Φ59
- Grinding wheel diameter (mm): Φ1,500
- Grinding wheel width (mm): 180
- Grinding wheel width (in): 7.1
- Control unit (maker): FANUC
- Machine size (W x D x H) (in): 606 x 303
- Machine size (W x D x H) (mm): 15,400 x 7,700
- Machine mass (lbs): 180779
- Machine mass (kg): 82000
- Max workpiece length (in): 236
- Max workpiece weight (lbs): 6000
- Max workpiece weight (kg): 13228
- Grind wheel size (OD/width/ID) (in): Φ59/7/ Φ41
- Grind wheel size (OD/width/ID) (mm): Φ1,500/180/ Φ1,050
