NTG-6SP
Grinding machines
- Distance between centers (in) 24.8
- Distance between centers (mm) 630
- Swing (in) Φ13.8
- Swing (mm) Φ350
- Grinding wheel diameter (in) Φ17.7
- Grinding wheel diameter (mm) Φ450
- Grinding wheel width (in) 1.4
- Grinding wheel width (mm) 35
- Circumferential velocity (ft/s) 394
- Circumferential velocity (m/s) 120
Purchase options
Contact usHigh-function, high-rigidity CBN compact grinding machine
Improved production efficiency with cold start and footprint
- Equipped with advanced features that support high‑accuracy machining from cold start, ensuring stable performance from the first cycle.
- A three‑point‑supported bed with analyzed and optimized rigidity securely supports high‑load sliding surfaces and shaft diameters.
- All functions are condensed into a compact 2,200 mm machine width, integrating everything into a single efficient unit.
- The space‑efficient, unified design improves overall production efficiency.
Resources
Features and benefits
Increased floor space production efficiency

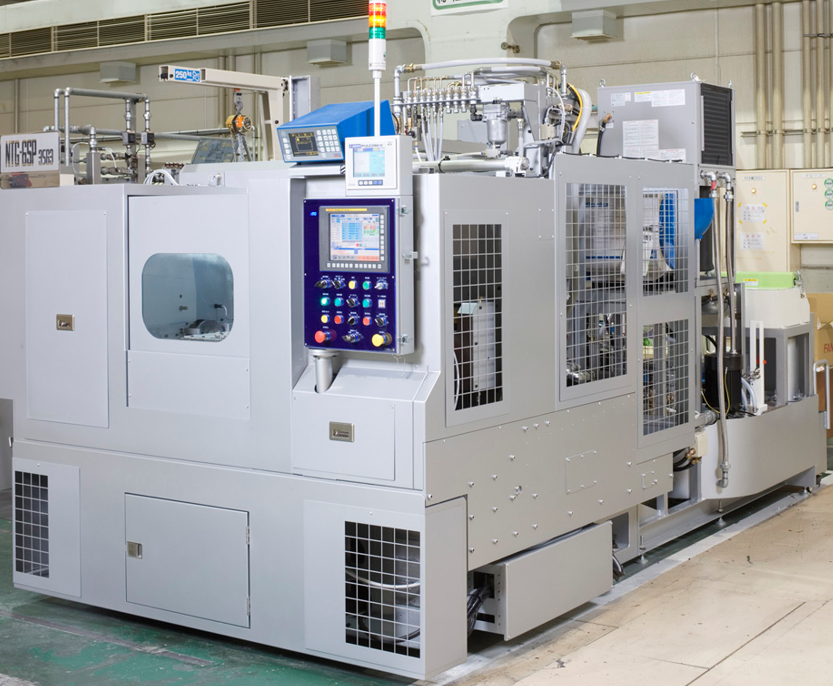

The machine width is reduced to 2,200 mm with the ability to handle workpieces with a center-to-center distance of 630 mm and a swing of 350 mm, and it has an integrated structure with auxiliary equipment. In addition to effective use of installation space, the machine can be easily upgraded to improve production efficiency in combination with its machining capacity. The grinding wheel motor is equipped with a high-output AC motor and inverter to provide high-speed grinding and energy savings.
High rigidity of the entire machine

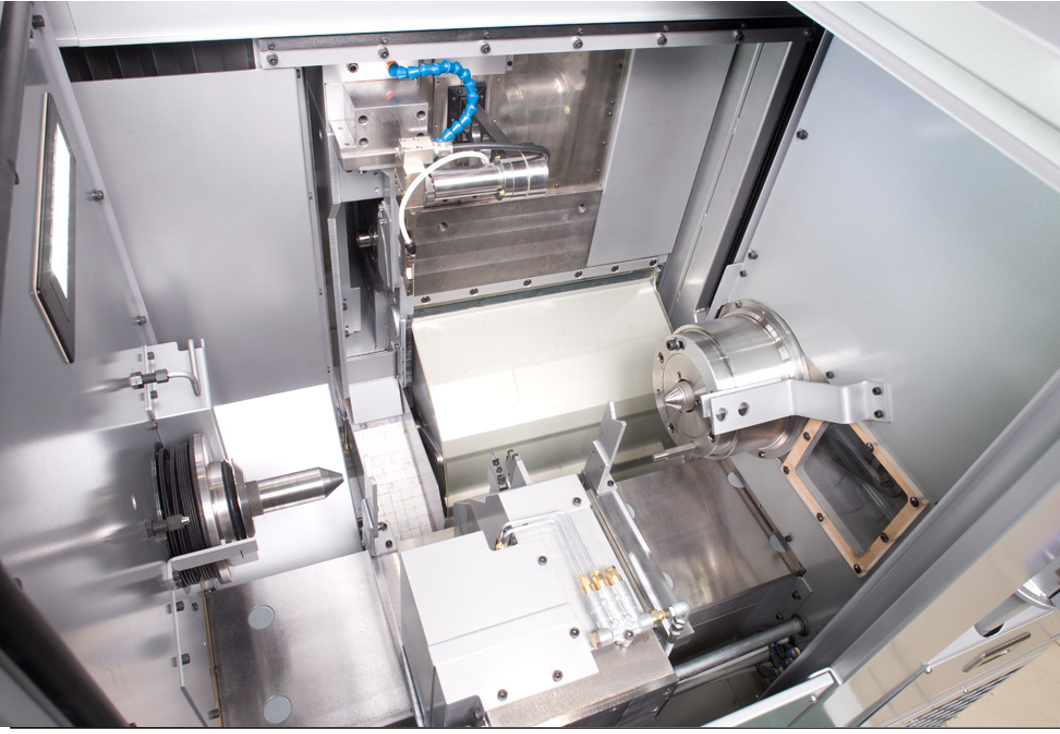

φ450mm CBN grinding wheel dedicated high-rigidity spindle + fluid hybrid bearing; main spindle and tailstock dovetail width is 250mm, center is MT-No.5; wheelhead traverse is V-flat sliding surface. These highly rigid elements are configured into a three-point support high-rigidity bed to increase machining capacity and surface roughness.
Improved setup and reduced non-machining time
The main spindle NC quill 75mm + the tailstock NC quill 200mm corresponds to a workpiece length change of 275mm, and NC drive enables smooth workpiece changeover and setup. Various jigs and units are available to handle a wide variety of workpieces.
Cold start processing
The auto balancer built into the grinding wheel spindle quickly and accurately corrects the balance using a unique balancing algorithm. In addition, a specially developed V-type constant dimension gauge and optical linear scale, coupled with a highly rigid machine, lead to stable production from a cold start.
Specifications
- Full specs
- Workpiece diameter (mm): Φ10-Φ350
- Workpiece diameter (in): Φ0.4-Φ13.8
- Distance between centers (mm): 630
- Distance between centers (in): 24.8
- Swing (in): Φ13.8
- Swing (mm): Φ350
- Grinding wheel diameter (in): Φ17.7
- Grinding wheel diameter (mm): Φ450
- Grinding wheel width (mm): 35
- Grinding wheel width (in): 1.4
- Grinding wheel type: CBN
- Control unit (maker): FANUC
- Wheel speed (ft/s): 394
- Wheel speed (m/s): 120
- Machine size (W x D x H) (in): 86.6 x 100 x 78.7
- Machine size (W x D x H) (mm): 2,200 x 2,450 x 2,000
- Machine mass (lbs): 19.842
- Machine mass (kg): 9000
