Machine tools
NTG-4SP
Grinding machines
- Distance between centers (in) 9.8/13.8
- Distance between centers (mm) 250/350
- Swing (in) Φ5.9
- Swing (mm) Φ150
- Grinding wheel diameter (in) Φ15.7
- Grinding wheel diameter (mm) Φ400
- Grinding wheel width (in) 1.0
- Grinding wheel width (mm) 25
- Circumferential velocity (ft/s) 394
- Circumferential velocity (m/s) 120
Purchase options

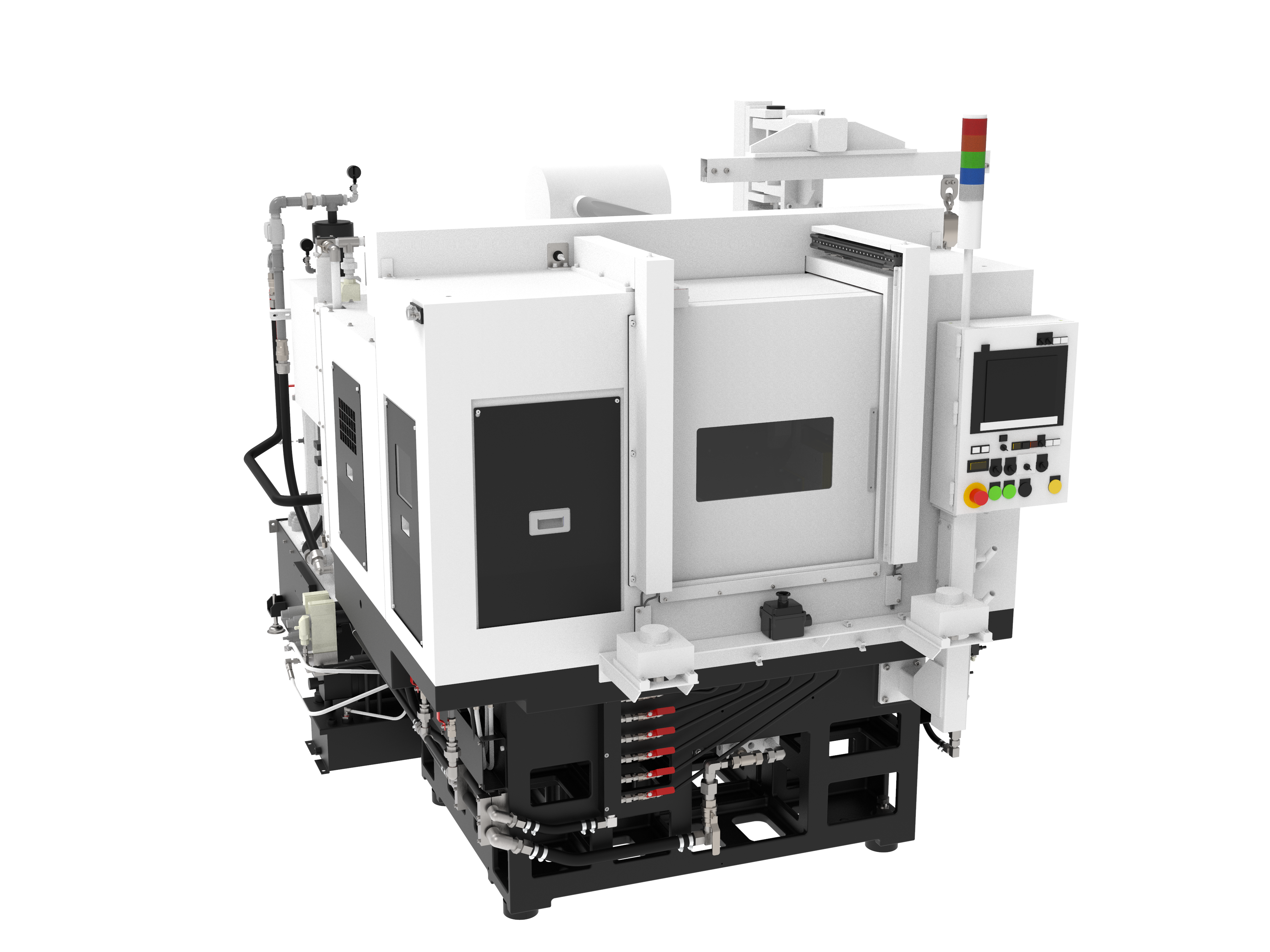

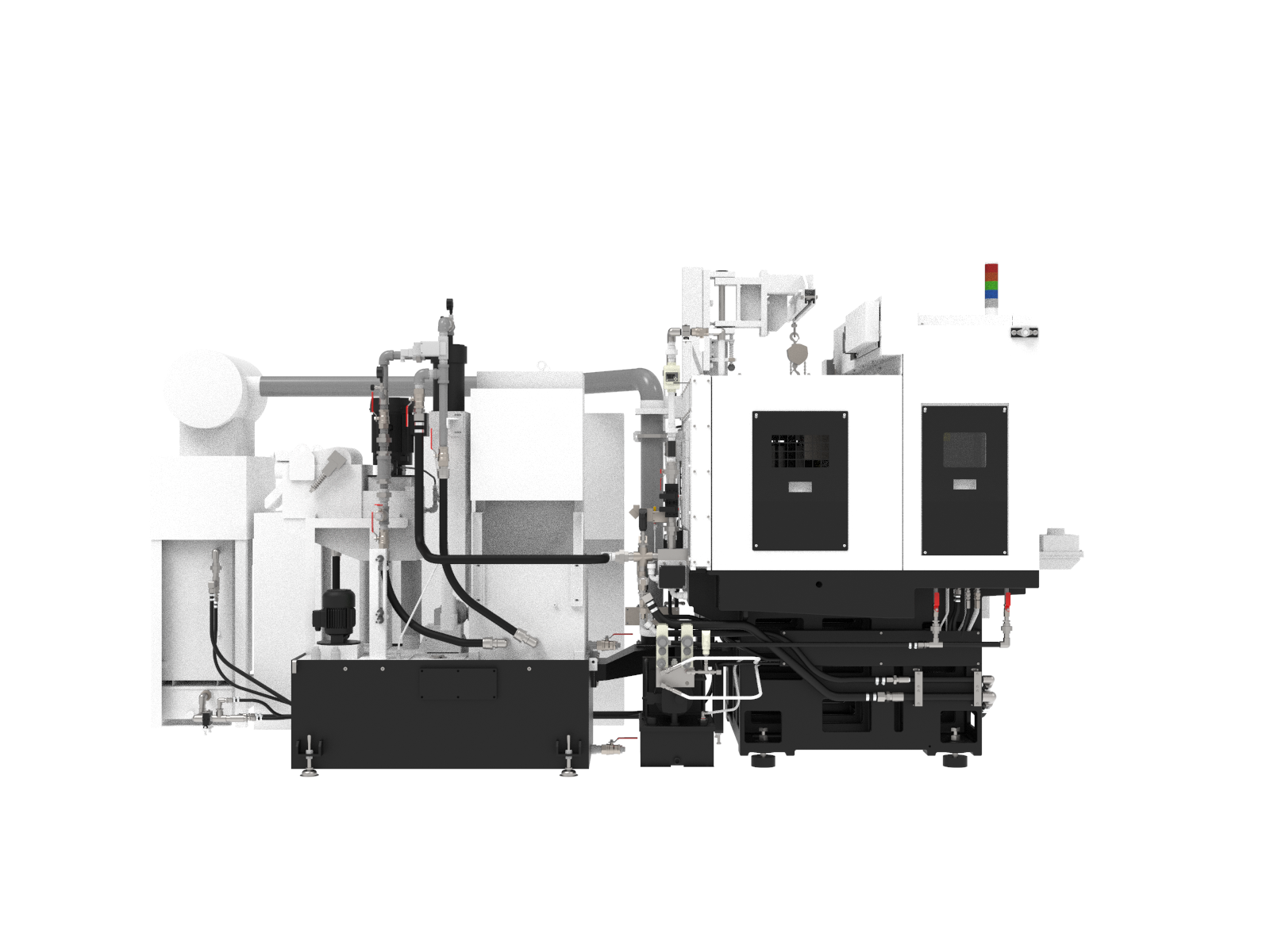

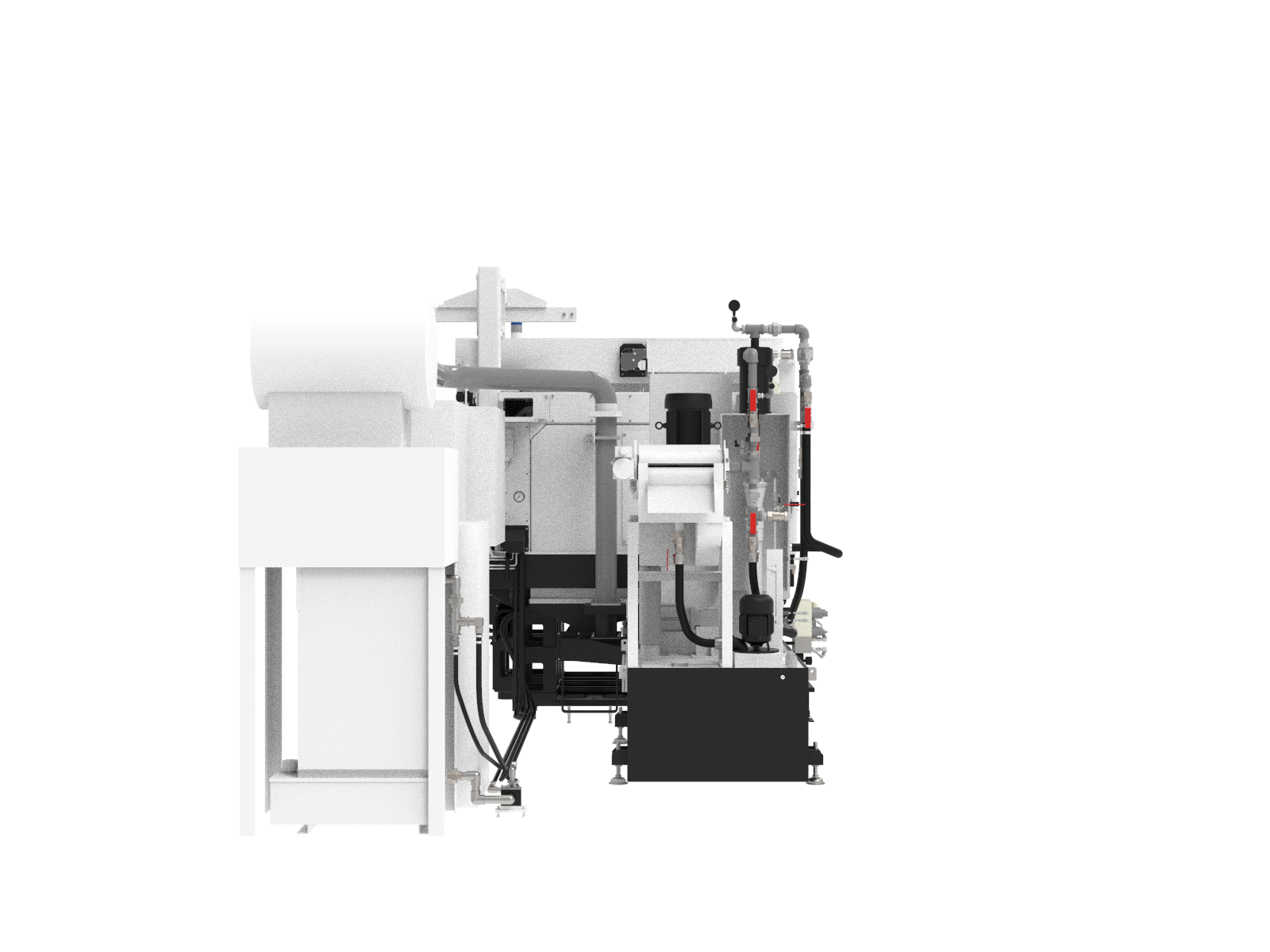

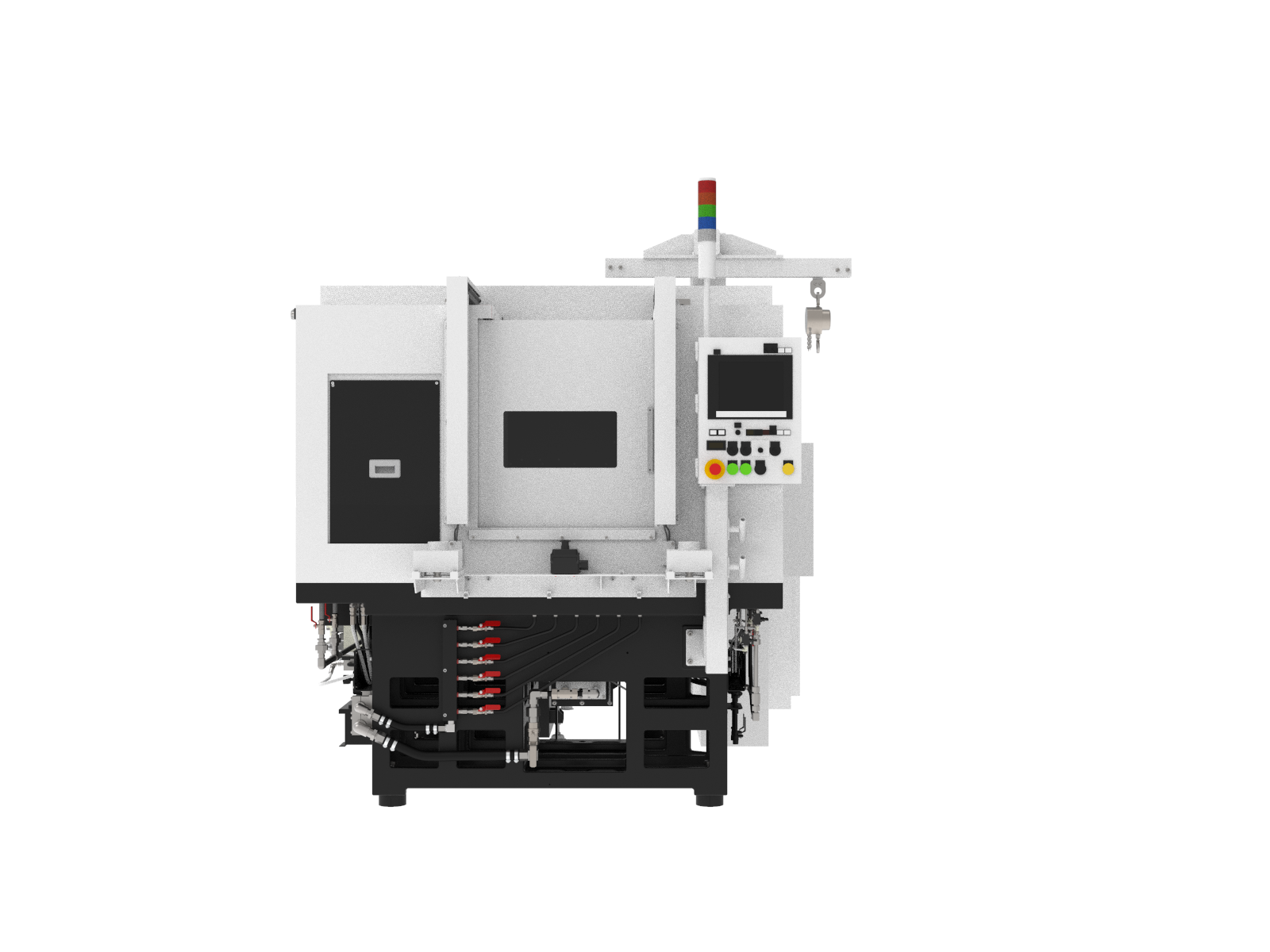

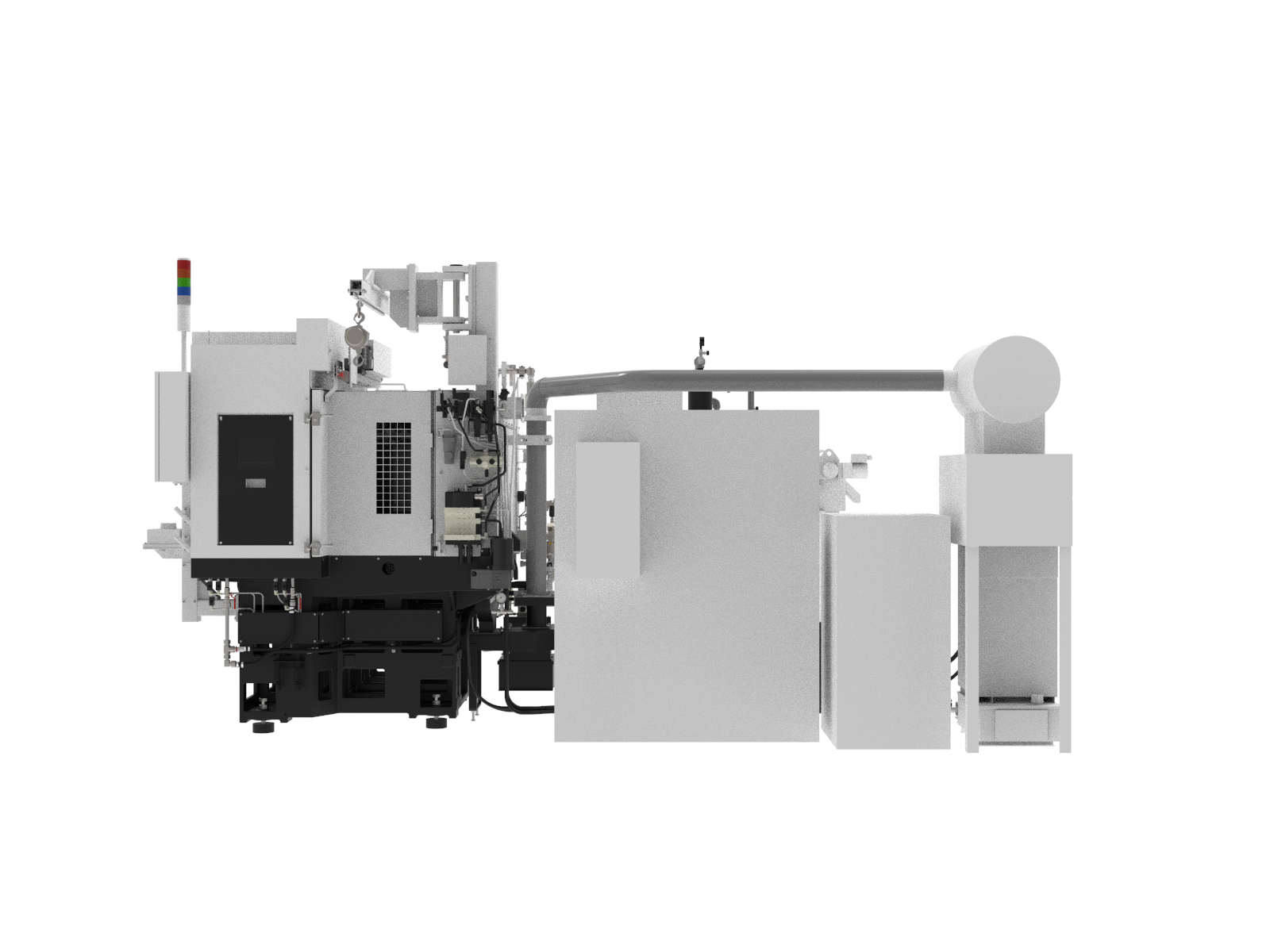

Contact usEco-friendly compact cylindrical grinder
Energy saving, space saving, minimized processing room
- The grinding wheel spindle is positioned outside the machining chamber, allowing a more compact chamber design.
- A synchronous dual‑center drive minimizes chamber size while maintaining rigidity and performance.
- Eco‑friendly design reduces coolant splatter and consumption, cutting overall operating costs.
- A hydraulic‑free, low‑air‑use system supports cleaner, more sustainable, and maintenance‑friendly operation.
Resources
Features and benefits
Minimization, space saving and energy saving in the processing room
The grinding wheel spindle is located outside the machining chamber to minimize the machining chamber. The dresser is also located outside the machining chamber to minimize the machining chamber, and the dresser also serves as the main spindle to reduce the depth of the machine. Other features: The machine is an eco-friendly, energy-saving machine that uses less electricity by eliminating hydraulic pressure and the dresser-dedicated motor.
High flexibility and productivity
Synchronous double center drives are standard for grinding of all cylindrical parts. Both left and right spindles are equipped with an automatic center-to-center adjustment function of 120 mm each to accommodate a workpiece length difference of up to 240 mm*. The grinding wheel spindle is driven by a built-in motor and has the highest grinding capacity in its class.
High precision and eccentric cams in series
The NTG-4SP is for cylindrical parts, while the NTG-4SC is a profile grinder for eccentric cams, etc. The NTG-4SP series can be used for a wide variety of workpieces.
Workability and visibility from the user's point of view
A visualization cover is used to check the outside of the machining chamber to enhance maintainability. In terms of operability, the distance from the front cover to the center of the workpiece is 400 mm, enhancing workability and safety.
Specifications
- Full specs
- Workpiece diameter (mm): Φ10-Φ150
- Workpiece diameter (in): Φ0.4-Φ5.9
- Distance between centers (mm): 250/350
- Distance between centers (in): 9.8/13.8
- Swing (in): Φ5.9
- Swing (mm): Φ150
- Grinding wheel diameter (in): Φ15.7
- Grinding wheel diameter (mm): Φ400
- Grinding wheel width (mm): 25
- Grinding wheel width (in): 1.0
- Grinding wheel type: Commonwealth of Nations (formerly British Commonwealth)
- Control unit (maker): FANUC
- Wheel speed (ft/s): 394
- Wheel speed (m/s): 120
- Machine size (W x D x H) (in): 92.7 x 165.0 x 74.8
- Machine size (W x D x H) (mm): 2,355 x 4,190 x 1,900
- Machine mass (lbs): 6614
- Machine mass (kg): 3000
