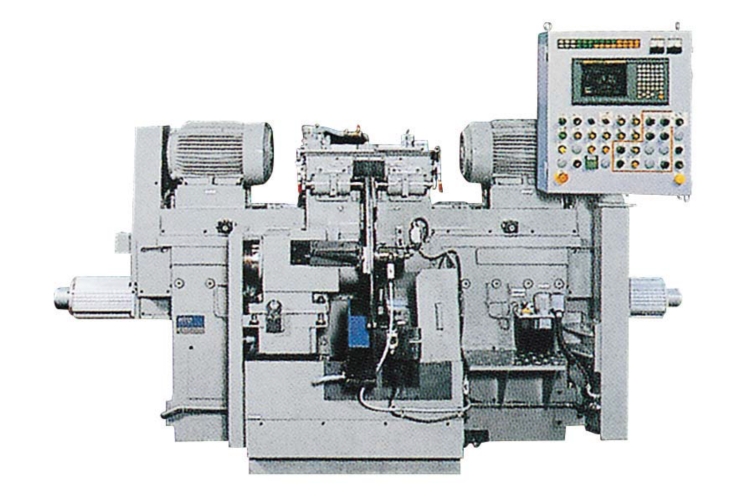

Product Image

Machine tools

DSG-5H

Grinding machines

  • Distance between centers (in) Φ5.1
  • Distance between centers (mm) Φ130
  • Max infeed grinding width (in) 2.2
  • Max infeed grinding width (mm) 55
  • Grinding wheel diameter (in) Φ23
  • Grinding wheel diameter (mm) Φ585
  • Grinding wheel width (in) 2.6
  • Grinding wheel width (mm) 65
  • Feed roller diameter (in) Φ5.9
  • Feed roller diameter (mm) Φ150

Purchase options

Contact us

We will respond to your needs with our accumulated technology and track record.

Reliable brand DSG double-disc grinding machine series

  • Since the first mass‑produced DSG‑23 in 1956, we have supported high‑precision grinding across many industries, including bearings.
  • Double‑head grinding requires exceptional rigidity and accuracy, and our machines are engineered to meet these demanding requirements.
  • Our extensive experience and advanced technical capabilities ensure precise, stable grinding for both small and large components.
  • Decades of accumulated technology continue to evolve, delivering reliable performance and high productivity.
  • High-density finishing machines from heavy-duty grinding to precision grinding to suit the workpiece.

Resources


Specifications

Metric Imperial (US)
Expand all

  • Distance between centers (mm): Φ130
  • Distance between centers (in): Φ5.1
  • Grinding wheel diameter (in): Φ23
  • Grinding wheel diameter (mm): Φ585
  • Grinding wheel width (mm): 65
  • Grinding wheel width (in): 2.6
