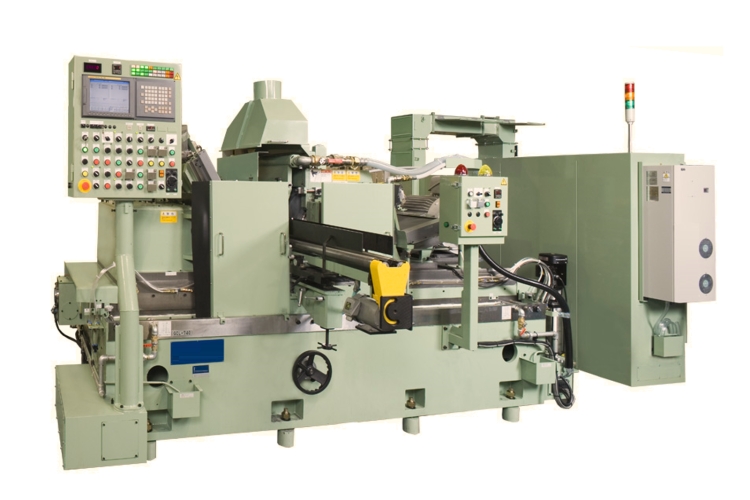

Product Image

Machine tools

CLG-5BL

Grinding machines

  • Distance between centers (in) Φ0.06-Φ5.9
  • Distance between centers (mm) Φ1.5-Φ150
  • Max infeed grinding width (in) 20.0
  • Max infeed grinding width (mm) 500
  • Grinding wheel diameter (in) Φ24
  • Grinding wheel diameter (mm) Φ610
  • Grinding wheel width (in) 20.0
  • Grinding wheel width (mm) 510
  • Regulating wheel (in) Φ16.9
  • Regulating wheel (mm) Φ430

Purchase options

Contact us

Trusted best-selling machine

Proven brand CLG Series

  • Since introducing the CLG‑2 in 1952, the predecessor to the globally praised CLG‑2BII, we have supported production across many industries including bearings.
  • Decades of accumulated technology, from high rigidity to expertise in ensuring stable workpiece rotation, form the foundation of our grinding solutions.
  • These proven technologies have been passed down and continuously evolved, delivering unwavering reliability and long‑term performance.
  • Both the grinding wheel and regulating wheel use slide‑type structures, allowing compatibility with a wide range of transfer methods.
  • Features a highly rigid machine design with grinding wheel holders capable of handling the largest workpiece diameter in the series.
  • Grinding wheel size: Φ610mm × width 510mm

Resources


Specifications

Metric Imperial (US)
Expand all

  • Distance between centers (mm): Φ1.5-Φ150
  • Distance between centers (in): Φ0.06-Φ5.9
  • Grinding wheel diameter (in): Φ24
  • Grinding wheel diameter (mm): Φ610
  • Grinding wheel width (mm): 510
  • Grinding wheel width (in): 20.0
