Machine tools

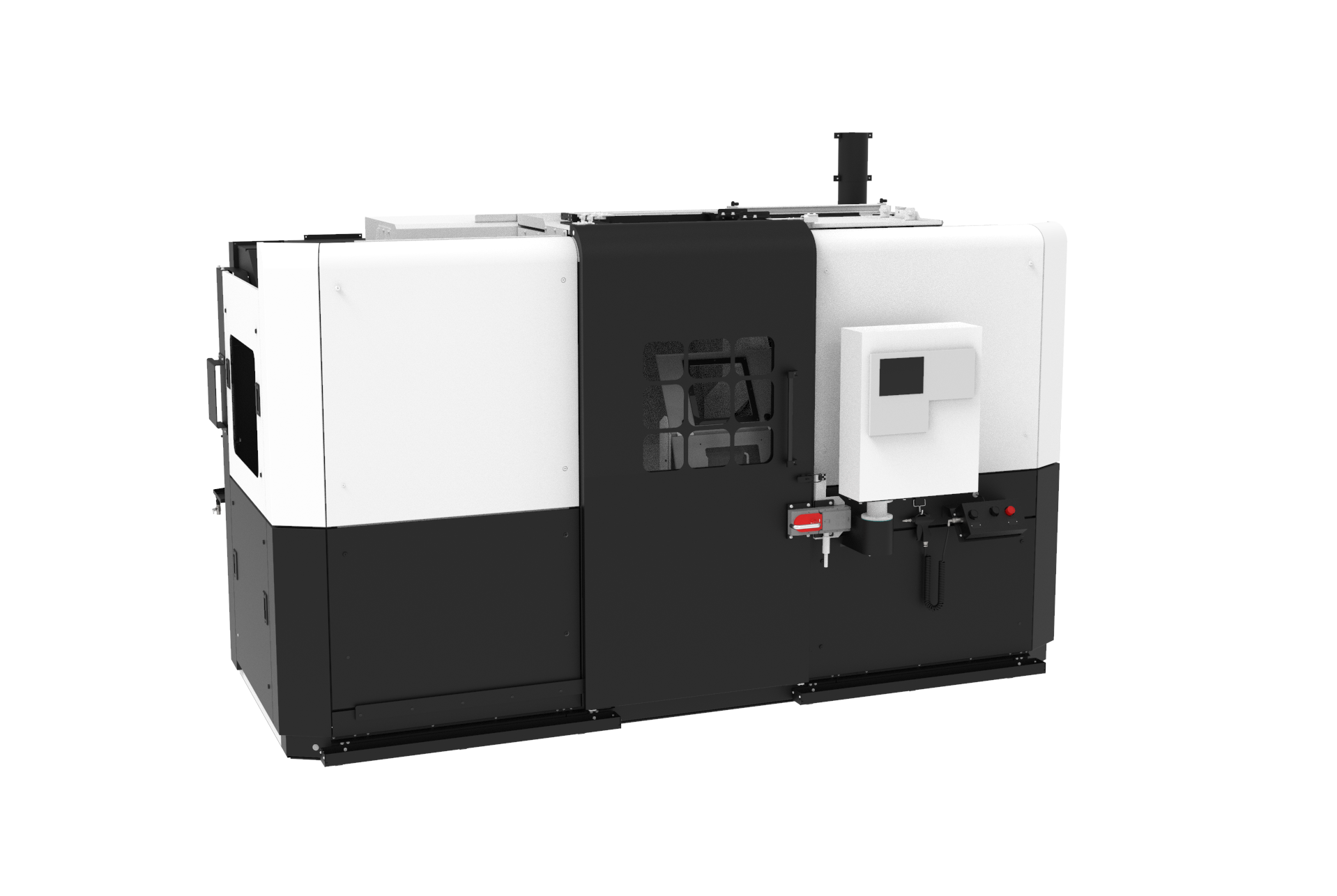

GPR300
Crankshaft processing machines
- Max machining capacity (E-d/2) (in) Φ1.2
- Max machining capacity (E-d/2) (mm) Φ30
- Cutter inner/outer diameter (in) Φ30
- Cutter inner/outer diameter (mm) Φ1.2
Purchase options
Contact usThe ultimate process consolidation and unmanned ace
Combines turning and broaching on one machine
- High productivity through process integration
- Significant reduction in processing time
- High-precision machining by high-rigidity clamping
- Operation screen from the operator's point of view
- Simplifies cutter replacement
- Environment considerations
Resources
Features and benefits
High productivity achieved through process integration
Process consolidation enables the reduction of lathe processes. It also greatly reduces the time and effort required for process design and tooling design.
Operation screen from the operator's point of view
Failure diagnosis, machining accuracy compensation, cutting tool life management, etc. can be easily checked on the operation panel screen. The inspection item screen displays the previous and next inspection dates to support reliable periodic maintenance.
Significant reduction in processing time
Simultaneous cutting by two cutters (left and right) reduces cycle time. Approximately 5 times faster indexing than conventional lathes. Significantly reduces non-cutting time.
Simplifies cutter replacement
Cutters can be easily replaced with the attached hoist. After the cutter is replaced, the touch sensor automatically measures and compensates the cutting edge position quickly. Reproducibility of machining accuracy is guaranteed.
High-precision machining by high-rigidity clamping
Three-jaw chuck with spherical bearings. Compensating mechanism prevents movement of workpiece axis center. After machining the black skin areas on both ends, the outer diameters of both ends are clamped and the left and right chucks rotate synchronously. Since there is no strong pressing like on a lathe, workpiece bending is prevented, contributing to improved runout accuracy.
Environmental considerations
No cutting coolant is used at all, which prevents environmental pollution and contributes to cost reduction.
Specifications
- Full specs
- Max workpiece length (in): 27.6
- Max work swing (mm): 300
- Max work swing (in): 11.8
- Max machining capacity (E-d/2) (mm): Φ30
- Max machining capacity (E-d/2) (in): Φ1.2
- Target workpiece displacement (L): N/A
- Number of spindles: 2
- Cutter inner diameter (in): Φ27.6
- Cutter inner diameter (mm): Φ700
- Machine size (W x D x H) (mm): 189 x 118 x 118
- Machine size (W x D x H) (in): 4,800 x 3,000 x 3,000
- Machine weight (kg): 20000
- Machine weight (lbs): 44092
