Machine tools

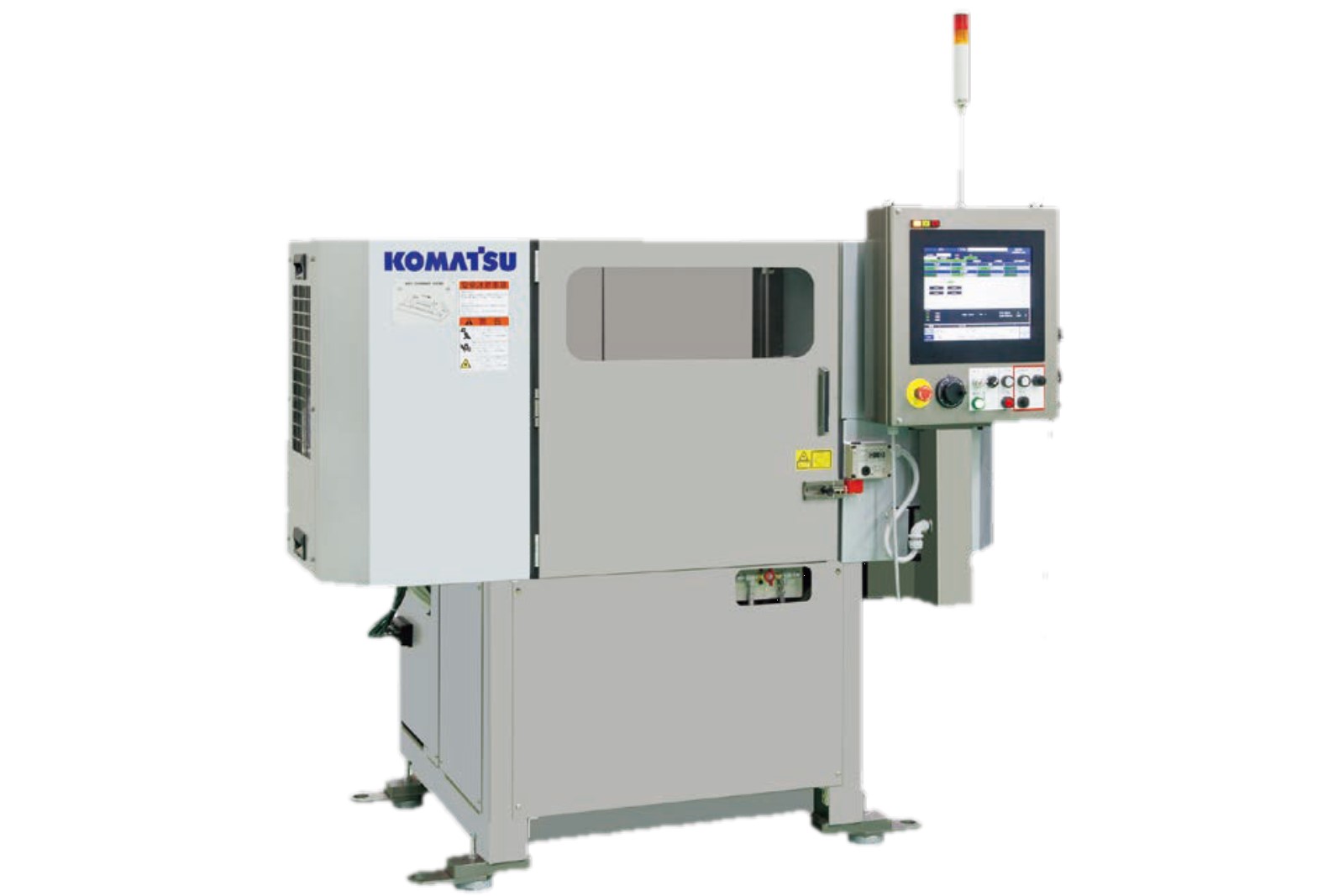

DD300
Crankshaft and camshaft measuring instruments
- Max workpiece mass (in) 7.9
- Max workpiece mass (mm) 200
Purchase options
Contact usProviding innovation to the crankshaft machining line
Balancing measuring machine for determining the centering machining position in the first process
- Optimal center hole position is calculated by balance calculation
- Equipped with 2D laser displacement sensor
- Simplified measurement process
- Optimum chucking method can be selected
Resources
Features and benefits
Optimal center hole position is calculated by balance calculation
By measuring the circumference of the counterweight section, the dynamic balance center line is calculated from the mass and the amount of misalignment. Centering processing on the dynamic balance centerline makes it possible to minimize unbalance in the finished product. Optimal balance calculation is possible by incorporating the effect of counterweight processing into the balance calculation.
Simplified measurement process
Even for unbalanced crankshafts that require the installation of balance weights for dynamic balance measurement, the balance weight portion is simply included in the calculation, making it easy to calculate the optimum balance.
Equipped with 2D laser displacement sensor
A two-dimensional laser displacement sensor is used as the measurement method. The dynamic balance is calculated by tracing a path over the measurement range.
Optimum chucking method can be selected
Three types of chucking methods are available: V-jagen chuck, centripetal horizontal chuck, and centripetal vertical chuck. The chuck can be selected according to the vice clamp of the centering machine.
Specifications
- Full specs
- Max work swing (mm): 300
- Max workpiece length (in): 51.2
- Max workpiece length (in): 1300
- Max work swing (in): 11.8
- Max workpiece mass (in): 7.9
- Max workpiece mass (mm): 200
- Machine size (W x D x H) (mm): 3,600 x 2,000 x 1,800
- Machine size (W x D x H) (in): 141.7 x 78.7 x 70.9
- Machine weight (lbs): 7,275
- Machine weight (kg): 3300
