Machine tools

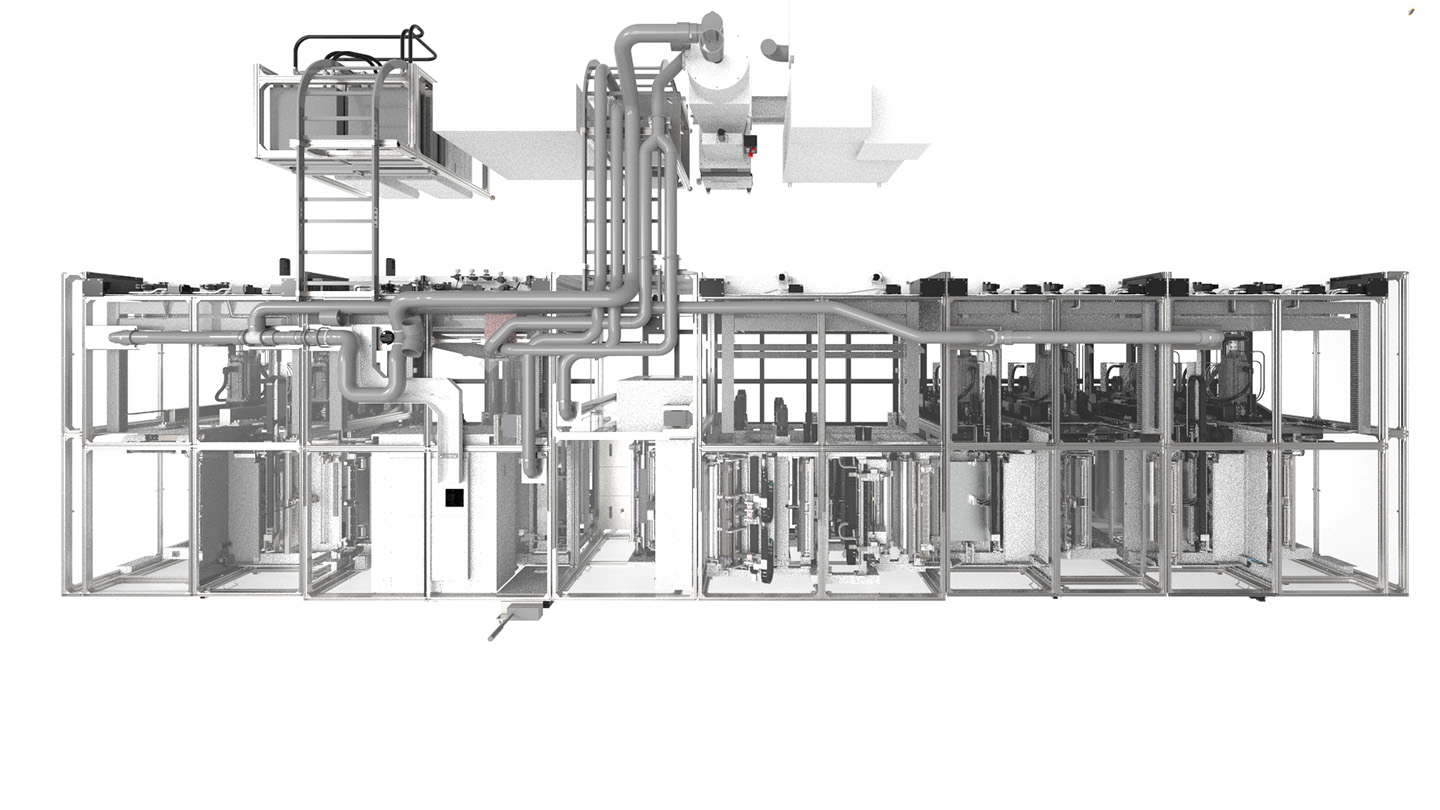

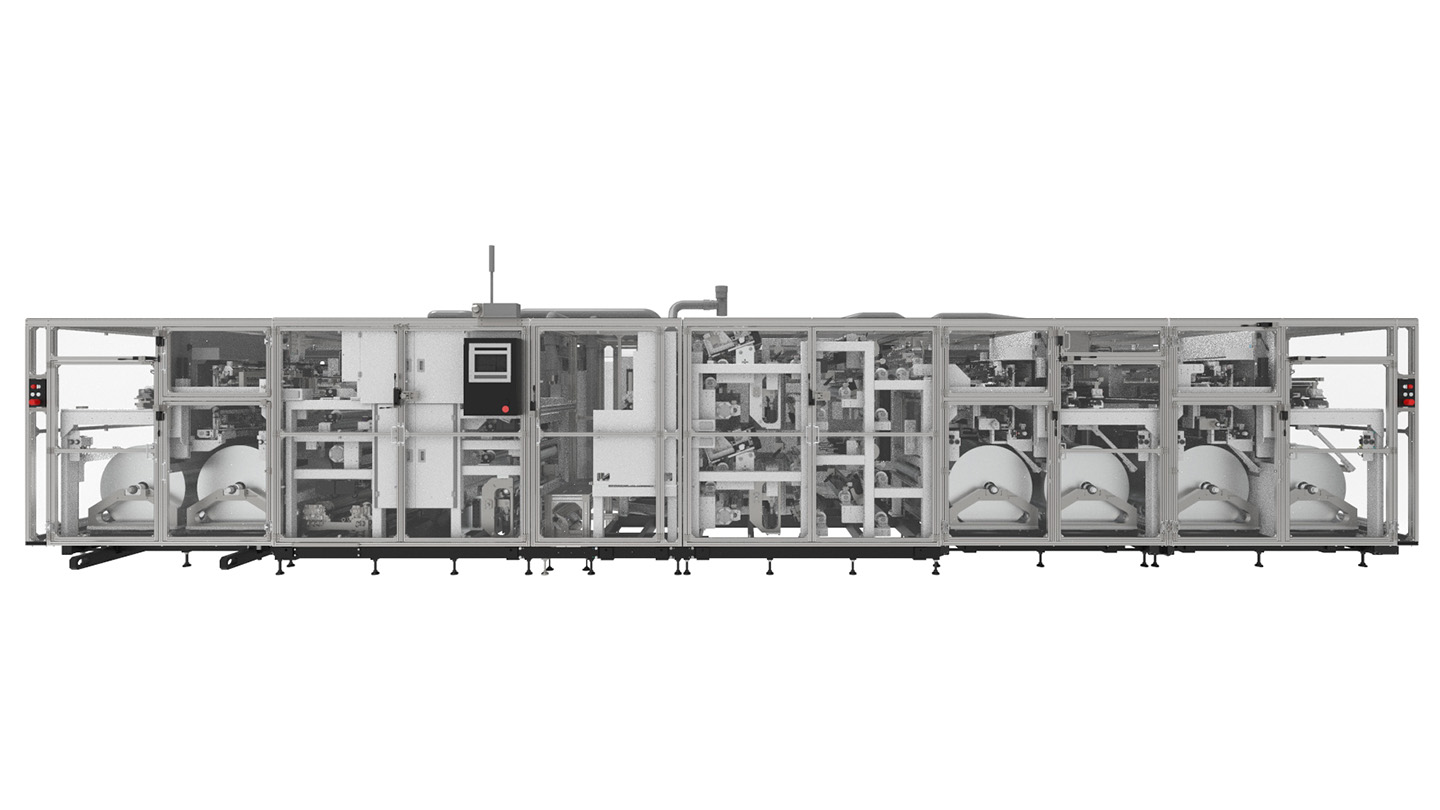

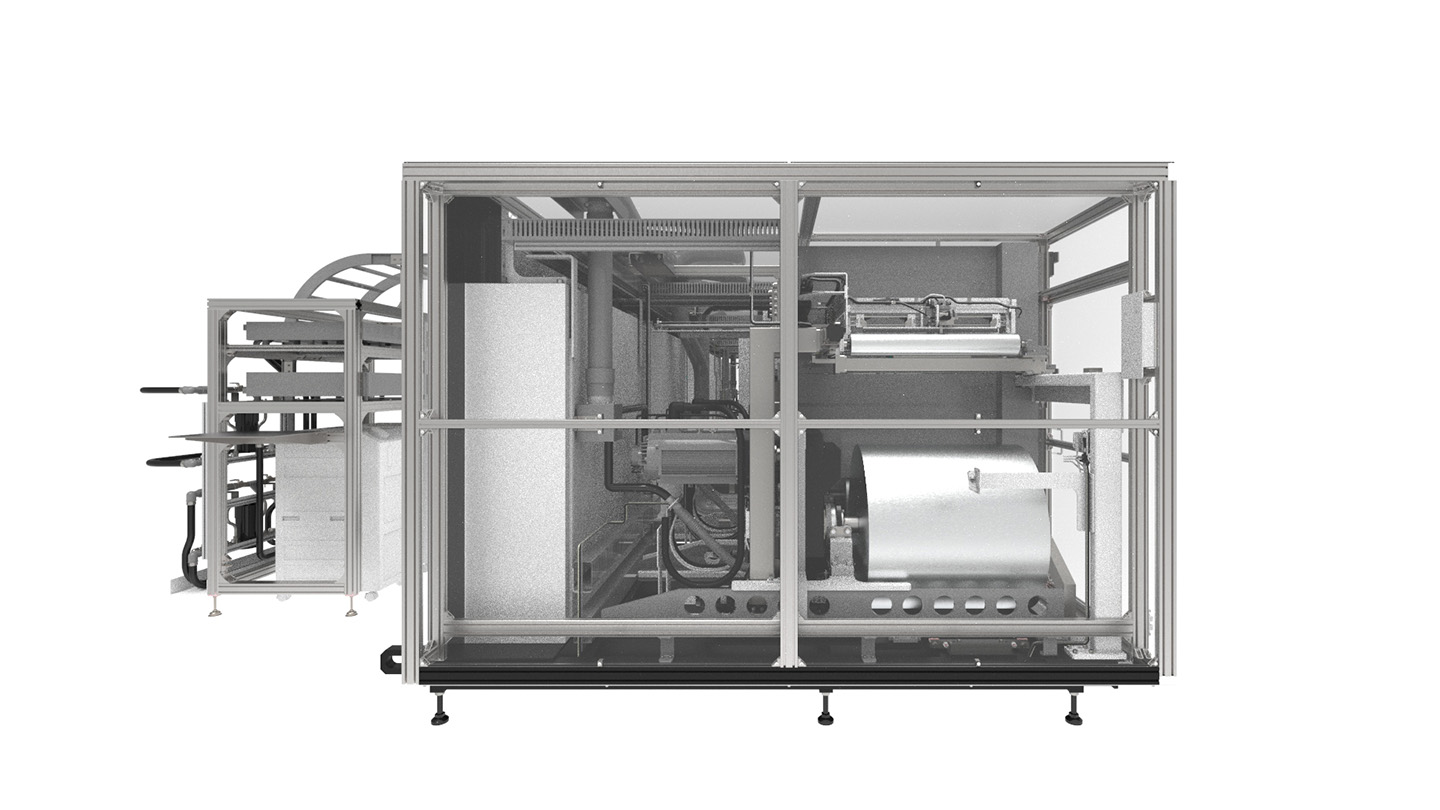

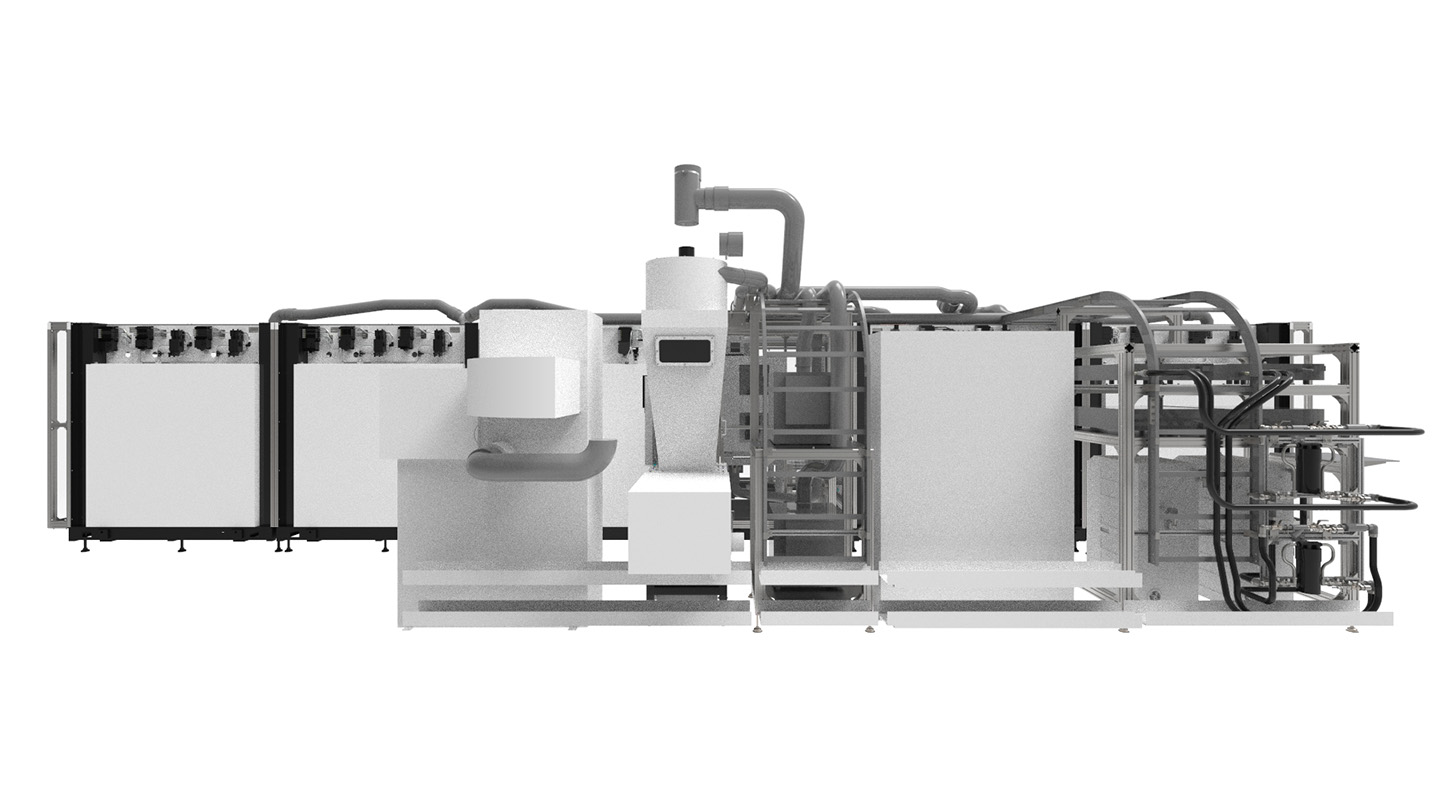

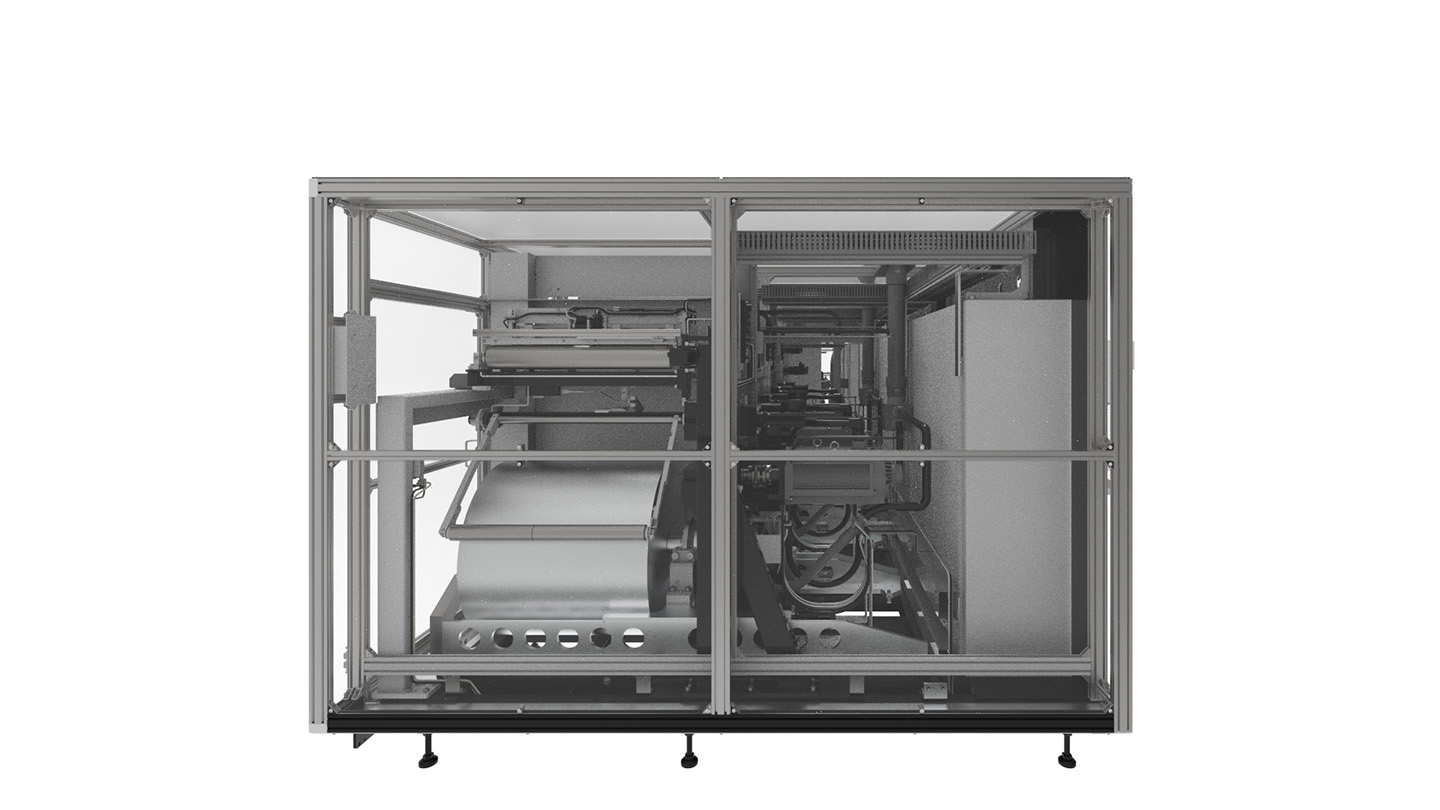

Tab forming equipment
Battery manufacturing related equipment
- Process Unwind/rewind, slitter, tab forming, examination
Purchase options
Contact usResponding to the next generation of battery manufacturing
*Built to order for your application and performance requirements.
- High production and high quality
- Flexibility of tab patterns
- Conveying technology supporting stable production
- Ancillary equipment
*Built to order for your application and performance requirements.
Resources
Features and benefits
High production and high quality
Laser processing employing a galvanometer scanner realizes high-precision processing with high-speed transfer. The industry's fastest level of 120 m/min enables free and flexible tab forming. Adopts a processing method to cut the pole plate without stopping laser irradiation. Burrs on the cut surface are suppressed, and seamless, uniform, high-quality products are produced.
Conveying technology supporting stable production
Movable rollers hold the tension of the pole plate properly to prevent deflection. Automatically adjusts meandering of the pole plate. Stable production is realized by controlling transport and processing defects.
Flexibility of tab patterns
The top edge, bottom edge, height, and pitch can be set as desired for each tab by simply changing the parameters on the touch panel or attached PC.
Ancillary equipment
Including half slitter, image processing inspection machine (dimensions, defects), cleaner, NG marking function and automatic foil splicer (turret, auto splicer).
Specifications
- Full specs
- Max machining speed (ft/min): 120
- Max machining speed (m/min): 394
- Max oscillator output (HP): 1.3
- Max oscillator output (kW): 1.0
- Machining accuracy (mm): ±0.25 (Tab Height, Tab pitch, Tab width), ±0.3 (Electrode width)
- Machining accuracy (in): ±0.01 (Tab Height, Tab pitch, Tab width), ±0.01 (Electrode width)
- Work width (in): 4.7-27.6
- Work width (mm): 120-700
- Work roll diameter (mm): Φ700
- Work roll diameter (in): 27.6
- Max workpiece weight (lbs): 1,323
- Max workpiece weight (kg): 600
- Tab height (in): 0.2-(1.4)
- Tab height (mm): 5-(35)
- Tab width (in): 0.3-(3.1)
- Tab width (mm): 8-(80)
- Distance between tabs (in): 0.4-(15.7)
- Distance between tabs (mm): 10-(400)
- Tension range (N): 10-200
- Machine size (W x L x H) (mm): 11,000 x 2,000 x 3,000
- Machine size (W x L x H) (in): 433 x 79 x 118
