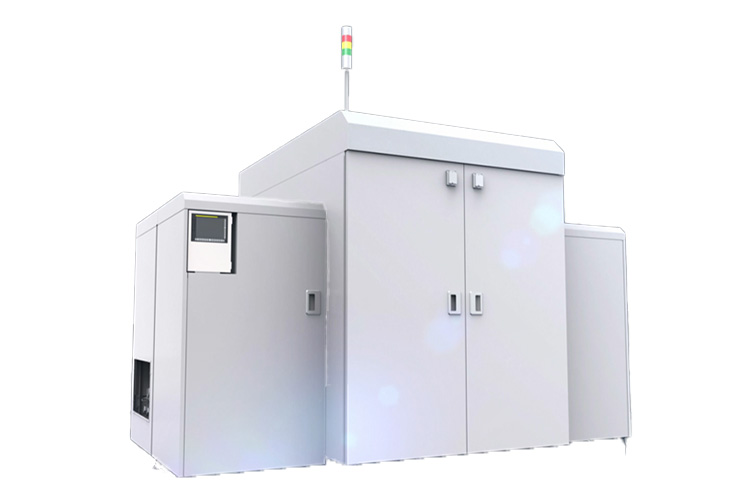

Product Image

Machine tools

IL110

Battery manufacturing related equipment

  • Process Unwind/rewind, tab molding

Purchase options

Contact us

High-precision laser tab forming machine for testing and prototype processing

  • High production and high quality
  • Flexibility of tab patterns
  • Conveying technology supporting stable production
  • Ancillary equipment

Resources

Features and benefits

High quality

Laser processing employing a galvanometer scanner realizes high-precision processing with high-speed transfer. The industry's fastest level of 120 m/min enables free and flexible tab forming. Adopts a processing method that cuts the pole plate without stopping laser irradiation. Burr formation on the cut surface is suppressed and seamless, uniform, high-quality processing is realized.

Conveyance technology supporting stable processing

Movable rollers hold the tension of the pole plate properly to prevent deflection. Automatic adjustment of meandering of the pole plate. Stable processing is realized by controlling transport and processing defects.

Flexibility of tab patterns

The top edge, bottom edge, height, and pitch can be set as desired for each tab by simply changing the parameters on the touch panel or attached PC.

Ancillary equipment

Including cleaner


Specifications

Metric Imperial (US)
Expand all

  • Max machining speed (ft/min): 120
  • Max machining speed (m/min): 394
  • Max oscillator output (HP): 1.3
  • Max oscillator output (kW): 1.0
  • Machining accuracy (mm): ±0.3 (other than cell length), ±0.8 (cell length 3,200mm), ±1.5 (cell length 6,000mm)
  • Machining accuracy (in): ±0.01 (other than cell length), ±0.03 (cell length 3,200mm), ±0.6 (cell length 6,000mm)
  • Work width (in): 3.5-7.9
  • Work width (mm): 90-200
  • Work roll diameter (mm): Φ700
  • Work roll diameter (in): 27.6
  • Max workpiece weight (lbs): 441
  • Max workpiece weight (kg): 200
  • Tab height (in): 0.1-(1.4)
  • Tab height (mm): 3-(35)
  • Tab width (in): 0.1-(3.1)
  • Tab width (mm): 3-(80)
  • Distance between tabs (in): 0.4-(15.7)
  • Distance between tabs (mm): 10-(400)
  • Tension range (N): 10-60
  • Machine size (W x L x H) (mm): 3,200 x 2,050 x 2,100
  • Machine size (W x L x H) (in): 126 x 81 x 83
