Machine tools
SMART-FTL
Automation and transfer systems
- Function Automatic jig changing system, automatic tool changer system, machining part measurement system, et cetera.
- Target machine NX400 (Machine tool), NX500 (Machine tool)
- Stroke X/Y/Z (in) 23.6/23.6/27.6
- Stroke X/Y/Z (mm) 600/600/700
Purchase options
Contact usHigh utilization automatic changeover system

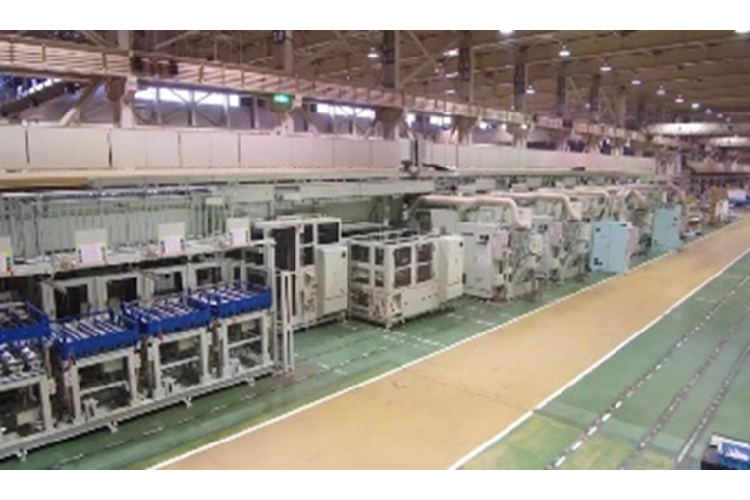

A production line that does not stop
- Flexibility is essential in medium-mix and medium-volume production while maintaining high production efficiency. SMART-FTL is a production system designed to minimize changeover losses, which are a major challenge in flexible manufacturing.
Resources
Features and benefits
Minimizing of changeover time
When there are multiple types of workpieces to be processed, minimizing changeover time is the key. In addition to automatic jig changeover, necessary tool changeover is also automatic, minimizing the downtime of each machine.
Flexible transfer systems
Our originally designed and manufactured flexible gantry transfer equipment centrally manages and controls the information of each machine. It consolidates jig information, tool information, machining counts, etc., and transmits optimal movements and various announcements to operators. It also suppresses unnecessary movements.
"Kom-mics" line monitoring system and "Komtas" tool monitoring system
In addition to the automatic line changeover system, it can be equipped with various systems that predict line operation status, machining load status, tool replacement timing, and tool life, minimizing waste on the machine and on the shop floor.
Flagship machining center "NX Series"
In addition to high precision, high rigidity, and high reliability, the "NX series" machining centers have a structure that covers all automation systems. The series includes two types of spindle tapers #40 and #50 and various strokes.
Specifications
- Full specs
- Stroke X/Y/Z (in): 23.6/23.6/27.6
- Stroke X/Y/Z (mm): 600/600/700
- Spindle taper type: HSK-A63
- Spindle speed (min-1): 10-12,000
- Spindle motor output (kW): 11/7.5
- Fast forwarding speed (m/min): 60
- Number of tools stored (pcs): 39
- Max tool length (in): 11.8
- Max tool length (mm): 300
- Max tool diameter (in): Φ9.8
- Max tool diameter (mm): Φ250
- Control unit (maker): FANUC
- Machine size (W x D x H) (mm): 3,000 x 6,000 x 3,200
- Machine size (W x D x H) (in): 118.1 x 236.2 x 126.0
- Machine mass (kg): 23,000
- Machine mass (lbs): 50,706
- Footnote: Specification = NX400 (standard specification value)
