Machine tools
Flexible stocker
Automation and transfer systems
- Function Articulated robot, flexible hand which doesn't require changeover, automatic workpiece measuring system, multi-stocker for long tools, etc.
- Target machine Multitasking machines (machine tools), machining centers (machine tools), etc.
Purchase options
Contact usFlexibility for higher productivity per square foot and reduced manpower
We developed a system that efficiently machines spindles and housings used across multiple machine models. An Okuma Multus U5000 was integrated with our stocker, enabling continuous operation without the need for changeover. This integrated solution reduced overall footprint and manpower requirements while improving cycle time and operational efficiency. A video showing the Spindle FMC in operation is available below.
Resources
Features and benefits

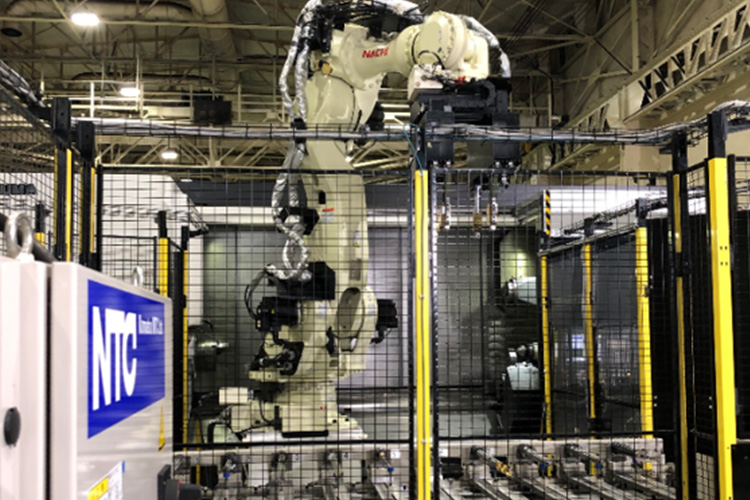

Articulated robot
A flexible, articulated robot is used to handle different types of workpieces. Long tools are stored in the stocker, and the robot is capable to load and unload these tools from the spindle of the Okuma Multus U5000.

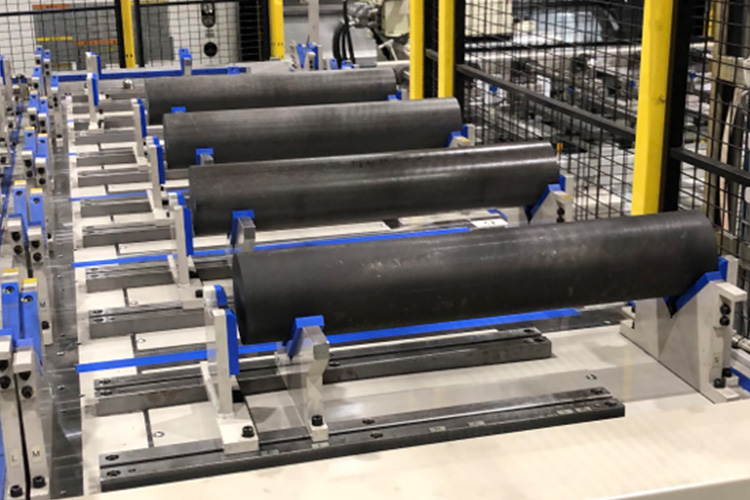

Multi stocker
The flexible multi-stocker can handle various shapes, such as spindles and housings.

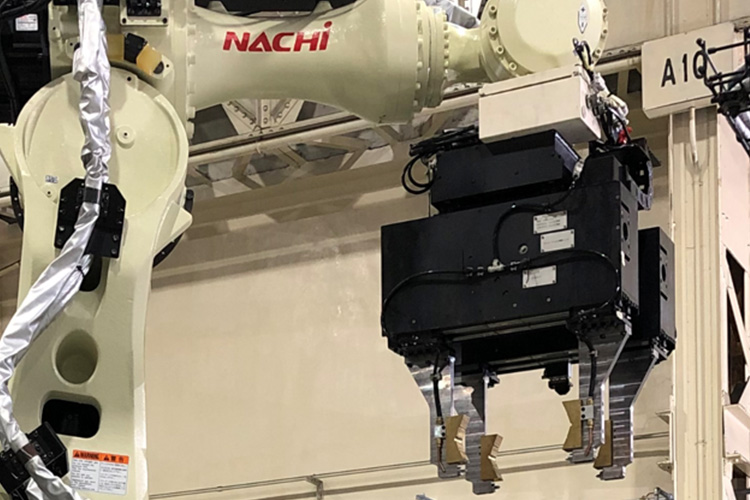

Automatic workpiece measuring system
Actual measurement of the workpiece is effective at preventing collisions after changeover. Length and diameter of the workpiece are measured with the laser sensor mounted to the robot's hand. Workpiece clamping position is also optimized.

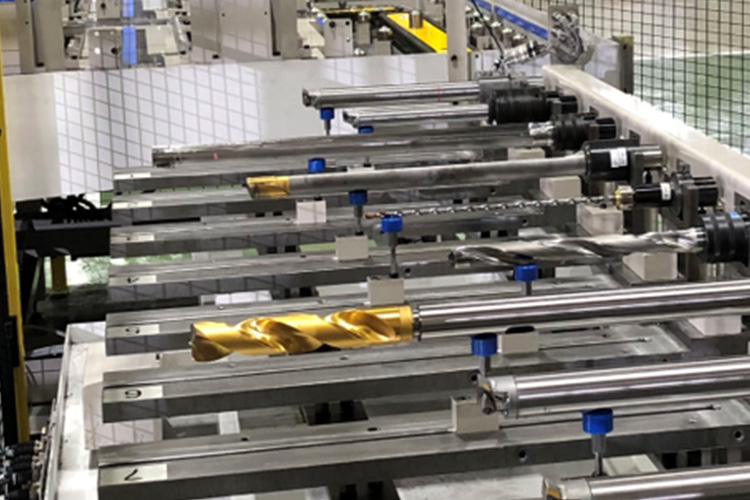

Multi-stocker for long tools
Long tools can be stored in the stocker instead of the machine tool's magazine. This allows long tools to be replaced or inspected during machining, without interrupting the machine's production cycle. A single multitasking machine can preform processes being done with 5 machines.

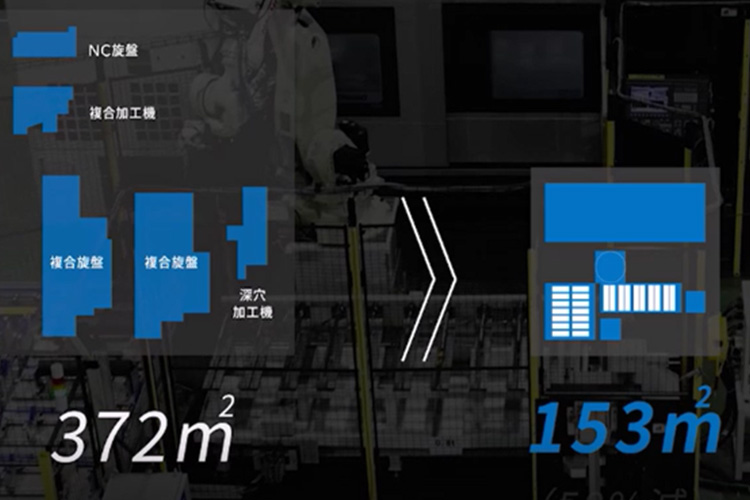

A single multitasking machine paired with the stocker can handle processes that are normally performed with 5 machines
The reduction in machines allows for a reduction in the number of skilled operators required to run the operation. A single skilled operator is able to manage the system, with a 1/3 reduction in required movement; and an overall improvement in efficiency.

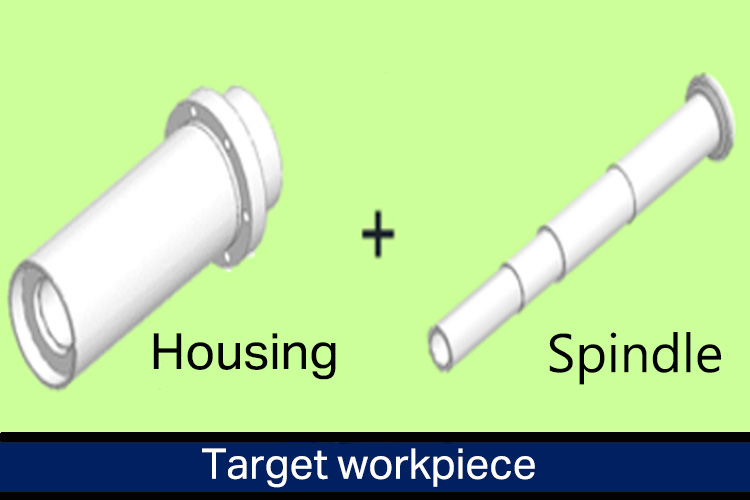

Stocker for different types of workpieces
The stocker and robot system which we incorporated flexible concept are a streamlined system that can handle different types of workpieces. Operators only need to set up daily machining schedule, workpiece and tools, and then move on to next task.
Specifications
- Full specs
- Workpiece type: 84 types (Current registration number : Maximum 99 types)
- Unattended operation hours: 21 hours/day
- Workpiece changeover: None
- Workpiece length (mm): 320-782
- Workpiece length (in): 12.6-30.8
- Workpiece diameter (mm): Φ45 to Φ270 (clamping Φ230)
- Workpiece diameter (in): Φ1.77 to Φ10.63 (clamping Φ9.06)
- Long tool size (in): Length: 15.7 to 33.5, diameter: up to Φ3.1
- Long tool size (mm): Length: 400 to 850, diameter: up to Φ80
- Tool weight (kg): 20
- Tool weight (lbs): 44.1
- Footnote: Komatsu NTC Flexible Stocker & OKUMA MULTUS U5000
Video
Komatsu NTC & Okuma Spindle FMC Automation - Case Study
The integration of the Okuma U5000 multitasking machine with our in-house designed and manufactured stocker lead to a reduction in machining time, footprint, and headcount.
(This video is available in Japanese only. Thank you for your understanding.)
