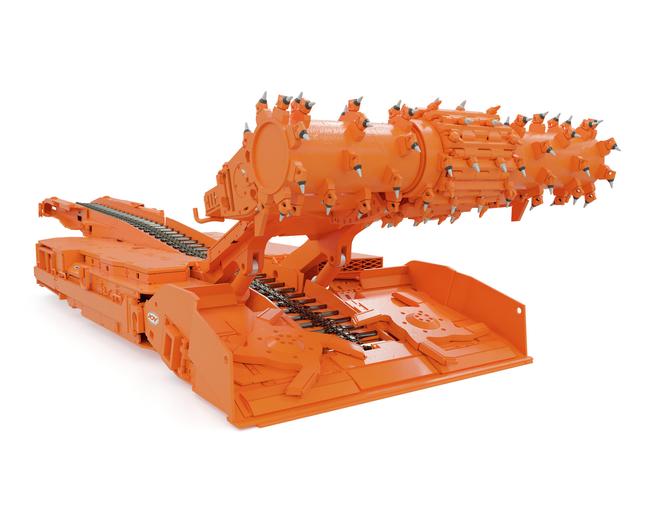

Continuous miner

14CM10

  • Maximum cutting height 3 099 mm 122 in
  • Minimum cutting height 965 mm 38 in
  • Total machine power 496 kW @ 950 V, 60 Hz 664 HP @ 950 V, 60 Hz

Designed for productive, reliable low- to mid-seam mining

With a Ripperveyor cutting head, the 14CM10 continuous miner is ready for tough applications, like mining industrial minerals or thin seams. Designed for low- to mid-seam applications and narrow entries with its 762-mm (30-in) conveyor width.

  • Exceptional availability
  • Designed for long service life

Features and benefits


Best-selling

More Joy 14CM continuous miners have been built than any other model.

Adaptability

With multiple available models, a 14CM continuous miner can be applied in your low- to mid-seam applications.
UGSR_Continuous Miners_cutterheads_F&B_designed for tough cutting.psd

Designed for tough cutting

With both solid and Ripperveyor cutting heads available, the 14CM is ready for tough mining applications.

Wethead cutterhead systems

A fine water spray behind each cutting bit on the cutter drums reduces the potential for frictional ignitions and reduces respirable dust levels.

SmartConveyor

Incorporating innovative sound abatement technologies, SmartConveyor reduces sound output and its dual-sprocket conveyor chain improves tension strength, mitigating the probability of chain breakage.

Application-specific cutting system

Maximize your productivity, work with us to create a cutting system that is ideal for your application.

Specifications for 14CM10

Close all Expand all
US system Metric
General
   14CM10AA

Cutter head design

Ripperveyor

Cutter head diameter

762 mm

Maximum cutting height

2 290 mm

Minimum cutting height
*height to clear drum and boom

760 mm

Recommended operating range

965 - 1 220 mm

Weight

45 360 kg

Ground pressure

160 kPa

Ground clearance

150 mm

Conveyor width

762 mm

Tram speed

5 - 26 m/min

Dust collector

13 kW

Cutter

123 kW

Pump

30 kW

Gathering head

50 kW

Traction

60 kW

Total power
*does not include fan

496 kW

   14CM10AA

Cutter head design

Ripperveyor

Cutter head diameter

30 in

Maximum cutting height

7 ft. 6 in

Minimum cutting height
*height to clear drum and boom

30 in

Recommended operating range

38 - 48 in

Weight

100,000 lbs.

Ground pressure

23 psi

Ground clearance

6 in

Conveyor width

30 in

Tram speed

15 - 85 fpm

Dust collector

18 HP

Cutter

165 HP

Pump

40 HP

Gathering head

67 HP

Traction

80 HP

Total power
*does not include fan

665 HP

Support you can count on

Technology that works as hard as you do

Komatsu employees remotely monitoring mining equipment health
We help solve our customers’ toughest challenges using data-driven intelligence, collaboration and service execution. Our goal is to help reduce costs and increase productivity to help our customers achieve their operating and financial goals.
Miners looking at Faceboss screen
The electronic heart of our continuous miners combines operator assistance tools, automated sequences, advanced diagnostics, machine performance monitoring and more to help you optimize your operation.
Joy OptiDrive
Patented Joy OptiDrive AC system integrates software with the electronic and mechanical systems to provide a durable, maneuverable machine.
