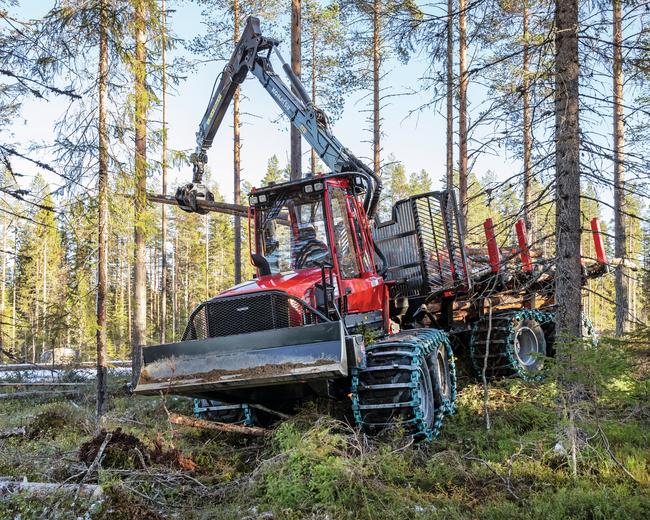

Equip your operators to drive productivity day after day in this 14-metric-ton class forwarder that features power, nimbleness and smart features. Hydraulic retarder overspeed protection ensures the driveline won't run too fast, and the flat FlexGate headboard increases load space.
Width | With 600/55x26,5 tires: 2 726 mm With 710/45x26,5 tires: 2 956 mm |
Length, total |
10 085 mm (with shortest rear frame) |
Length, front axle to middle joint | 1 800 mm |
Length, middle joint to rear axle | 3 300 mm (with shortest rear frame) |
Transport height | 3 800 mm (hoses included and with tire compression) |
Ground clearance, at steering coupling | 6WD: 562 mm 8WD: 632 mm |
Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Width | With 600/55x26,5 tires: 8 ft. 11 in With 710/45x26,5 tires: 9 ft. 8 in |
Length, total | 33 ft. 1 in (with shortest rear frame) |
Length, front axle to middle joint | 5 ft. 11 in |
Length, middle joint to rear axle | 10 ft. 10 in (with shortest rear frame) |
Transport height | 12 ft. 9 in (hoses included and with tire compression) |
Ground clearance, at steering coupling | 6WD: 1 ft. 10 in 8WD: 2 ft. 1 in |
Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Approximate weight | 6WD: 16 400 kg 8WD: 18 000 kg |
Approximate weight | 6WD: 36,156 lbs. 8WD: 39,683 lbs. |
Type, Europe and North America |
66 AWF. 6-cylinder diesel engine with turbo and intercooler. EU Stage IV and EPA Tier 4 Final. |
Stroke volume | 6,6 L |
Power | 170 kW DIN at 1 900 RPM |
Torque | 950 Nm at 1 500 rpm |
Fuel tank | 160 L |
Type, Europe and North America |
66 AWF. 6-cylinder diesel engine with turbo and intercooler. EU Stage IV and EPA Tier 4 Final. |
Stroke volume | 1.7 gal |
Power | 228 HP at 1,900 rpm |
Torque | 950 Nm at 1,500 rpm |
Fuel tank | 42.3 gal |
Gross load | 14 000 kg |
Bunk area | 4,3 - 5,9 m², depending on options and market |
Gross load | 30,865 lbs. |
Bunk area | 46.3 - 63.5 sq.ft. depending on options and market |
Flow | 280 L/min at 2 000 rpm |
System pressure | 260 bar |
Flow | 74 gpm at 2,000 rpm |
Max working pressure | 3,771 psi |
Loader | Komatsu 130F |
Reach | 8 m / 10 m |
Gross lifting torque | 127 kNm |
Gross slewing torque | 28.7 kNm |
Rotator | G121 ProTec and slewing dampened link |
Grapple | Komatsu G28 |
Loader | Komatsu 130F |
Reach | 26 ft. 3 in / 32 ft. 10 in |
Gross lifting torque | 93,670 lbs.-ft. |
Gross slewing torque | 21,168 lbs.-ft. |
Rotator | G121 ProTec and slewing dampened link |
Grapple | Komatsu G28 |
Voltage | 24 V |
Battery capacity | 2 x 180 Ah |
Generator | 2 x 100 A |
Voltage | 24 V |
Battery capacity | 2 x 180 Ah |
Generator | 2 x 100 A |
Driving speed | 0-8/20 kph (terrain/road) (max speed with steering wheel) |
Tractive force | 187 kN |
Driving speed | 0-5/12.4 mph (terrain/road) (max speed with steering wheel) |
Tractive force | 42,039 lbf. |
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
