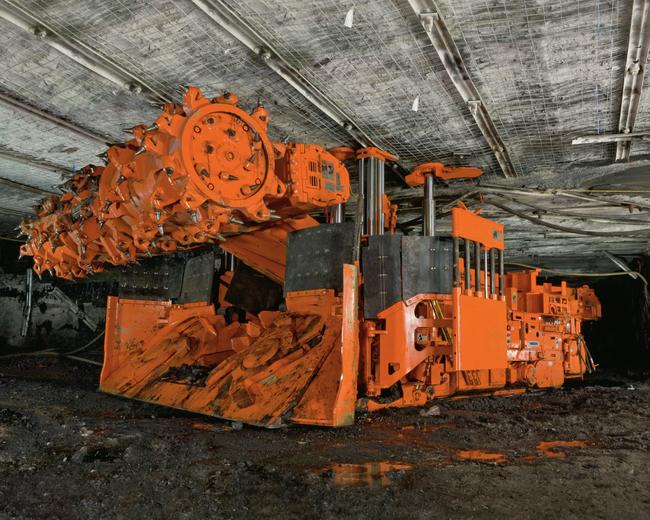

14ED25

  • Number of roof bolters 2 2
  • Number of rib bolters 2 2
  • Roof drill to pick tip distance 3 479 mm 137 in

Eliminate the entry gate bottleneck

Enhanced productivity in low- to mid-seam applications with an entry driver with integrated bolting system, enabling simultaneous cutting and bolting. The single-pass machine addresses the bottleneck during gate road development when the roof is weak, requiring early roof bolt installation.

  • Exceptional reliability and uptime
  • Increased time between major rebuilds (typically 3-6 years)

Features and benefits


Dual extendable cutterheads

Hydraulic cutter head extensions retract to promote easy withdrawals and flexibility when cutting corners. Wide head cuts up to 16 ft in a single pass. Power at the cutterhead is 656 HP/490 kW for outstanding productivity.
gathering arm loader_14BU27_literature link_DirectService.psd

Faceboss Control System

Optimize your operation with actionable insights. Operator assistance tools, automated sequences, advanced diagnostics and machine performance monitoring from the Faceboss Control System.

Dual roof drills

For quick installation of roof control, one semi-automatic Joy AFX210 roof bolter with tilt capability is fixed at each side of the miner.

Front and rear ATRS cylinders

To help protect the operator, four hydraulic cylinders stabilize the roof while mining and bolting. Engaged with the push of a button, the cylinders constantly pulse to ensure contact with the roof during bolting. To stabilize the roof while mining and bolting, four hydraulic cylinders constantly pulse to ensure contact with the roof during bolting at the push of a button.
14ED25_hydraulic package.png

Hydraulic optimization package

For ease of maintenance, the hydraulic optimization package offers accessibility of components by minimizing hosing, simplifying hose routing and reducing the number of components. This also simplifies the rebuild process.

Specifications for 14ED25

Close all Expand all
General

Chassis width

120

Machine length

42 ft. 11 in

Chassis height

48 in

Ground clearance

11 in

Tram speed (max)

65 fpm

Machine weight

180,000 - 196,000 lbs.

Crawler width

22 in

Ground pressure (nom)

33 - 37 psi

Sump frame height

62 in

Chassis width

120

Machine length

42 ft. 11 in

Chassis height

48 in

Ground clearance

11 in

Tram speed (max)

65 fpm

Machine weight

180,000 - 196,000 lbs.

Crawler width

22 in

Ground pressure (nom)

33 - 37 psi

Sump frame height

62 in

Cutting
Cutter head diameter  44 in
Sump distance 52 in
Cutter width 15 ft. 6 in min
Cutting height max 11 ft. 5 in
Cutting height min 6 ft. 6 in
Cutter speed 60 rpm
Bit tip speed 690 fpm
Drum extensions 9 in
Cutter head diameter  44 in
Sump distance 52 in
Cutter width 15 ft. 6 in min
Cutting height max 11 ft. 5 in
Cutting height min 6 ft. 6 in
Cutter speed 60 rpm
Bit tip speed 690 fpm
Drum extensions 9 in
Conveyor
Conveyor width 30 in
Conveyor sideboard height 12 in
Conveyor speed 402 fpm
CLA dia. 51 in
Conveyor width 30 in
Conveyor sideboard height 12 in
Conveyor speed 402 fpm
CLA dia. 51 in
Bolting
Roof drills w/ integral timber cylinder  Two AFX210 Drills
Optional rib drills   2
Dust Collection  Wet or dry drilling
Rib guards  6 ft. 0 in or 8.5 in
Roof drill to face distance  9 ft. 4 in
Rib drill to face distance  13 ft. 7 in
TRS reach  12 ft. 9 in
Roof drills w/ integral timber cylinder  Two AFX210 Drills
Optional rib drills   2
Dust Collection  Wet or dry drilling
Rib guards  6 ft. 0 in or 8.5 in
Roof drill to face distance  9 ft. 4 in
Rib drill to face distance  13 ft. 7 in
TRS reach  12 ft. 9 in
Hydraulic

Hydraulic pump (tandem)

120 gpm

Hydraulic tank capacity

300 gal

Hydraulic pump (tandem)

120 gpm

Hydraulic tank capacity

300 gal

Machine Power

Machine voltage

950 V 60 Hz

Machine cable

4/0- 3 conductor

Cutting motors

328 HP

Pump motor

160 HP

Gathering head motors

67 HP

Traction motors

80 HP

Conveyor motor

54 HP

Total installed power

1,165 HP

Machine voltage

950 V 60 Hz

Machine cable

4/0- 3 conductor

Cutting motors

328 HP

Pump motor

160 HP

Gathering head motors

67 HP

Traction motors

80 HP

Conveyor motor

54 HP

Total installed power

1,165 HP
