Features and benefits

High seam mining

High seam mining

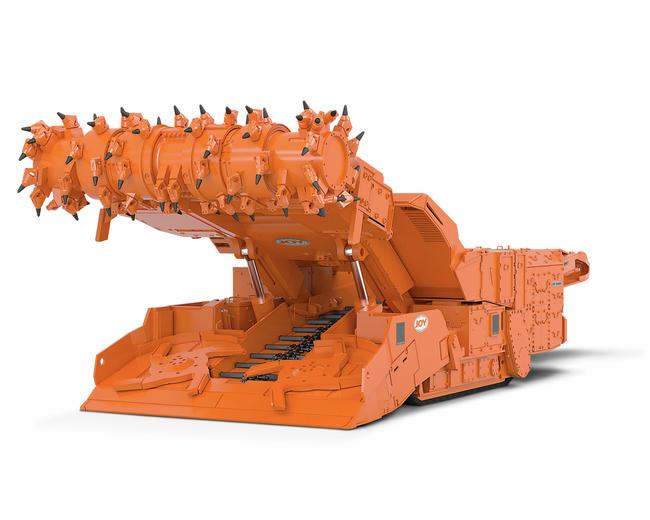

The 12CM continuous miners are designed specifically for high seam mining up to 4.6 meters (181 in).

Exceptional productivity

Exceptional productivity

Using the latest technologies, this machine is designed to provide excellent productivity in rigorous conditions.

Engineered for reliability

Engineered for reliability

Designed to leverage 40 years of continuous mining experience, providing high levels of reliability.


Specifications

Metric Imperial (US)
Expand all

  • Cutter head design: Solid head
  • Cutter head diameter (in): 44
  • Cutter head diameter (mm): 1 120
  • Weight (lbs): 145,000
  • Weight (kg): 65 770
  • Ground pressure (kPa): 213
  • Ground pressure (psi): 31
  • Ground clearance (in): 12
  • Ground clearance (mm): 305
  • Conveyor width (in): 38
  • Conveyor width (mm): 965
  • Tram speed (m/min): First - 4.6, Second - 9.1, Third - 19.8, Third (optional, turbo) - 25.9
  • Tram speed (ft/min): First - 15, Second - 30, Third - 65, Third (optional, turbo) - 85
  • Machine input voltage: 950 V @ 60 Hz
  • Dust collector (kW): 22 or 30 kW @ 60 Hz,19 or 26 kW @ 50 Hz
  • Dust collector (HP): 30 HP or 40 HP @ 60 Hz, 25 HP or 35 HP @ 50 Hz
  • Cutter (HP): 235 HP @ 60 Hz, 268 HP @ 60 Hz (optional), 228 HP @ 50 Hz
  • Cutter (kW): 175 kW @ 60 Hz, 200 kW @ 60 Hz (optional), 170 kW @ 50 Hz
  • Pump (HP): 54
  • Pump (kW): 40
  • Gathering head (kW): 50 kW 2 x @ 60 Hz, 45 kW x 2 @ 50 Hz
  • Gathering head (HP): 67 HP x 2 @ 60 Hz, 60 HP x 2 @ 50 Hz
  • Traction (HP): 80 HP x 2
  • Traction (kW): 60 kW x 2
  • General footnote: Dust collector is optional and total power does not include dust collector fan

Technology that works as hard as you do

Select continent

Smart Solutions

We help solve our customers’ toughest challenges using data-driven intelligence, collaboration and service execution. Our goal is to help reduce costs and increase productivity to help our customers achieve their operating and financial goals.

technology-image

Faceboss Control System

The electronic heart of our continuous miners combines operator assistance tools, automated sequences, advanced diagnostics, machine performance monitoring and more to help you optimize your operation.

technology-image

OptiDrive AC

Patented Joy OptiDrive AC system integrates software with the electronic and mechanical systems to provide a durable, maneuverable machine.
