Room and pillar

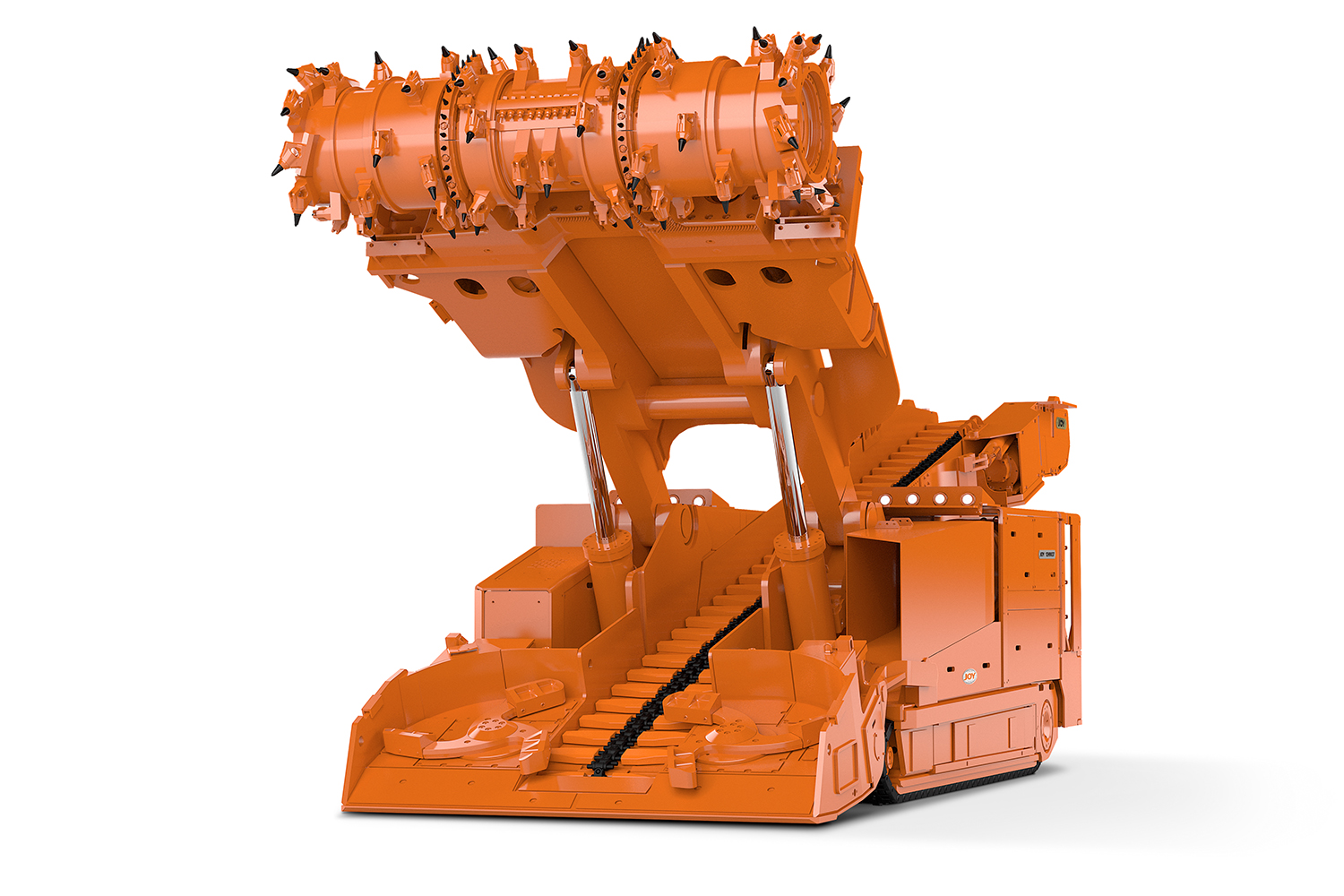

12HM37

Continuous miners

  • Maximum cutting height (mm) 5 100
  • Minimum cutting height (mm) 2 900
  • Total power (kW) 627 - 904

Purchase options

Request a quote Find a service location

Specifications

Metric Imperial (US)
Expand all

  • Cutter head design: Solid head
  • Cutter head diameter (in): 44
  • Cutter head diameter (mm): 1 120
  • Weight (lbs): 145,000
  • Weight (kg): 65 770
  • Ground pressure (kPa): 213
  • Ground pressure (psi): 31
  • Ground clearance (in): 12
  • Ground clearance (mm): 305
  • Conveyor width (in): 38
  • Conveyor width (mm): 965
  • Tram speed (m/min): First - 4.6, Second - 9.1, Third - 19.8, Third (optional, turbo) - 25.9
  • Tram speed (ft/min): First - 15, Second - 30, Third - 65, Third (optional, turbo) - 85
  • Machine input voltage: 950 V @ 60 Hz
  • Dust collector (kW): 22 or 30 kW @ 60 Hz,19 or 26 kW @ 50 Hz
  • Dust collector (HP): 30 HP or 40 HP @ 60 Hz, 25 HP or 35 HP @ 50 Hz
  • Cutter (HP): 235 HP @ 60 Hz, 268 HP @ 60 Hz (optional), 228 HP @ 50 Hz
  • Cutter (kW): 175 kW @ 60 Hz, 200 kW @ 60 Hz (optional), 170 kW @ 50 Hz
  • Pump (HP): 54
  • Pump (kW): 40
  • Gathering head (kW): 50 kW 2 x @ 60 Hz, 45 kW x 2 @ 50 Hz
  • Gathering head (HP): 67 HP x 2 @ 60 Hz, 60 HP x 2 @ 50 Hz
  • Traction (HP): 80 HP x 2
  • Traction (kW): 60 kW x 2

Technology that works as hard as you do

Select continent

Smart Solutions

We help solve our customers’ toughest challenges using data-driven intelligence, collaboration and service execution. Our goal is to help reduce costs and increase productivity to help our customers achieve their operating and financial goals.

technology-image

Faceboss Control System

The electronic heart of our continuous miners combines operator assistance tools, automated sequences, advanced diagnostics, machine performance monitoring and more to help you optimize your operation.

technology-image

OptiDrive AC

Patented Joy OptiDrive AC system integrates software with the electronic and mechanical systems to provide a durable, maneuverable machine.
