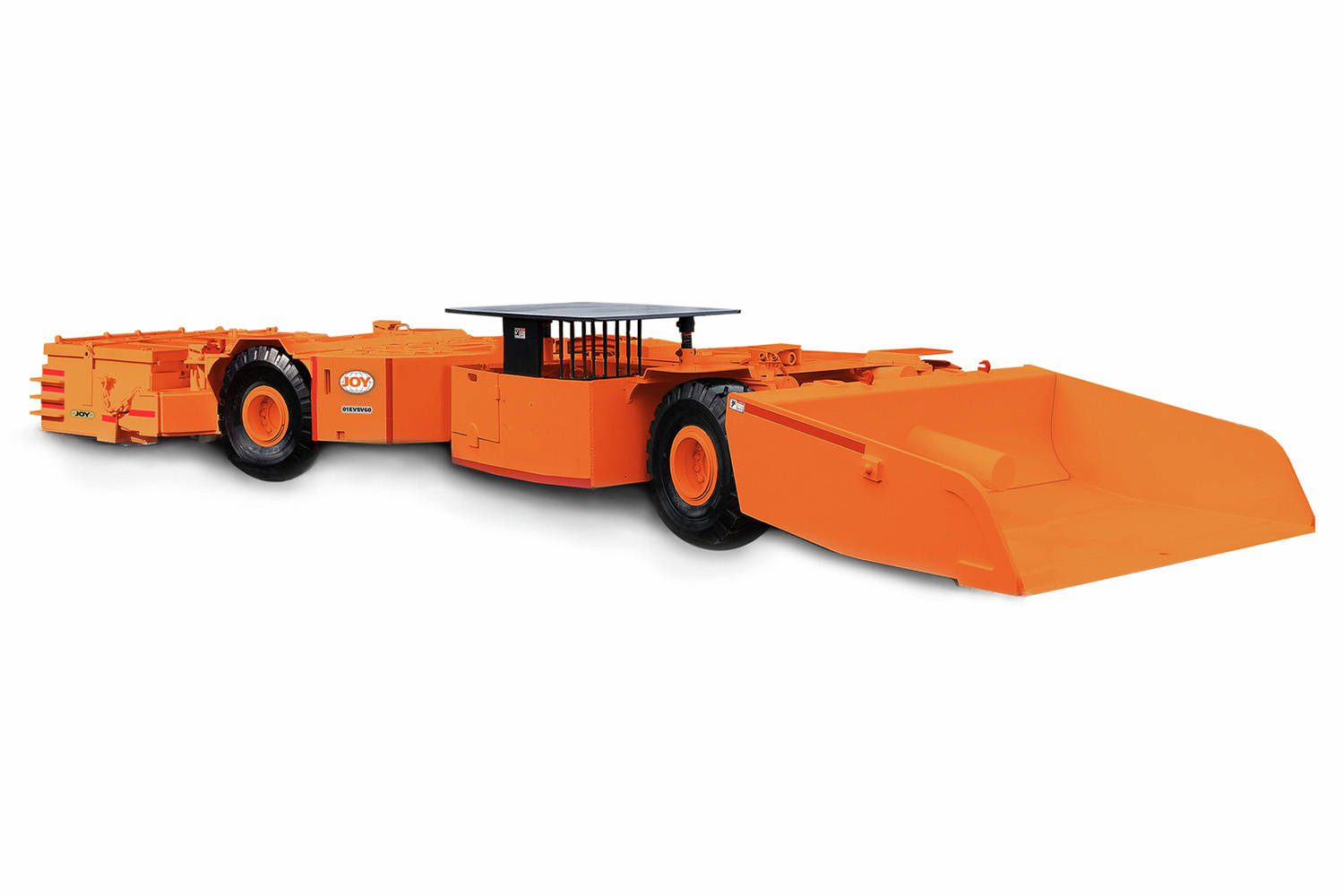

Product Image

Room and pillar

02ESV60

Battery scoops

  • Seam height (cm) 142 - 211
  • Seam height (in) 56 - 83
  • Bucket Capacity (m^3) 4.35
  • Bucket capacity (ft^3) 153
  • Maximum payload (kg) 27 590
  • Maximum payload (lbs) 60,827

Tackle a variety of support jobs with a versatile scoop

Need a scoop that's up to multiple tasks - maintenance, re-supply, clean-up, rock dusting - in your mine? Operators will love the power of Joy battery-powered scoops. You'll appreciate the durability and experienced support network.

  • Improved motor efficiency and lower temperatures result in increased motor life
  • 50% increase in power*
  • Up to 40% lower operating costs*

Note: *vs. 128 VDC battery

Features and benefits

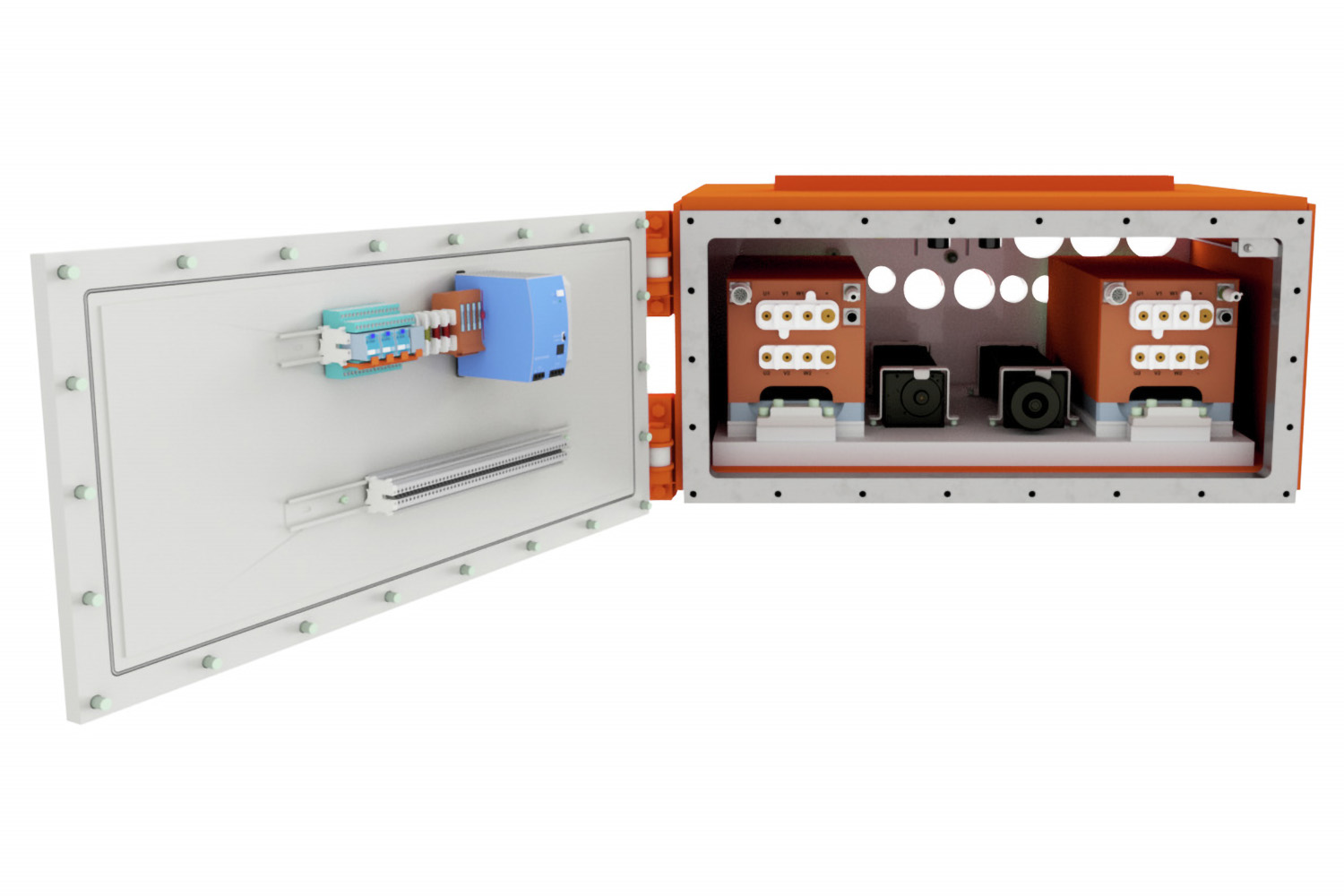

Help improve efficiency with OptiDrive

Help improve efficiency with OptiDrive

Adapted from other Joy machines, the OptiDrive system provides an enhanced operator experience, improves motor performance and can reduce maintenance and downtime for the 240-volt scoop.

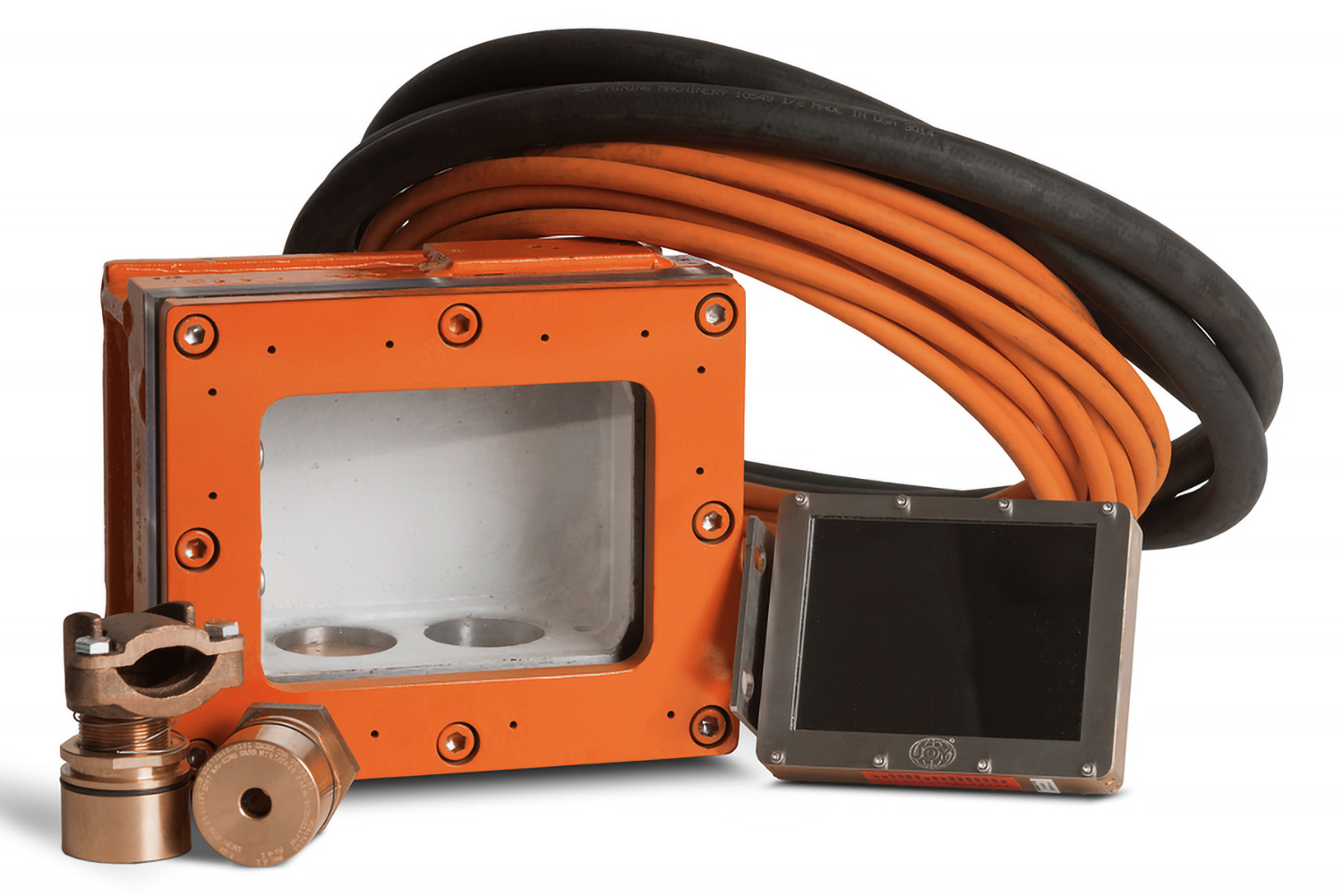

Keep your mine running smoothly with OptiDrive

Keep your mine running smoothly with OptiDrive

Designed to minimize downtime. New electronics eliminate switches, and the color display provides real-time operational and fault information. Additional drive input modules allow the OptiDrive control system to easily interface with third-party proximity detection systems.

Excellent scoop performance

Excellent scoop performance

High torque and traction control help your operator get maximum performance out of the scoop, and provide impressive stability and capacity control on steep grades. To handle the additional power and reduce downtime in the most demanding applications, the scoop is equipped with robust Dana drive axles configured specifically for the scoop.

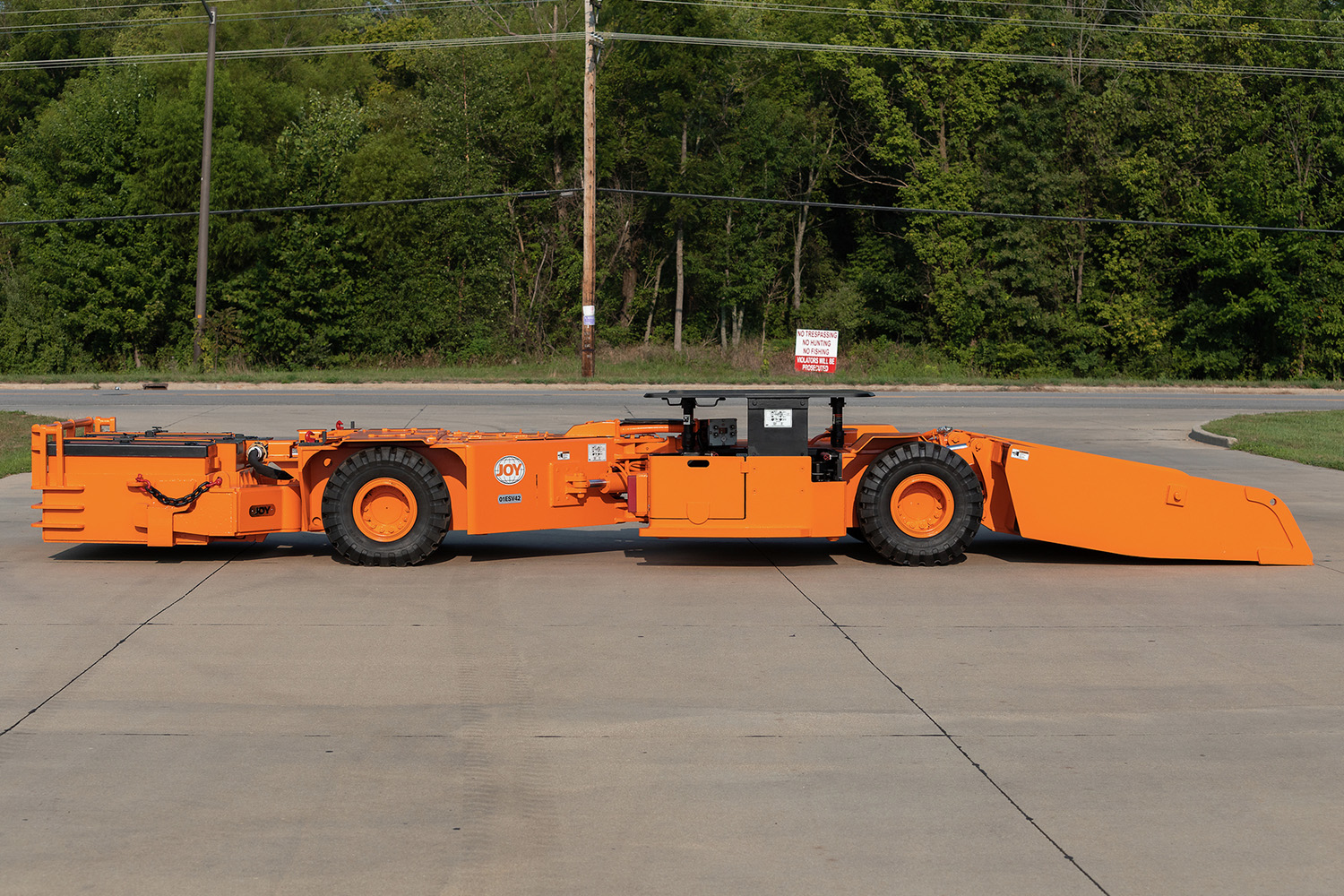

Built for reliability with rugged frame and center section

Built for reliability with rugged frame and center section

For durability and longevity, the center section is redesigned and includes heavy-duty pivot bearings and pins. The frame is rigorously engineered for reliability and the ability to transport heavy payloads.

Improved working conditions, machine infomatic

Improved working conditions, machine infomatic

240-volt battery power contributes to improved working conditions, thanks to less heat and noise compared to diesel power. A new color display provides real-time performance and fault data, including text messages that simplify troubleshooting.

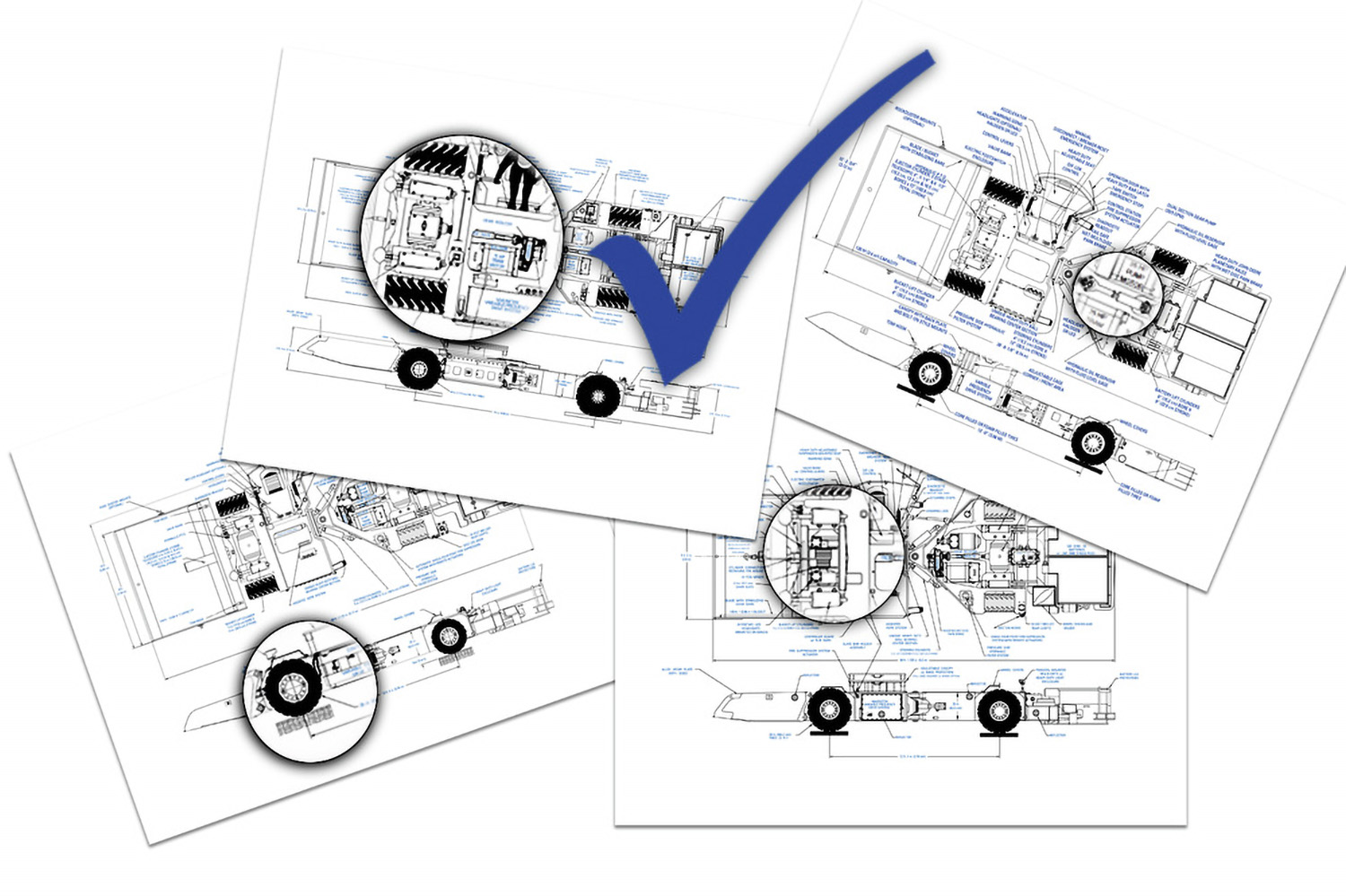

A size for your needs

A size for your needs

Models are available to perform in seams as low as 914 cm (36 in), with a variety of options to suit your needs. Ground clearance options are available for various bottom conditions and canopy options available for optimum operator comfort and visibility.


Specifications

Metric Imperial (US)
Expand all

  • Length with bucket (m): 11.01
  • Length with bucket (ft): 36 ft. 1 in
  • Basic machine width (ft): 10
  • Basic machine width (m): 3.05
  • Wheel base (ft): 16 ft.
  • Wheel base (m): 4.88
  • Basic frame height (mm): 635
  • Basic frame height (in): 25
  • Batteries (Ah): 1,240
  • Batteries (kWh): 286
  • Estimated weight with batteries (kg): 27 273
  • Estimated weight with batteries (lbs): 60,000
  • Tram motor (1 hr rating- HP): 75
  • Tram motor (1 hour cont. rating - kW): (2) 55.9
  • Tram motor (cont. rating - HP): 50
  • Tram motor (cont. rating - kW): (2) 37.3
  • Tram speed (mph): 0 to 6
  • Tram speed (kph): 0 to 9.65
  • Pump motor (1 hr rating - HP): 35
  • Pump motor (1 hr rating - kW): 26
  • Pump motor (cont. rating - HP): 25
  • Pump motor (cont. rating - kW): 18.6
  • Breakout load rating (lbs): 31,490
  • Breakout load rating (kg): 14 283
  • Maximum payload general (lbs): 60,827
  • Maximum payload general (kg): 27 590
  • Steering angle: 40° (each side)
  • Inside turning radius (m): 4.55
  • Inside turning radius (ft): 14 ft. 11 in
  • Payload (carrying) capacity (kg): 12 000
  • Payload (carrying) capacity (lbs): 26,455
  • Gross vehicle weight (kg): 39 215
  • Gross vehicle weight (lbs): 86,455
  • Ground clearance (cm): 38.1 - 43.2
  • Ground clearance (in): 15 - 17
Metric Imperial (US)
  • Hooks and locations
  • Winch
  • Left hand steer
  • Audible alarm
  • Operator door
  • Camera system
  • Jet fill
  • Hydraulic PTO
  • Fire extinguisher
  • Self rescuer box
  • Jumper Cable
  • Hooks and locations
  • Winch
  • Left hand steer
  • Audible alarm
  • Operator door
  • Camera system
  • Jet fill
  • Hydraulic PTO
  • Fire extinguisher
  • Self rescuer box
  • Jumper Cable
