Forklifts

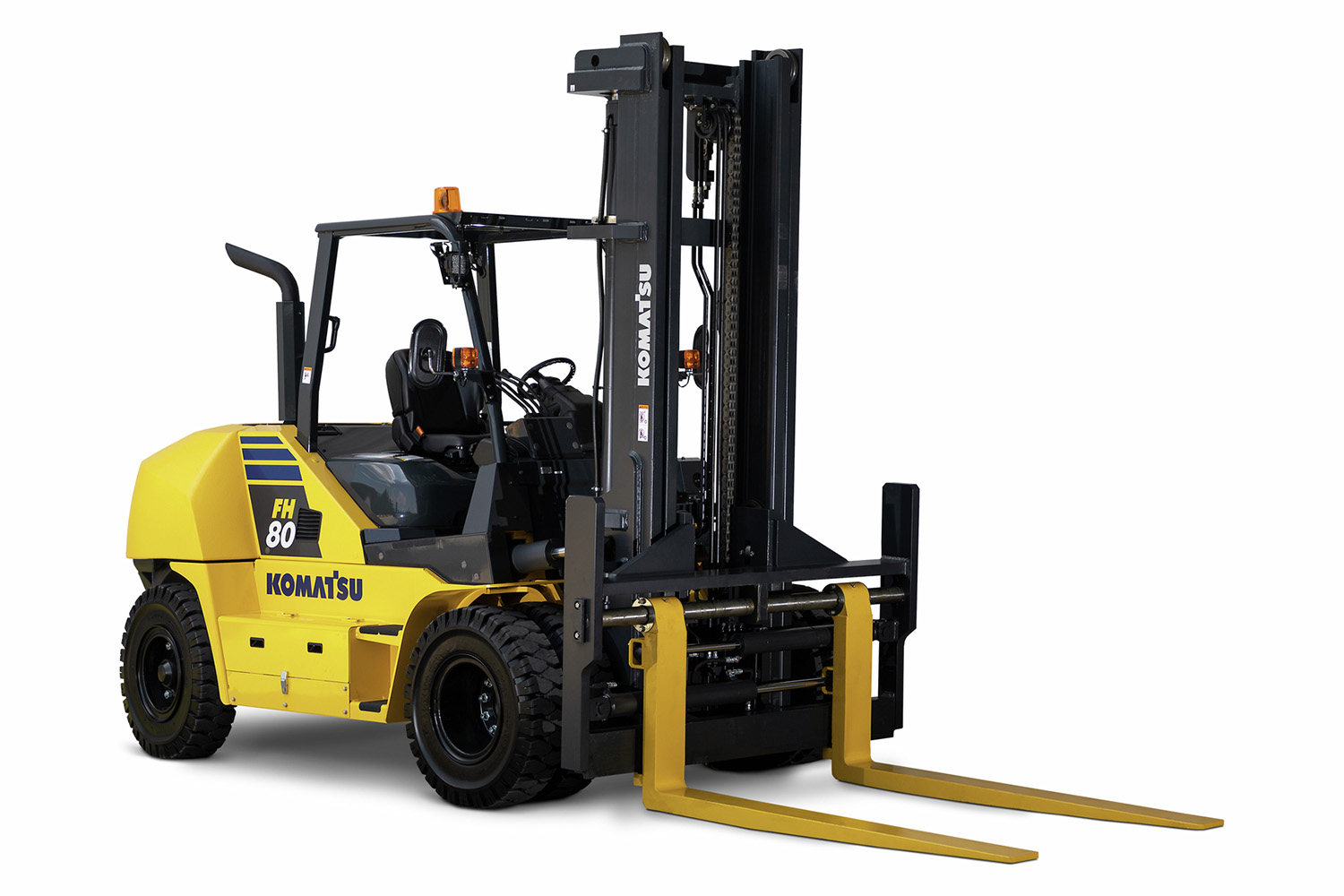

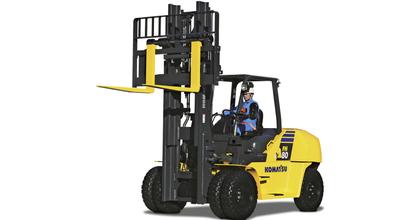

FH70-2
IC pneumatic
- Tire type Pneumatic
- Power type Diesel
- Capacity (kg) 7 000 - 8 000
- Capacity (lbs) 15,400 - 18,000
Construction strong

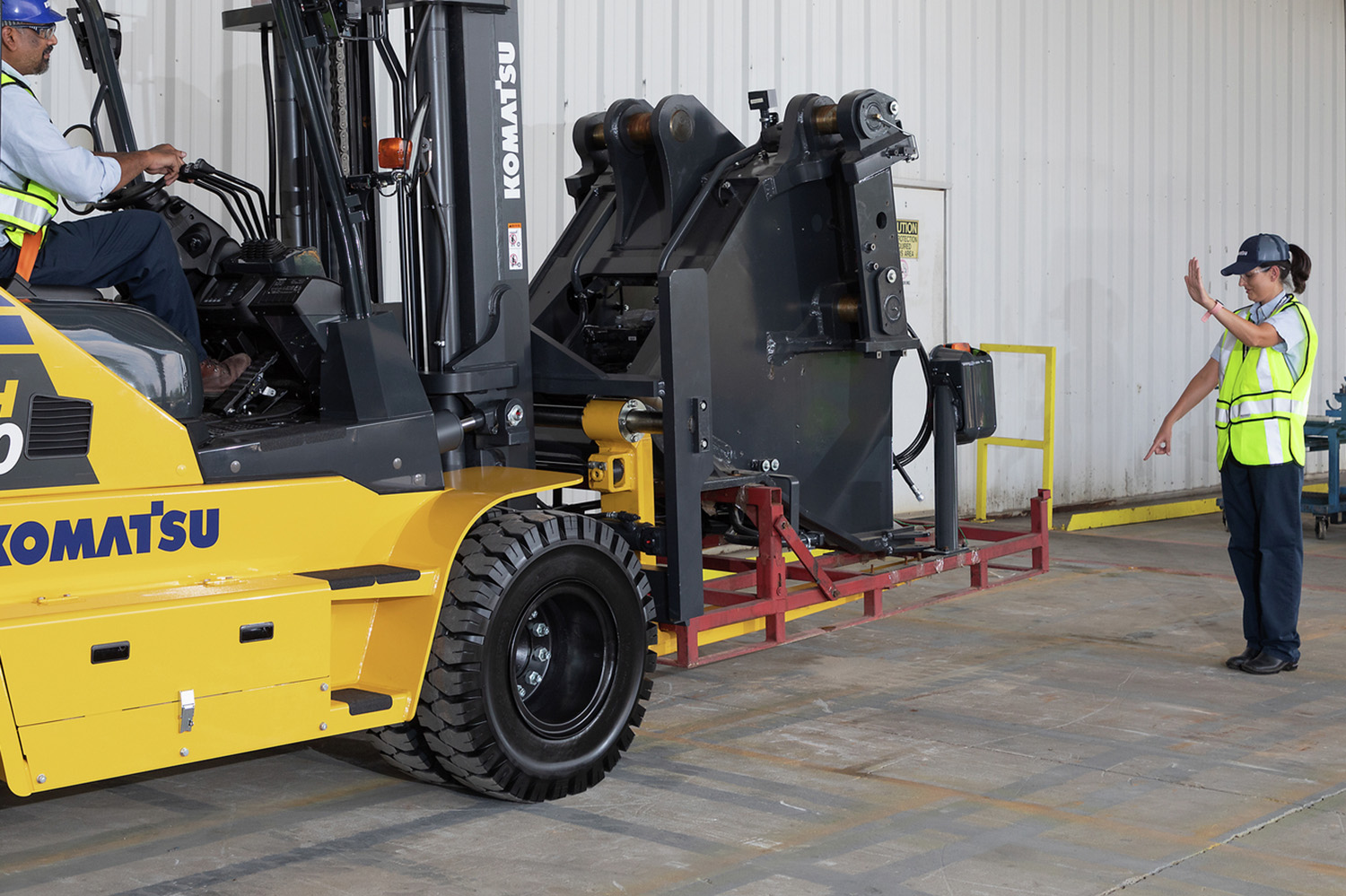

Shuttling 15k-18k loads quickly with minimal downtime is beyond the ability of many forklifts. But that’s where the FH70/80 shine. They integrate components and technology proven over many years in Komatsu’s wheel loaders, bulldozers and excavators, so you know they’re built tough. The hydrostatic drive system gives them the ability to cycle through operations with virtually no wear on drive and brake components, meaning more uptime and reduced maintenance costs. That translates to better performance than traditional torque converter systems, even in the most demanding applications.
- Reduced fuel consumption while reducing particulate exhaust by 90%
- Lower total cost of ownership
- Less maintenance and higher productivity with HST
Features and benefits

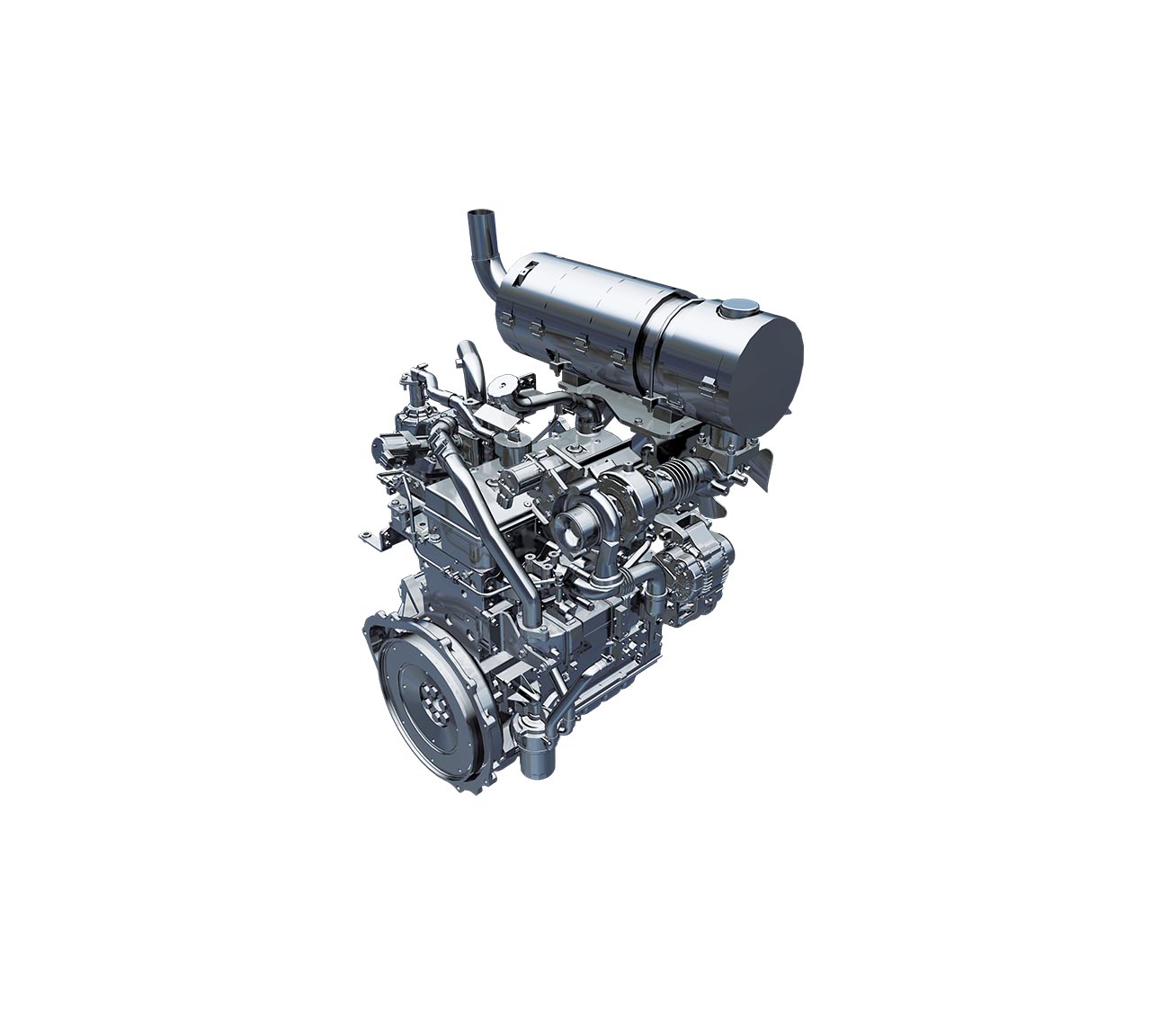

Highly efficient proprietary diesel technology
The FH family diesel engines are designed to reduce fuel use and significantly reduce exhaust particulate matter. They incorporate Komatsu proprietary technologies like Komatsu Diesel Oxidation Catalyst, variable flow turbocharger and much more.
Makes engine revving unnecessary
Featuring a variable displacement pump with closed-center load sensing system, the FH family allows for controlled fluid flow in the hydraulic system while lifting, resulting in no engine revving and reduced fuel consumption.
Designed to lower operating costs
The highly efficient, electronically controlled hydrostatic transmission (HST) hydraulic pump and motor system increases operator control, minimizes power transmission loss, boosts fuel savings and reduces environmental impact.
Best-in-class warranty
Expect years of trouble-free service. But just in case, Komatsu stands behind the product with the longest and strongest warranty in the industry, up to 24 months and unlimited hours, 60mo/8k hours drive train. That’s coverage you can count on.
Technology that helps you manage your fleet
Komatsu’s Komtrax proprietary wireless tracking and reporting system allows the forklift to communicate daily usage, fuel consumption, operator productivity and more. Easy to use and web-based, it gives you secure usage data anywhere, anytime.
Engineered to exacting standards
Komatsu Engineering Standards (KES) are design and manufacturing standards that exceed those required in the industry. Through KES, we strive to deliver unmatched quality and durability across all our mining, construction and forklift machines.
Specifications
- Full specs
- Standard equipment
- Optional equipment
Metric
Imperial (US)
Expand all
- Operation type: Sit Down
- Wheelbase (mm): 2 300
- Wheelbase (in): 90.6
- Load distance, front axle to fork face (in): 24
- Load distance, front axle to fork face (mm): 600
- Rated capacity (lbs): 15,400
- Rated capacity (kg): 7 000
- Rated load center (in): 24
- Rated load center (mm): 600
- Hydraulic oil capacity (gal): 35.1
- Relief Pressure - attachment (MPa): 17.2
- Relief Pressure - attachment (psi): 2,495
- Hydraulic oil capacity (L): 133
- Transmission: Hydrostatic
- Travel speed, loaded (mph): 14.0
- Travel speed, loaded (kph): 22.5
- Travel speed, unloaded (kph): 23.5
- Travel speed, unloaded (mph): 14.6
- Lifting speed, loaded (fpm): 84.6
- Lifting speed, loaded (mm/sec): 430
- Lifting speed, unloaded (mm/sec): 500
- Lifting speed, unloaded (fpm): 98.4
- Loweringspeed, loaded (mm/sec): 480
- Lowering speed, loaded (fpm): 94.5
- Loweringspeed, unloaded (mm/sec): 500
- Lowering speed, unloaded (fpm): 98.4
- Maximum drawbar pull (fpm): 10,049
- Maximum drawbar pull (kN): 44.7
- Maximum gradeability (%): 29
- Service brake, operation/control: Foot/Hydraulic
- Parking brake, operation/control: Hand/Mechanical
- Steering type: FHPS
- Maximum torque (SaE net)(Nm): 68.6 Nm @ 1,400 rpm
- Rated output (SaE Net) (HP): 66.4
- Rated output (SaE Net) (kW): 48.6
- Engine manufacturer / model: Komatsu SAA4D95LE-6-C
- Fuel tank capacity (L): 177
- Fuel tank capacity (US gal): 46.8
- Number of cylinders / Displacement (cm^3): 3 260
- Number of cylinders / Displacement (in^3): 4 / 199
- Height overhead guard (mm): 2 525
- Ground clearance, center of wheelbase (mm): 305
- Ground clearance, center of wheelbase (in): 12
- Length to fork face (in): 141.3
- Length to fork face (mm): 3 590
- Forks, thickness x width x length (in): 2.6 x 5.9 x 48.0
- Forks, thickness x width x length (mm): 65 x 150 x 1 220
- Ground clearance, under mast (in): 9.3
- Ground clearance, under mast (mm): 235
- Standard free lift (in): 8.7
- Standard free lift (mm): 220
- Standard lift height (mm): 3 000
- Standard lift height (in): 118.1
- Tilting angle, forward/backward: 6 / 12 degrees
- Aisle width for L1 200 x W800 pallet (in): 211.8
- Aisle width for L1 200 x W800 pallet (mm): 5 380
- Fork carriage class (mm): Class 4 / 1 690
- Aisle width for L1000 x W1200 pallet (mm): 5 380
- Aisle width for L1000 x W1200 pallet (in): 211.8
- Fork carriage class (in): Class 4 / 66.5
- Height overhead guard (in): 99.4
- Mast height - lowered (in): 101.8
- Mast height - lowered (mm): 2 585
- Mast height - extended (in): 171.3
- Mast height - extended (mm): 4 350
- Turning radius, outside (mm): 3 350
- Turning radius, outside (in): 131.9
- Overall width at drive tires (in): 80.7
- Overall width at drive tires (mm): 2 050
- Length, with standard forks (in): 189.4
- Length, with standard forks (mm): 4 810
- Tire type details: Pneumatic
- Number of wheels, front/rear: 4x/2
- Tire size - front: 8.25 – 15-14PR
- Tire size - rear: 8.25 – 15-14PR
- Tread - front (in): 60.6
- Tread - front (mm): 1 540
- Tread - rear (in): 64.6
- Tread - rear (mm): 1 640
- Axle loading - loaded front (kg): 14 905
- Axle loading - loaded front (lbs): 32,860
- Axle loading - loaded rear (lbs): 3,979
- Axle loading - loaded rear (kg): 1 805
- Axle loading - unloaded front (kg): 4 095
- Axle loading - unloaded front (lbs): 9,028
- Axle loading - unloaded rear (kg): 5 615
- Axle loading - unloaded rear (lbs): 12,379
- Service weight (kg): 9 710
- Service weight (lbs): 21,407
Metric
Imperial (US)
- Komatsu Diesel Engine - EPA Tier 4
Final Compliant
- Heavy duty high pressure common rail system
- Air to air charge air cooling system
- Sedimenter with priming pump
- Electronic Engine control system
o Overheat prevention function
o Auto Engine warm-up function
o Auto air preheat function - Cyclone air cleaner (double element)
- Auto Engine shutdown function
- Variable Engine output control function
- High efficiency fuel filter
- Variable displacement pump with CLSS
- Electronically-controlled HST
- Wet disc brakes
- Parking brake with release button (with parking brake reminder caution)
- Plastic overhead guard cover
- Neutral start function
- Speed limiter function
- Operator presence sensing system
- Key-off lift lock
- Full suspension seat w/ orange belt
- Fully hydrostatic power steering
- Tiltable steering column
- Small diameter steering wheel with spinner knob
- Steering knob synchronizer function
- Standard directional lever
- Combination switch (turn signal lamp & lamp switch)
- Large LCD color display monitor
- Engine coolant temperature indicator
- Fuel gauge
- Hour meter (SMR)
- Preheating pilot indicator
- Over speed caution
- Parking brake indicator
- Seat belt caution indicator - Overspeed warning buzzer
- Paper binder on Engine hood
- Floor mat
- Front assist grip
- Halogen Headlights & rear combination lights
- Upward exhaust pipe (Right side)
- 3-way control valve with port relief
- Komtrax: Komatsu's state of the art remote monitoring system
- Sealed connectors
- Flat face-to-face O-ring seals
- Fuel cap with key
- Key cylinder cover
- Load checker (equipped with a buzzer)
Tires: - Front dual drive, pneumatic
- Rear steer Tires, pneumatic
- Komatsu Diesel Engine - EPA Tier 4
Final Compliant
- Heavy duty high pressure common rail system
- Air to air charge air cooling system
- Sedimenter with priming pump
- Electronic Engine control system
o Overheat prevention function
o Auto Engine warm-up function
o Auto air preheat function - Cyclone air cleaner (double element)
- Auto Engine shutdown function
- Variable Engine output control function
- High efficiency fuel filter
- Variable displacement pump with CLSS
- Electronically-controlled HST
- Wet disc brakes
- Parking brake with release button (with parking brake reminder caution)
- Plastic overhead guard cover
- Neutral start function
- Speed limiter function
- Operator presence sensing system
- Key-off lift lock
- Full suspension seat w/ orange belt
- Fully hydrostatic power steering
- Tiltable steering column
- Small diameter steering wheel with spinner knob
- Steering knob synchronizer function
- Standard directional lever
- Combination switch (turn signal lamp & lamp switch)
- Large LCD color display monitor
- Engine coolant temperature indicator
- Fuel gauge
- Hour meter (SMR)
- Preheating pilot indicator
- Over speed caution
- Parking brake indicator
- Seat belt caution indicator - Overspeed warning buzzer
- Paper binder on Engine hood
- Floor mat
- Front assist grip
- Halogen Headlights & rear combination lights
- Upward exhaust pipe (Right side)
- 3-way control valve with port relief
- Komtrax: Komatsu's state of the art remote monitoring system
- Sealed connectors
- Flat face-to-face O-ring seals
- Fuel cap with key
- Key cylinder cover
- Load checker (equipped with a buzzer)
Tires: - Front dual drive, pneumatic
- Rear steer Tires, pneumatic
Metric
Imperial (US)
- Steel Cab w/ heater and defroster
- Sideshifter
- Sideshifting fork positioner
- Integral sideshifter
- Fork positioner
- Fork positioner with sideshift
- Wide fork carriage
- Rear view mirror (center)
- Rear view mirror (pair)
- Tilt cylinder boots
- Power steering cylinder boots
- Air cleaner with pre-cleaner, inner fitting type
- Removable radiator screen & chassis under carriage protection (screen)
- Two front LED working lights, fender mounted
- Two front LED working lights, overhead guard mounted
- One rear LED working light, overhead guard mounted
- One rear LED working light, (backward when interlocked), overhead guard mounted
- Rotating LED light (yellow), overhead guard mounted
- Back up buzzer
- ID key
Tires: - Front, Dual Drive, Solid Pneumatic
- Rear, Steer Tires, Solid Pneumatic
FORKS: - 48 in.
- 54 in.
- 60 in.
- 72 in.
- 84 in.
- 96 in.
- Steel Cab w/ heater and defroster
- Sideshifter
- Sideshifting fork positioner
- Integral sideshifter
- Fork positioner
- Fork positioner with sideshift
- Wide fork carriage
- Rear view mirror (center)
- Rear view mirror (pair)
- Tilt cylinder boots
- Power steering cylinder boots
- Air cleaner with pre-cleaner, inner fitting type
- Removable radiator screen & chassis under carriage protection (screen)
- Two front LED working lights, fender mounted
- Two front LED working lights, overhead guard mounted
- One rear LED working light, overhead guard mounted
- One rear LED working light, (backward when interlocked), overhead guard mounted
- Rotating LED light (yellow), overhead guard mounted
- Back up buzzer
- ID key
Tires: - Front, Dual Drive, Solid Pneumatic
- Rear, Steer Tires, Solid Pneumatic
FORKS: - 1,220 mm
- 1,370 mm
- 1,520 mm
- 1,820 mm
- 2,120 mm
- 2,440 mm
