Forestry

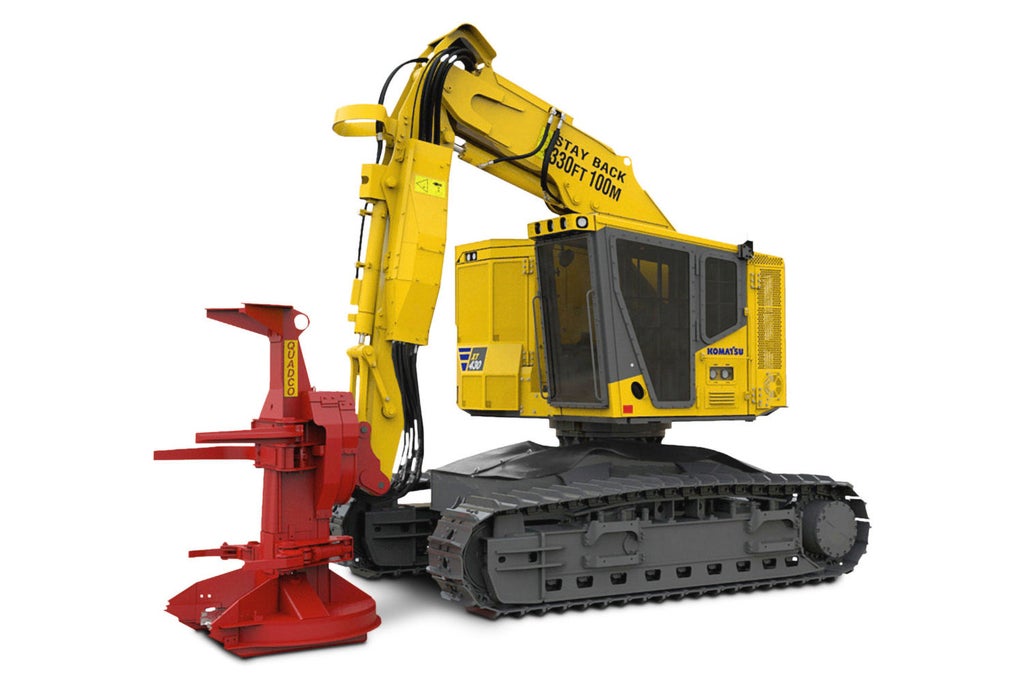

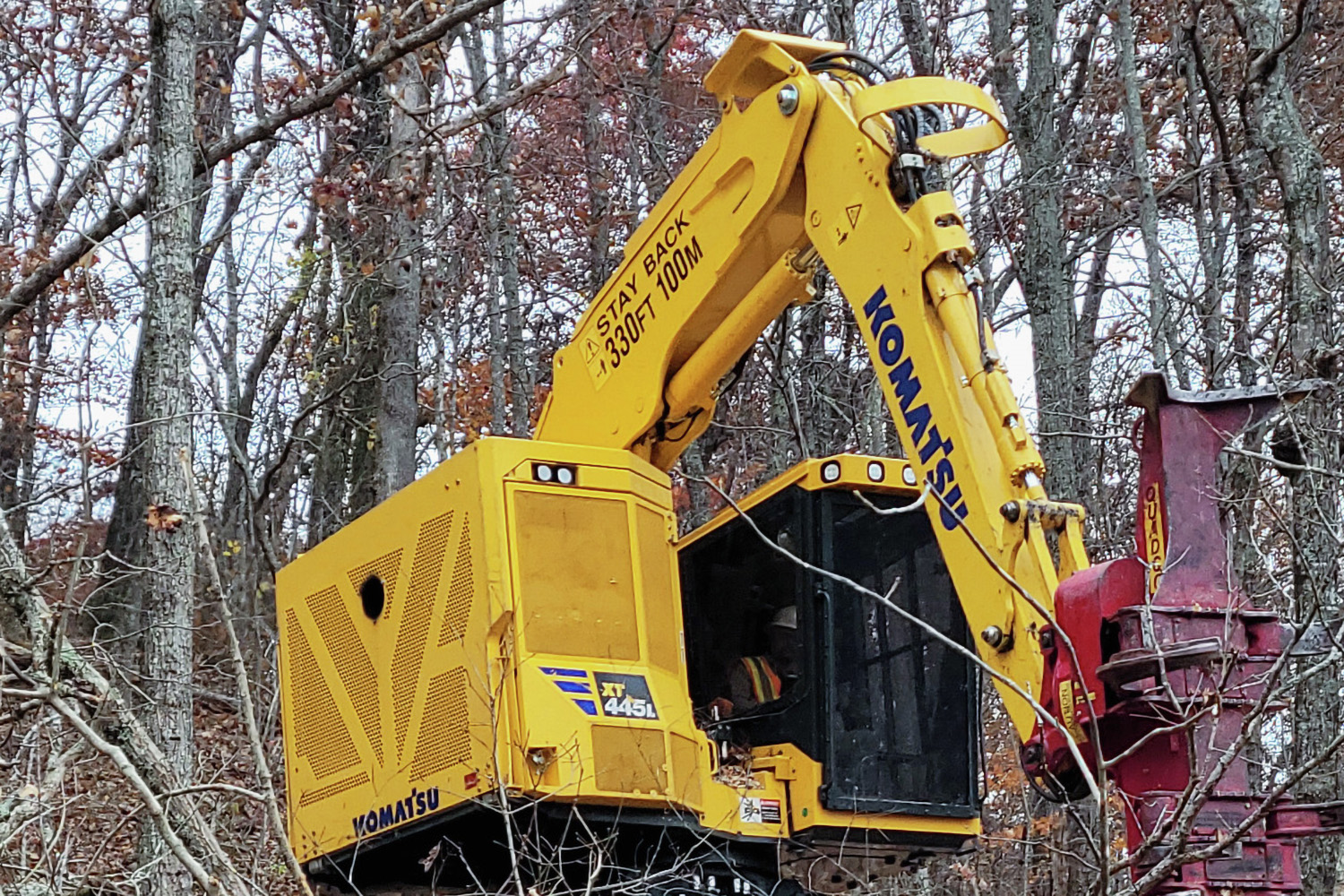

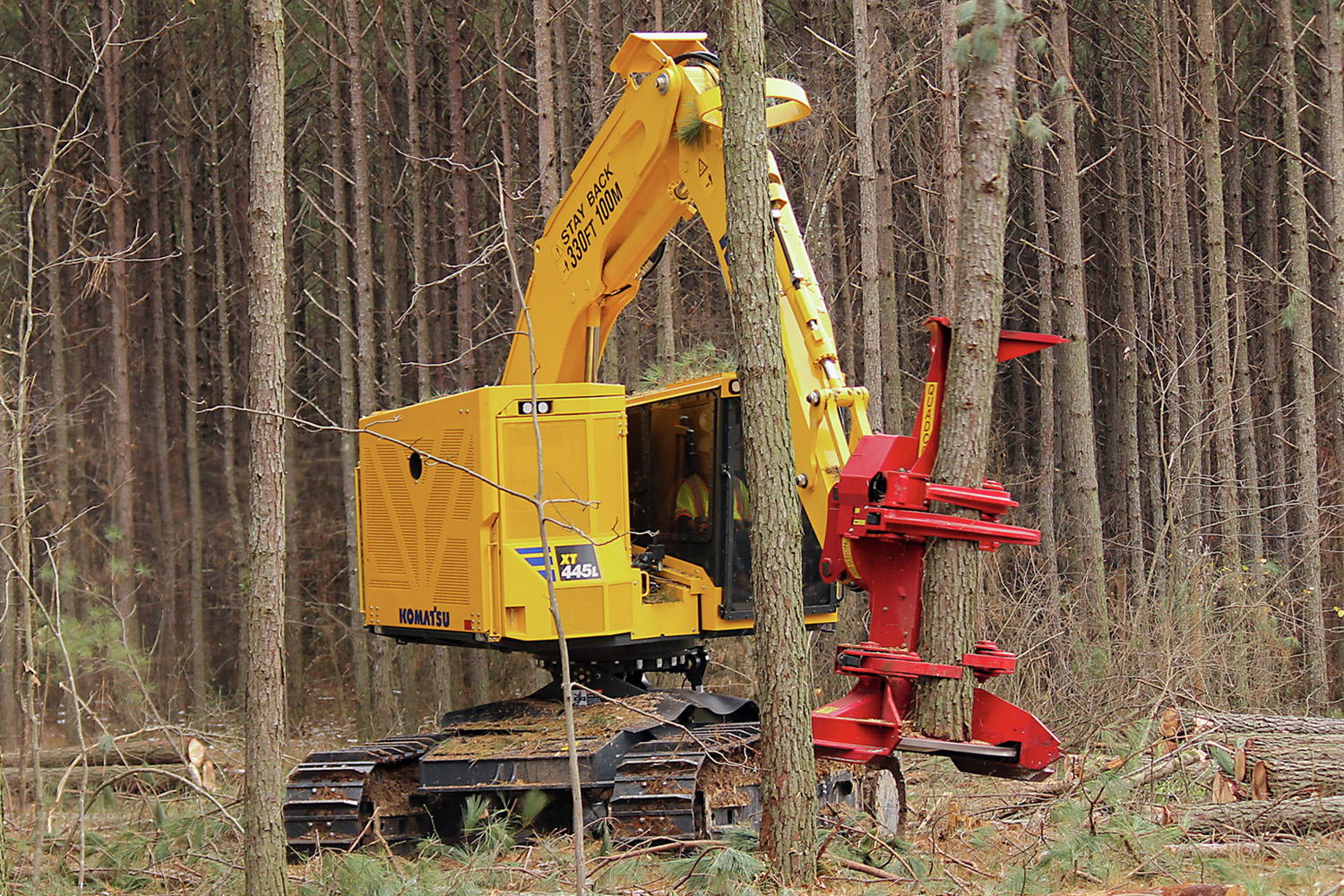

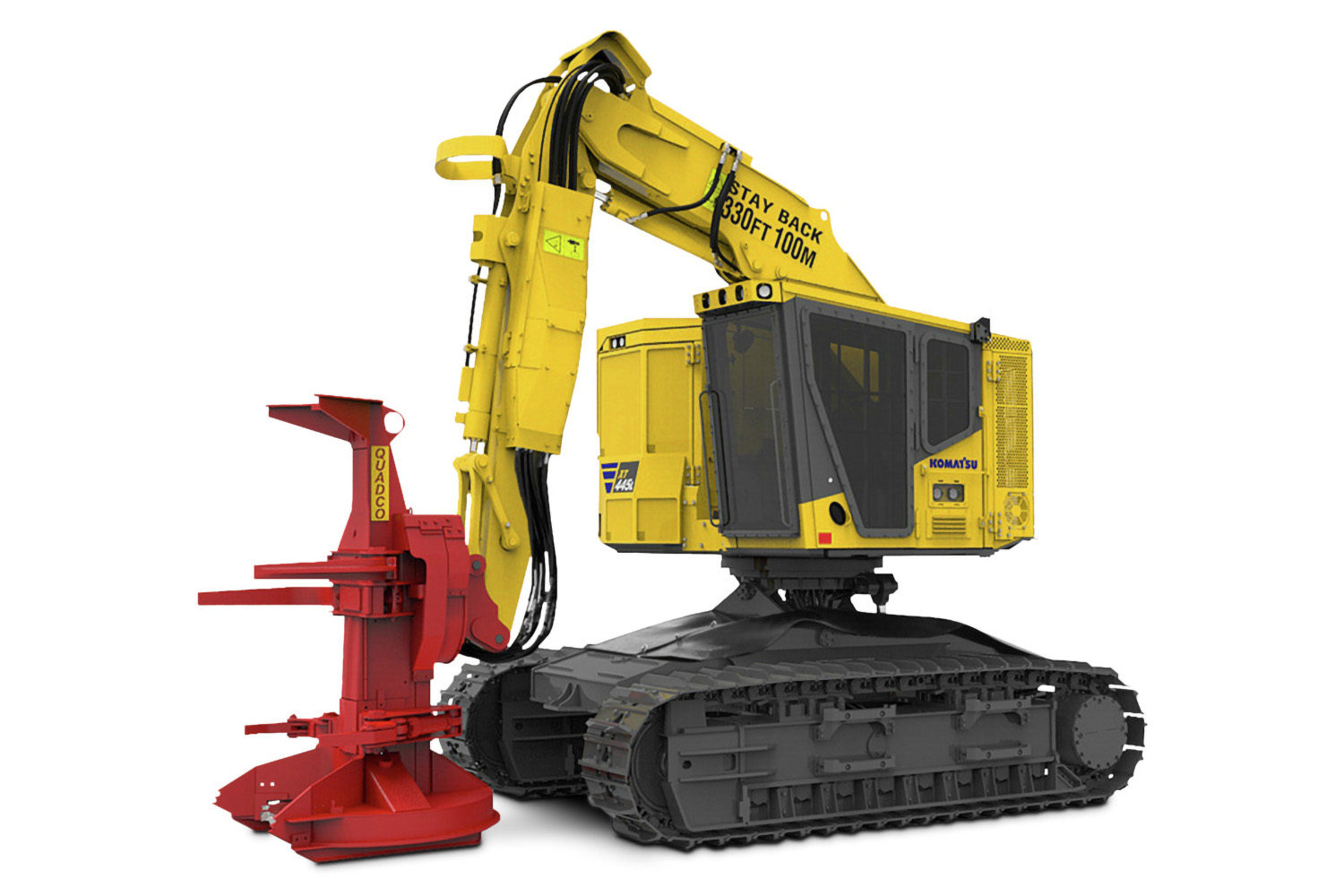

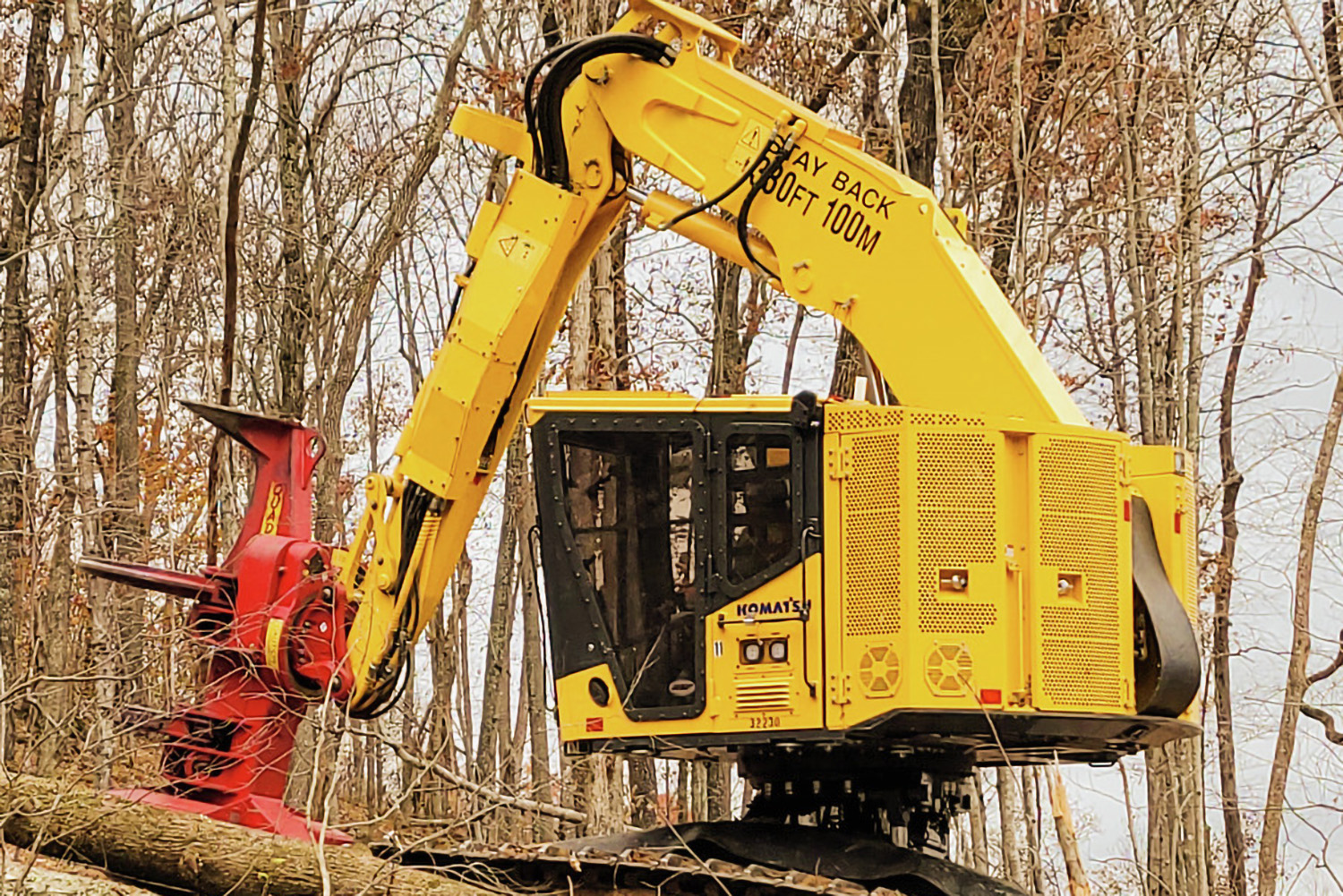

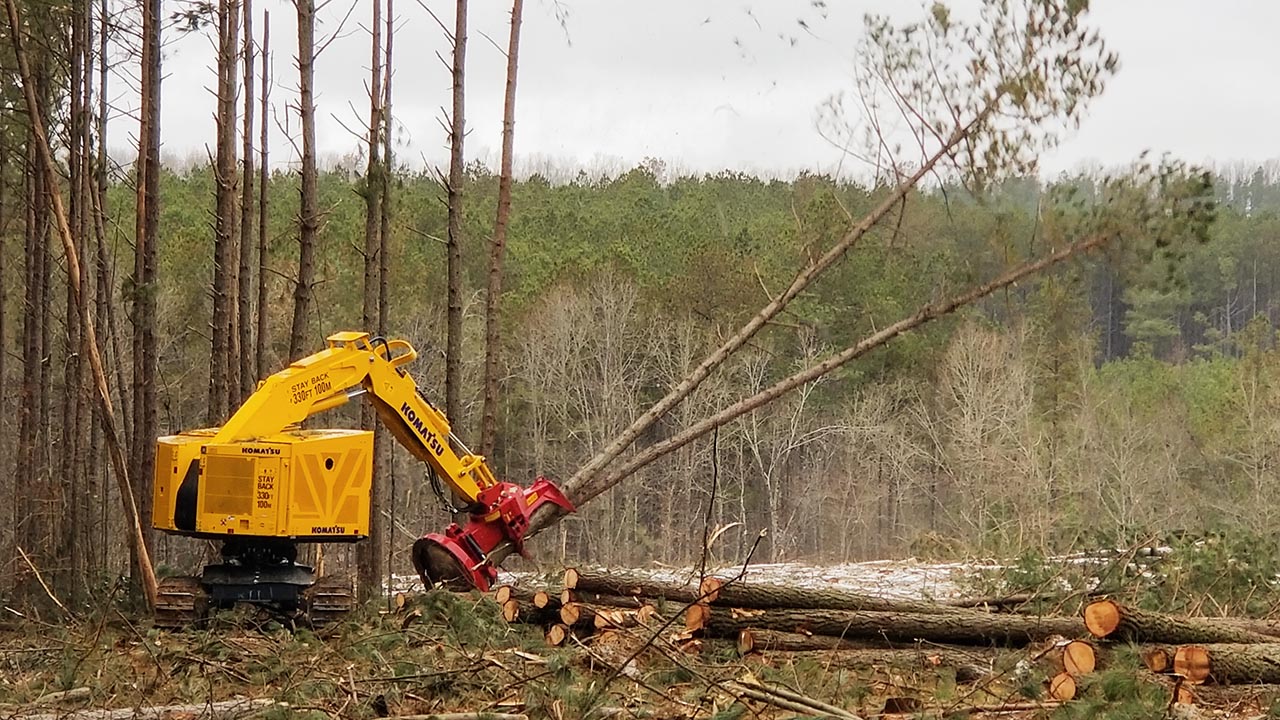

XT445L-5

Tracked feller bunchers

  • Horsepower (HP) 331 HP @ 1,600 rpm
  • Horsepower (kW) 247 kW @ 1 600 rpm
  • Tractive effort (kgf) 34 382
  • Tractive effort (lbf) 75799
  • Swing torque (lbs-ft) 58,341
  • Swing torque (nm) 79 100

Your production partner

The XT445L-5 is our all-purpose tracked feller buncher. With its heavy-duty four-way leveling system, it is able to tackle the most rugged sloped terrain. This machine delivers high productivity with performance features such as an advanced cab and easy serviceability with smart design qualities.

  • Significantly greater lift capacity at full reach*
  • 10% more horsepower/16% more torque/5% lower fuel consumption*
  • Maximized uptime with optimized serviceability + Komtrax + Komatsu Care

Note: *compared to XT-3 models

Features and benefits

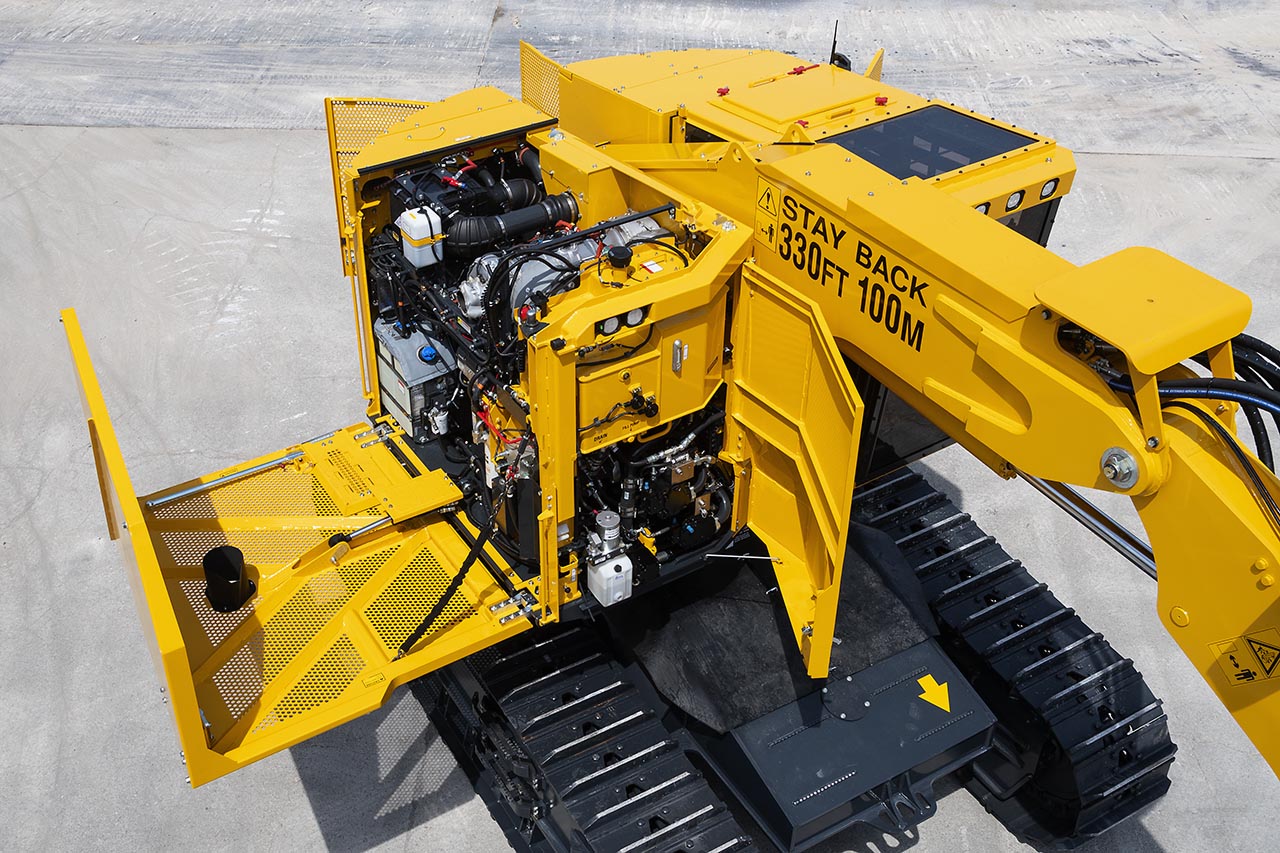

Outstanding serviceability

Outstanding serviceability

Gull-wing engine hood folds down for easy access to all engine service points, and doubles as an elevated work platform. Four additional swing-out doors open wide to provide easy servicing of all key components. All major service points can be easily and quickly accessed.

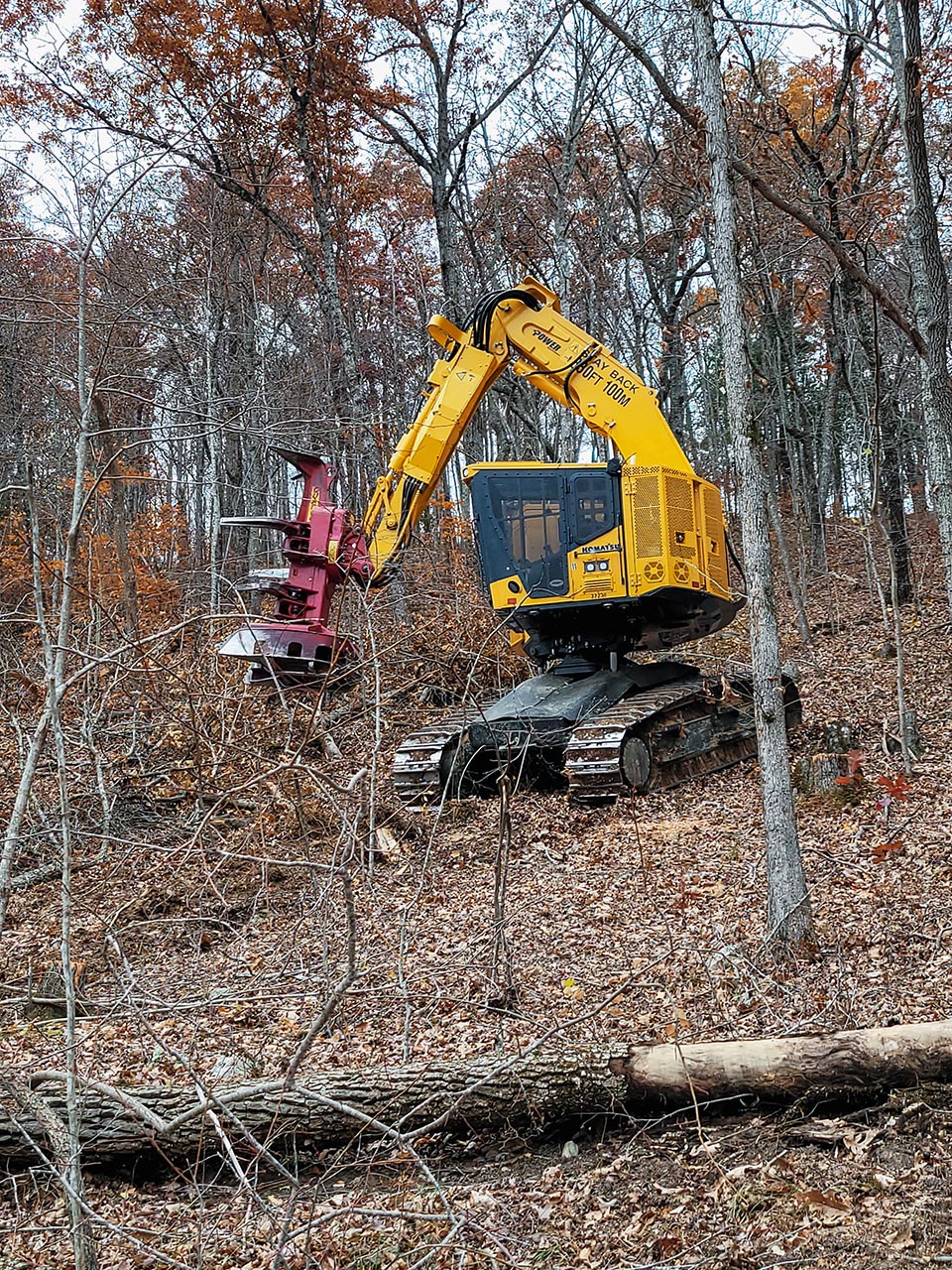

Exceptional maneuverability and multifunctioning

Exceptional maneuverability and multifunctioning

Easily work through dense forests with a short-tail swing. Cut close to the tracks with the proven set-back boom design. Powerful swing torque for demanding applications. Closed-loop track drive with dedicated pumps allows simultaneous operation of travel, swing, boom and tools for increased productivity.

Increased lift capacity

Increased lift capacity

Due to refined boom and arm geometry, significantly greater lift capacity is achieved at full reach vs. previous models. Plus, this machine has excellent balance between boom lift and arm holding capacity. Can be equipped with a wide selection of Quadco high-speed disc saws.

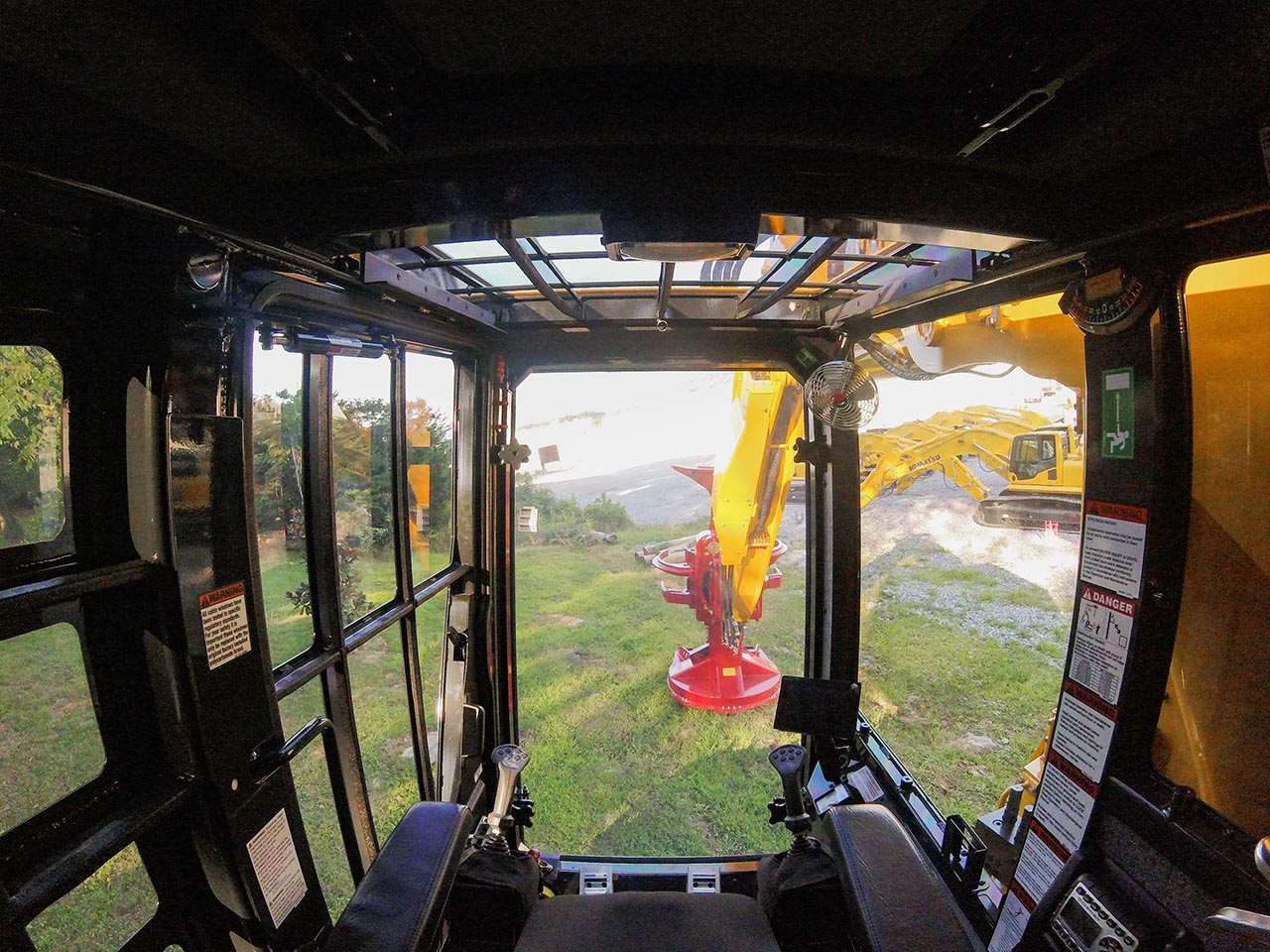

Engineered modern forestry cab

Engineered modern forestry cab

Excellent comfort and visibility for total operator capability all day long. Positioned on the left side with superior visibility, especially of the tracks. Sloped roofline adds headroom for the operator. High-capacity automatic air conditioner, heater and defroster. Premium optional seat is ergonomic and heated/cooled.

Customizable operator controls

Customizable operator controls

Advanced IQAN-MD4 digital control system enables customized control patterns and rates for up to three different operators. Helps to ensure precision and maximize multioperator productivity.

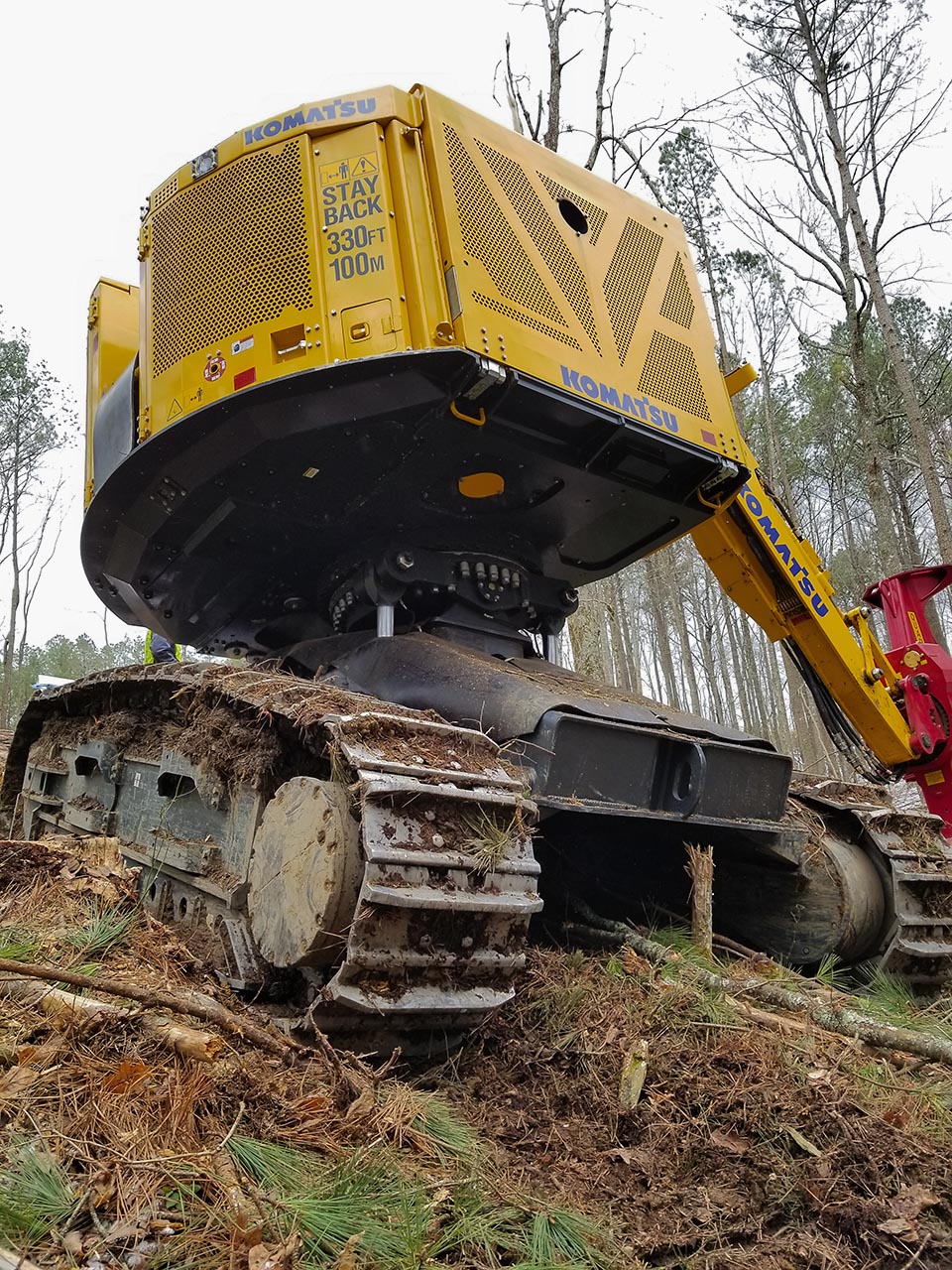

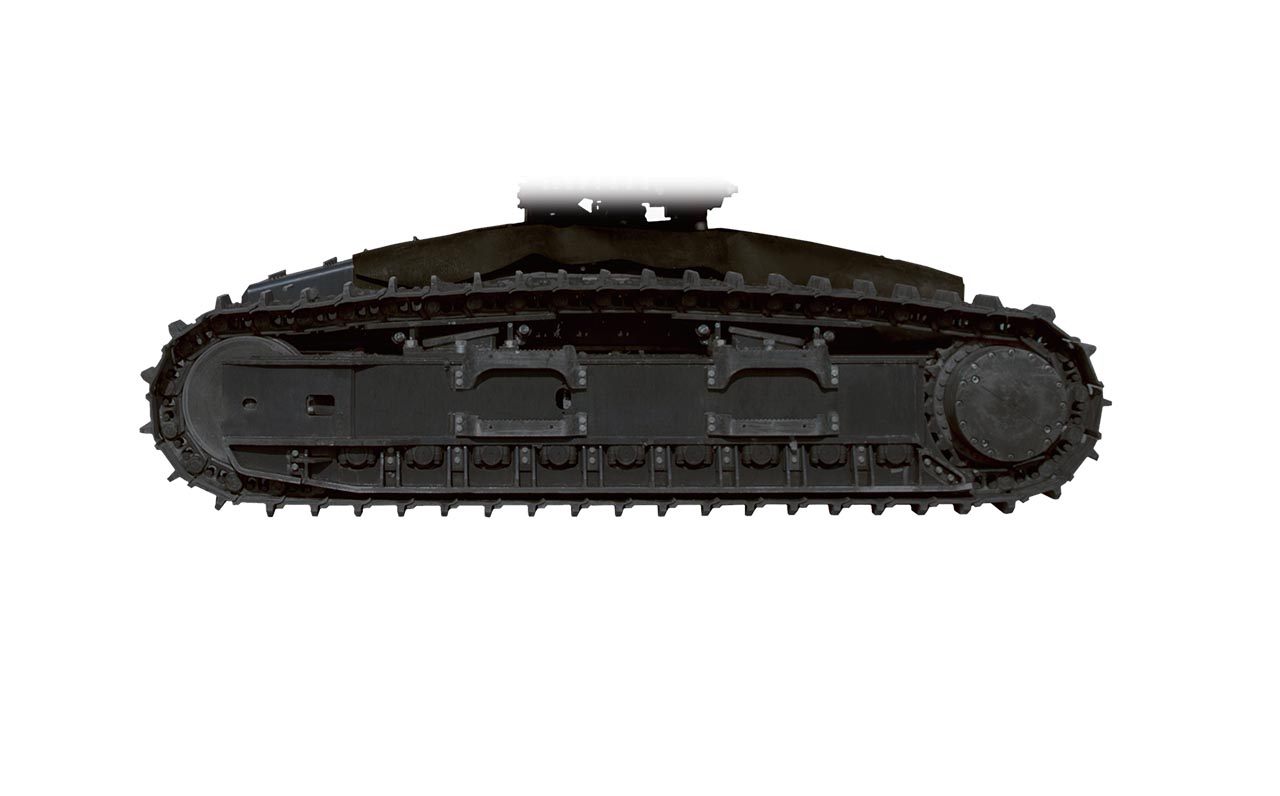

Rugged undercarriage

Rugged undercarriage

Using Komatsu engineering expertise, the tough and robust undercarriage provides significantly longer service life and day-to-day reliability.

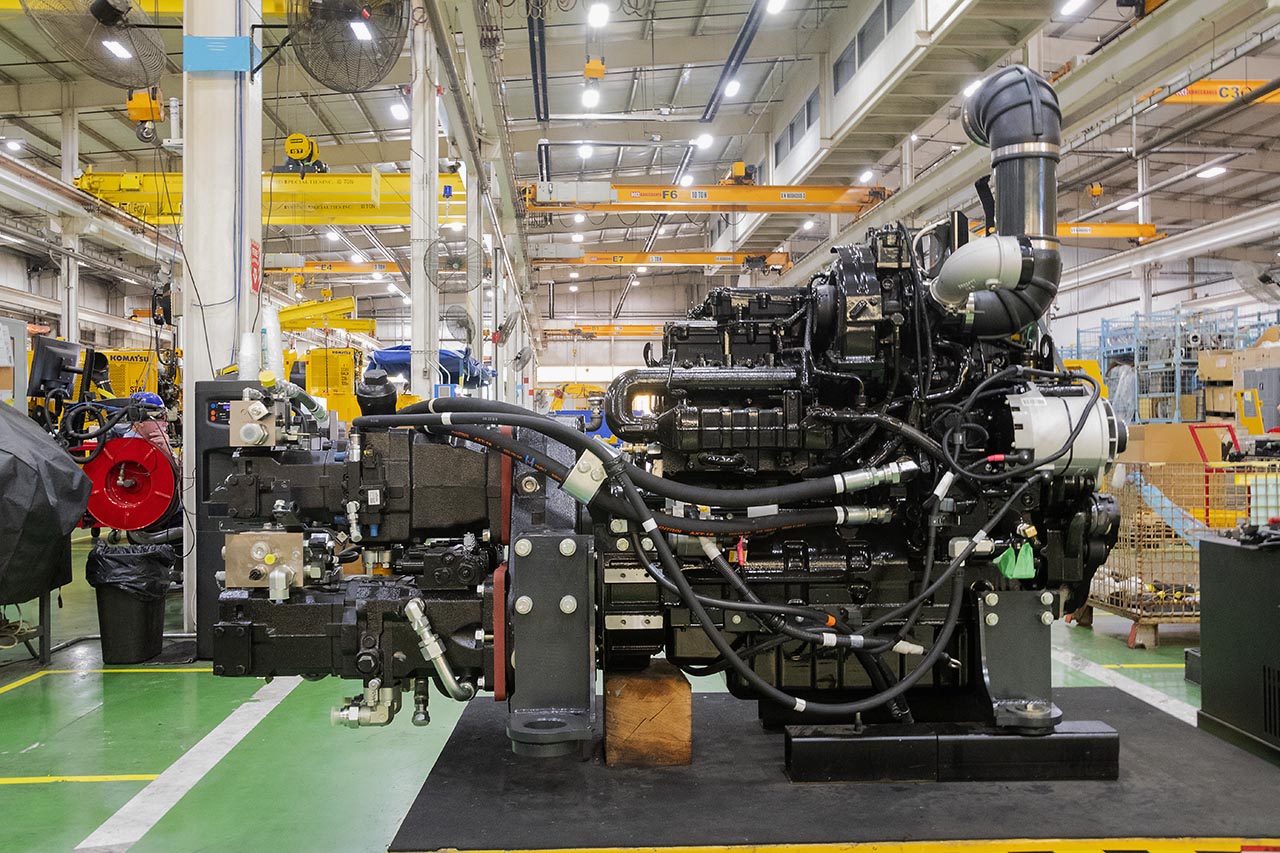

Powerful, fuel-efficient engine

Powerful, fuel-efficient engine

Get more done with the powerful and efficient Cummins QSL9 engine. 10% more horsepower; 16% more torque; up to 5% lower fuel consumption compared to XT-3 models. EPA Tier 4 final emissions certified.

Hydraulic protection

Hydraulic protection

Robust forestry-specific guarding system covers the boom/arm/rear hydraulic tubes and hoses to help protect them from productivity-robbing operational hazards and debris.

Four-way leveling system

Four-way leveling system

Heavy-duty four-way cab leveling system provides simultaneous front/rear/side leveling to ensure operator performance and safety on sloped terrain.

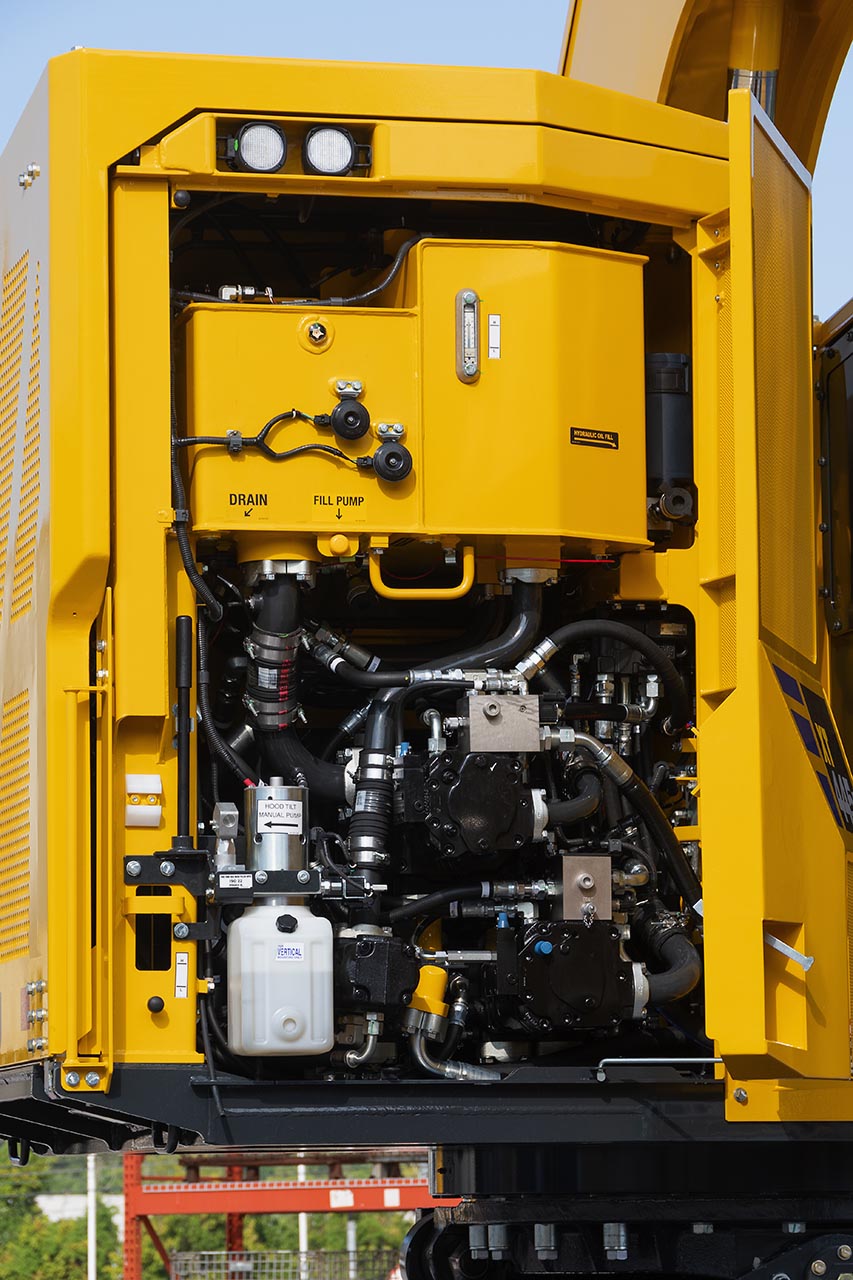

Reduced hydraulic oil needs

Reduced hydraulic oil needs

Innovative new hydraulic tank system design requires 55% less hydraulic oil compared to the XT-3 models which lowers your maintenance costs.

Standard Komtrax

Standard Komtrax

Easily monitor vehicle usage insights that can boost productivity and aid in controlling cost with our standard telematics system. Monitors and records data such as location, operation map and fuel consumption. Notifies you when maintenance is due and helps keep your machine running at peak performance.

Komatsu Care

Komatsu Care

Every new Komatsu XT-5 is covered by our Komatsu Care maintenance program, so you can keep your machine producing at its best. For the first three years or 2,000 hours (whichever occurs first) we take care of most regular service, inspection, filter and fluid replacement, and labor – at your location, and using only genuine Komatsu fluids and filters.


Specifications

Metric Imperial (US)
Expand all

  • Fuel tank (US gal): 172
  • Fuel tank (L): 651
  • Cooling system (US gal): 9.43
  • Cooling system (L): 35.7
  • Engine oil pan (US gal): 4.99
  • Engine oil pan (L): 18.9
  • Final drive per side (L): 11
  • Final drive per side (US gal): 2.91
  • Swing gear box (L): 4.3
  • Swing gear box (US gal): 1.14
  • Hydraulic tank (L): 216
  • Hydraulic tank (US gal): 57
  • DEF (US gal): 15
  • DEF (L): 56.8
  • Gear box (PTO)(US gal): 1.63
  • Gear box (PTO)(L): 6.2
  • Hood tilt (US gal): 1.19
  • Hood tilt (L): 4.5

  • Car body: HD boxed frame structure with flat bottom and storage trunk
  • Track frame: Box-section, bolted
  • Track type: Grease sealed
  • Number of shoes/links (per side): 47
  • Track rollers (per side): 8
  • Bushings and rollers: Standard
  • Track pitch (in): 8.5
  • Track pitch (mm): 216

  • Drive method type: Hydrostatic, independent closed loop
  • Maximum tractive effort (kgf): 34 382
  • Maximum tractive effort (lbf): 75,799
  • Parking brake type: Hydraulic
  • Service brake: Hydraulic
  • Max travel speed

    • High (kph): 4.6
    • High (mph): 2.9
    • Low (kph): 2.6
    • Low (mph): 1.6

  • Rotation: Continuous rotation
  • Bearing: Heavy duty, 22-bolt, single row bearing
  • Drive method: Hydrostatic
  • Swing speed (rpm): 0 to 7.0 rpm
  • Swing torque (lbs-ft): 58,341
  • Swing torque (nm): 79 100
  • Swing brake: Dynamic
  • Parking brake: Hydraulic

  • Implement pump (gpm): Variable displacement piston, Max Flow 86 gpm
  • Implement pump (L/min): Variable displacement piston, Max Flow 324 L/min
  • Attachment pump (L/min): Variable displacement piston, Max Flow 200 L/min
  • Attachment pump (gpm): Variable displacement piston, Max Flow 53 gpm
  • Saw pump (gpm): Variable displacement piston, Max Flow 38 gpm
  • Saw pump (L/min): Variable displacement piston, Max Flow 143 L/min
  • Track drive pump (L/min): 2x Variable displacement piston, Max Flow 167 L/min
  • Track drive pump (gpm): 2x Variable displacement piston, Max Flow 44 gpm
  • Fan pump (L/min): 2x Gear, Max Flow 44 L/min
  • Fan pump (gpm): 2x Gear, Max Flow 11 gpm
  • Charge pump (L/min): 2x Gear, Max Flow 95 L/min
  • Charge pump (gpm): 2x Gear, Max Flow 25 gpm
  • Travel motor: Variable displacement piston
  • Swing motor: Fixed displacement bent axis piston
  • Cooling: Independent Radiator/CAC/ Hydraulic oil coolers with thermostatically controlled fans

  • Engine Model: Cummins QSL9 diesel engine
  • Engine type: Watercooled, 4-cycle, direct injection
  • Aspiration: VGT™ Turbocharger, infinitely adjustable with electronic controls. High pressure fuel injection, in cylinder advanced combustion technology, cooled EGR.
  • Number of cylinders: In-line, 6-cylinder
  • Bore (mm): 114
  • Bore (in): 4.49
  • Stroke (mm): 135
  • Stroke (in): 5.69
  • Piston displacement (in^3): 543
  • Piston displacement (L): 9
  • Fan drive type: Hydraulic
  • Engine details: *Complies with U.S. EPA Tier 4 Final emissions standard
  • Horsepower

    • Peak (HP): 331 HP @ 1,600 rpm
    • Peak (kW): 247 kW @ 1 600 rpm
    • Rated (kW): 224 kW @ 2 000 working rpm
    • Rated (HP): 300 HP @ 2,000 working rpm
    • Peak torque (Nm): 1 573 Nm @ 1 600 rpm
    • Peak torque (lbs-ft): 1160 lbs.-ft. @ 1,600 rpm

  • Electrical system type: 24 V with master disconnect
  • Alternator: 24 V, 100A
  • Work lights: 11 LED

  • Track shoes (mm): 600
  • Track shoes (in): 24
  • Operating weight (kg): 32 700
  • Operating weight (lbs): 72,091
  • Ground pressure (kPa): 66.8
  • Ground pressure (psi): 9.7

  • Leveling system type: 2-cylinder, 4-way heavy duty; leveling angle front: 27° / 51%, leveling angle rear: 5° / 9%, leveling angel side/side: 20° / 36%
  • Leveling angle

    • Front: 25° / 47%
    • Rear: 6° / 11%
    • Side/Side: 18° / 32%

  • Boom performance details: * Feller buncher boom and arm, designed for 20-22" in high speed disc saws.
  • Lifting capacity @ 10' pin height (less attachment) (lbs.): 26,235
  • Lifting capacity @ 3.0 m pin height (less attachment) (kg): 11 900
  • Lifting capacity @ 15' pin height (less attachment) (lbs.): 17,637
  • Lifting capacity @ 4.6 m pin height (less attachment) (kg): 8 000
  • Lifting capacity @ 20' pin height (less attachment) (lbs.): 10,582
  • Lifting capacity @ 6.0 m pin height (less attachment) (kg): 4 800
  • Lifting capacity @ full reach pin height (less attachment) (lbs.): 9,921
  • Lifting capacity @ full reach pin height (less attachment) (kg): 4 500
  • Boom performance footnote: * Feller buncher boom and arm, designed for 20-22" in high speed disc saws.
Metric Imperial (US)
  • Alternator, 100 ampere, 24V
  • Air cleaner, dry type with air intake pre-cleaner
  • Auto-idle shutdown system
  • Automatic air conditioner, heater & defroster with pressurization and 6 adjustable vents
  • Batteries, 2 x 12V, 1000 AH
  • Cab, ROPS/OPS/FOPS/TOPS/FOG/WCB/Oregon OSHA certified forestry:
    —2 x 12V power outlets
    —Cellphone holder
    —Coat hook, magnetic and moveable base
    —Cupholder, fold-down/up
    —Literature box with cover
    —Lockable door
    —Insulated drink bottle & lunch box cooler
    —Ventilation fan
  • Carbody, wide gauge with storage trunk
  • Continuous swing rotation
  • Control handles, Sure Grip
  • Cooling:
    —Engine temperature-sensing auto-reversing fan
    —Hydraulic oil cooler temperature-sensing auto-reversing fan
    —Charge air cooler temperature-sensing auto-reversing fan
  • Electrical system master disconnect switch
  • Electrical joystick/foot pedal controls
  • Emergency escapes, 3 (front window, side door and roof hatch)
  • Engine, Cummins QSL9, 9 Liter, 331 HP Peak @ 1600 rpm
  • Engine compartment service light
  • Engine interface monitoring system
  • Final drives, Komatsu with spring-applied oil released track brakes
  • Fire extinguisher, 10 lb. hand held
  • Fuel water separator
  • Heater, charge oil relief
  • Horn, electric
  • Hydraulic system, load sensing
  • Hydraulic tank oil refill pump, 24V
  • Hydraulic tank vacuum pump

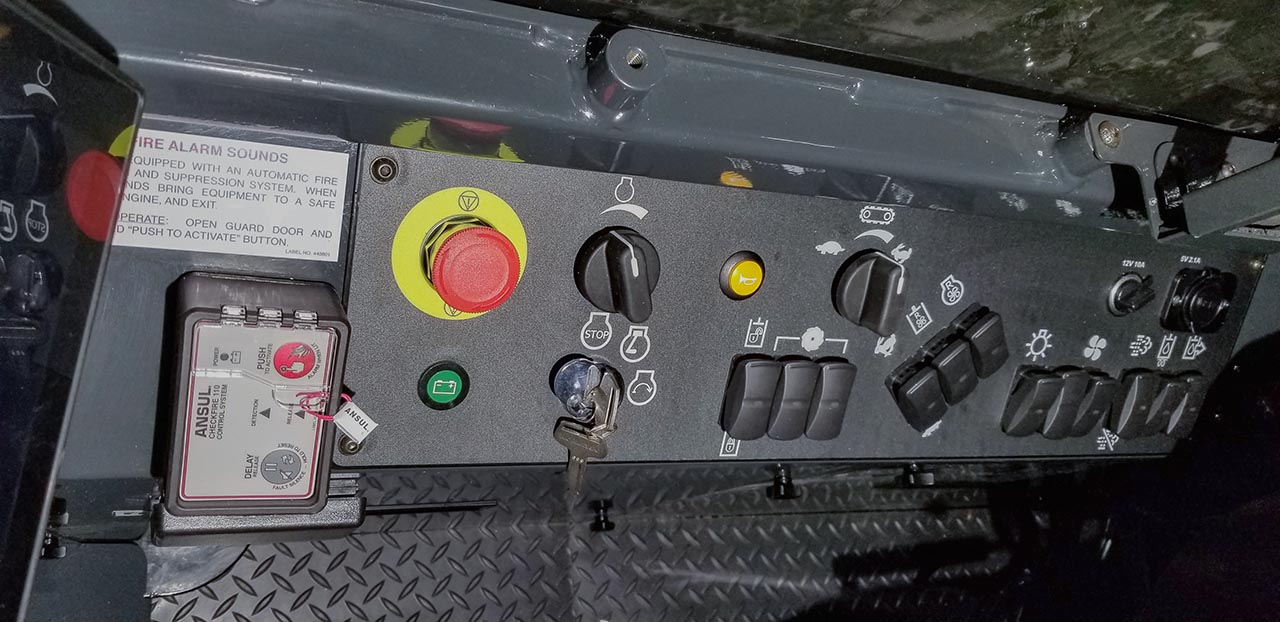

  • Instrument panel with switches, dials, LED warning lights, and engine stop button
  • IQANMD4 Digital Control System with 7” LED color touch screen display
  • KOMTRAX monitoring system
  • Leveling, 4way HD cab leveling (XT445L5/XT465L5)
  • Light, interior dome LED
  • Muffler with blanket
  • Operator Identification System
  • Premium seat, vented and heated
  • Pumps:
    —Attachment, 1 x VDPP, 53 gpm
    —Implement, 1 x VDPP, 86 gpm
    —Saw drive, 1 x VDPP, 38 gpm
    —Track drive, 2 x VDPP, 44 gpm each
    —Fan, 2 x Gear, 11 gpm each
    —Charge, 1 x Gear, 25 gpm
  • Radio AM/FM Weather Band stereo with iPod/MP3 input jack
  • Rear view monitoring system (1 camera)
  • Rubber debris skirt
  • Seat, adjustable high back suspension
  • Seat belt, 3" retractable
  • Swing bearing, HD 22bolt single row (XT4305/XT445L5)
  • Swing bearing HD 37bolt double row (XT465L5)
  • Swing motor, 56cc
  • Track adjusters, hydraulic
  • Track chain, grease sealed Komatsu 8.5" pitch
  • Track drive, closed loop
  • Track motors, 2-speed VDPP auto-shift with variable speed control
  • Track rollers
  • Track shoes, 24" single grouser
  • Track sliders
  • Travel alarm
  • Travel pedals
  • Windows, polycarbonate
    —Front & skylight windows,1.25"
    —Left, right & rear windows, 0.5"
  • Work lights, 11 LED type
  • Alternator, 100 ampere, 24V
  • Air cleaner, dry type with air intake pre-cleaner
  • Auto-idle shutdown system
  • Automatic air conditioner, heater & defroster with pressurization and 6 adjustable vents
  • Batteries, 2 x 12V, 1000 AH
  • Cab, ROPS/OPS/FOPS/TOPS/FOG/WCB/Oregon OSHA certified forestry:
    —2 x 12V power outlets
    —Cellphone holder
    —Coat hook, magnetic and moveable base
    —Cupholder, fold-down/up
    —Literature box with cover
    —Lockable door
    —Insulated drink bottle & lunch box cooler
    —Ventilation fan
  • Carbody, wide gauge with storage trunk
  • Continuous swing rotation
  • Control handles, Sure Grip
  • Cooling:
    —Engine temperature-sensing auto-reversing fan
    —Hydraulic oil cooler temperature-sensing auto-reversing fan
    —Charge air cooler temperature-sensing auto-reversing fan
  • Electrical system master disconnect switch
  • Electrical joystick/foot pedal controls
  • Emergency escapes, 3 (front window, side door and roof hatch)
  • Engine, Cummins QSL9, 9 Liter, 331 HP Peak @ 1600 rpm
  • Engine compartment service light
  • Engine interface monitoring system
  • Final drives, Komatsu with spring-applied oil released track brakes
  • Fire extinguisher, 10 lb. hand held
  • Fuel water separator
  • Heater, charge oil relief
  • Horn, electric
  • Hydraulic system, load sensing
  • Hydraulic tank oil refill pump, 24V
  • Hydraulic tank vacuum pump
  • Instrument panel with switches, dials, LED warning lights, and engine stop button
  • IQANMD4 Digital Control System with 7” LED color touch screen display
  • KOMTRAX monitoring system
  • Leveling, 4way HD cab leveling (XT445L5/XT465L5)
  • Light, interior dome LED
  • Muffler with blanket
  • Operator Identification System
  • Premium seat, vented and heated
  • Pumps:
    —Attachment, 1 x VDPP, 200 ltr/min
    —Implement, 1 x VDPP, 324 ltr/min
    —Saw drive, 1 x VDPP, 143 ltr/min
    —Track drive, 2 x VDPP, 167 ltr/min each
    —Fan, 2 x Gear, 44 ltr/min each
    —Charge, 1 x Gear, 95 ltr/min
  • Radio AM/FM Weather Band stereo with iPod/MP3 input jack
  • Rear view monitoring system (1 camera)
  • Rubber debris skirt
  • Seat, adjustable high back suspension
  • Seat belt, 3" retractable
  • Swing bearing, HD 22bolt single row (XT4305/XT445L5)
  • Swing bearing HD 37bolt double row (XT465L5)
  • Swing motor, 56cc
  • Track adjusters, hydraulic
  • Track chain, grease sealed Komatsu 216 mm pitch
  • Track drive, closed loop
  • Track motors, 2-speed VDPP auto-shift with variable speed control
  • Track rollers
  • Track shoes, 600 mm single grouser
  • Track sliders
  • Travel alarm
  • Travel pedals
  • Windows, polycarbonate
    —Front & skylight windows, 32 mm
    —Left, right & rear windows, 13 mm
  • Work lights, 11 LED type
Metric Imperial (US)
- Tracker feller buncher: 13' straight with tree deflector
- Feller buncher: 14' 10"
- Counterweight (rear): XT430-5: 2,645 lbs.
- Bar saw, intermittent disc saw, combination disc/bar saw
- Disc saw
- Harvesting saw (XT430/XT445L-5)
- Mulcher
- 28-inch single grouser
- 28-inch double grouser (XT430-5/XT445L-5)
- Base machine

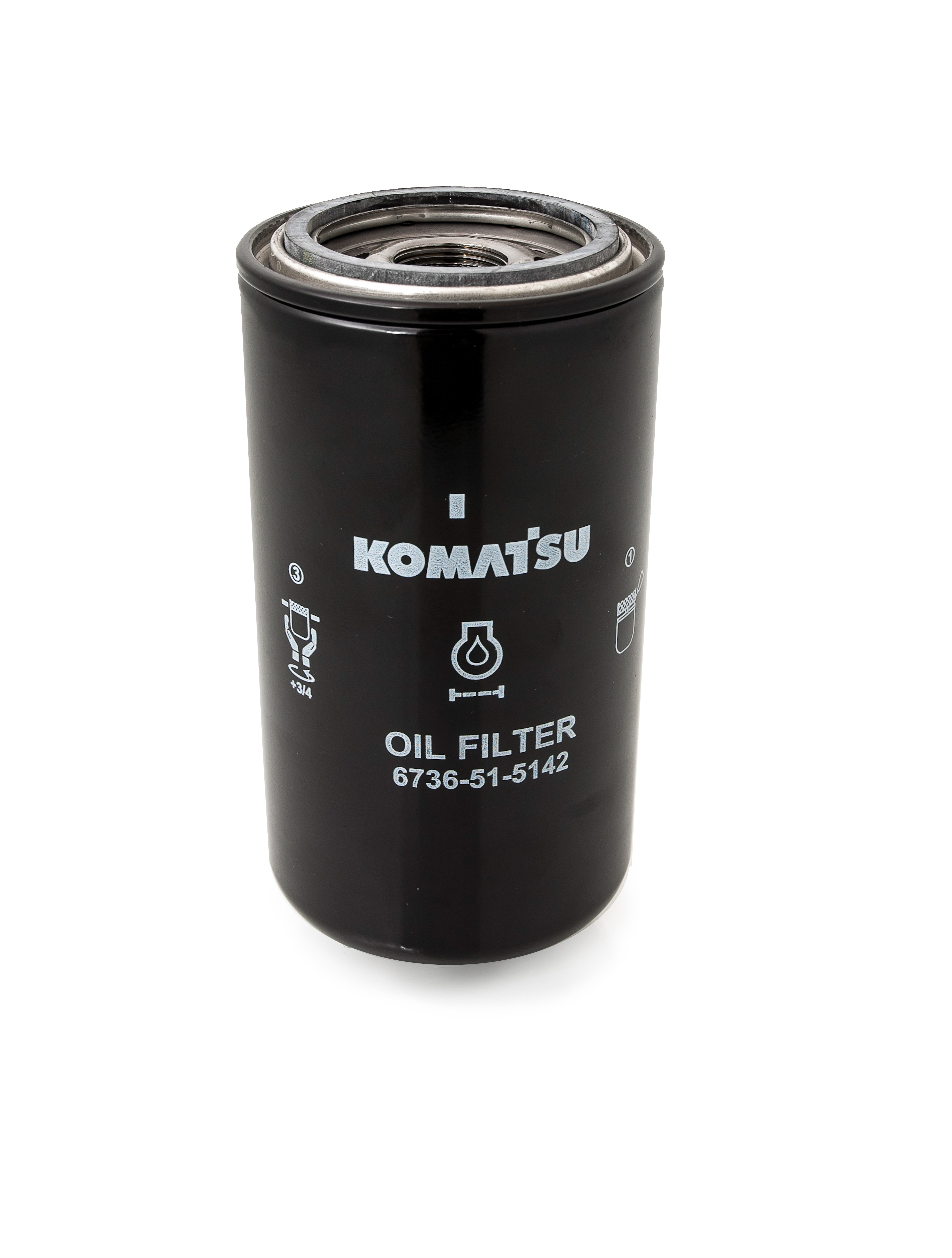

- Engine filters
  • Arms
  • Booms
  • Carrier rollers
  • Fire suppression system, automatic liquid chemical
  • Heater, fuel-fired jacket water and hydraulic oil pre-heater
  • Hydraulic systems
  • Oil cooler, pump drive
  • Side camera (right)
  • Track shoes
  • Uptime spare parts kits
- Tracker feller buncher: 3,960 mm straight with tree deflector
- Feller buncher: 4,530 mm
- Counterweight (rear): XT430-5:1,200 kg
- Bar saw, intermittent disc saw, combination disc/bar saw
- Disc saw
- Harvesting saw (XT430/XT445L-5)
- Mulcher
- 700 mm single grouser
- 700 mm double grouser (XT430-5/XT445L-5)
- Base machine
- Engine filters
  • Arms
  • Booms
  • Carrier rollers
  • Fire suppression system, automatic liquid chemical
  • Heater, fuel-fired jacket water and hydraulic oil pre-heater
  • Hydraulic systems
  • Oil cooler, pump drive
  • Side camera (right)
  • Track shoes
  • Uptime spare parts kits

Komatsu Customer Testimonial: Utilizing the XT445L-5 for productivity and performance

Jerry Stephens, owner of Stephens Hardwood in Tennessee has been using Komatsu forestry equipment for the last 20 years. The XT445L-5 feller buncher has provided them with dependable service and high productivity, along with performance features like an advanced cab for operator comfort and easy serviceability

Video Thumbnail
