Forestry

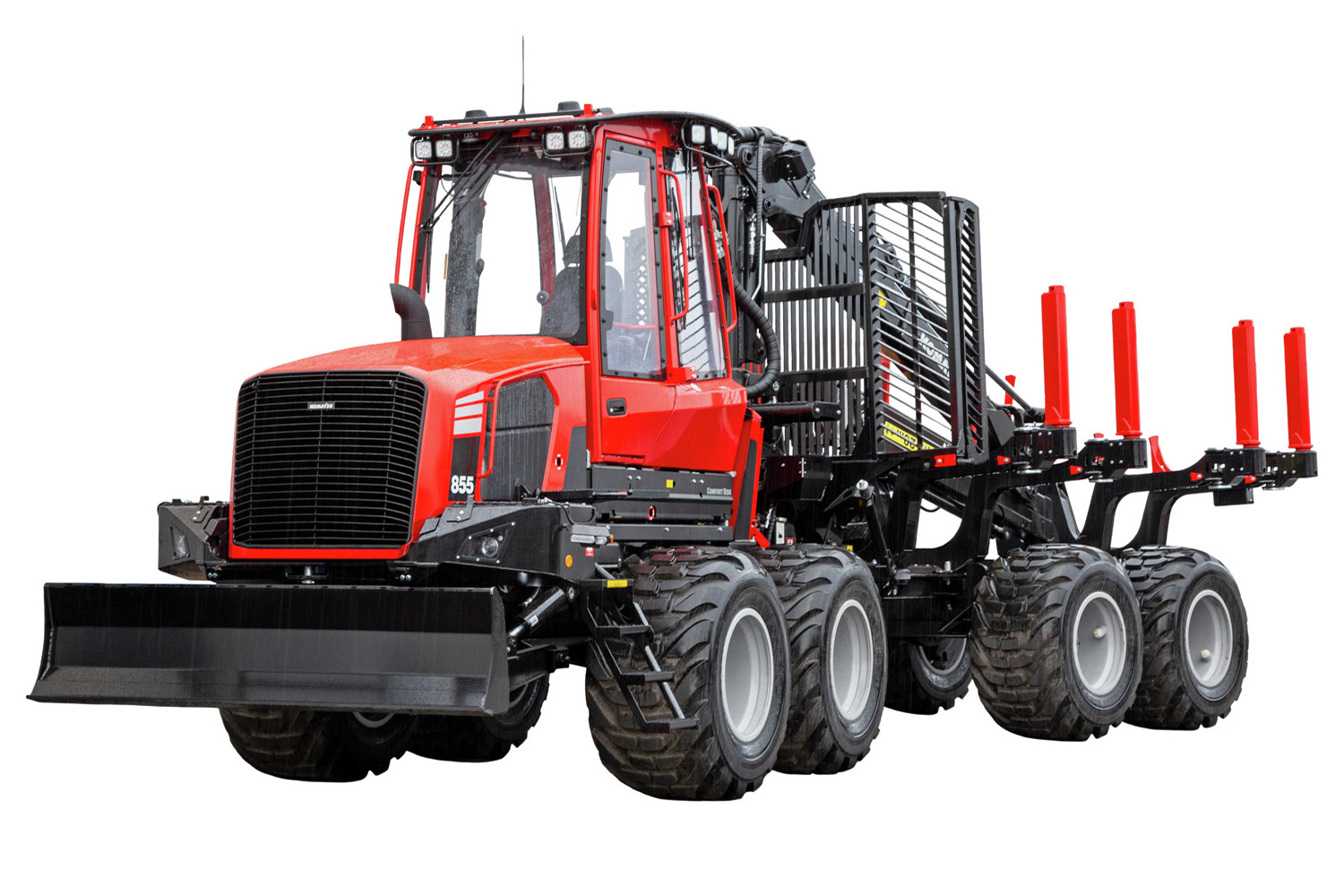

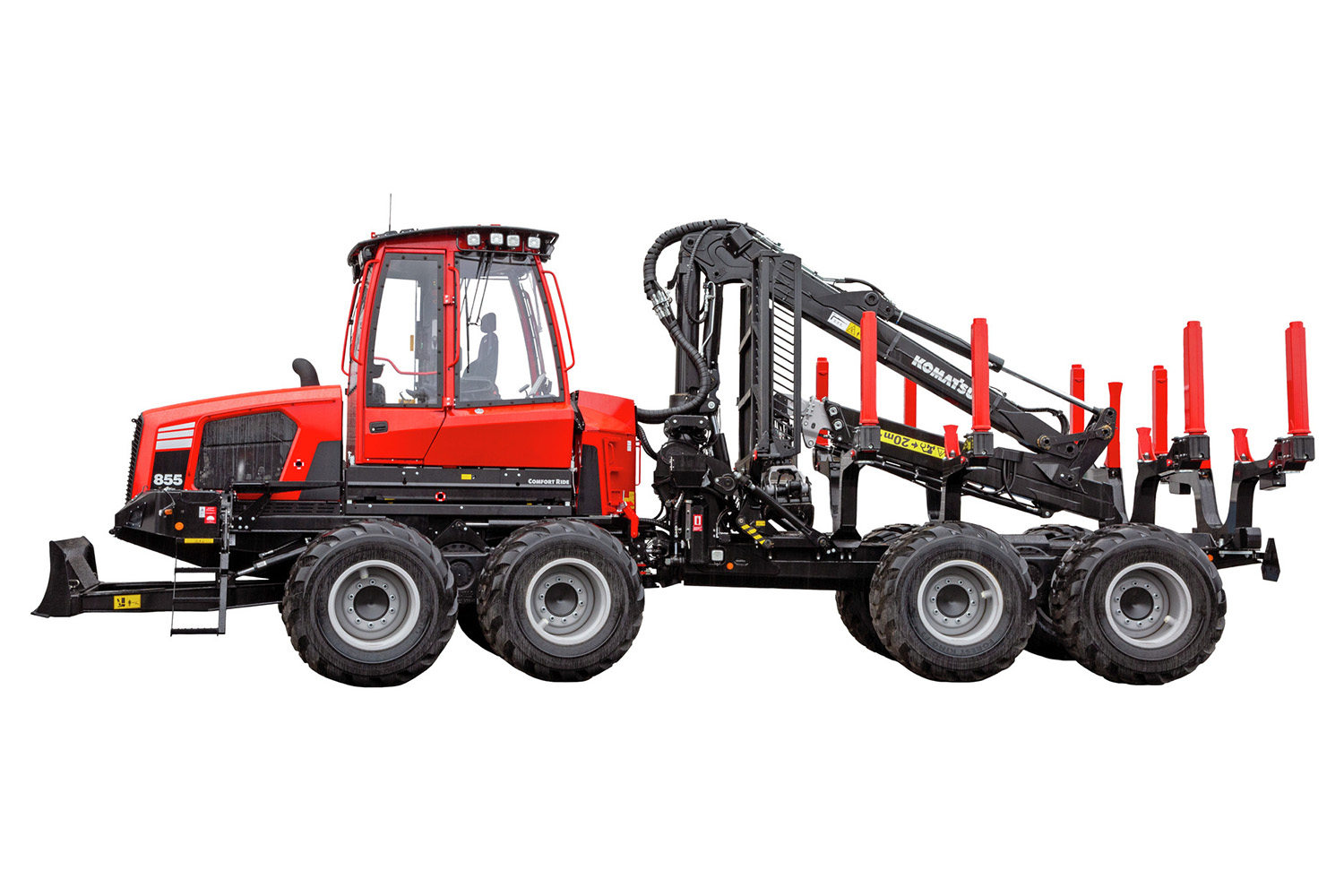

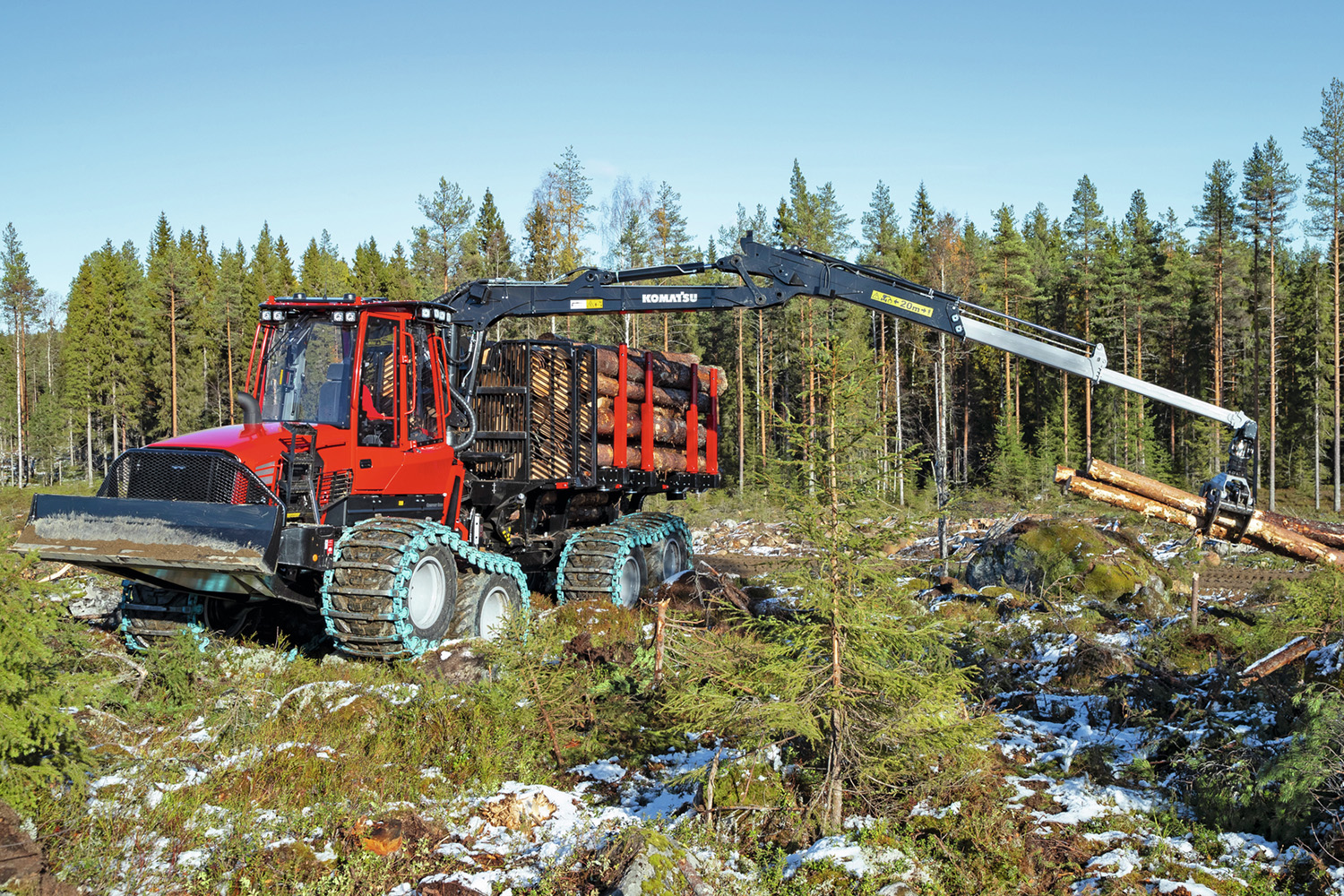

855-3

Forwarders

  • Gross load capacity (kg) 14 000
  • Gross load capacity (lbs) 30,856
  • Horsepower (HP) 228 HP @ 1,900 rpm
  • Horsepower (kW) 170 kW @ 1 900 rpm
  • Tractive force (kN) 187
  • Tractive force (lbf) 42,039

Nimble and powerful

Equip your operators to drive productivity day after day in this 14-metric-ton class forwarder that features power, nimbleness and smart features. Hydraulic retarder overspeed protection ensures the driveline won't run too fast, and the flat FlexGate headboard increases load space.

  • Choose the right machine for the job with four load-capacity options
  • Drive high productivity with powerful cranes and rugged FlexBunks
  • Tackle the roughest terrain with powerful hydrostatic transmission and high ground clearance

Features and benefits

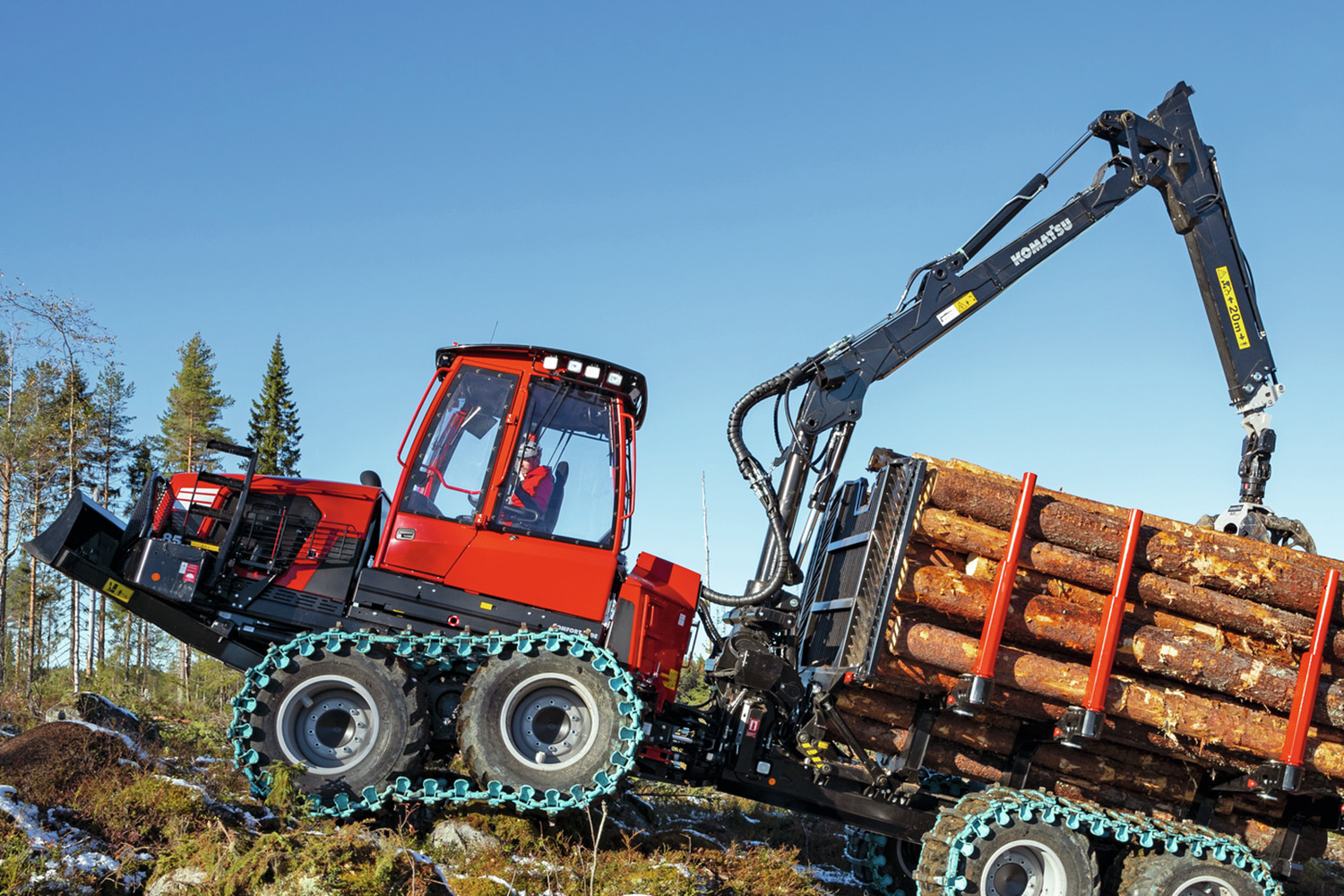

Efficient loading

Efficient loading

Match the machine to the job with a variety of load capacities — 12, 14, 16 or 20 metric tons — and several frame-length options. Designed for smooth and precise operation. Rugged cranes have a long reach and excellent lifting and slewing torque.

Smooth, fast transport

Smooth, fast transport

Maneuver with confidence in the most rugged forests, even when fully loaded. Chassis and suspensions are designed for performance under demanding conditions. Komatsu Comfort Bogie axles with a high portal offset and V-shaped frames provide some of the highest ground clearance in the industry.

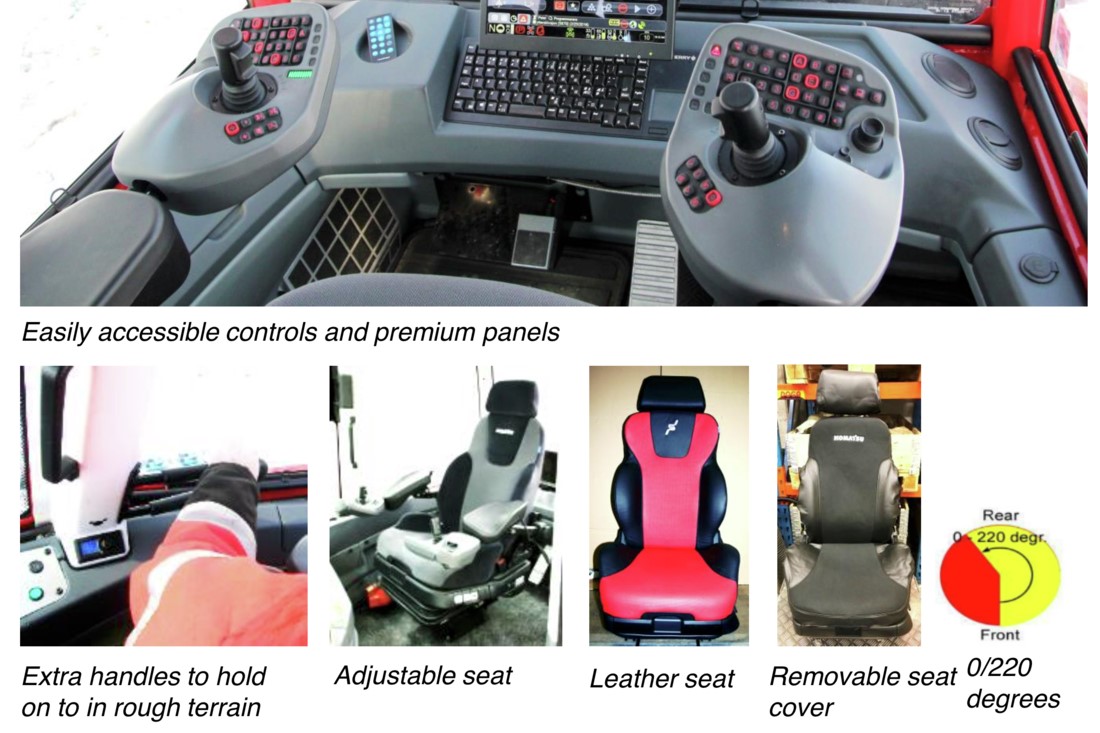

Operator comfort

Operator comfort

Operator comfort is key to your productivity. Spacious and open, our cab provides fantastic visibility, ergonomic controls and a seat that delivers all-day comfort. Optional Comfort Ride suspension provides added comfort and capabilities.

Powerful yet efficient

Powerful yet efficient

Maximize performance with high power and torque while driving efficiency with a fuel-efficient engine. A sophisticated control system automatically adapts to changes in engine load.

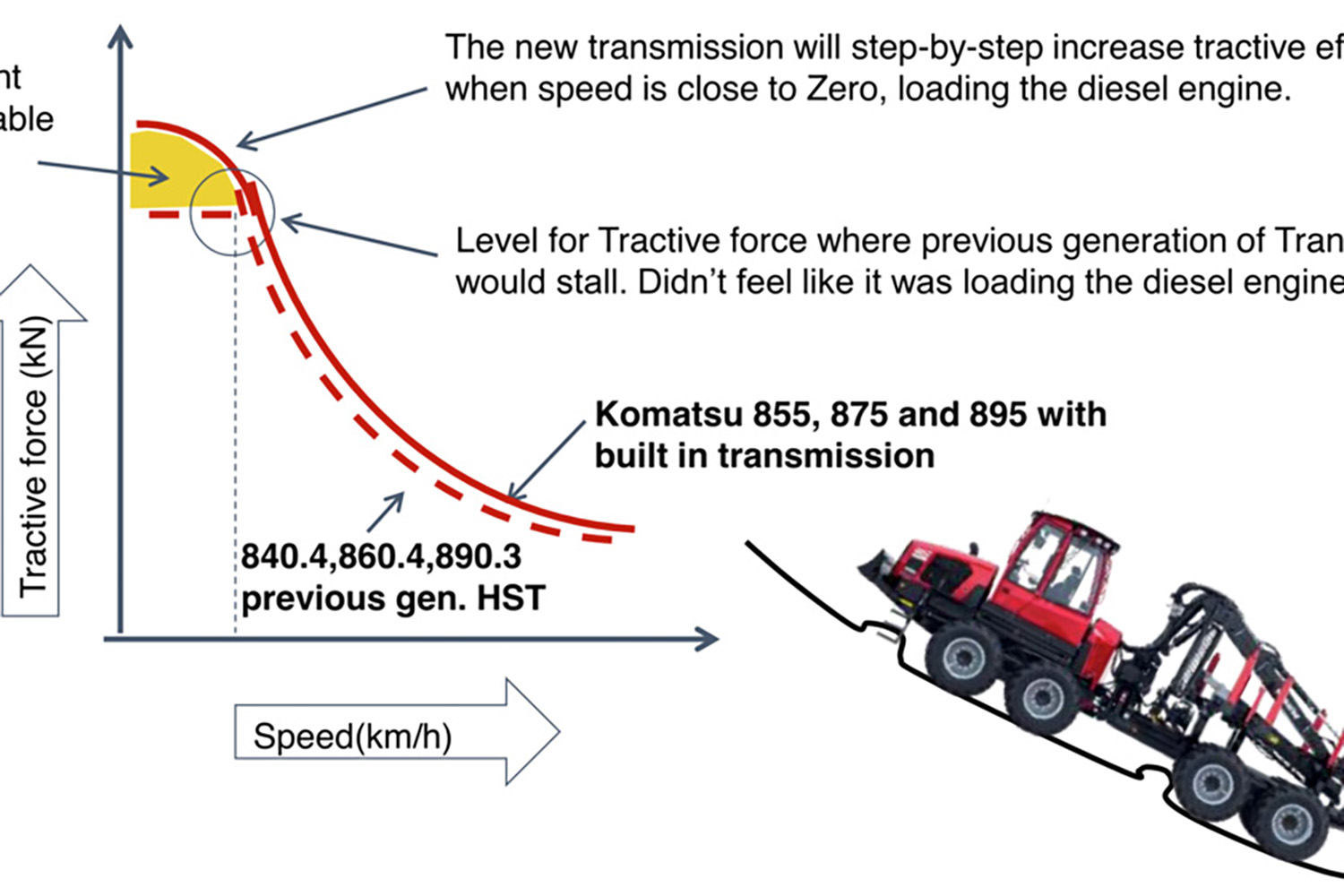

Technology-driven traction

Technology-driven traction

Get exceptional tractive force thanks to an intelligent hydrostatic transmission system that considers machine load, terrain conditions, power and torque output. Hydraulic retarder overspeed protection on the 875-1 and 895-2 models ensures the driveline won't run too fast.

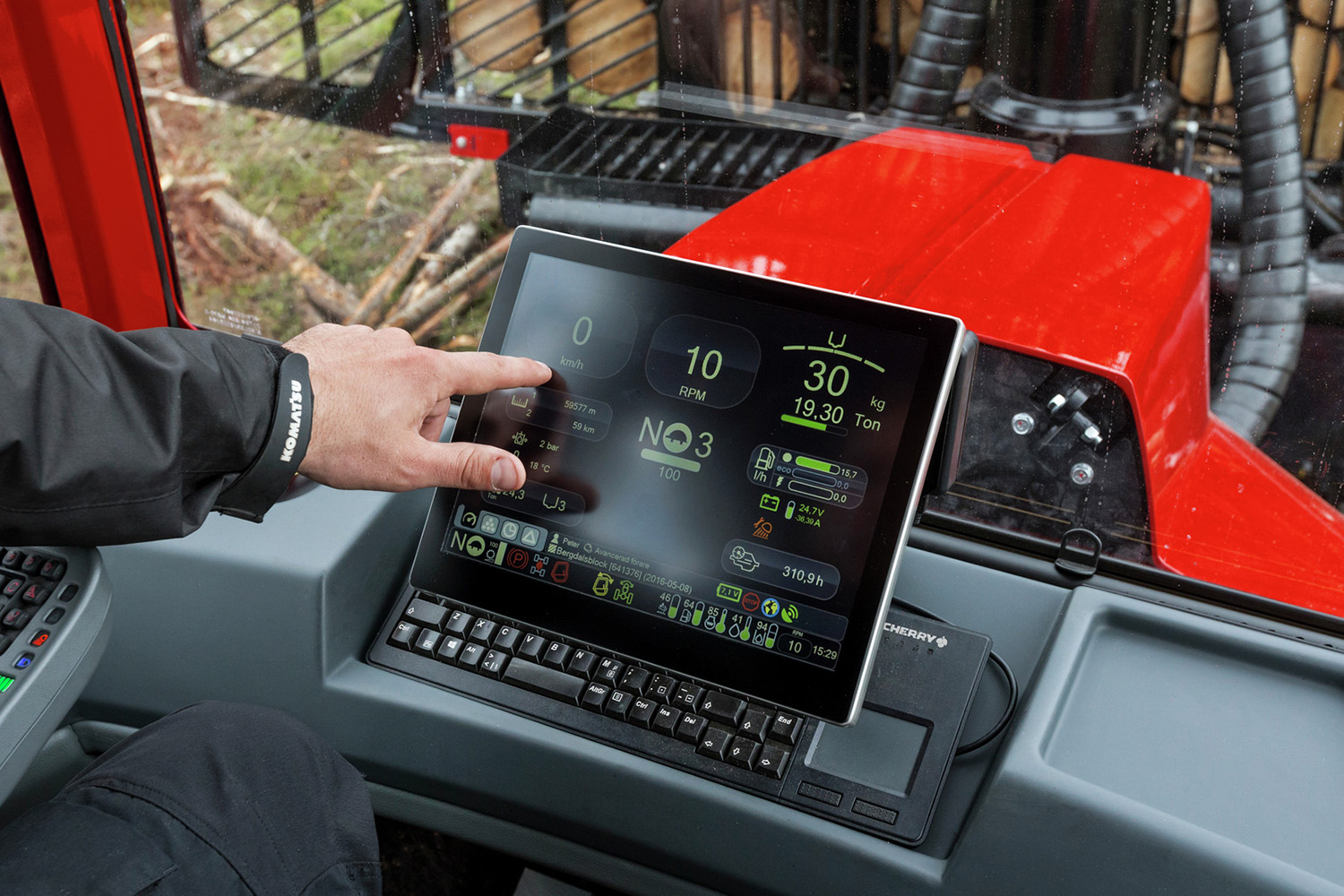

Customize your controls

Customize your controls

Give operators the benefit of machine controls they can fine-tune for sensitivity and speed or smoothness and accuracy – whatever the job demands. Our state-of-the-art MaxiXplorer/MaxiXT system monitors and controls everything from engine and crane to the transmission and service ladders.

Easy to maintain

Easy to maintain

Less time servicing means more time forwarding. Maintenance is quickly and easily completed with a service-friendly design featuring an electronically powered tilting hood. All filters are located together for easy access under the hood.

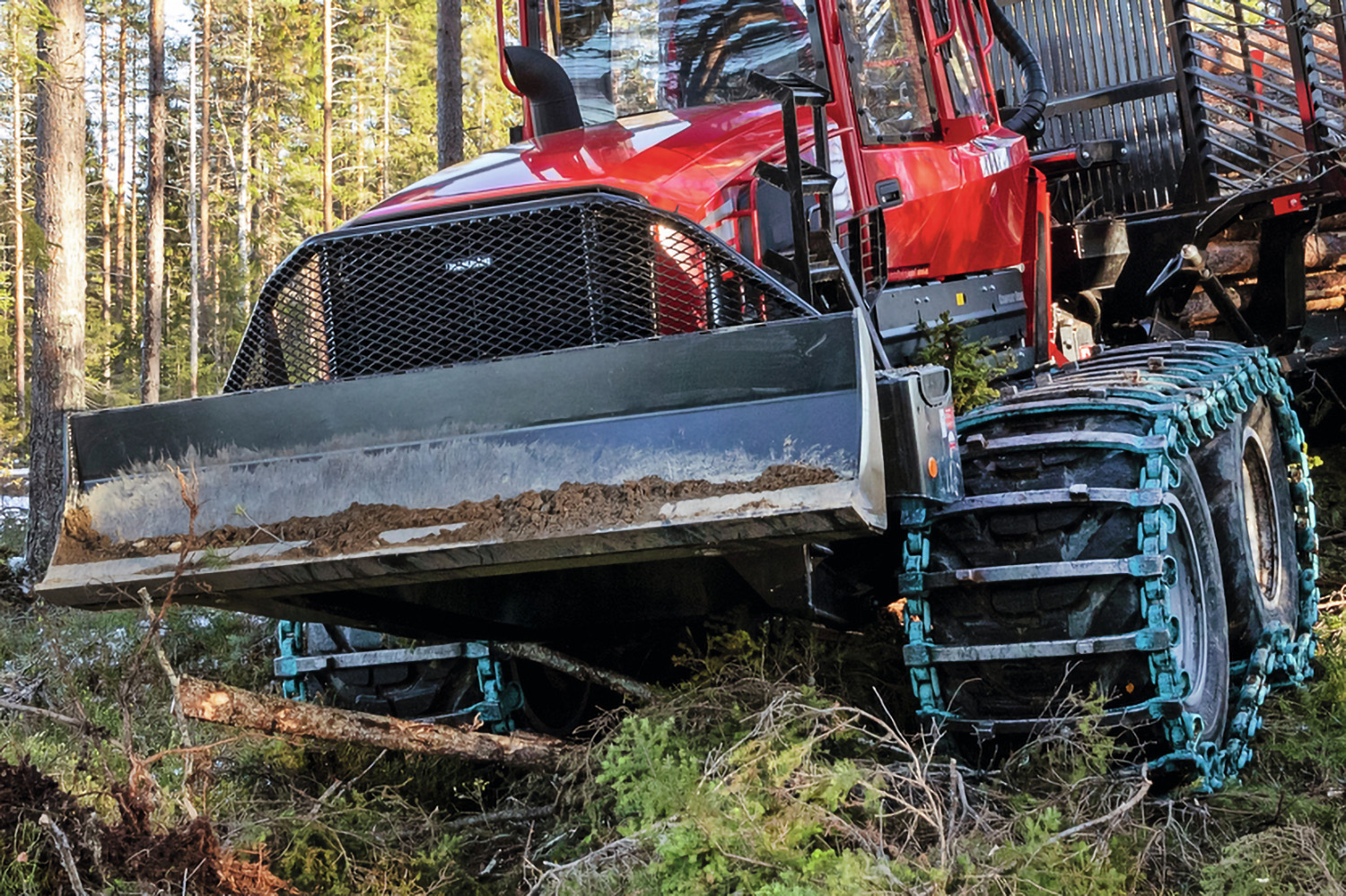

Overcome climbing obstacles

Overcome climbing obstacles

When you need to do ground or stump leveling on tough terrain, an optional heavy-duty stacking blade is available. Mounted with a high angle of departure for climbing obstacles, there’s no interference between blade, battery boxes or hood guard.

Options for added benefit

Options for added benefit

Multiple options are available to enhance your productivity and comfort, including bunk wideners, rear- and front-view video cameras, computer touchscreen and electric fuel fill pump.

Cold weather starting

Cold weather starting

Don’t lose valuable time when the temperatures drop. A standard diesel heater system heats the engine coolant, hydraulic oil and the batteries to facilitate cold-weather starting on the 845-1, 855-3, 875-1 and 895-2.


Specifications

Metric Imperial (US)
Expand all

  • Driving speed (kph): 0-8/20 (terrain/road) (max speed with steering wheel)
  • Driving speed (mph): 0-5/12.4 (terrain/road) (max speed with steering wheel)
  • Tractive force (lbf): 42,039
  • Tractive force (kN): 187

  • Type, Europe and North America: 66 AWF. 6-cylinder diesel engine with turbo and intercooler. EU Stage IV and EPA Tier 4 Final.
  • Power, max.: (kW): 170 kW DIN at 1 900 RPM
  • Power, max.: (HP): 228 HP at 1,900 rpm
  • Torque (Nm): 950 Nm @ 1,500 rpm
  • Fuel tank (L): 160
  • Fuel tank (US gal): 42.3
  • Stroke volume (L): 6,6
  • Stroke volume (US gal): 1.7

  • Loader type: Komatsu 130F

  • Flow (L/min): 280 @ 2 000 rpm
  • Flow (gpm): 74 @ 2,000 rpm
  • System pressure (psi): 3,771
  • System pressure (bar): 260

  • Reach (ft): 26 ft. 3 in - 32 ft. 10 in
  • Reach (m): 8 - 10
  • LIfting torque, gross (lbs-ft): 93,670
  • LIfting torque, gross (kNm): 127
  • Slewing torque, gross (kNm): 28.7
  • Slewing torque, gross (lbs-ft): 21,168
  • Rotator: G121 ProTec and slewing dampened link
  • Grapple: Komatsu G28

  • Approximate weight (kg): 6WD: 16 400 kg, 8WD: 18 000 kg
  • Approximate weight (lbs): 6WD: 36,156 lbs., 8WD: 39,683 lbs.

  • Specification details: The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

  • Gross load (lbs): 30,865
  • Gross load (kg): 14 000
  • Bunk area (m^2): 4,3 - 5,9
  • Bunk area (sq. ft): 46.3 - 63.5

  • Width (mm): With 600/55x26,5 tires: 2 726 mm, With 710/45x26,5 tires: 2 956 mm
  • Width (ft): With 600/55x26,5 tires: 8 ft. 11 in, With 710/45x26,5 tires: 9 ft. 8 in
  • Length, total (with shortest rear frame)(mm): 10 085
  • Length, total (with shortest rear frame)(ft): 33 ft. 1 in
  • Length, front axle to articulated joint (ft): 5 ft. 11 in
  • Length, front axle to articulated joint (mm): 1 800
  • Length, articulated joint to rear axle (with shortest rear frame): 10 ft. 10 in
  • Length, articulated joint to rear axle (with shortest rear frame)(mm): 3 300
  • Transport height: 12 ft. 9 in (hoses included and with tire compression)
  • Transport height with hoses and tyre compression: 3 800 (hoses included and wth tire compression)
  • Ground clearance, at steering clearance: 6WD: 562 mm, 8WD: 632 mm
  • Ground clearance, at steering coupling: 6WD: 1 ft. 10 in, 8WD: 2 ft. 1 in
  • Note on dimensions: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

  • Voltage: 24 V
  • Battery capacity: 2 x 180 Ah (Generator: 2 x 100 A)
