Wheel loaders

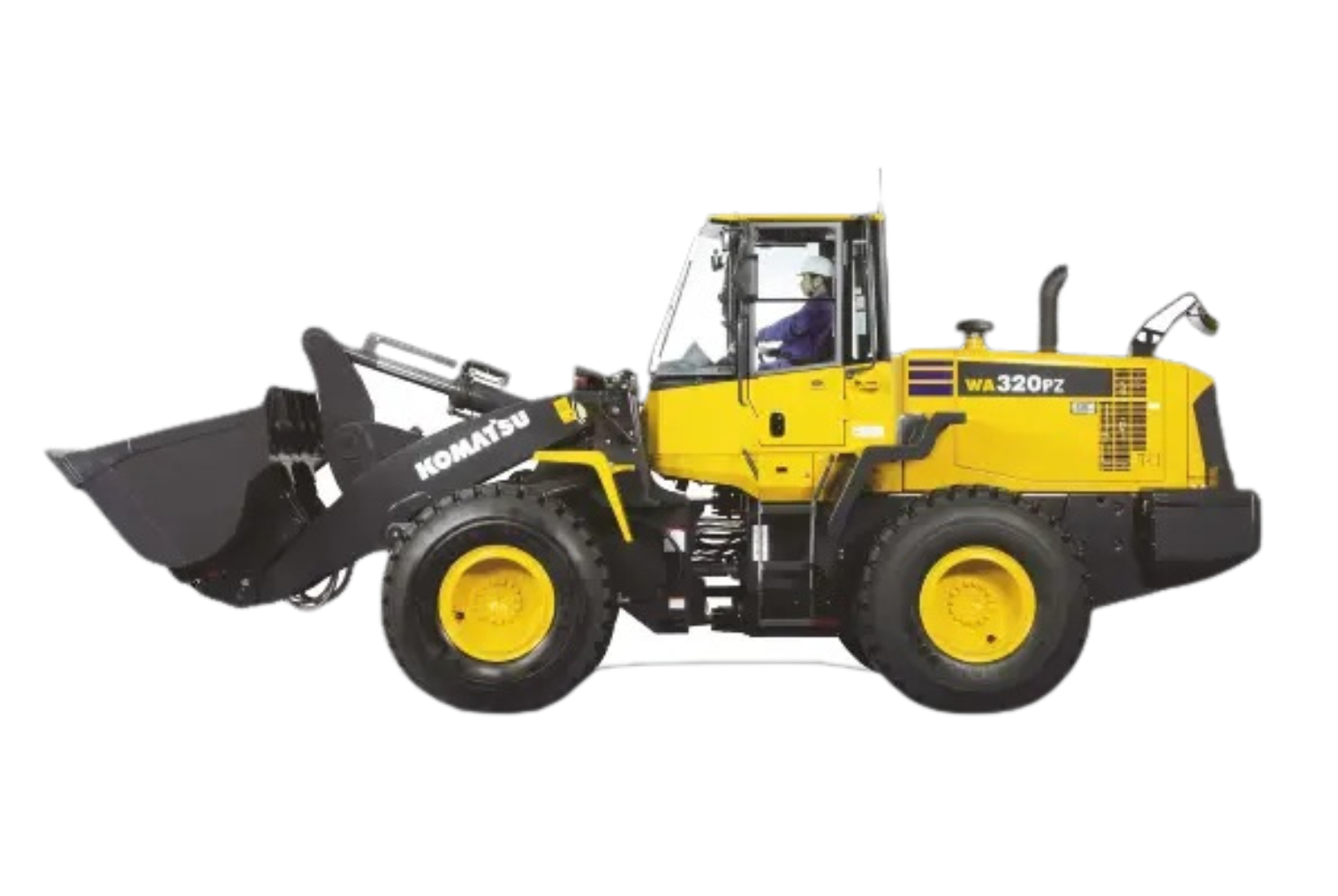

WA320PZ-6
Mid-size wheel loaders
- Engine power (HP) 167
- Engine power (kW) 125
- Bucket capacity (m^3) 3.2
- Bucket capacity (yd^3) 4.2
- Operating weight (kg) 15280
- Operating weight (lbs) 33686
The hydrostatic drive WA320PZ-6 features Komatsu’s PZ parallel-lift arm system with bucket capacities from 2.3-3.2 cu m, along with hydrostatic drive, for maximum versatility and productivity across loading, handling and lifting applications. As with all our wheel loaders, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.
Resources
Electronically-controlled HST
The electronically-controlled HST consists of a 1-pump, 2-motor system. This system allows for high-efficiency and high tractive effort. The HST provides quick travel response and aggressive drive into the pile. The variable displacement system automatically adjusts to the tractive effort demand to provide maximum power and efficiency
Specifications
- Full specs
- Transmission footnote: Measured with 20.5-25 tyres
-
Travel speed
- Travel speed: Forward & Reverse
- 1st, forward (mph): 2.5-8.1
- 1st, forward (kph): 4.0-13.0
- 1st, reverse (mph): 2.5-8.1
- 1st, reverse (kph): 4.0-13.0
- 2nd, forward (kph): 13
- 2nd, forward (mph): 8.1
- 2nd, reverse (kph): 8.1
- 2nd, reverse (mph): 5
- 3rd, forward (kph): 18.7
- 3rd, forward (mph): 11.6
- 3rd, reverse (kph): 11.6
- 3rd, reverse (mph): 7.2
- 4th, forward (kph): 38
- 4th, forward (mph): 23.6
- 4th, reverse (kph): 23.6
- 4th, reverse (mph): 14.7
- Engine Model: Komatsu SAA6D107E-1
- Aspiration: Turbo-charged, after-cooled
- Bore x stroke of engine (mm): 107 x 124
- Bore x stroke of engine (in): 4.21 x 4.88
-
Horsepower
- SAEJ1995 - Gross (kW): 127
- SAEJ1995 - Gross (HP): 171
- ISO 9249 / SAE J1349 - Net (HP): 167
- ISO 9249 / SAE J1349 - Net (kW): 125
- Rated RPM: 2000
- Fan drive method for radiator cooling: Hydraulic
-
Steering System
- Number of cylinders in hydraulic cylinders: 2
- Bore x stroke (in): 2.76 x 17.83
- Bore x stroke (mm): 70 x 453
-
Loader control
- Hydraulic pump: Gear type pump
- Capacity (at rated rpm) (US gpm): 45.4
- Capacity (at rated rpm) (L/min): 172
- Cooling system (US gal): 6.6
- Cooling system (L): 25
- Fuel tank (US gal): 64.7
- Fuel tank (L): 245
- Engine (US gal): 6.07
- Engine (L): 23
- Hydraulic system (L): 89
- Hydraulic system (US gal): 23.51
- Axle front (US gal): 6.34
- Axle front (L): 24
- Axle rear (US gal): 6.3
- Axle rear (L): 24
- Transfer case (US gal): 1.74
- Transfer case (L): 6.5
- Steering system type: Articulated type, fully hydraulic power steering
- Steering angle: 38.5° each direction (40° to max end stop)
- Parking brake: Wet, multi-disc brake on transfer output shaft
- Secondary brake: Parking brake is commonly used
- Front Axle: Fixed, semi-floating
- Axle Rear: Centre-pin support, semi-floating, 24° total oscillation
- Final reduction gear: Planetary gear, single reduction
- Differential gear: Torque proportioning
- Reduction gear: Spiral bevel gear
- Bucket capacity SAE (m^3): 2.7 - 3.2
- Bucket capacity SAE (yd^3): 3.5 – 4.2
- Standard bucket capacity SAE (yd^3): 4.2
- Standard bucket capacity SAE (m^3): 3.2
- Bucket description: Light material bucket, pin on
- Bucket width (mm): 2740
- Bucket width (in): 107.9
- Dump clearance at 45° dump angle (mm): 2800
- Dump clearance at 45° dump angle (in): 110.2
- Dump reach at 45° dump angle (mm): 1070
- Dump reach at 45° dump angle (in): 42.1
- Static tipping load, straight (kg): 11070
- Static tipping load, straight (lbs): 24398.5
- Static tipping load, full turn (lbs): 20944.9
- Static tipping load, full turn (kg): 9500
-
Standard lift
- Breakout force standard (kN): 154
- Drive System: Four-wheel drive
