Forestry

951XC-1

Wheeled harvesters

  • Weight (kg) 23725
  • Weight (lbs) 51,300
  • Tractive force (kN) 242
  • Tractive force (lbf) 54400
  • Power (HP) 287 HP @ 1 850 rpm (EU Stage V and Tier 4F), 282 kW @ 1 850 rpm (Stage 2)
  • Power (kW) 214 kW @ 1 850 rpm (EU Stage V and Tier 4F), 210 kW @ 1 850 rpm (Stage 2)
  • Gross lifting torque (Nm) 275
  • Gross lifting torque (lbf-ft) 20283

Purchase options

Contact a sales representative

Productive final logging harvester with excellent climbing characteristics

Our largest eight-wheeled harvester is a stable and powerful machine, developed especially for harvesting in steep and challenging terrain. Hub reductions, the compact design and a large work area are just a few of the advantages.

  • The 951XC produces high tractive force for its size, enabling it to maintain a high speed even in difficult conditions
  • 270H crane with 8.7 / 10.3 m reach
  • Choose from our range of options to customise your machine and make your working day even more comfortable and productive

Resources

Features and benefits

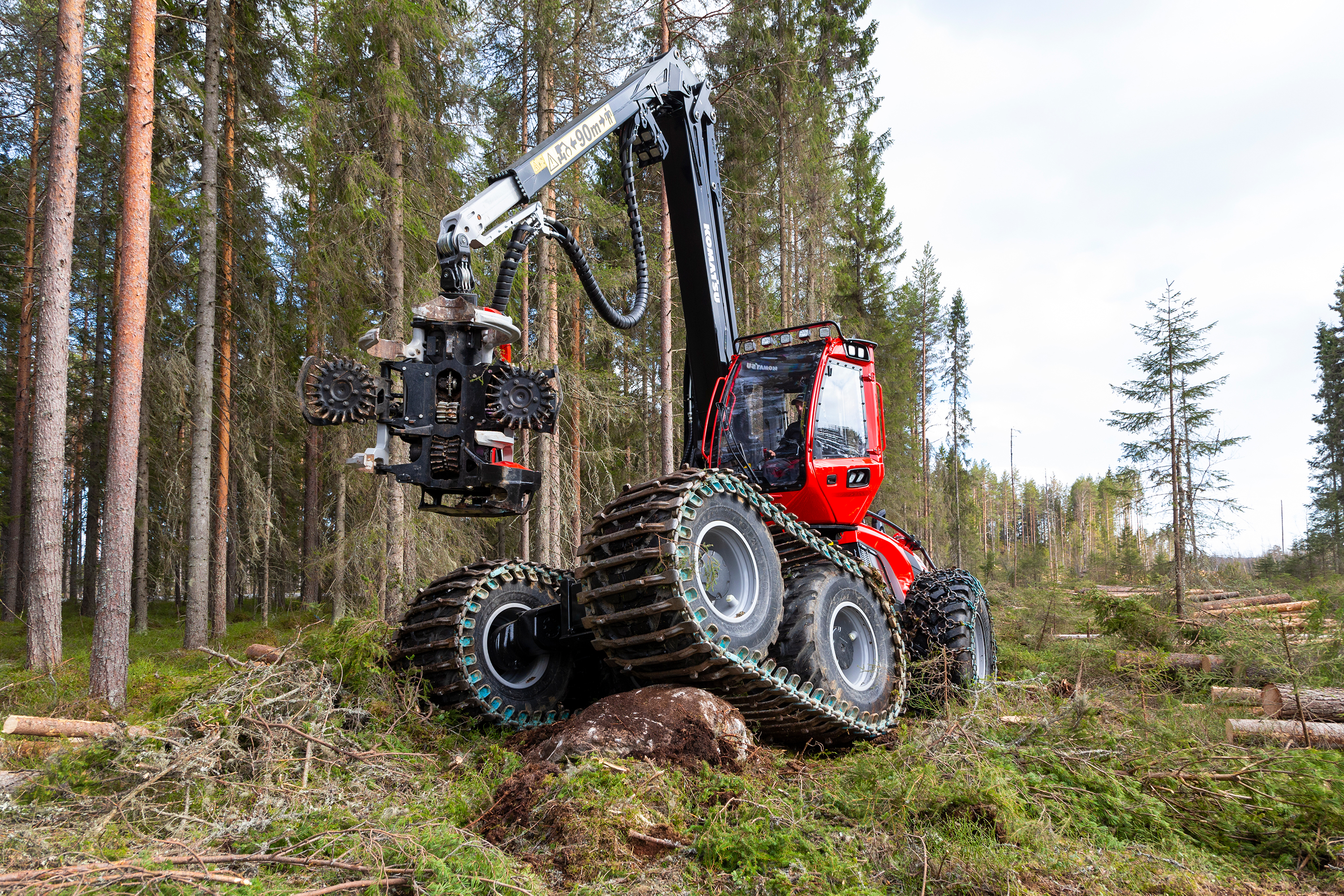

Optimised for final felling

Optimised for final felling

Our final logging harvesters deliver high productivity shift after shift while staying agile for their size. A powerful engine, high tractive force, portal bogie and our strongest crane ensure confident manoeuvring and efficient work in tough terrain.

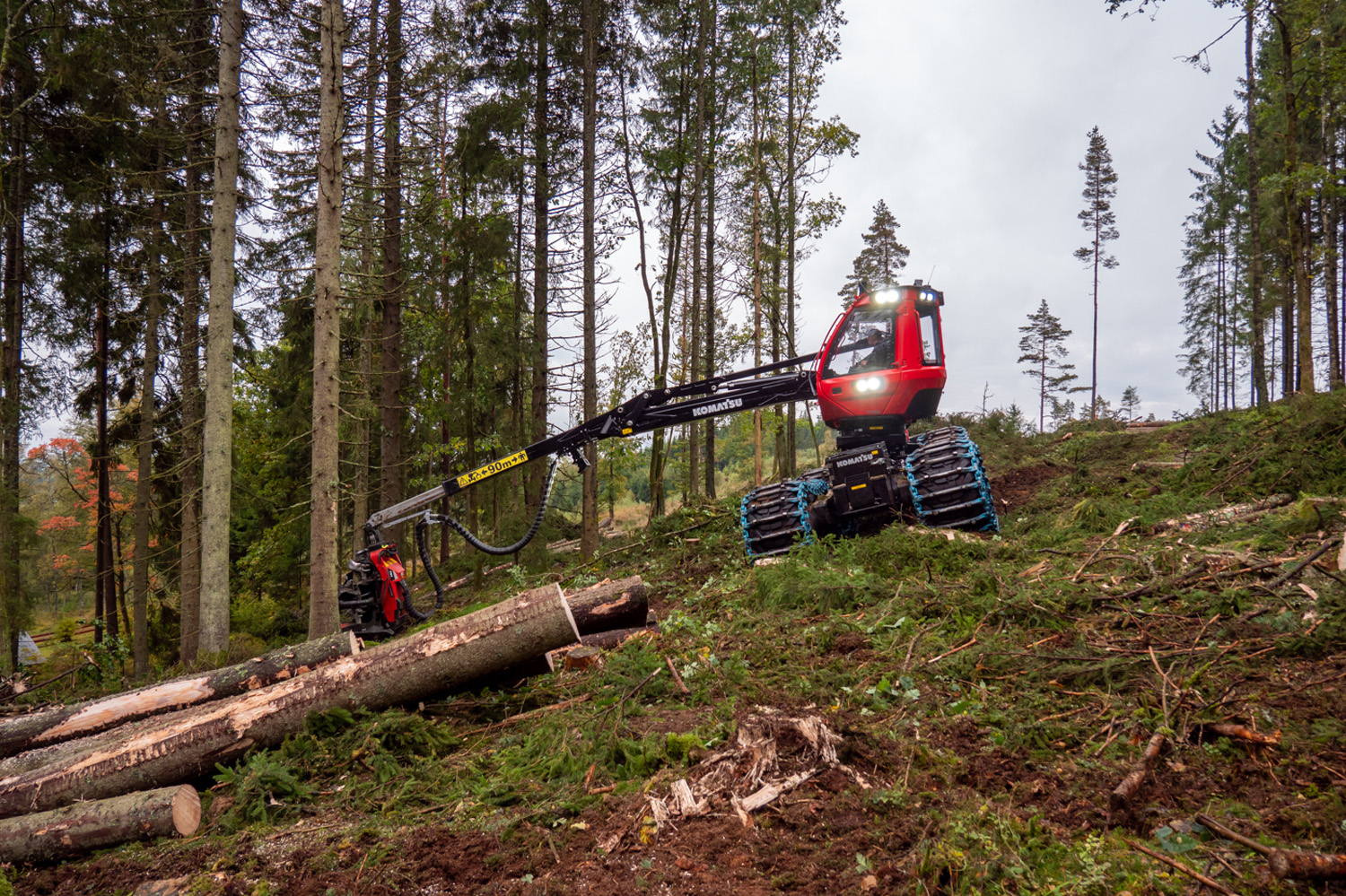

Working hydraulics you can depend on

Working hydraulics you can depend on

3PS is our innovative hydraulic system that delivers maximum power for simultaneous operations. You can slew, feed and manoeuvre at once, while lower‑power tasks use only part of the system, reducing energy loss and cutting fuel consumption.

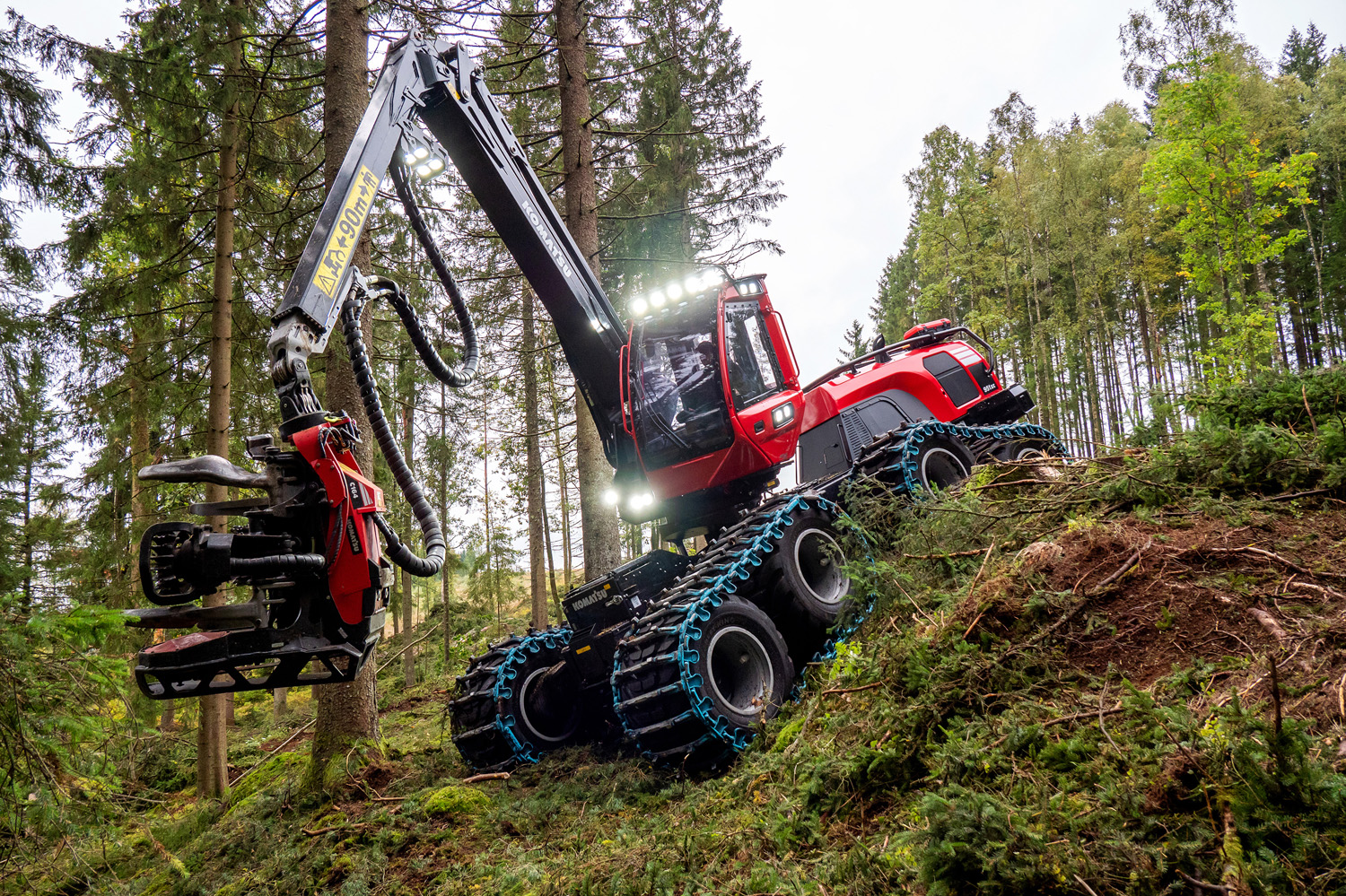

Low ground pressure and high stability

Low ground pressure and high stability

XC harvesters, with their 8-wheel design, excel in hilly terrain and soft ground. Lower ground pressure protects sensitive surfaces, while a double oscillating bogie ensures stability and manoeuvrability on uneven terrain.

A great place to work

A great place to work

Komatsu harvesters offer a premium operator environment with a spacious cab, excellent visibility and an ergonomic seat with multiple adjustments. Cab levelling keeps you comfortable and relaxed, even on steep terrain.

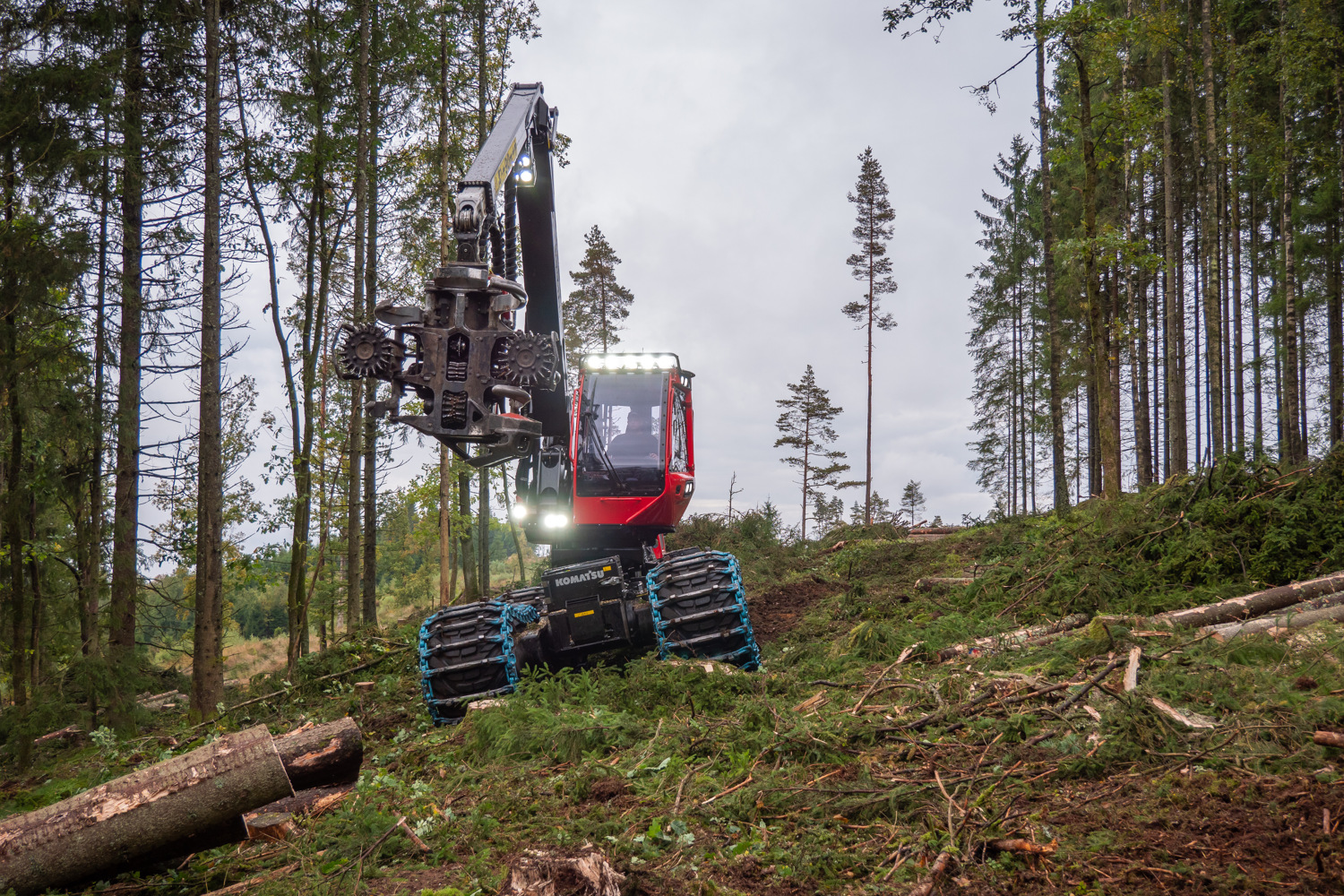

Your productivity in focus

Your productivity in focus

Our harvesters are refined for productivity and profitability with powerful transmission, balanced bogies and the stable Komatsu concept. Energy-efficient parallel cranes and the 3PS hydraulic system deliver strong, simultaneous performance.

Easy to perform service

Easy to perform service

Servicing a Komatsu harvester is quick and efficient. Daily checks are done from ground level, with grouped inspection points and easy fluid monitoring from the cab. Automatic calibration and simplified refills ensure smooth, stress-free maintenance.


Specifications

Metric Imperial (US)
Expand all

  • Model and reach (ft): 270H, 28.5/33.8
  • Model and reach (m): 270H, 8.7/10.3
  • Gross slewing torque (lbf-ft): 44,253
  • Gross slewing torque (Nm): 60

  • Width (ft): 9'9"
  • Width (mm): 2 980
  • Length, total (mm): 8 015
  • Length, total (ft): 26'4"
  • Length, front axle to middle joint (mm): 1930
  • Length, front axle to middle joint (ft): 6'4"
  • Length, middle joint to rear axle (ft): 7'1"
  • Length, middle joint to rear axle (mm): 2 150
  • Transport height with tire compression (mm): 3980 mm to top of roof, straight cab. 3940 mm backwards tilted cab with tilted light ramp. Both measurements with tyre compressions.
  • Transport height with tire compression (ft): 13' to top of roof, straight cab. 12'11" backwards tilted cab with tilted light ramp. Both measurements with tyre compressions.
  • Ground clearance (ft): 2'3"
  • Ground clearance (mm): 708

  • Voltage: 24 V
  • Battery capacity: 2x180 Ah
  • Generator: 2 x 100 A

  • Type, Europe and North America: AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F and Stage 2.
  • Stroke volume (US gal): 1.95
  • Stroke volume (L): 7,4
  • Torque (Nm): Stage V, Tier 4F and Stage II: 1,280 Nm
  • Torque (ft-lbs): Stage V, Tier 4F and Stage II: 944 lb-ft
  • Fuel tank (US gal): 123
  • Fuel tank (L): 466

  • Flow (L/min): 528
  • Flow (gpm): 139
  • System pressure (bar): 280
  • System pressure (psi): 4061

  • Approximate weight (kg): 23275
  • Approximate weight (lbs): 51,300

  • Driving speed (kph): 0-21
  • Driving speed (mph): 0-13
  • Tractive force (lbf): 54400
  • Tractive force (kN): 242

  • Available heads: C124, S132, C144, S172, C164
