Forestry
951-1
Wheeled harvesters
- Weight (kg) 22 790
- Weight (lbs) 50,243
- Tractive force (kN) 222
- Tractive force (lbf) 49910
- Power (HP) 1,850 rpm (Stage 2)
- Power (kW) 1,850 rpm (Stage 2)
- Gross lifting torque (Nm) 275
- Gross lifting torque (lbf-ft) 20283
Purchase options
Contact a sales representativePowerful harvester for final felling
Our largest six-wheeled harvester is both productive and powerful, optimised as it is for final felling. It offers high performance and the sturdy crane can carry extremely large heads.
- 28.5" wheels and generously sized bogies enable this machine to pass obstacles easily
- 270H crane with 8.7 / 10.3 m reach
- Choose from our range of options to customise your machine and make your working day even more comfortable and productive
Resources
Features and benefits

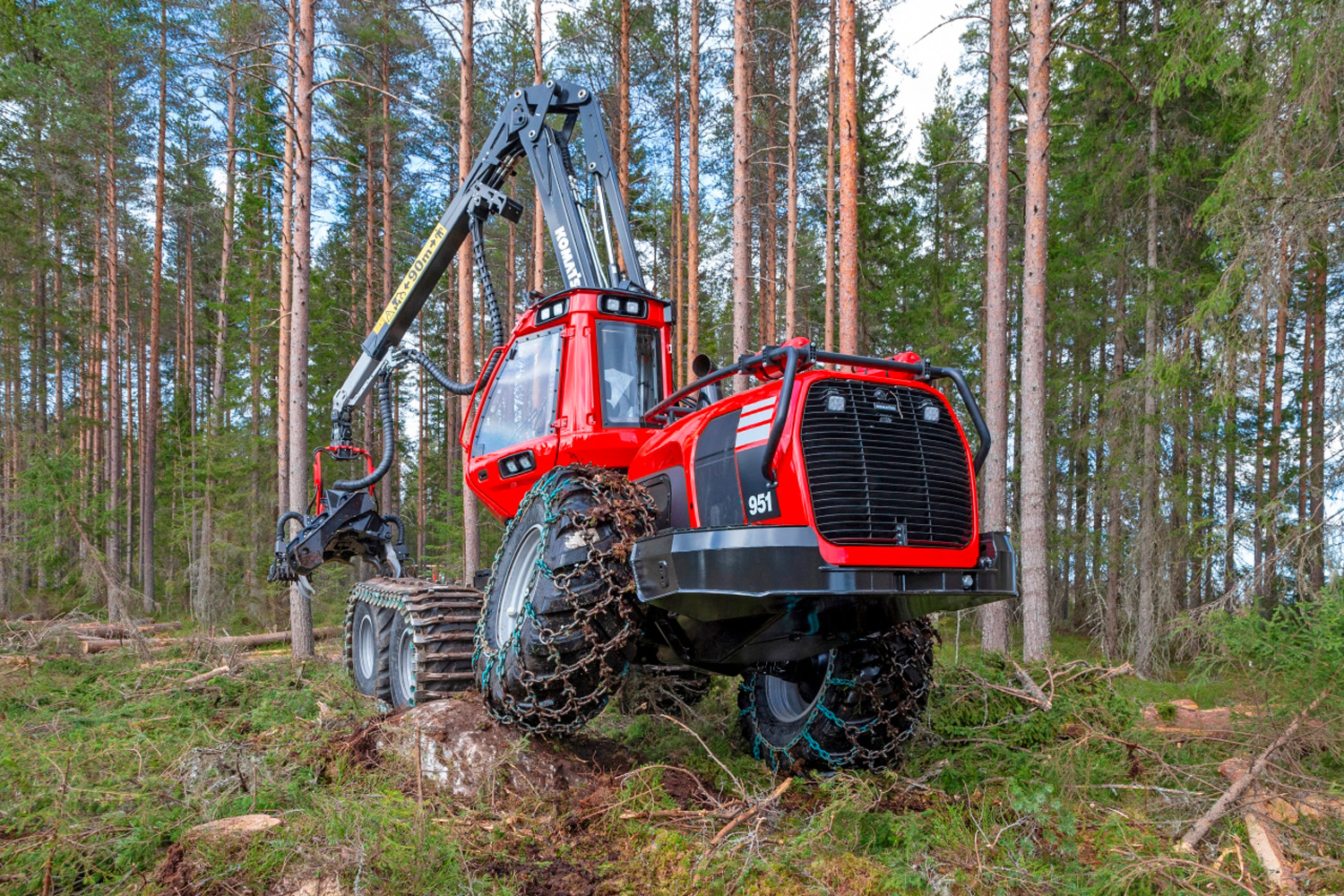

Optimised for final felling
Our final logging harvesters deliver high productivity shift after shift while staying agile for their size. A powerful engine, high tractive force, portal bogie and our strongest crane ensure confident manoeuvring and efficient work in tough terrain.

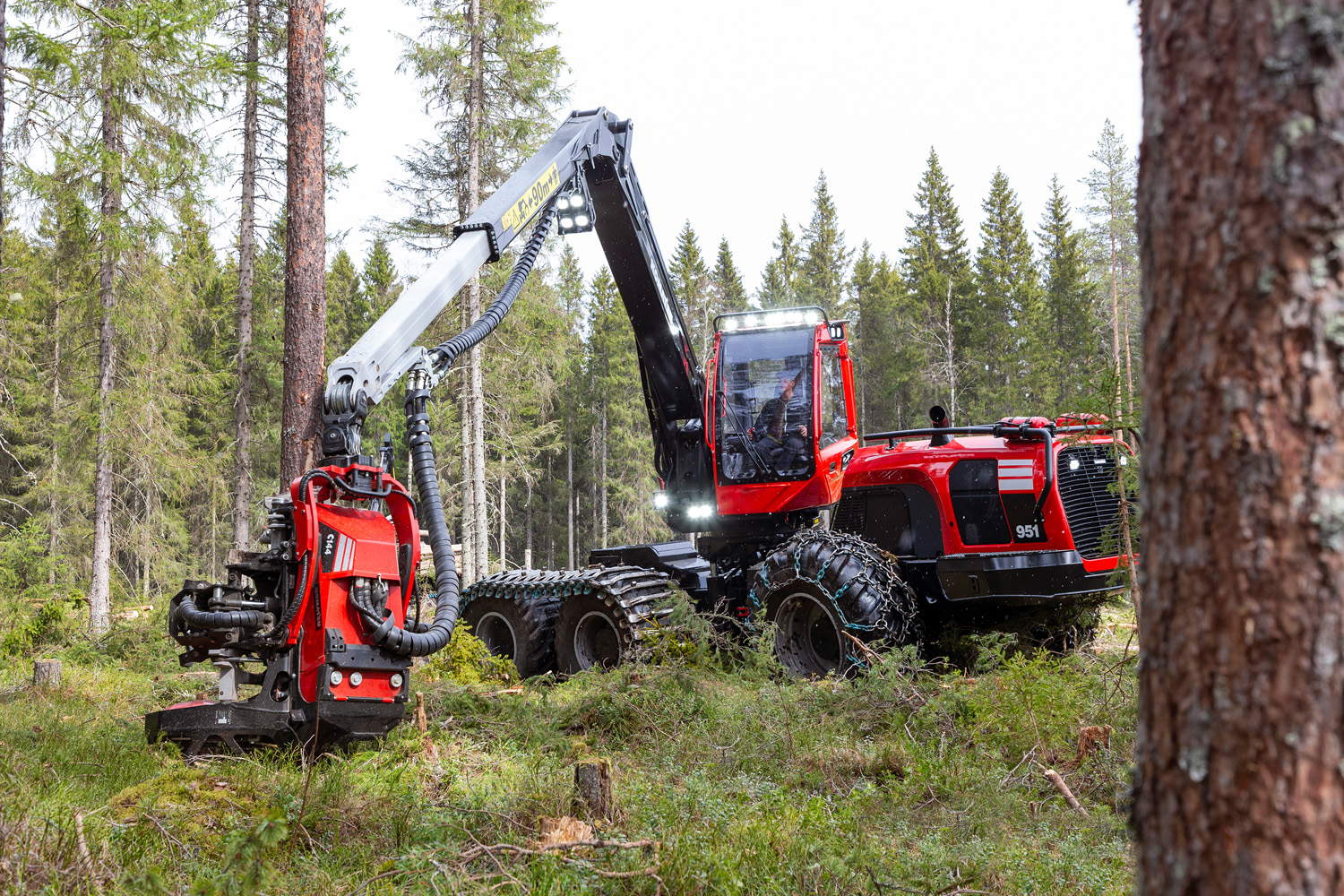

Working hydraulics you can depend on
3PS is our innovative hydraulic system that delivers maximum power for simultaneous operations. You can slew, feed and manoeuvre at once, while lower‑power tasks use only part of the system, reducing energy loss and cutting fuel consumption.

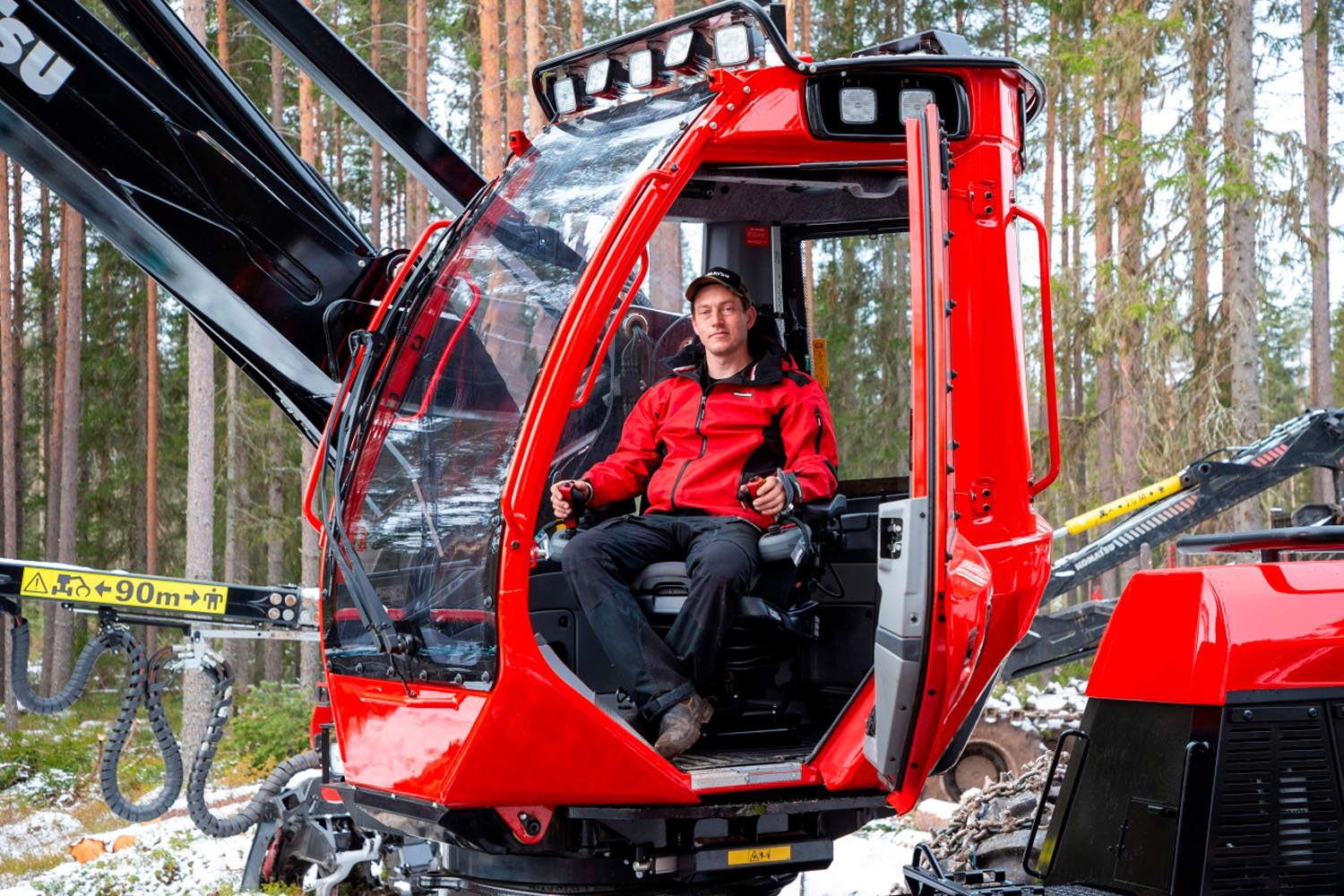

A great place to work
Komatsu harvesters offer a premium operator environment with a spacious cab, excellent visibility and an ergonomic seat with multiple adjustments. Cab levelling keeps you comfortable and relaxed, even on steep terrain.

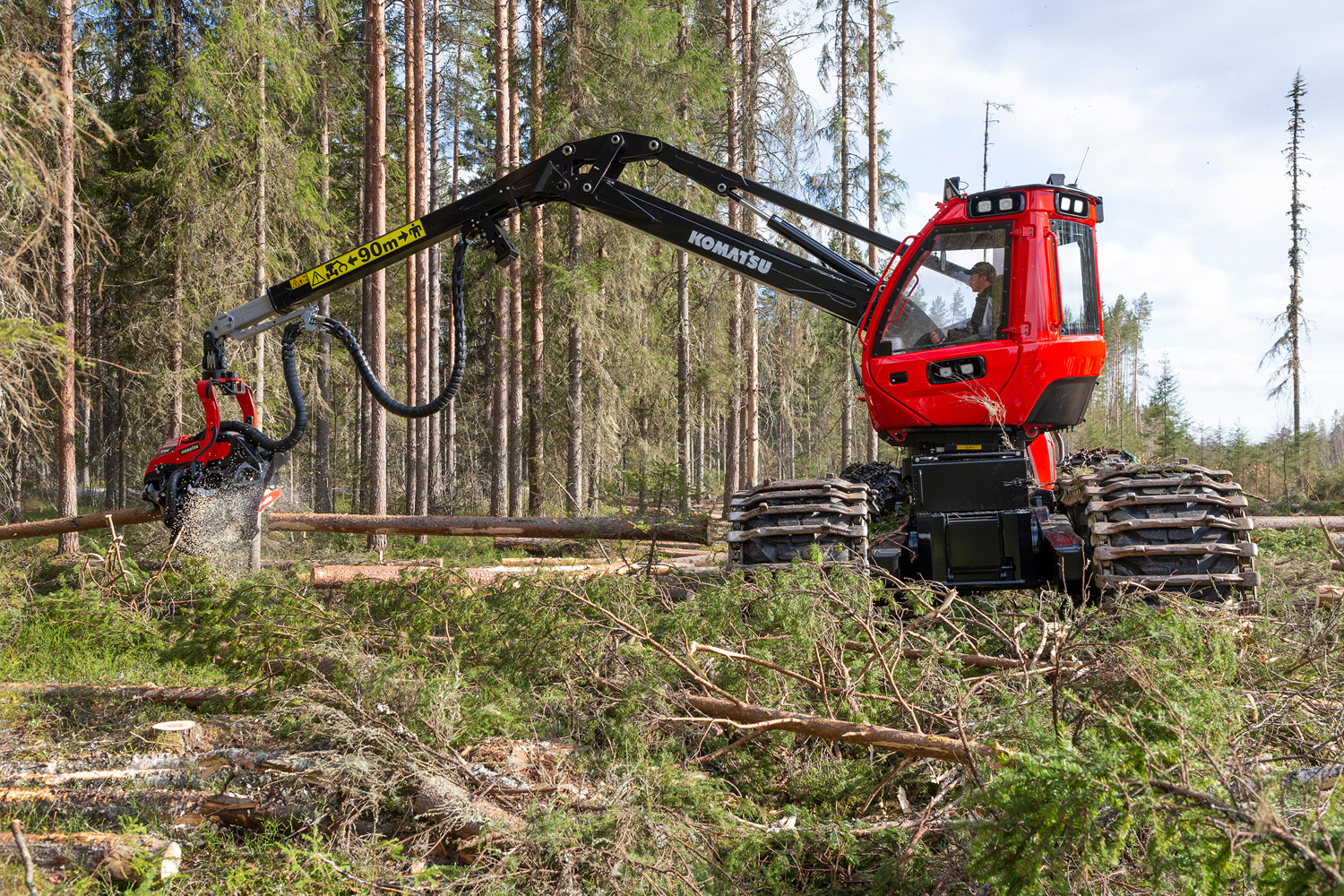

Your productivity in focus
Our harvesters are refined for productivity and profitability with powerful transmission, balanced bogies and the stable Komatsu concept. Energy-efficient parallel cranes and the 3PS hydraulic system deliver strong, simultaneous performance.
Easy to perform service
Servicing a Komatsu harvester is quick and efficient. Daily checks are done from ground level, with grouped inspection points and easy fluid monitoring from the cab. Automatic calibration and simplified refills ensure smooth, stress-free maintenance.
Specifications
- Full specs
- Model and reach (ft): 28 ft. 7 in or 33 ft. 10 in
- Model and reach (m): 8.7 or 10.3
- Gross slewing torque (lbf-ft): 44253
- Gross slewing torque (Nm): 60
- Width (ft): With 710/70x34 tires: 10 ft. 0 in
- Width (mm): With 710/70x34 tires: 3 060 mm
- Length, total (mm): 8 285
- Length, total (ft): 27 ft. 2 in
- Length, front axle to middle joint (mm): 2 300
- Length, front axle to middle joint (ft): 7 ft. 7 in
- Length, middle joint to rear axle (ft): 6 ft. 1 in
- Length, middle joint to rear axle (mm): 1 850
- Transport height with tire compression (mm): 3 985
- Transport height with tire compression (ft): 13 ft. 1 in
- Ground clearance (ft): 2 ft. 2 in
- Ground clearance (mm): 665
- Note on dimensions: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
- Voltage: 24 V
- Battery capacity: 2 x 180 Ah
- Generator: 2 x 100 A
- Type, Europe and North America: AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F and Stage 2.
- Stroke volume (US gal): 1.95
- Stroke volume (L): 7.4
- Torque (Nm): 1,280 Nm at 1,500 rpm
- Fuel tank (US gal): 139.7
- Fuel tank (L): 529
- Notes: The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
- Flow (L/min): 528 at 1 600 rpm
- Flow (gpm): 139 at 1,600 rpm
- System pressure (bar): 280
- System pressure (psi): 4061
- Approximate weight (kg): From 22 790
- Approximate weight (lbs): From 50,243
- Driving speed (kph): 0 - approximately 24 kph
- Driving speed (mph): 0 - approximately 14.9
- Tractive force (lbf): 49910
- Tractive force (kN): 222
- Available heads: C124, S132, C144, S162E, C164, S172
