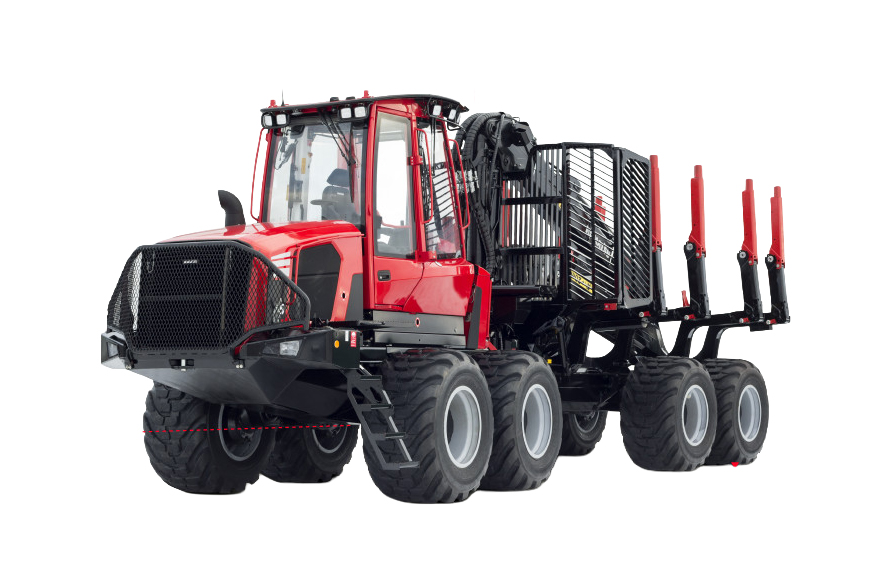

Product Image

Forestry

898-0

Forwarders

  • Gross load capacity (kg) 20 000
  • Gross load capacity (lbs) 44092
  • Power (HP) 287 HP @ 1 850 rpm (EU Stage V, Tier 4F), 282 HP @ 1850 rpm (Stage 2), 259 HP @ 1900 rpm (MAR-1)
  • Power (kW) 214 kW @ 1 850 rpm (EU Stage V, Tier 4F), 210 kW @ 1850 rpm (Stage 2), 193 kW @ 1900 rpm (MAR-1)
  • Tractive force (kN) 262
  • Tractive force (lbf) 59000

Purchase options

Contact a sales representative

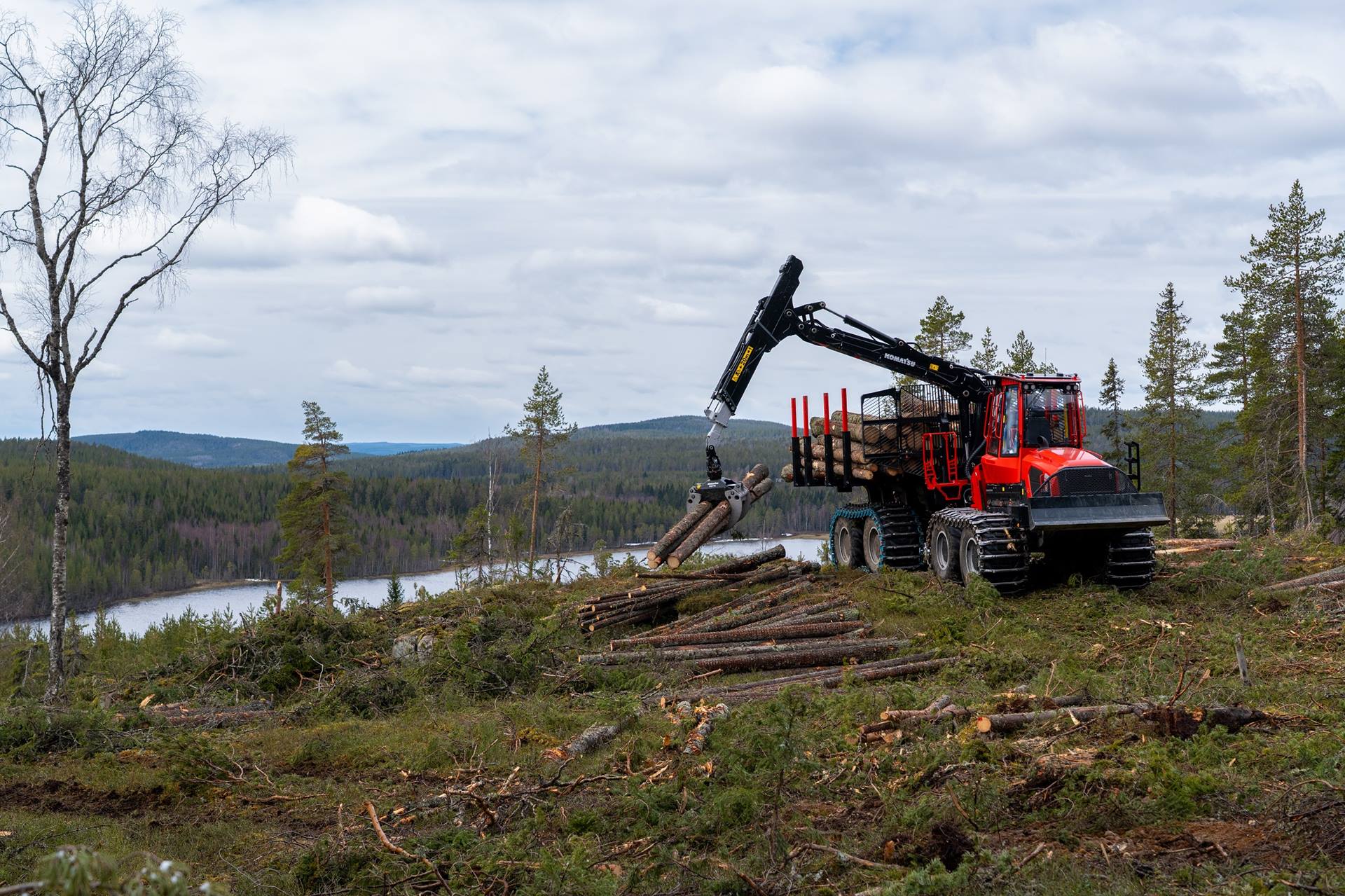

Productive forwarder with large load capacity

A 25-tonne forwarder, specialised on plantation forestry as well as final felling operations. The powerful engine, robust transmission and large load space, with a wide range of customisation options, make it a cost-efficient and productive forwarder in the largest segment.

    Resources

    Features and benefits

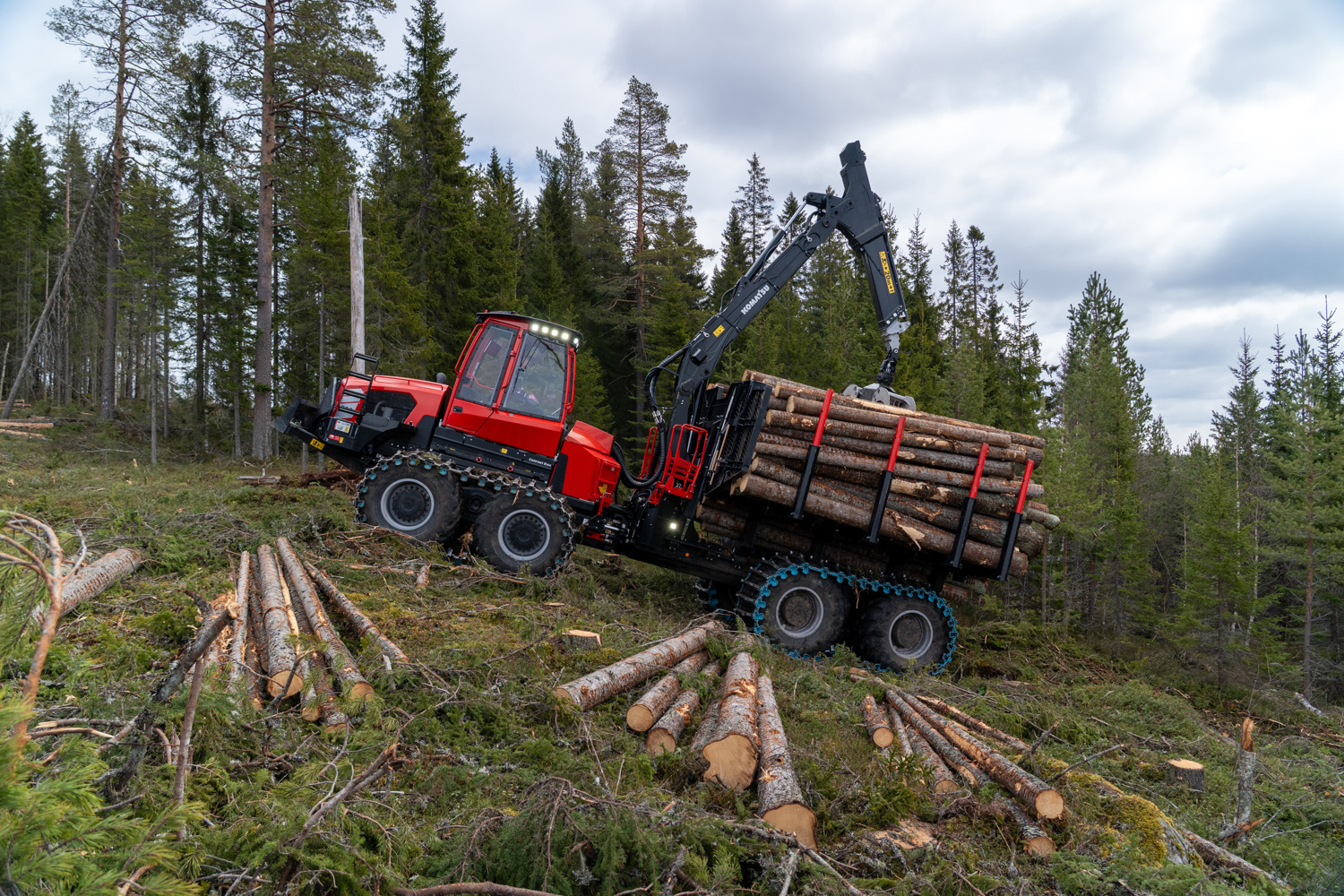

    Strength and stability

    Strength and stability

    Our forwarders for final felling deliver high productivity with a stable design and generous ground clearance for tough terrain. Powerful engines combine high torque with low fuel use, ensuring efficiency without compromise.

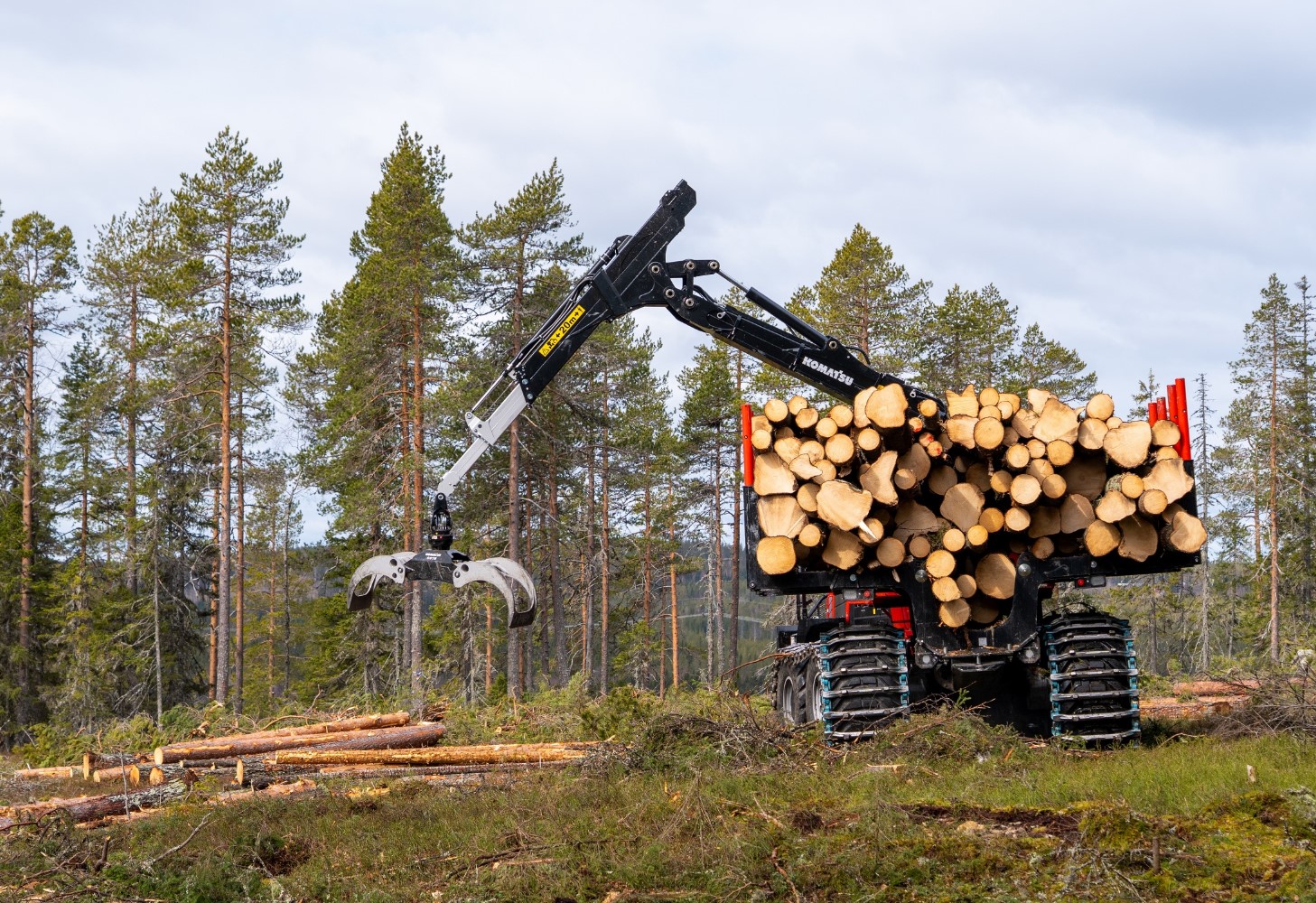

    A robust load space with high capacity

    A robust load space with high capacity

    The Komatsu 898 offers a flexible load space for demanding jobs like final felling and plantation forestry. A robust gate, telescopic bunks and optional hydraulic stakes boost efficiency and reduce fuel use in tough conditions.

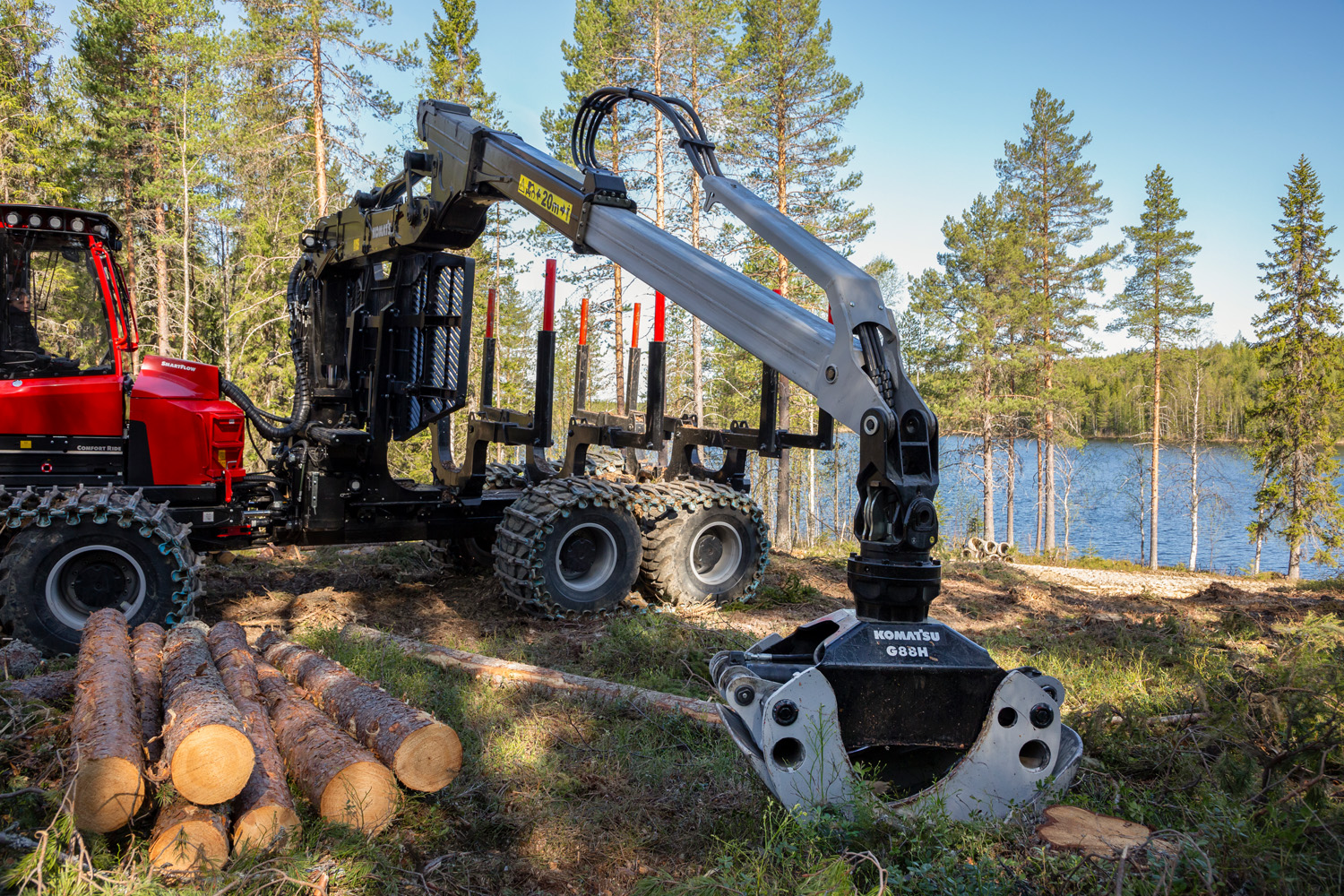

    Our strongest crane yet

    Our strongest crane yet

    The optional 205F crane delivers our highest lifting power with 205 kNm torque, ideal for final cutting and plantation forestry. Pair it with the G88H grapple for smooth log handling and maximum productivity from forest to roadside.

    Handle timber like a pro

    Handle timber like a pro

    Komatsu forwarders offer a quiet, spacious cab with all-round visibility, ergonomic seat, and optional Comfort Ride suspension for excellent comfort and productivity in the forest.

    Komatsu comfort ride

    Komatsu comfort ride

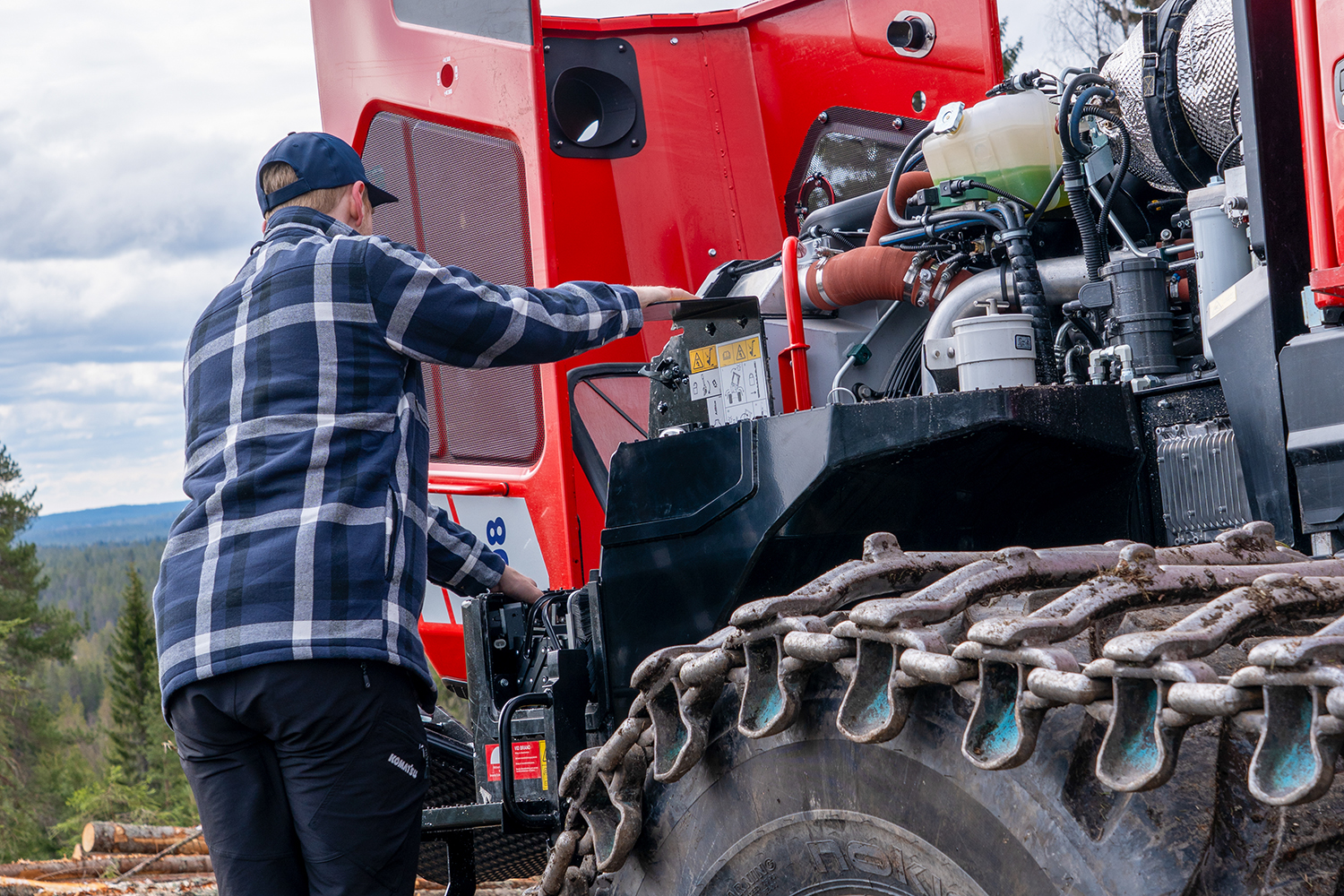

    Komatsu forwarders simplify maintenance with an electric hood opening 90°, a tiltable cab for easy access, and pumps for hydraulic oil and diesel—making servicing fast and convenient.

    Smart crane

    Smart crane

    Komatsu grapples deliver high productivity in tough conditions. With a large opening and strong retraction, they grip timber quickly and efficiently. Robust design ensures durability for efficient, profitable work.

    Smart forestry

    Smart forestry

    Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts. Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.


    Specifications

    Metric Imperial (US)
    Expand all

    • Driving speed (kph): 0-23
    • Driving speed (mph): 0-14.3
    • Tractive force (lbf): 59000
    • Tractive force (kN): 262

    • Type: AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F, MAR-1 and Stage 2.
    • Power, max.: (kW): 214 kW @ 1 850 rpm (EU Stage V, Tier 4F), 210 kW @ 1850 rpm (Stage 2), 193 kW @ 1900 rpm (MAR-1)
    • Power, max.: (HP): 287 HP @ 1 850 rpm (EU Stage V, Tier 4F), 282 HP @ 1850 rpm (Stage 2), 259 HP @ 1900 rpm (MAR-1)
    • Torque (Nm): 1 280 Nm @ 1 500 rpm (EU Stage V, Tier 4F, Stage 2), 1 000 Nm @ 1500 rpm (MAR-1)
    • Torque (ft-lbs): 944 @ 1 500 rpm (EU Stage V, Tier 4F, Stage 2), 738 @ 1500 rpm (MAR-1)
    • Fuel tank (L): 245
    • Fuel tank (US gal): 64.7
    • Stroke volume (L): 7,4
    • Stroke volume (US gal): 1.95

    • Flow (L/min): 409 @ 1 950 rpm
    • Flow (gpm): 108 @ 1 950 rpm

    • Reach (ft): 24'7" / 27'11" / 32'10"
    • Reach (m): 7.5 / 8.5 / 10
    • LIfting torque, gross (lbs-ft): 121,698 / 151,200
    • LIfting torque, gross (kNm): 165 / 205
    • Slewing torque, gross (kNm): 43.4/51.9
    • Slewing torque, gross (lbs-ft): 32,010/38,280
    • Rotator: G121/GT151/GT181/GX
    • Grapple: We offer a wide selection of grapples, please contact your sales representative for more information.
    • Crane tip: Komatsu 165F/205F

    • Approximate weight (kg): 21 850 (6WD), 24 830 (8WD)
    • Approximate weight (lbs): 48,170 (6WD), 54,740 (8WD)

    • Width (mm): With 780/50x28,5 tyres: 3 160 mm
    • Width (ft): With 780/50x28,5 tyres: 10'4"
    • Length, total (with shortest rear frame)(mm): 11 000
    • Length, total (with shortest rear frame)(ft): 36'1"
    • Length, front axle to articulated joint (ft): 7
    • Length, front axle to articulated joint (mm): 2 150
    • Transport height with hoses and tyre compression: 165F: 4010 mm (13'2"), 205F: 3980 mm (13'1")
    • Ground clearance, at steering coupling: 8WD: 790 mm (2'7")
    • Note on dimensions: The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

    • Voltage: 24 V
    • Battery capacity: 2 x 185 Ah

    • Gross load (lbs): 44092
    • Gross load (kg): 20 000
    • Bunk area (m^2): 5.8-7.4
    • Bunk area (sq. ft): 62-79.6

    Some of our forwarder options

    Select continent

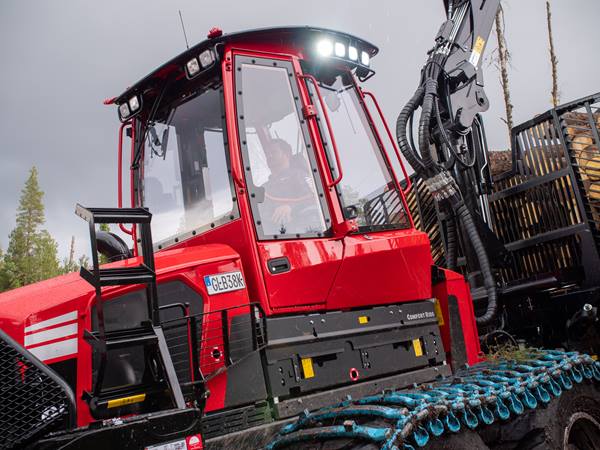

    Komatsu comfort ride

    A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

    The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

    Komatsu comfort ride

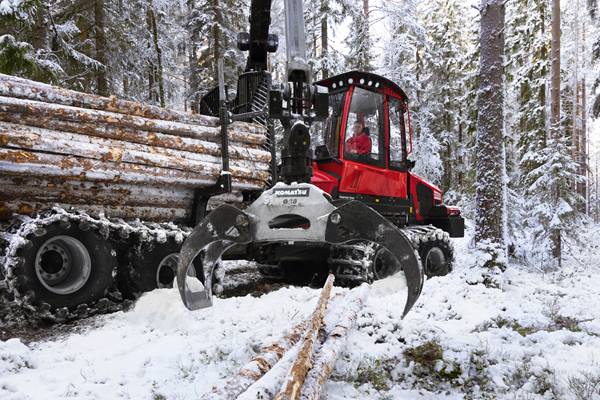

    Smart crane

    Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.

    Smart crane

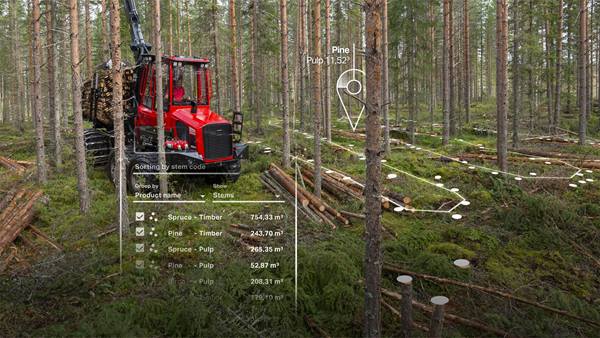

    Smart forestry

    Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

    Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.
