Forestry
895-3
Forwarders
- Gross load capacity (kg) 20 000
- Gross load capacity (lbs) 44092
- Horsepower (HP) 287 @ 1 850 rpm (EU Stage V, Tier 4F), 282 @ 1850 rpm (Stage 2), 259 @ 1900 rpm (MAR-1)
- Horsepower (kW) 214 @ 1 850 rpm (EU Stage V, Tier 4F), 210 @ 1850 rpm (Stage 2), 193 @ 1900 rpm (MAR-1)
- Tractive force (kN) 262
- Tractive force (lbf) 59000
Purchase options
Contact a sales representativeA reliable and productive partner

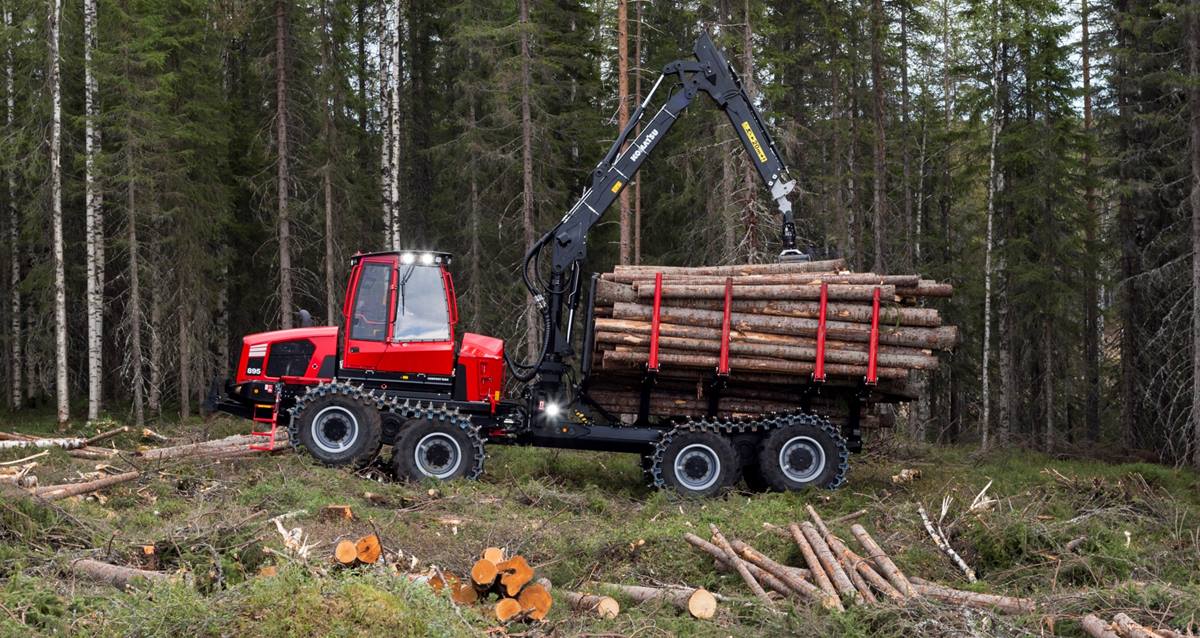

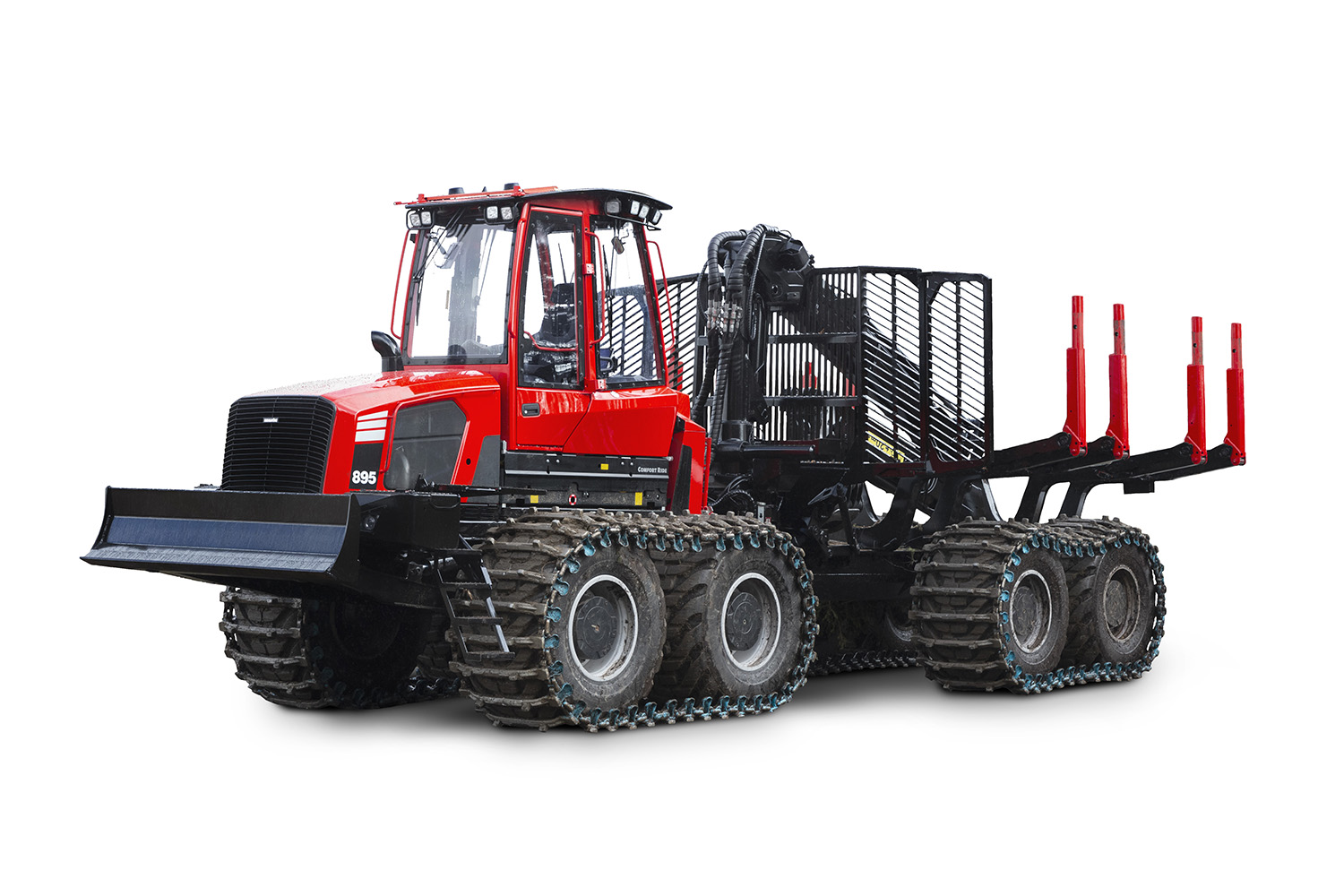

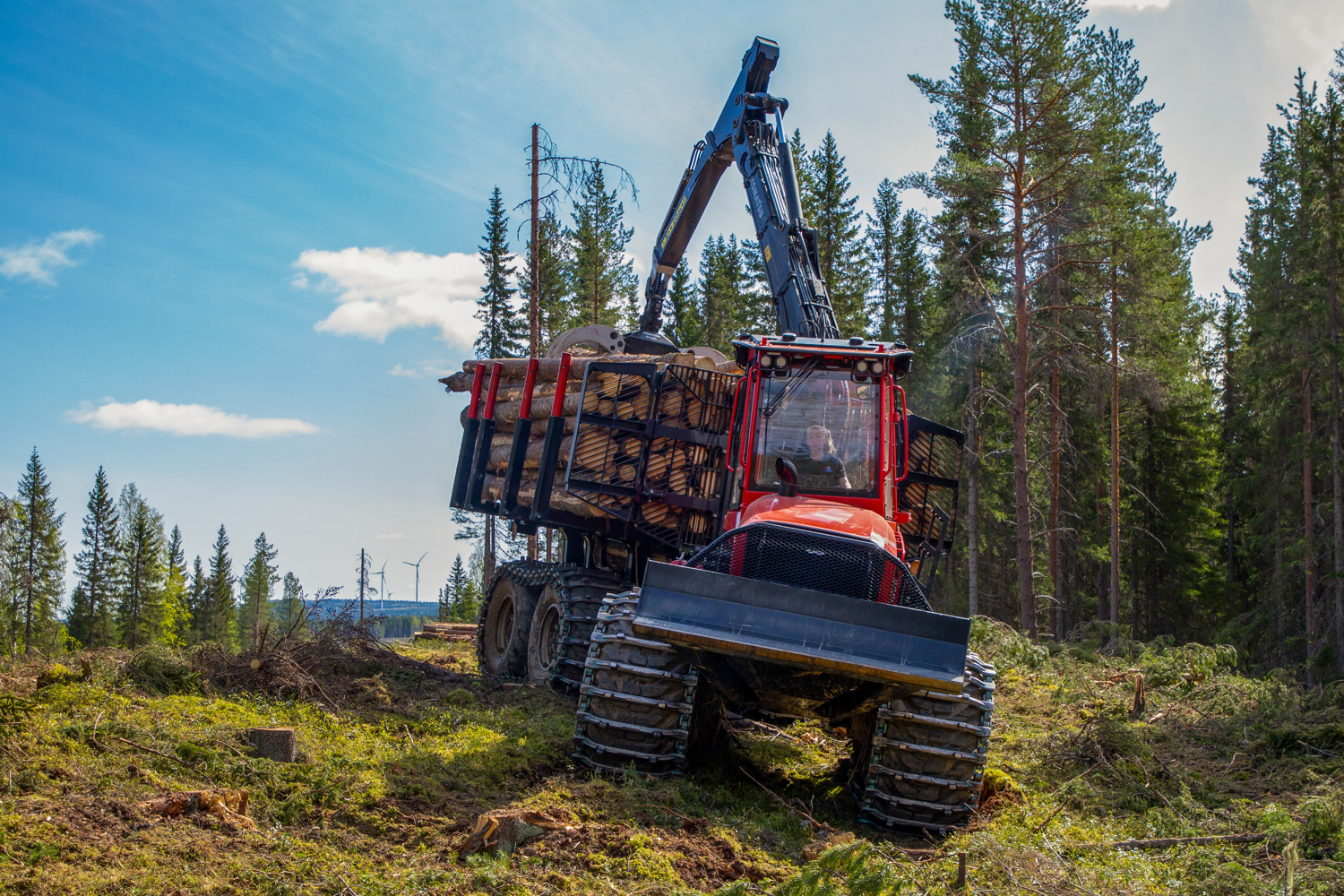

Designed for high productivity, every component of the 895 is developed for a 20-tonne load capacity. A powerful transmission combined with the 205F crane option makes this a truly productive forwarder for final felling.
- Customise your load space with Load Flex or hydraulic stakes
- 165F crane in 7.5 / 8.5 / 10 reach - possibility to choose the stronger 205F crane as an option
- Choose between options like XT transmission, 6WD and extra long rear frame for 7.2 m long timber
Resources
Features and benefits
Strength and stability

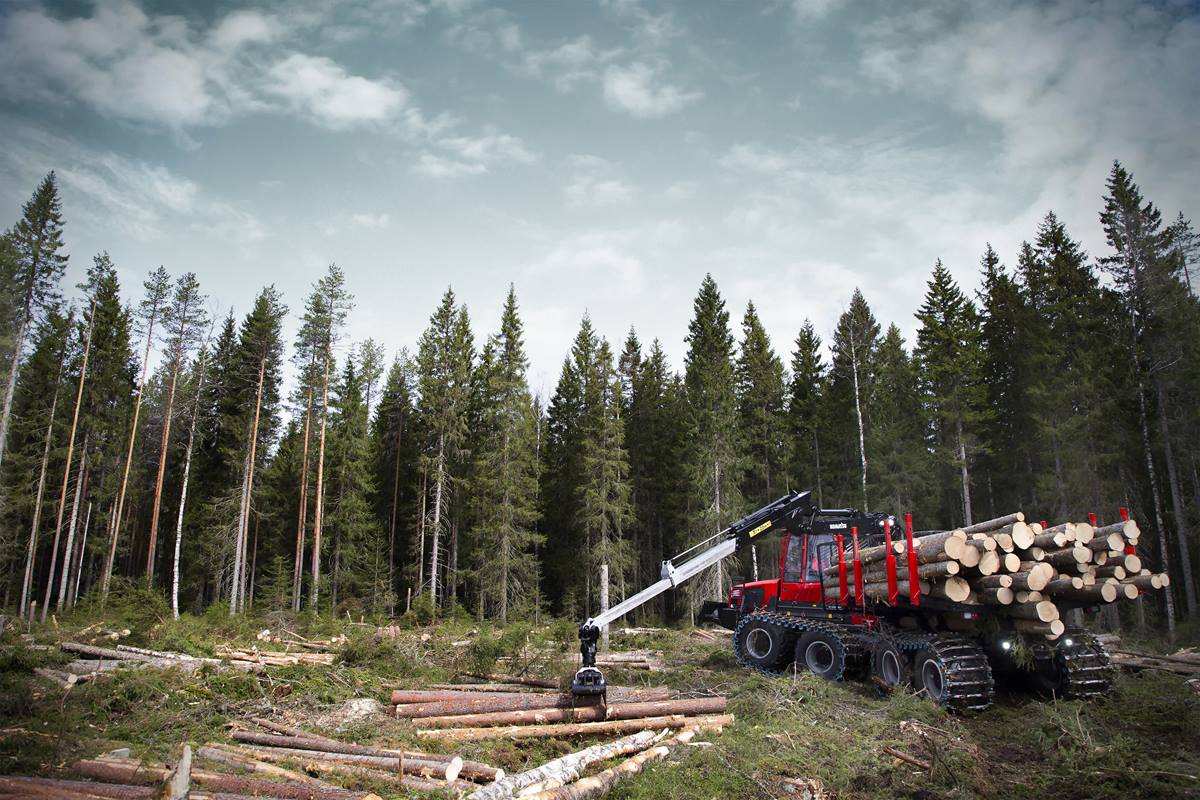

Our forwarders for final felling deliver high productivity with a stable design and generous ground clearance for tough terrain. Powerful engines combine high torque with low fuel use, ensuring efficiency without compromise.
A robust load space with high capacity

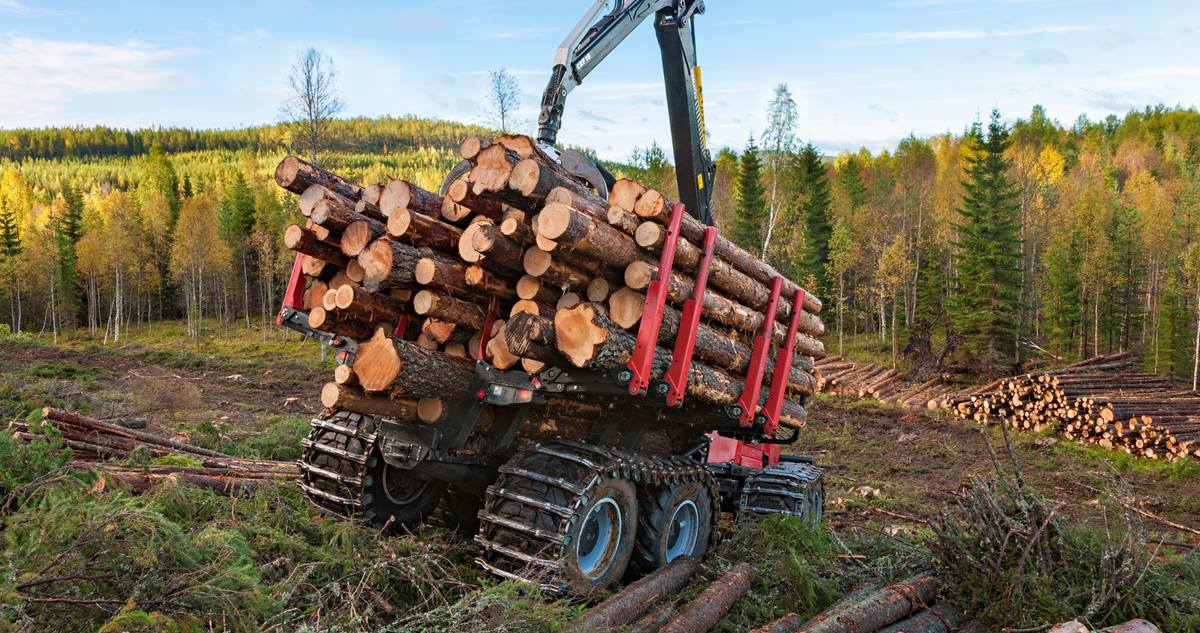

The Komatsu 895 offers a flexible load space for demanding jobs like final felling and plantation forestry. A robust gate, telescopic bunks and optional hydraulic stakes boost efficiency and reduce fuel use in tough conditions.
Our strongest crane yet

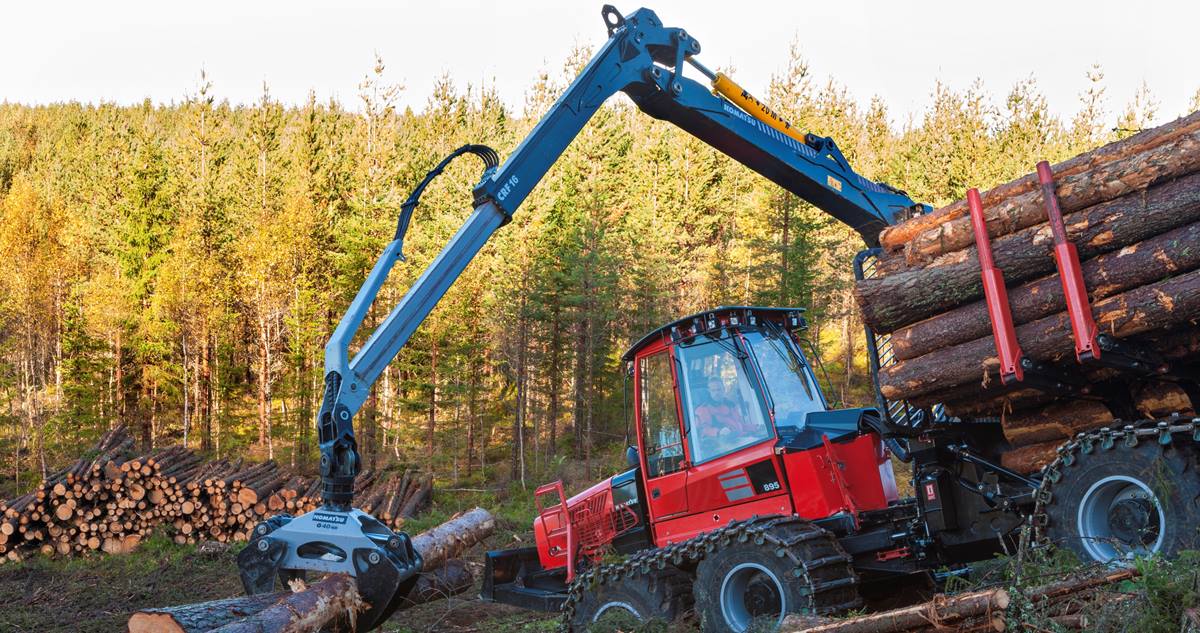

The optional 205F crane delivers our highest lifting power with 205 kNm torque, ideal for final cutting and plantation forestry. Pair it with the G88H grapple for smooth log handling and maximum productivity from forest to roadside.
The transmission for tough conditions
For especially demanding terrain, the Komatsu 895 Komatsu can be equipped with the XT transmission to deliver maximum traction and durability. It provides higher first-gear speed, which is ideal for steep ground or soil preparation.
A more comfortable workplace in the forest

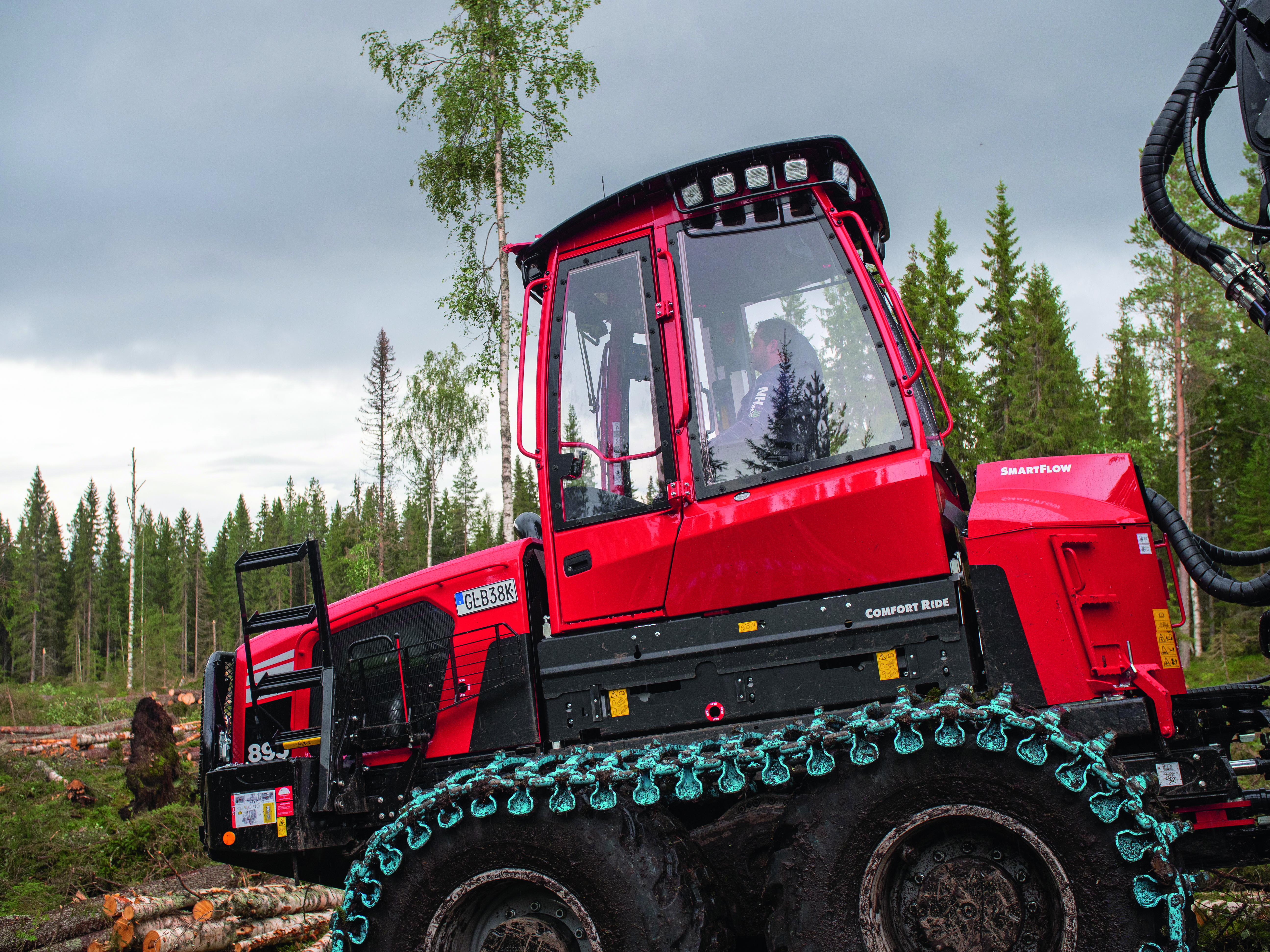

Komatsu forwarders offer a quiet, spacious cab with all-round visibility, ergonomic seat, and optional Comfort Ride suspension for excellent comfort and productivity in the forest.
Customize your controls
Komatsu forwarders simplify maintenance with an electric hood opening 90°, a tiltable cab for easy access, and pumps for hydraulic oil and diesel—making servicing fast and convenient.
Handle timber like a pro
Komatsu grapples deliver high productivity in tough conditions. With a large opening and strong retraction, they grip timber quickly and efficiently. Robust design ensures durability for efficient, profitable work.
Specifications
- Full specs
- Driving speed (kph): 0 - 23
- Driving speed (mph): 0 - 14.3
- Tractive force (lbf): 58900
- Tractive force (kN): 262
- Type, Europe and North America: AGCO Power, 6-cylinder diesel engine with turbo and intercooler. Tier 4 F.
- Power, max.: (kW): 214 kW DIN @ 1 850 rpm
- Power, max.: (HP): 287 HP @ 1,850 rpm
- Torque (Nm): 1 280 @ 1 500 rpm
- Torque (ft-lbs): 944 @ 1,500 rpm
- Fuel tank (L): 220
- Fuel tank (US gal): 58.1
- Stroke volume (L): 7,4
- Stroke volume (US gal): 1.95
- Flow (L/min): 360 @ 2 000 rpm
- Flow (gpm): 95 @ 2,000 rpm
- System pressure (psi): 3553
- System pressure (bar): 245
- Reach (ft): 24 ft. 7 in - 27 ft. 11 in
- Reach (m): 7.5 - 8.5
- LIfting torque, gross (lbs-ft): 121698
- LIfting torque, gross (kNm): 165
- Slewing torque, gross (kNm): 43.4
- Slewing torque, gross (lbs-ft): 32010
- Rotator: G121/G141/G171 ProTec 2
- Grapple: Komatsu G36
- Approximate weight (kg): 6WD: 20 400 kg; 8WD: 23 600 kg
- Approximate weight (lbs): 6WD: 44,974 lbs.; 8WD: 52,029 lbs.
- Specification details: The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
- Gross load (lbs): 44092
- Gross load (kg): 20 000
- Bunk area (m^2): 5.2 - 7.2 m²
- Bunk area (sq. ft): 56 - 77.5
- Width (mm): With 780/50x28,5 tires: 3 160 mm
- Width (ft): With 780/50x28,5 tires: 10 ft. 4 in
- Length, total (with shortest rear frame)(mm): 10 790
- Length, total (with shortest rear frame)(ft): 35 ft. 5 in
- Length, front axle to articulated joint (ft): 6 ft. 7 in
- Length, front axle to articulated joint (mm): 2 000
- Length, articulated joint to rear axle (with shortest rear frame): 12 ft. 10 in
- Length, articulated joint to rear axle (with shortest rear frame)(mm): 3 900
- Transport height: 13 ft. 3 in (hoses included and with tire compression)
- Transport height with hoses and tyre compression: 4 050 mm (hoses included and with tire compression)
- Ground clearance, at steering clearance: 8WD: 790 mm
- Ground clearance, at steering coupling: 8WD: 2 ft. 7 in
- Note on dimensions: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
- Voltage: 24 V
- Battery capacity: 2 x 180 Ah
Some of our forwarder options
- Load Flex - Premium load performance
- Komatsu Comfort Ride
- Smart Crane
- Smart Forestry
Select continent
Load flex - premium load performance
The Load Flex option optimises both flexibility and load capacity. The cleverly designed bunks allow you to easily adjust the width of the load space for each job. Narrow, medium or wide - the articulated bunks are quickly adjusted using the forwarder's crane.
The wide load space provides a low centre of gravity for increased stability and smoother off-road driving. The option also includes hydraulically adjustable stakes, for more efficient crane operation and lower fuel consumption.
Komatsu comfort ride
A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.
The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!
Smart crane
Since such a large share of a forwarder operator's working day involves crane operation, increased efficiency offers great potential. Smart Crane provides the operator with advantages such as simpler crane operation, less physical strain and higher productivity. Advantages that benefit both profitability and the operator's wellbeing. Everything to make it as easy as possible for the operator to focus on what is truly important – moving timber to the roadside.
Smart forestry
Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.
Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

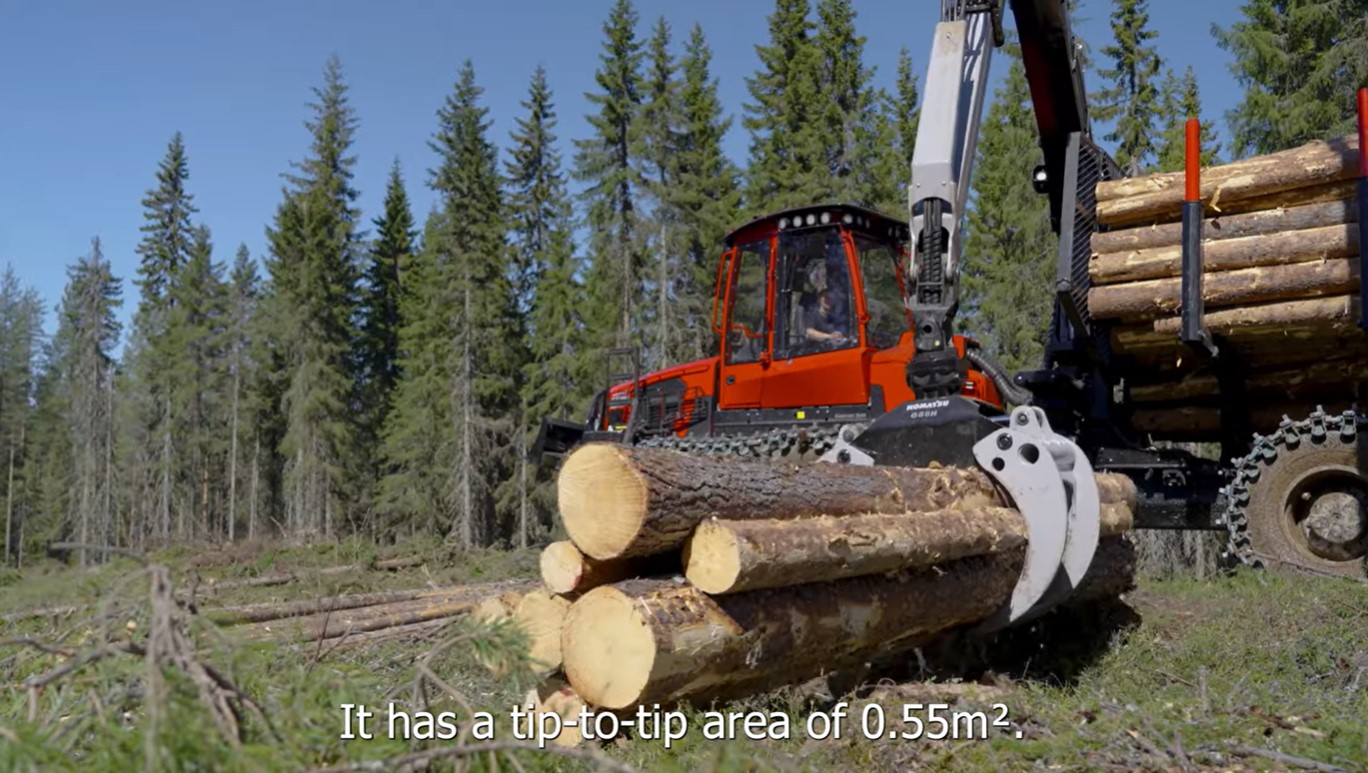

Product video Komatsu 895
