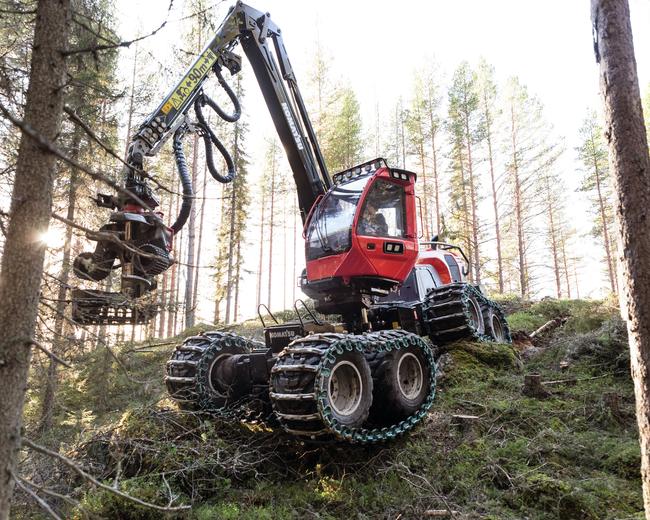

Wheeled harvester

901XC-6

  • Weight From 20 210 kg From 44,555 lbs.
  • Horsepower 170 kW DIN @ 1 900 rpm 228 net HP @ 1,900 rpm
  • Tractive force 184 kN 41,365 lbf.

Reach further without losing ground

When you need thinning power with extreme stability, even at maximum reach. The 901XC-6 harvester’s eight wheels enable you to maneuver softly, as well as harvest productively in steep or difficult terrain.

  • ±180° cab/crane rotation with automatic 4-way cab/crane leveling
  • Three-pump hydraulic system enables simultaneous slewing, feeding and maneuvering
  • Wide selection of Komatsu harvesting heads to meet your application

Features and benefits

Excellent maneuverability

Confidently traverse difficult terrain, thanks to key drivetrain technologies, such as the Comfort Bogie system with high ground clearance and enhanced traction; hydrostatic transmission matching power and traction; and automatic cab/crane levelling.

Powerful parallel crane

A true production enhancer with a single control lever movement extending the boom/arm on a parallel path. Excellent lifting and slewing torque plus an industry-leading ±180° cab/crane rotation.

Modern, large, spacious cab

Operator comfort, visibility and man-machine interface are critical to your productivity. Automotive-quality cab includes a giant front window, ergonomic seat, automatic climate control, sound-deadening measures, and heated and cooled meal storage

3-PS hydraulic system

Work faster. Our innovative three-pump hydraulic system enables you to operate several crane and head functions at the same time at full power — even while moving.

Service accessibility

Daily service is made easy with an electrically operated engine hood. We’ve also placed inspection and service points, so you rarely need to climb onto the machine for maintenance. Automatic central lubrication system further reduces daily maintenance time.

MaxiXT

State-of-the-art control system with intuitive graphical interface to manage all aspects of head control and performance. Easy programming of individual operator control preferences plus production parameters such as tree species, length and diameter.

Innovative 8WD system

Excellent stability and sure-footedness in rough terrain harvesting situations. Innovative Double Comfort Bogie suspension systems provide powerful 8-wheel drive confidence, especially in sloped, rough or soft terrain.

Excellent cold weather starting

Special diesel heater system heats the batteries, engine coolant, DEF and hydraulic oil to help ensure easy starting in cold conditions.

Broad selection of harvesting heads

Choose a high-performance Komatsu C93, C124 or S92 harvesting head to meet your specific application needs.

Specifications for 901XC-6

Close all Expand all
US system Metric
Dimensions
Width With 600/45x24,5 tires: 2 776 mm
Length, total 7 705 mm
Length, front axle to middle joint 1 850 mm
Length, middle joint to rear axle 2 100 mm
Transport height 3 810 mm (with tire compression)
Ground clearance 650 mm

Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Width With 600/45x24,5 tires: 9 ft. 1 in
Length, total 25 ft. 2 in
Length, front axle to middle joint 6 ft. 1 in
Length, middle joint to rear axle 6 ft. 11 in
Transport height 12 ft. 6 in (with tire compression)
Ground clearance 2 ft. 2 in

Note: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Weight
Approximate weight From 20 210 kg
Approximate weight From 44,555 lbs.
Engine
Type, Europe and North America AGCO POWER. 6-cylinder diesel engine with turbo and intercooler. Tier F.
Stroke volume 6.6 L
Power 170 kW DIN at 1 900 rpm
Torque 950 Nm at 1 500 rpm
Fuel tank 415 L
Type, Europe and North America AGCO POWER. 6-cylinder diesel engine with turbo and intercooler. Tier F.
Stroke volume 1.74 gal
Power 170 kW DIN at 1,900 rpm
Torque 701 ft.-lbs. at 1,500 rpm
Fuel tank 102 gal
Boom
Model and reach 200H : 10 m or 11 m
Gross lifting torque 198 kNm
Gross slewing torque 43 kNm
Model and reach 200H : 32 ft. 10 in or 36 ft. 1 in
Gross lifting torque 14,604 lbf.-ft.
Gross slewing torque 31,715 lbf.-ft.
Heads
Available heads S82, S92, C93, C124
Available heads S82, S92, C93, C124
Hydraulic system
Flow 400 L/min at 1 600 rpm
System pressure 280 bar
Flow 139 gpm at 1,600 rpm
System pressure 4,061 psi
Electrical system
Voltage 24 V
Battery capacity 2 x 180 Ah
Generator 2 x 100 A
Voltage 24 V
Battery capacity 2 x 180 Ah
Generator 2 x 100 A
Transmission
Driving speed 0 - approx. 22 kph
Tractive force 184 kN
Driving speed 0 - approx. 13.7 mph
Tractive force 184 kN
Notes

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
