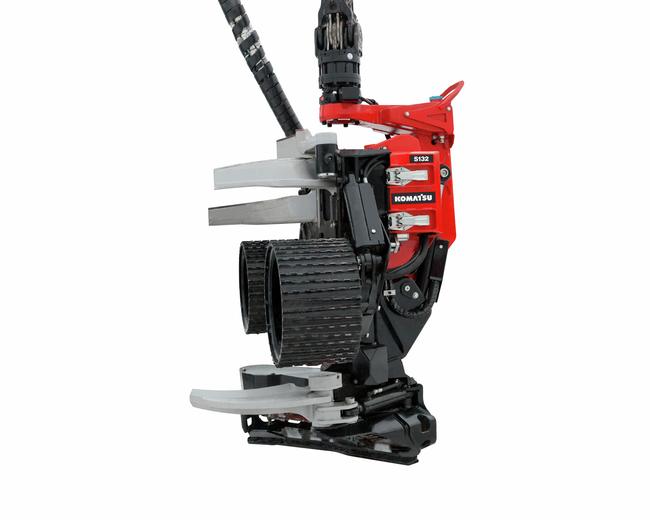

Harvesting head

S132

Weight 1 364 kg 3,007 lbs.
Maximum cutting diameter 720 mm 28.3 in
Maximum delimbing diameter 428 mm 16.9 in

View all specs

Request a quote or demo Find a dealer

Download brochure Financing information

Overview
Specifications
Service and support
Technology

Effective and versatile in all kinds of forests

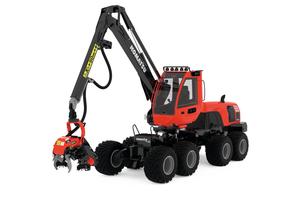

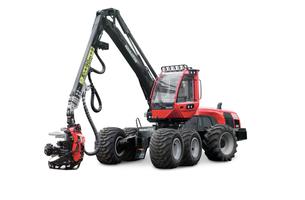

We designed our S132 harvesting head to help maximize your productivity in all kinds of forests, especially when paired with our 911, 931, 931XC and 951 wheeled harvesters. The S132 also works with other wheeled harvester brands.

Powerful two-motor and two-feed roller design
Rugged cast iron knives for durability
Robust butt saws deliver consistent production

Features and benefits

HarvestingHead_S92_literaturelink_FB1_page2ofS92.psd

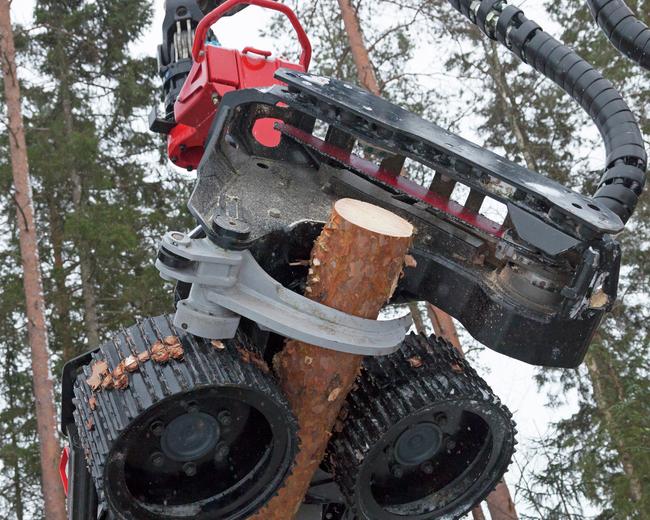

Advanced feed system

Two feed motors and two driven feed rollers provide excellent pressure contact points to squeeze the stem. Flex Friction Control system utilizes advanced sensors and intelligence to ensure low friction without sacrificing delimbing quality.

HarvestingHead_S132_literaturelink_FB2_page3ofS132.psd

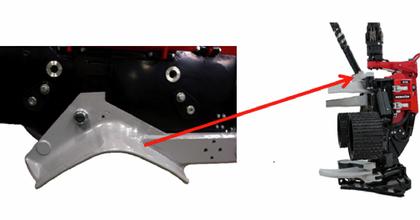

Rugged delimbing knife system

Three hydraulically controlled delimbing knives, a fourth moving vertical knife, and a fifth pre-delimbing knife deliver high performance. Cast iron knife construction ensures high durability.

HarvestingHead_S132_literaturelink_FB3b_page2ofS132.psd

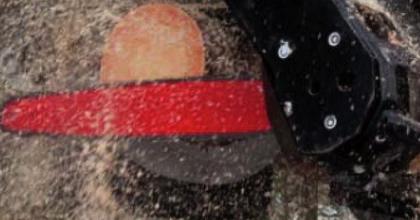

Highly efficient cutting system

30 cm3 saw motor powers the rugged 29.5-32.5-in (750-825 mm) saw bar and chain. Automatic cut control, chain tensioning and chain oiling for efficient cutting all day long.

HarvestingHead_S92_literaturelink_FB4_page4ofS92.psd

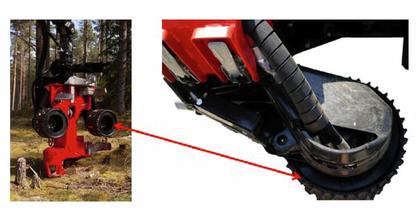

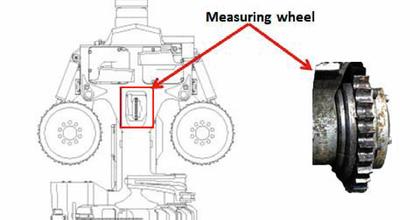

Accurate length/diameter measuring systems

Patented length-measuring wheel cylinder design ensures constant pressure to closely follow stem irregularities and a find end photocell sensor provides excellent accuracy. Four-point diameter measuring system ensures superior diameter measurement.

MaxiXT smart control system

State-of-the-art control system with intuitive graphical interface to manage all aspects of head control and performance. Easy programming of individual operator control preferences plus production parameters such as tree species, length and diameter.

HarvestingHead_S132_literaturelink_FB6_page5ofS132Asset 1.psd

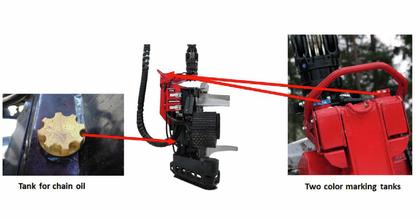

Excellent reliability and serviceability

Computer and hydraulic hoses/tubes are well-protected for high reliability. All daily service can be performed at ground level without repositioning. Centralized lubrication points further reduce service time.

Specifications for S132

Full specifications

Close all Expand all

US system Metric

Dimensions

Max width	1 689 mm
Height incl. rotator	2 142 mm
Height to vertical knife	641 mm
Opening knives, upper	690 mm
Opening knives, lower	625 mm
Roller opening, max	532 mm

Max width	66.5 in
Height incl. rotator	84.3 in
Height to vertical knife	25.2 in
Opening knives, upper	27.2 in
Opening knives, lower	24.6 in
Roller opening, max	20.9 in

Specifications

Weight	Dry weight, incl. rotator, from 1 380 kg
Feed speed	Feed roller motor dependent: 0 - 4.8 / 5 m/s
Gross feed force	Feed roller motor dependent: 21.0 / 26.1 / 28.7 kN
Feed wheel type	Steel rollers
Delimbing knives, number	4
Delimbing knives, opening	428 mm
Bar	82.5 cm
Saw motor	19 cm³/rev
Fell/Cut diam. theor. max	710 mm
Max hydraulic flow	330 L/min
Max hydraulic pressure	28 MPa

Weight	Dry weight, incl. rotator, from 3,042 lbs.
Feed speed	Feed roller motor dependent: 0 - 15.7 / 16.4 ft./s
Gross feed force	Feed roller motor dependent: 4,720.9 / 5,867.5 / 6,452 lbf.
Feed wheel type	Steel rollers
Delimbing knives, number	4
Delimbing knives, opening	16.85 in
Bar	32.48 in
Saw motor	7.5 in³/rev
Fell/Cut diam. theor. max	27.95 in
Max hydraulic flow	87.17 gpm
Max hydraulic pressure	4,061 psi

Notes

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.

Support you can count on

Technology that works as hard as you do

MaxiXT smart control system

The MaxiXT smart control system is designed to enable fast, accurate execution of even the narrowest of cutting windows. The power of the knives, feed rollers and tilt down function are determined by stem diameter and tree species, and are easily adjusted using a graph. This helps optimize your productivity, measurement accuracy and time savings.
