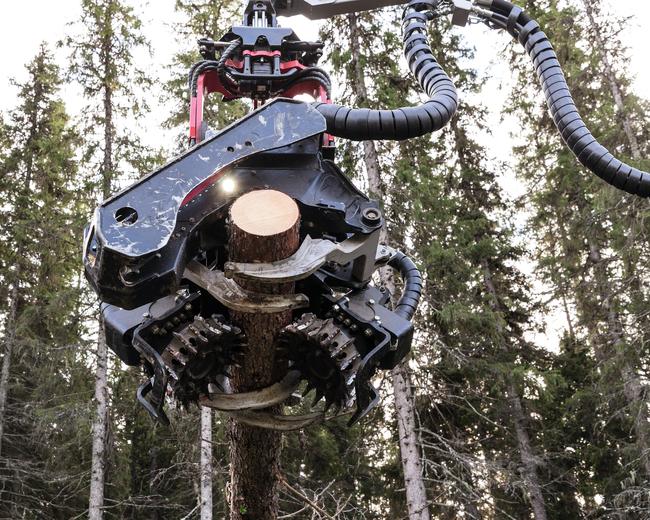

Harvesting head

C144

  • Weight 1 410 kg 3,109 lbs.
  • Maximum cutting diameter 750 mm 29.5 in
  • Maximum delimbing diameter 510 mm 20 in

Excellent performance in tough cutting conditions

This all-around head is designed to perform in demanding and rough environments, with four feed motors powering four driven feed rollers. It is perfectly matched to our 911, 931, 931XC and 951 wheeled harvesters, and is compatible with other brands.

  • Powerful feed motor and feed roller designs
  • Rugged knives handle crooked stems and tough limbs
  • Robust butt saws with Constant Cut system

Features and benefits

Havesting Head_C144_Literaturelink_page9_advFeed System.psd

Advanced feed system

Four feed motors power four driven feed rollers to provide multiple contact points for carrying the stem. Designed to center the stem for efficient feeding. Low clamping pressure delivers high feed force with low energy consumption.
Forestry_Harvesting Heads_Cseries_FBdelimbingknives_p5.png

Rugged delimbing knife system

Four moveable cast iron delimbing knives for high durability and performance especially with tough limbs. High clamping forces grip the stem solidly for more force in the felling moment, reducing the chances of bent saw bars.
Forestry_Harvesting Heads_Cseries_FBconstantcut_p13.png

Constant Cut saw unit

Intelligent saw motor control delivers the right chainsaw speed to reduce splitting risk and provide short cutting times. Programmable EcoOiler automatic chain lubrication system.
Harvester Heads_literature link_C93_page5.psd

Accurate length/diameter measuring systems

Patented length-measuring wheel cylinder design ensures constant equalized pressure to closely follow stem irregularities. High-resolution encoders, both left and right, deliver high accuracy.
Forestry_MaxiXT_Smart ControlSystem_p80.png

MaxiXT smart control system

State-of-the-art control system with intuitive graphical interface to manage all aspects of head control and performance. Easy programming of individual operator control preferences plus production parameters such as tree species, length and diameter.
Harvester Heads_literature link_page 6_2_Serviceability.psd

Excellent reliability and serviceability

Computer and hydraulic hoses/tubes are well-protected for high reliability. All daily service can be performed at ground level without repositioning. Centralized lubrication points further reduce service time.

Specifications for C144

Close all Expand all
US system Metric
Dimensions
Max width 1 795 mm
Height incl. rotator 1 770 mm
Height to vertical knife 1 600 mm
Opening knives, upper 660 mm
Opening knives, lower 800 mm
Roller opening, max 750 mm
Max width 70.7 in
Height incl. rotator 69.7 in
Height to vertical knife 63 in
Opening knives, upper 26 in
Opening knives, lower 31.5 in
Roller opening, max 29.5 in
Specifications
Weight Dry weight, incl. rotator, from 1 400 kg
Feed speed 0 - 5 m/s
Gross feed force 29.6 kN
Feed wheel type Steel rollers
Delimbing knives, number 5
Delimbing diameter, tip-to-tip 525 mm
Bar 82.5 cm
Saw motor 19 cm3/rev
Fell/Cut diam. theor. max 710 mm
Max hydraulic flow 320 L/min
Max hydraulic pressure 28 MPa
Weight Dry weight, incl. rotator, from 3,109 lbs.
Feed speed 0 - 16.4 ft./s
Gross feed force 6,654 lbs.
Feed wheel type Steel rollers
Delimbing knives, number 5
Delimbing diameter, tip-to-tip 20.7 in
Bar 32.5 in
Saw motor 1.16 in3/rev
Fell/Cut diam. theor. max 28 in
Max hydraulic flow 84.5 gpm
Max hydraulic pressure 4,061 psi
Notes

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.

Support you can count on

Technology that works as hard as you do

The MaxiXT smart control system is designed to enable fast, accurate execution of even the narrowest of cutting windows. The power of the knives, feed rollers and tilt down function are determined by stem diameter and tree species, and are easily adjusted using a graph. This helps optimize your productivity, measurement accuracy and time savings.
Komatsu’s Constant Cut saw unit helps maximize cutting productivity and reliability. It ensures optimal 130 ft/sec (40 m/sec) chain speed through the entire cutting cycle, reducing the risks of splitting and over-revving the saw motor. Integrated saw and bar feeding valves reduce energy loss.
