Electric rope shovel

P&H 4100XPC AC

  • Nominal payload 100 - 109 mt 110 - 120 st
  • Dipper capacity 52.8 - 61.2 m3 69 - 82 yd3
  • Production 7 834 - 10 444 MTPH  8,635 - 11,513 TPH

High productivity. Low-cost loading.

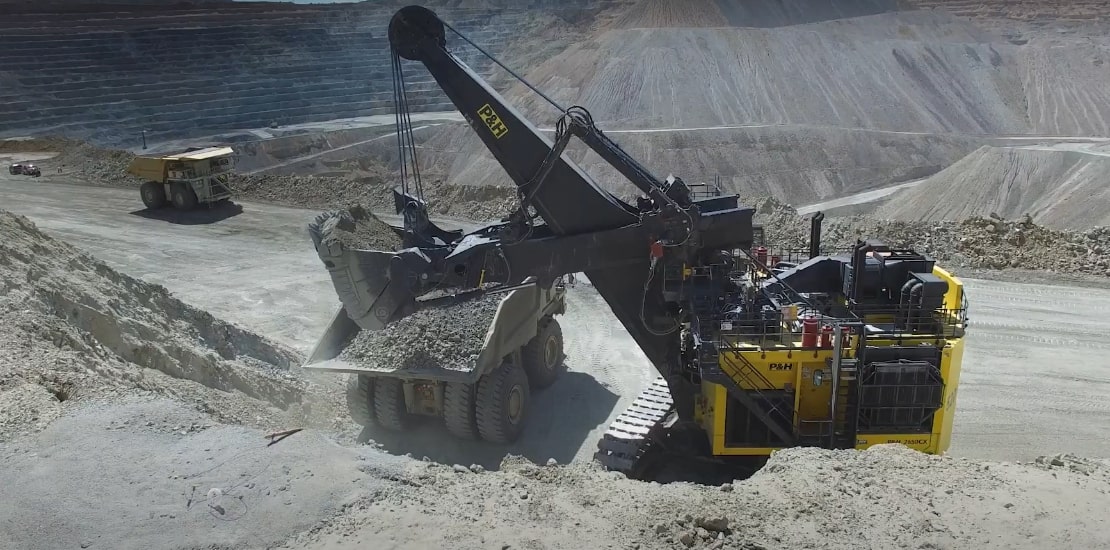

Powerful cutting force, maximum load capacity and low-cost-per-ton loading — the P&H 4100XPC AC is engineered to deliver all three, with a unique twin-leg handle design and the latest in rope shovel dipper technology.

  • Double-sided loading of manned and autonomous fleets
  • Three-pass loading
  • Low cost per tonne loading

Features and benefits

Shovel_4100XPC_KUCC UT_DB_210730_KMCG.073021_003.psd

Motors and transmissions designed for mining

Designed with the specific rigors of rope shovel operation in mind, P&H mining duty motors and planetary transmissions are designed for longevity and reliability.

Stability throughout the dig cycle

Built to handle hard materials with focus on penetrating the bank, the P&H twin leg handle focuses energy and cutting force by preventing the twisting or rotating of the dipper.

Latest dipper technology

The dipper is one of the hardest working pieces on your shovel. The 4100/4800 features the latest in dipper technology: a low-maintenance latching system, optimal toe penetration and the ability to pass match shovels with trucks.
Electricropeshovels_4100XPC_adaptivecontrols_videograb.psd

Controls designed to boost production

P&H Adaptive Controls is a suite of integrated control functions designed to build on the strengths of the P&H shovel. Engineered to increase production by up to 9% and eliminate boom jacking by up to 50% with no negative effects on shovel structures.
Electricropeshovel_FBtrackshield.psd

Protects tracks and undercarriage

The P&H Track Shield helps protect your machine’s tracks and undercarriage from dipper strikes. It monitors dipper movement and position to help you predict imminent collisions and takes appropriate actions to mitigate damage to dipper or tracks.

Delta style undercarriage

Minimize maintenance with a proven shoe and tumbler that requires minimal intervention and allows for operation in a loose track configuration.

Specifications for 4100XPC

Close all Expand all
US system Metric
Working ranges
Height of cut 16.8 m
Radius of cut 23.9 m
Dumping height* (door open) 9.5 m
Floor level radius 16.0 m
Tail swing radius 9.8 m
Operator eye level 10.1 m
*Height shown with bail-type dipper. Heights will be greater with bail-less or compact-bail dippers. Actual dumping height can be greater than door clearance height.
Height of cut 55 ft. 2 in
Radius of cut 78 ft. 8 in
Dumping height* (door open) 31 ft. 0 in
Floor level radius 52 ft. 6 in
Tail swing radius 32 ft. 3 in
Operator eye level 33 ft. 1 in
*Height shown with bail-type dipper. Heights will be greater with bail-less or compact-bail dippers. Actual dumping height can be greater than door clearance height.
Capacity
Nominal payload* 99.8 - 108.9 mt
Nominal dipper capacity
SAE struck
SAE 2:1

52.8 - 61.2 m3
58.3 - 67.6 m3
Rated suspended load 195 mt
Optimum truck size
(360 mt (400 st) truck shown)
218 - 363 mt
*Payload and dipper capacity are dependent on many factors. Contact Komatsu Mining for an analysis of your specific application.
Nominal payload* 120 st
Nominal dipper capacity
SAE struck
SAE 2:1

69 - 82 yd3
74.4 - 88.4 yd3
Rated suspended load 215 st
Optimum truck size
(360 mt (400 st) truck shown)
240 - 400 st
*Payload and dipper capacity are dependent on many factors. Contact Komatsu Mining for an analysis of your specific application.
Power requirements
Supply voltage* 7 200 or 13 800 V
3 Phase, 60 Hz
6 000, 6 600, 7 200 or 11 000 Hz
3 Phase, 50 Hz
Supply transformer (Minimum) 3 750 kVA
Minimum short circuit VA available at shovel 30 MVA

*Voltage per customer requirements

Supply voltage* 7,200 or 13,800V
3 Phase, 60 Hz
6,000, 6,600, 7,200 or 11,000 Hz
3 Phase, 50 Hz
Supply transformer (Minimum) 3,750 kVA
Minimum short circuit VA available at shovel 30 MVA

*Voltage per customer requirements

Propel

Propel on demand provides rapid transfer to propel mode. Rapid transfers allow frequent positioning of the shovel to the bank resulting in faster cycle times and more efficient digging.

Two rugged P&H planetary gear cases of proven design independently transmit torque to the drive sprockets, producing the tractive effort required for fast, efficient propel and positioning operations.

P&H brand Delta drive low tension sprocket drive system with heavy duty cast crawler shoes.

Spring-set air release disc brakes – one per motor

Propel on demand provides rapid transfer to propel mode. Rapid transfers allow frequent positioning of the shovel to the bank resulting in faster cycle times and more efficient digging.

Two rugged P&H planetary gear cases of proven design independently transmit torque to the drive sprockets, producing the tractive effort required for fast, efficient propel and positioning operations.

P&H brand Delta drive low tension sprocket drive system with heavy duty cast crawler shoes.

Spring-set air release disc brakes – one per motor

Crowd

Powerband V-belt drive between motor and gear case absorbs shock loads.

First and second reduction gearing in enclosed gear case for reliable splash lubrication, ease of maintenance, and extended component life.

Twin-leg dipper handle with torsion box and rack and pinion drive has inherent stability in the bank for optimal digging.

Spring-set air release disc brake.

Powerband V-belt drive between motor and gear case absorbs shock loads.

First and second reduction gearing in enclosed gear case for reliable splash lubrication, ease of maintenance, and extended component life.

Twin-leg dipper handle with torsion box and rack and pinion drive has inherent stability in the bank for optimal digging.

Spring-set air release disc brake.

Swing

Three modular P&H planetary gear cases of proven design and a single piece forged swing gear transmit torque for fast cycle times.

Spring-set air release disc brakes – one per motor.

Splash lube filtration system.

Three modular P&H planetary gear cases of proven design and a single piece forged swing gear transmit torque for fast cycle times.

Spring-set air release disc brakes – one per motor.

Splash lube filtration system.

Hoist

All gearing housed in single enclosed gear case with filtered oil circulation for reliable splash lubrication and ease of maintenance.

Large 172.72 cm diameter hoist drum for extended rope bending life. Ferrule becket system and dual electric tuggers are standard for efficient rope change.

Spring-set air release disc brakes – one per motor.

All gearing housed in single enclosed gear case with filtered oil circulation for reliable splash lubrication and ease of maintenance.

Large 68 in diameter hoist drum for extended rope bending life. Ferrule becket system and dual electric tuggers are standard for efficient rope change.

Spring-set air release disc brakes – one per motor.
