Feeder breaker


  • Seam Height Greater than 190 cm Greater than 75 in
  • Throughput (Standard) Up to 544 MTPH Up to 600 TPH
  • Breaker Pick force Up to 90 718 kg Up to 200,000 lbs.

Integral to your operation’s productivity

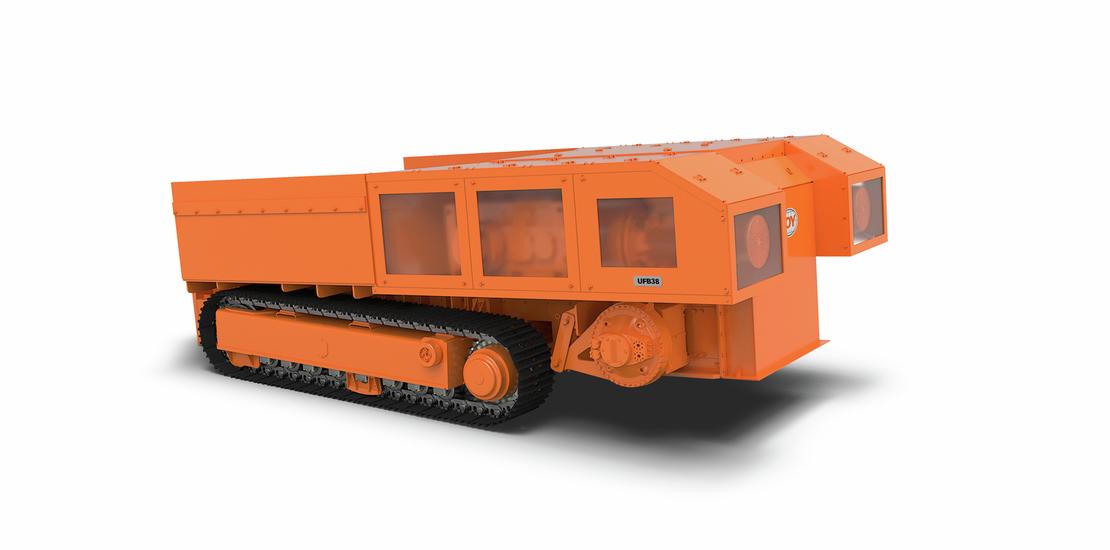

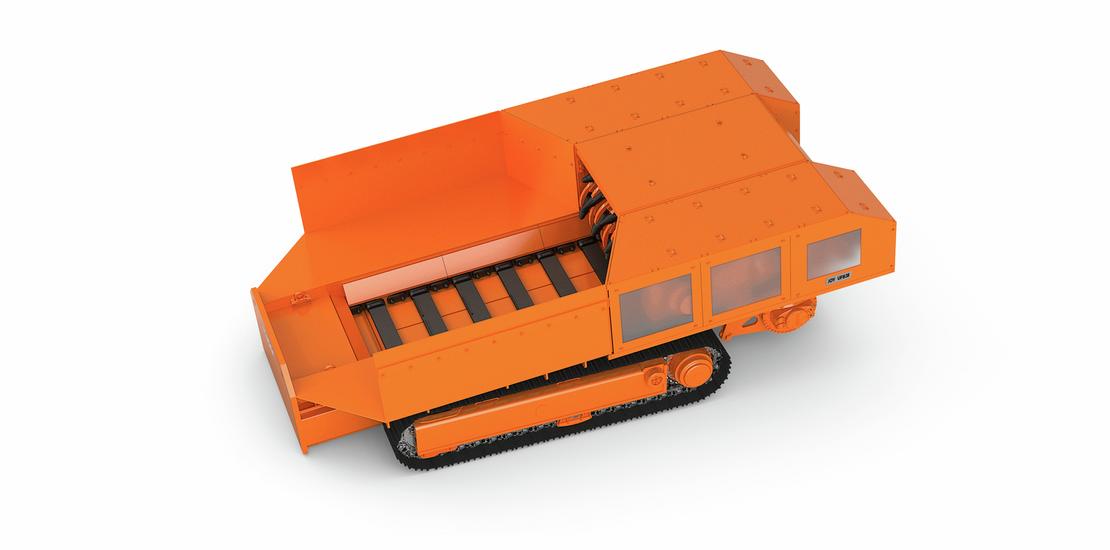

The Joy UFB-38 feeder breaker is designed to cut operating costs and increase production rates by helping your mining, haulage and conveying systems to work efficiently. This machine provides a reliable means for continuous feeding and breaking of harder rock and abrasive material type applications.

  • Greater pick force
  • Designed for durability
  • Wear-resistant materials

Features and benefits


Promotes increased productivity

Since the feeder breaker is located closer to the working face, haulage distances and travel times are reduced, resulting in increased production and efficiency of the remaining section equipment.

Easier section moves

Engineered to handle abrasive material conditions, the robust crawler drive and undercarriage are also designed to offer exceptional ground clearance and towing capabilities.
GPL2112_withGPL6391VFD_forcrushingwebsite image.psd

Optidrive VFD [option]

Joy Optidrive, an AC variable-frequency drive system, integrates software with the electronic and mechanical systems to provide precise conveyor speed control and breaker overload protection.
under ground ufb_literature link_Splined Breaker Drive.jpeg

Splined breaker shafts

Splined connection versus a compression connection can reduce assembly and disassembly time by more than 50%, reducing downtime for replacement and service. Splined connection is also 25% stronger than previous connections.* *based on internal testing
under ground ufb_literature link_Bolt on Flights.jpeg

Bolt-on flights [option]

Downtime to replace conveyor flights is reduced by up to 75% with an easy bolt-on, alloy steel flight design. Operators have the flexibility to add additional flights and improve product sizing.

Camera system

Forward and rearward cameras provide remote monitoring of haulage equipment receiving payload and discharging onto the material handling system.

Specifications for UFB-38

Close all Expand all
US system Metric

Seam Height

Greater than 190 cm

Throughput (Standard)

Up to 544 MTPH

Breaker Pick Force

Up to 90 718 kg

Seam Height

Greater than 75 in

Throughput (Standard)

Up to 600 TPH

Breaker Pick Force

Up to 200,000 lbs.
