Blasthole drill

ZT44

  • Horsepower 597 kW @ 2 100 rpm 800 HP @ 2,100 rpm
  • Compressor 38.5 CMM @ 34.5 bar 1,360 CFM @ 350 psi
  • Hole range 140 - 220 mm 5 1/2 - 8 1/2 in

Versatility, adaptability and performance for today's varying mining challenges

The ZT44 is a down-the-hole surface drill rig designed for mining-duty applications. It offers high reliability and production with purpose-built structures, a high horsepower engine and large capacity dual-setting compressor that adapts to varying rock hardness conditions. The ZT44 is a versatile machine, used for pre-split, production, auxiliary and other demanding needs.

  • Flexibility to drill in multiple applications on site

  • Core structures consistent with mining environment demands
  • Designed for 24/7 use for exceptional production

Features and benefits

Dual-pressure air compressor

With both high- and low-pressure drill settings, this compressor can adjust to changing drilling conditions, allowing for optimal performance up to 8.5-inch hammer. This largest compressor in its class can handle challenging elevations where production often drops off.

High tractive force and more

Powerful tractive force and an independent oscillating undercarriage deliver maneuverability on uneven grades and the ability to perform in various settings. That gives your operation more flexibility to determine the optimal use of your machine.

Four infrared night vision cameras

Through the use of a video system, your team will have excellent operational awareness around the machine. Plus, bright night-time illumination with LED lighting offers outstanding visibility for operators.

Compact design

The ZT44 blasthole drill adds exceptional versatility to your operation with a compact form that is designed for efficient drilling in tight spaces, while still providing the production capacity of larger machines.

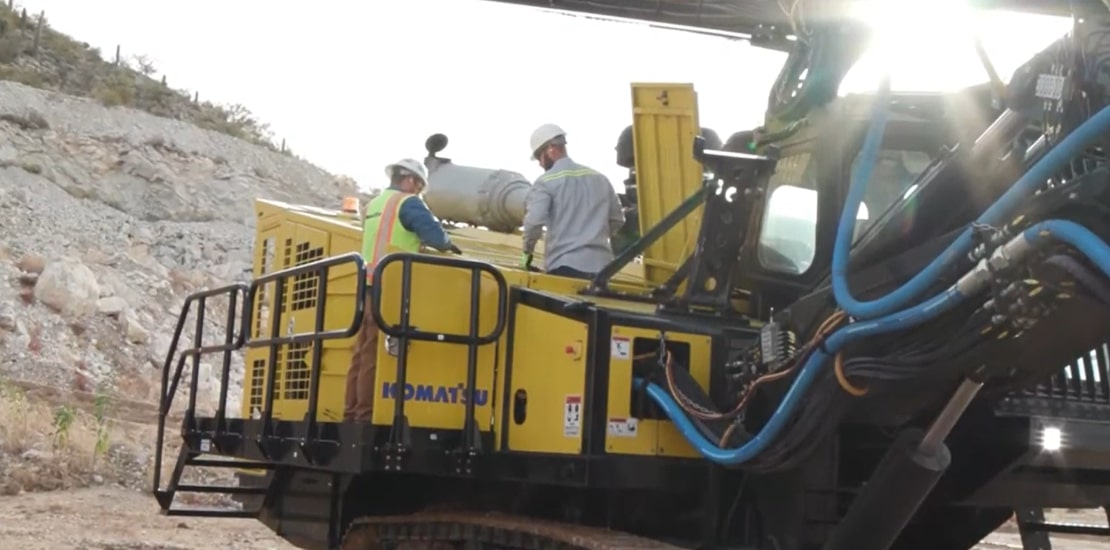

Service accessibility

A wireless remote pendant, easy-access service walkways and unobstructed entry into the operator's enclosure help support lower mean time to repair (MTTR) and aides in machine serviceability.

Optimum heat mitigation

Heat exchange unit mitigates high thermal loads generated during operation. That makes the ZT44 capable of handling temperatures up to 131 F (50 C) in the harshest conditions, while also maintaining user-friendly serviceability.

Specifications for ZT44

Close all Expand all
US system Metric
Working ranges
Hole size 140 to 216 mm
Hammers 102 to 203 mm
Drill pipe 102 to 140 mm

Hole size 5.5 to 8.5 in
Hammers 4.0 to 8.0 in
Drill pipe 4.0 to 5.5 in

Feed
Pull down force 53.4 kN
Pull back 71.2 kN
Single pass depth  6.1 m
Maximum depth 42.7 m. (6 + 1)
30.5 m (4 + 1)
Boom positioning Swing left 10°/right 18°
Tilt 10° below to 35° above horizontal
Mast positioning Dump +16° to -45° from vertical
Rotation pin #1 left/right -20° to +45° from vertical
Rotation pin #2 left/right +45° to 5° from horizontal

Pull down force 12,000 lbs.
Pull back 16,000 lbs.
Single pass depth 20 ft.
Maximum depth

140 ft.
100 ft.

Boom positioning Swing left 10°/right 18°
Tilt 10° below to 35° above horizontal
Mast positioning Dump +16° to -45° from vertical
Rotation pin #1 left/right -20° to +45° from vertical
Rotation pin #2 left/right +45° to 5° from horizontal

Rotary head
Rotation head torque 7.5 kN-m

Rotation head speed 0 to 99 rpm
Rotation head torque 5,539 lbf.-ft.

Pipe handling
Carousel capacity 114 mm diameter pipe for 6 pipe carousel + 1 under head
127 mm diameter pipe for 4 pipe carousel + 1 under head

Carousel capacity 4.5" diameter pipe for 6 pipe carousel + 1 under head
5" diameter pipe for 4 pipe carousel + 1 under head

Overall dimensions
Operating weight (maximum) 38 555 kg
Operating height, mast vertical 11.6 m
Shipping dimensions (height x weight x length) 3.51 x 2.89 x 13.05 m
Electrical 24 V
Electro-hydraulic control system Variable displacement, load sensing pumps

Power unit

Engine

Cummins QSK 19, Tier 2
HP mode 570 kW
LP mode 597 kW
Cummins QSK 19, Tier 4f
HP mode 574 kW
LP mode 597 kW

Air system

Air compressor, Sullair 20/12 (1150)

HP mode 32.9 CMM @ 34.5 bar @ 1 800 rpm
LP mode 38.5 CMM @ 24.2 bar @ 2 100 rpm

Fluids/maintenance

Fuel capacity 1 022 L
Cooling system Radiator, compressor, ATAAC (Air to Air After Cooler)
Tank capacities 507 L hydraulic tank
1 060 L water tank

Lower works and propel

Travel auto 2 speed 3 kph
Oscillation ± 8°
Traction force 222.4 kN
Ground clearance 38.1 mm
Gradeability 30%
Operating weight (maximum) 85,000 lbs.
Operating height, mast vertical 37 ft. 11 in
Shipping dimensions (height x weight x length)

138 x 114 in
138 x 114 x 514 in

Electrical  24 V
Electro-hydraulic control system Variable displacement, load sensing pumps

Power unit

Engine

Cummins QSK 19, Tier 2
HP mode 764 HP
LP mode 800 HP
Cummins QSK 19, Tier 4f
HP mode 770 HP
LP mode 800 HP

Air system

Air compressor, Sullair 20/12 (1150)

HP mode 1,160 CFM/500 psi @ 1,800 rpm
LP mode 1,360 CFM/350 psi @ 2,100 rpm

Fluids/maintenance

Fuel capacity 270 gal
Cooling system L&M Mesabi
Tank capacities 134 gal
280 gal

Lower works and propel

Travel auto 2 speed 1.86 mph
Oscillation ± 8°
Traction force 50,000 lbs.
Ground clearance 15 in
Gradeability 17°

Cab

Heating capacity 13.48 kWh
Cooling capacity 9.7 kWh
Pressurized cabin 295 m3 /h
  • ROPS/FOPS certified
  • <80dBA cab noise level
  • CANbus joystick controlled

Machine features

  • Automatic constant rotation power control
  • Centralized hydraulic test station
  • Hole alignment and depth system
  • Dual engine and compressor control
  • Wireless remote control for consumable changes
  • Pressure-less quick fuel system
  • 4 infra-red night vision cameras for improved visibility
  • Fixed rock guard for main cabin and roof windows

Cab

Heating capacity 46,000 BTU
Cooling capacity 33,000 BTU
Pressurized cabin 174 cfm
  • ROPS/FOPS certified
  • <80dBA cab noise level
  • CANbus joystick controlled

Machine features

  • Automatic constant rotation power control
  • Centralized hydraulic test station
  • Hole alignment and depth system
  • Dual engine and compressor control
  • Wireless remote control for consumable changes
  • Pressure-less quick fuel system
  • 4 infra-red night vision cameras for improved visibility
  • Fixed rock guard for main cabin and roof windows
  • Arctic package
  • Bolt-on external walkways
  • Dust collector
  • Rear stabilizer
  • Arctic package
  • Bolt-on external walkways
  • Dust collector
  • Rear stabilizer
