Underground hard rock haulage
WX10LP
LHD
- Tramming capacity (kg) 10 000
- Tramming capacity (lbs) 22046
- Bucket capacity (m^3) 5
- Bucket capacity (yd^3) 6.5
- Height to top of canopy (in) 73
- Height to top of canopy (mm) 1850

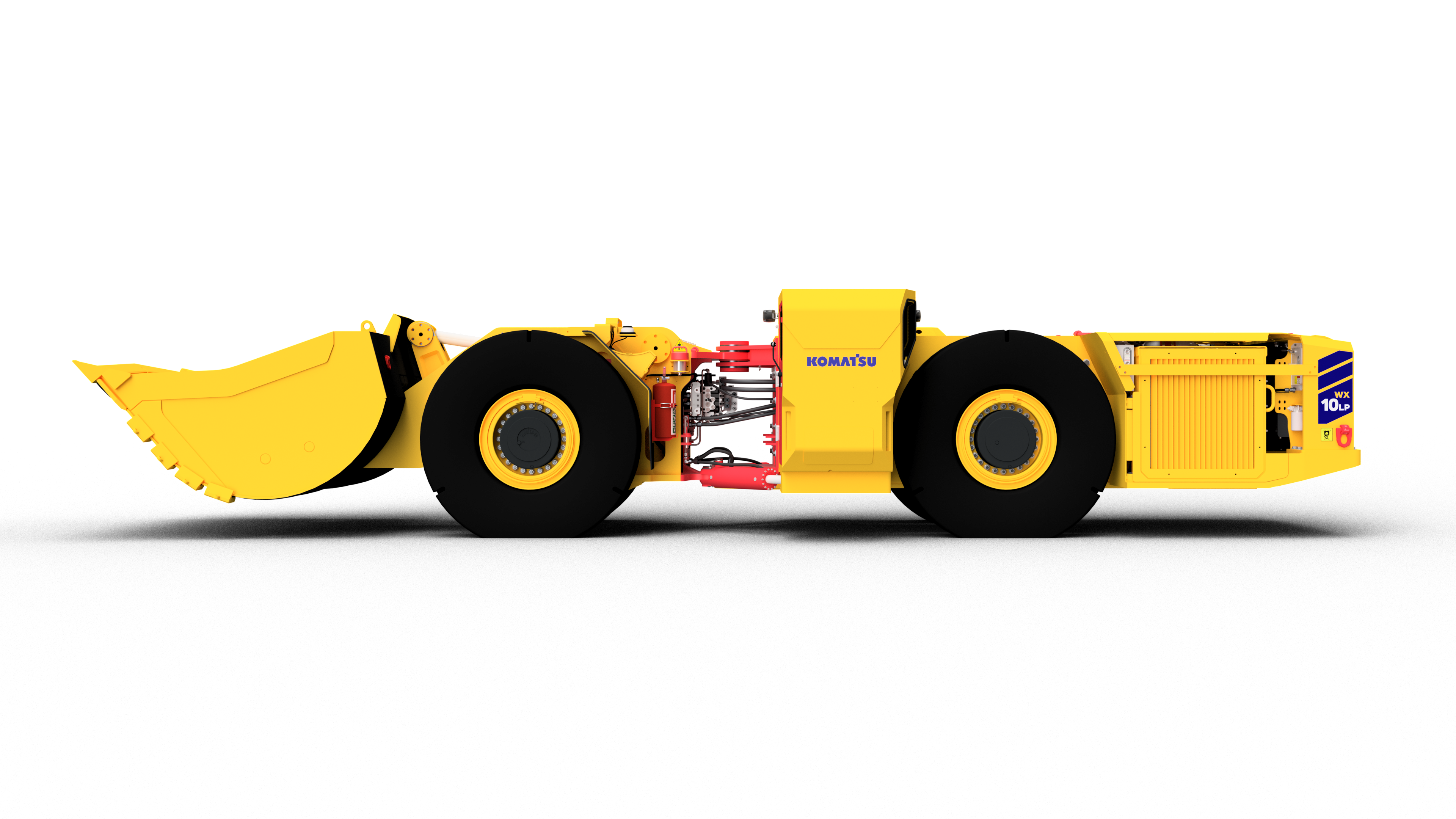

Low-profile LHD
A compact, heavy-duty load-haul-dump built for confined underground headings where height and serviceability matter. The WX10LP pairs a very low 1,850 mm canopy with a 5.0 m³ bucket and a 10,000 kg tramming capacity to move large loads in tight spaces. It’s driven by a Cummins QSL9 (209 kW @ 2,000 rpm) and a Dana R36000 powershift transmission, with prioritized steering hydraulics and short cycle times (dump 2.8 s, raise 6.5 s) for efficient mucking. Structure and safety are straightforward and rugged: welded S355JR frames, certified ROPS/FOPS, SAHR wet multi-disc brakes, cameras, comprehensive ground-level service points and a long list of standard and optional equipment (closed cabin, A/C, fire suppression, TPMS, automatic greasing, etc.) so the machine can be specified to site needs.
