Underground hard rock haulage

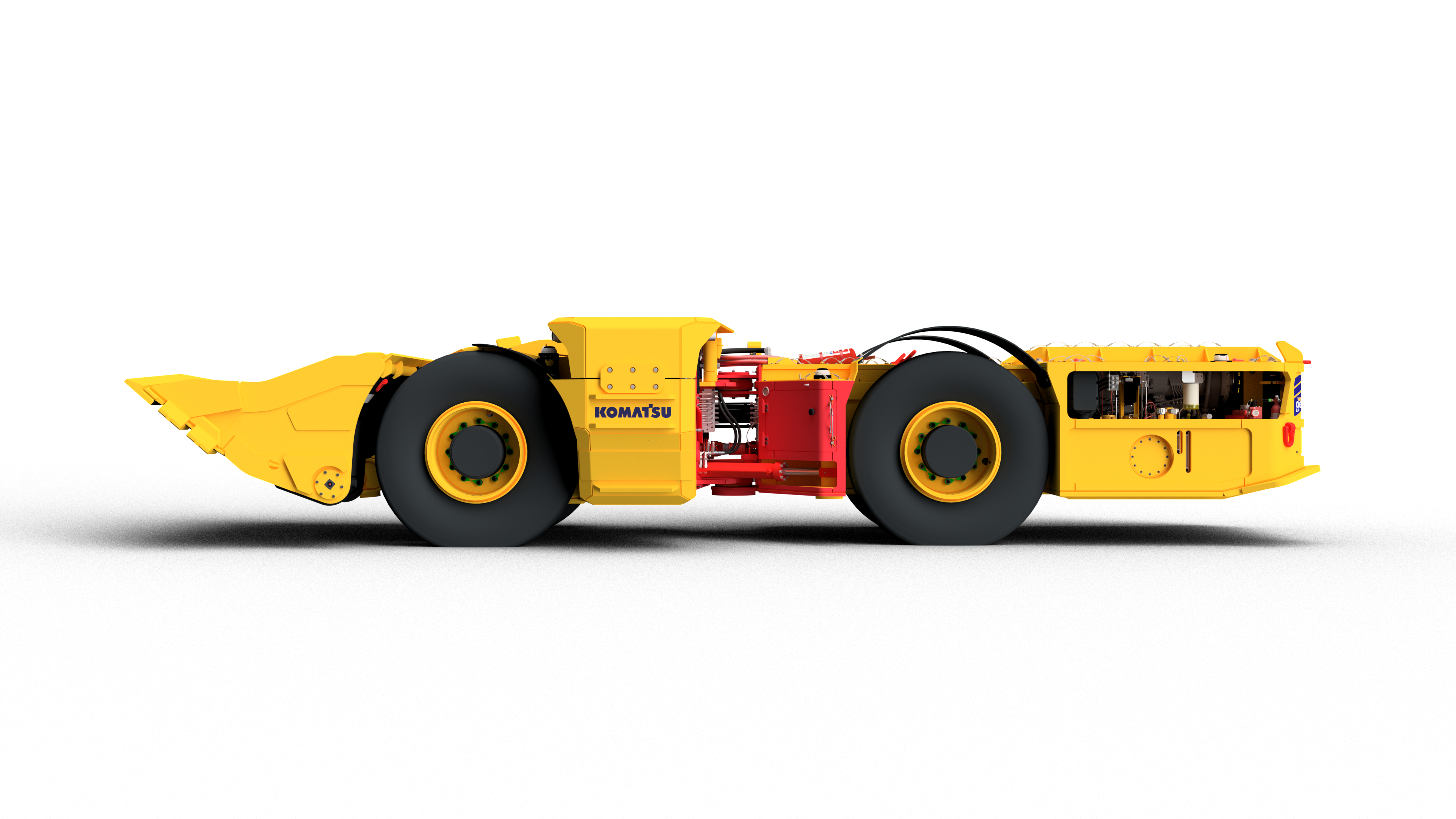

WX06LP
LHD
- Tramming capacity (kg) 6600
- Tramming capacity (lbs) 14551
- Bucket capacity (m^3) 2.2
- Bucket capacity (yd^3) 2.9
- Height to top of canopy (in) 61
- Height to top of canopy (mm) 1550
Compact performance for the tightest underground headings
The WX06LP is a low-profile LHD engineered for very confined headings — 1,550 mm canopy, 6,000 kg tramming capacity and a 2.2 m³ bucket driven by an 88 kW Deutz engine (operating weight 18,839 kg). Rugged welded S355JR frames, ROPS/FOPS protection, SAHR brakes and ground-level service points simplify maintenance; optional 3.2 m³ bucket, automatic greasing, fire suppression and monitoring systems allow site-specific specification
