Crushing

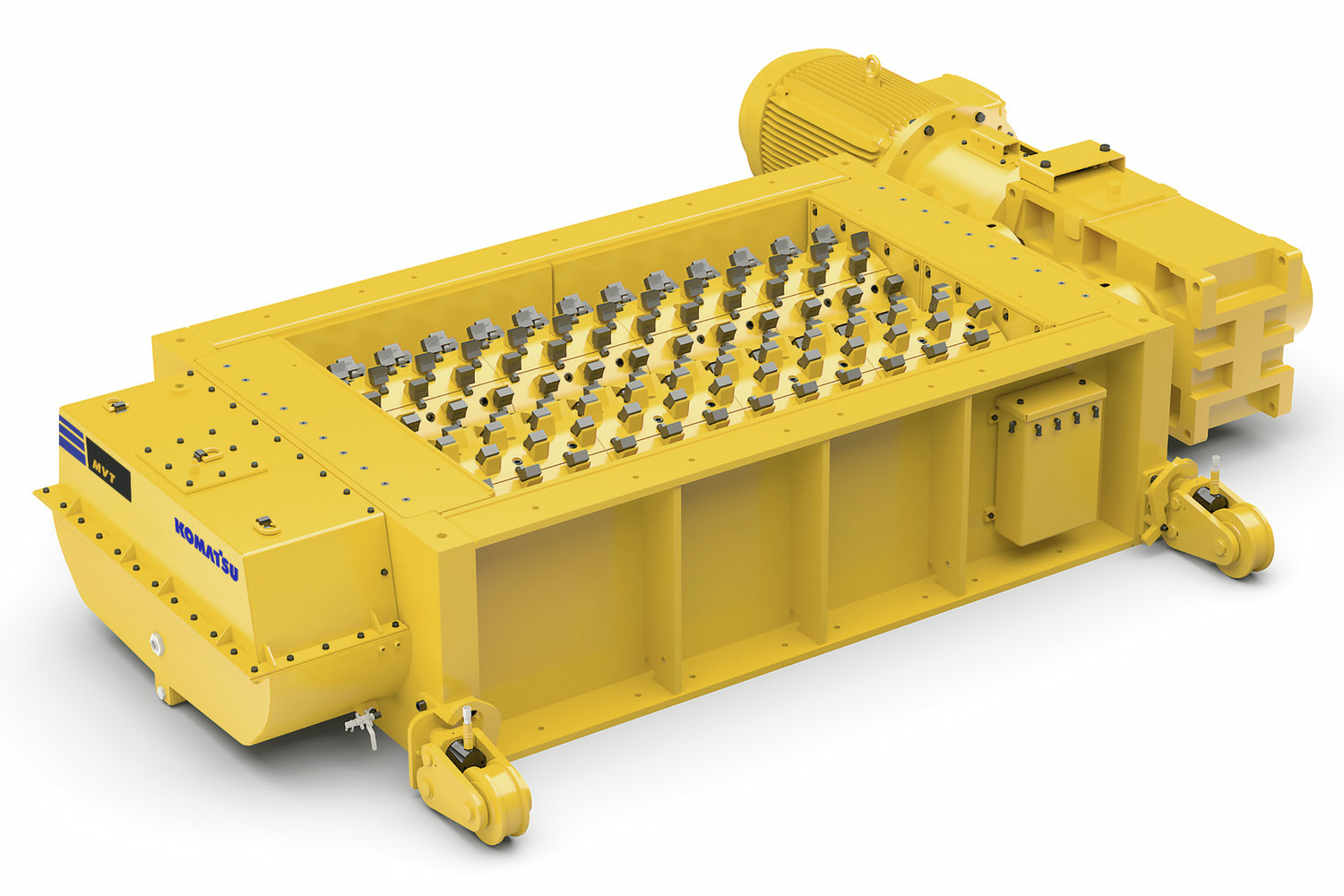

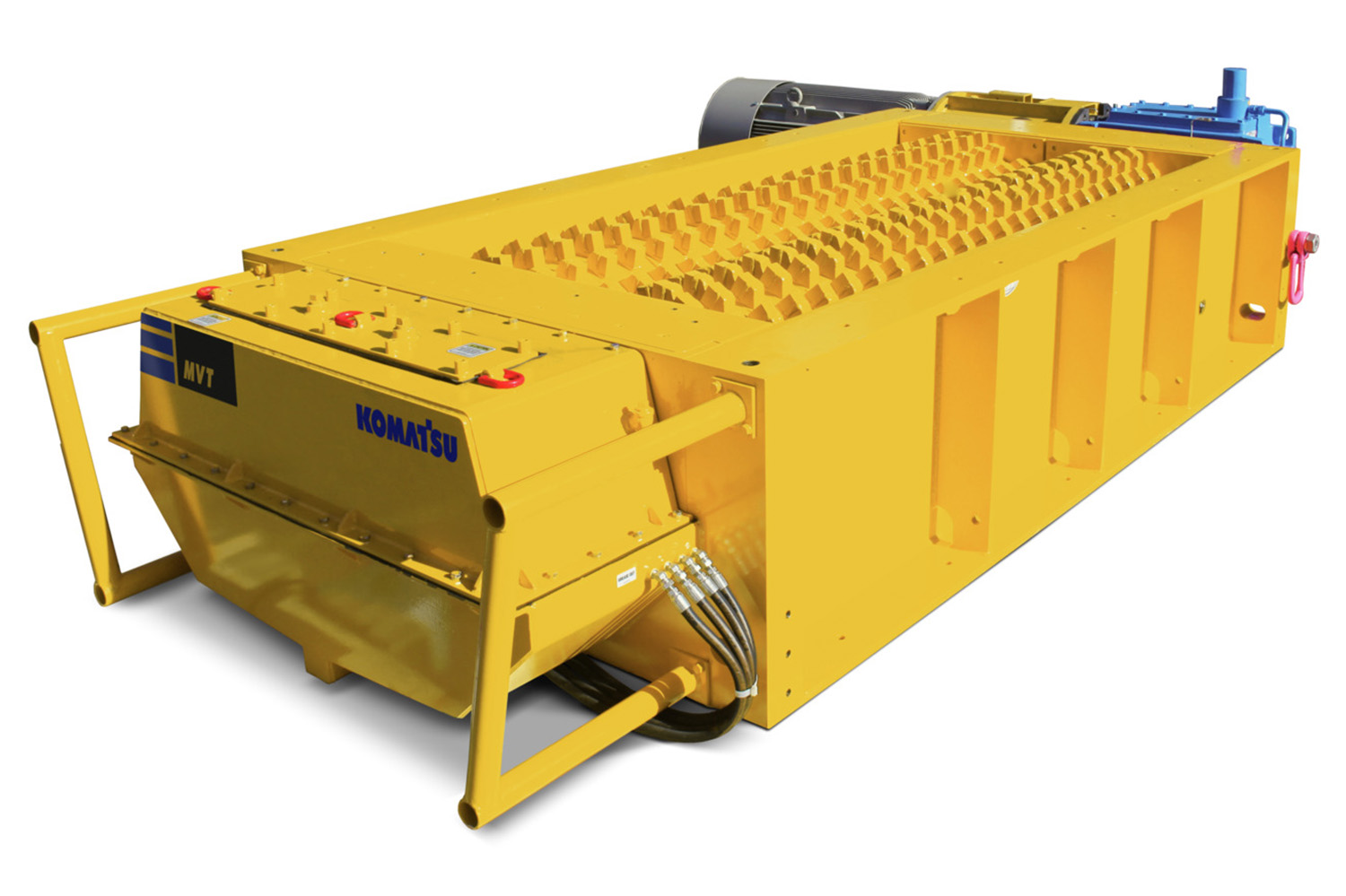

MVT-II 800
Sizers
- Capacity (MTPH) Up to 2 500
- Capacity (TPH) Up to 2,760
- Standard output product sizes (in) 2 or 4
- Standard output product sizes (mm) 50 or 100
Reduce fines and abrasive wear
Secondary sizers use matched velocity technology (MVT) to minimize fines. Timed center-sizing rolls enable teeth to mesh together and control product size in three dimensions. Shaft assemblies include cast wear segments with replaceable teeth for extended life.
- Picks designed with long-lasting wear segments
- Designed to reduce costs
- Picks allow a harder mineral to be broken with the same force, when compared to compressive crushers
Specifications
- Full specs
Metric
Imperial (US)
Expand all
- Application: Bauxite, phosphate, shale, coal, limestone, nickel, gold, copper, coke, borax, polyhalite, and gypsum
- Capacity (TPH): Up to 2,760
- Capacity (MTPH): Up to 2 500
- Mass (tons): 22 - 28.7
- Mass (tonnes): 20 - 26
- Roll spacing (in): 31.5
- Roll spacing (mm): 800
- Feed size (in): Less than 13.8
- Feed size (mm): Less than 350
- Standard output product sizes (mm): 50 or 100
- Standard output product sizes (in): 2 or 4
- Roll length range (in): 59 - 118
- Roll length range (mm): 1 500 - 3 000
