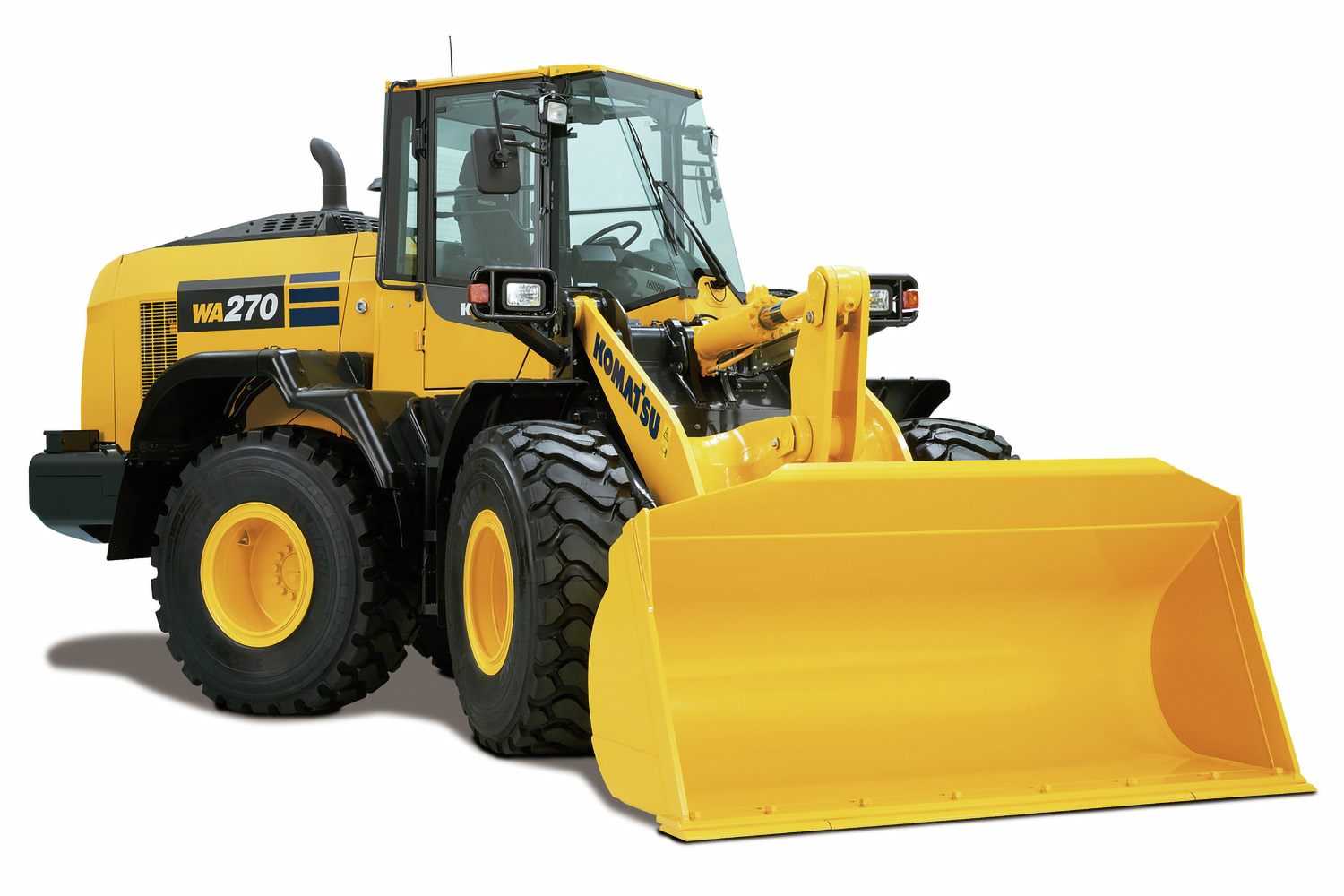

Wheel loaders
WA270-8
Mid-size wheel loaders
- Horsepower (HP) 149 HP @ 2,000 rpm
- Horsepower (kW) 111 kW @ 2 000 rpm
- Operating weight (kg) 12 795 - 13 190
- Operating weight (lbs) 28,208 - 29,079
- Bucket Capacity (m^3) 1.9 - 2.7
- Bucket Capacity (yd^3) 2.5 - 3.5
A versatile machine for your fleet
Whether you need to lift, move pipe, dig or change attachments on the fly, you will want a loader compact enough to squeeze between small spaces, yet powerful and responsive enough to tackle jobs planned for bigger machines.
- Easy operation with traction control modes
- Long-lasting brake life with simple one-pedal operation
- Impressive break-out force
- Versatility for changing job site needs
Features and benefits

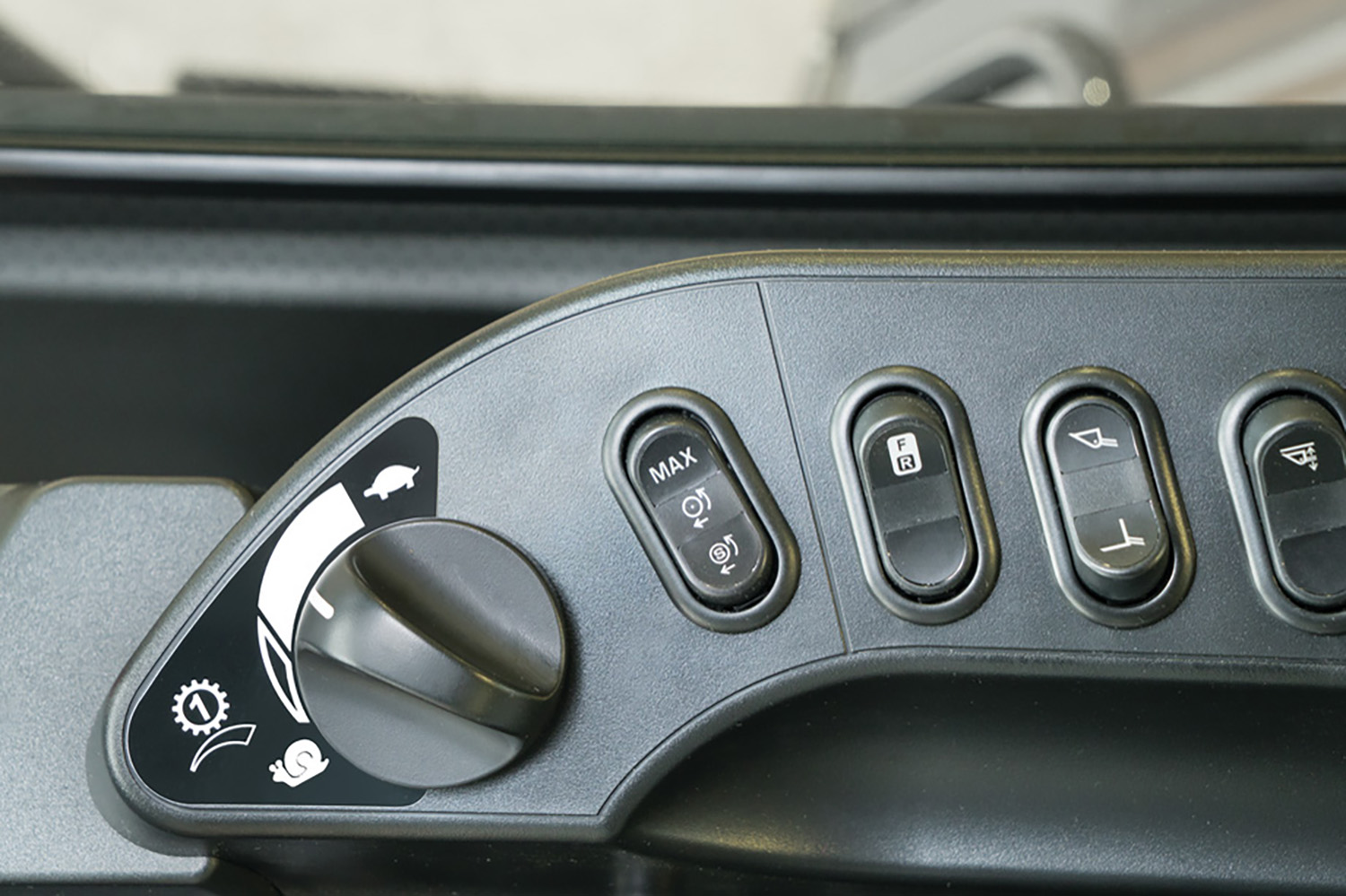

Enhanced control with HST
Help minimize wheel slippage and promote extended tire life with a smooth variable speed traction control system that helps keep your operator in control in virtually all working conditions. Auto-mode automatically adjusts without operator input, helping to keep loads stable.

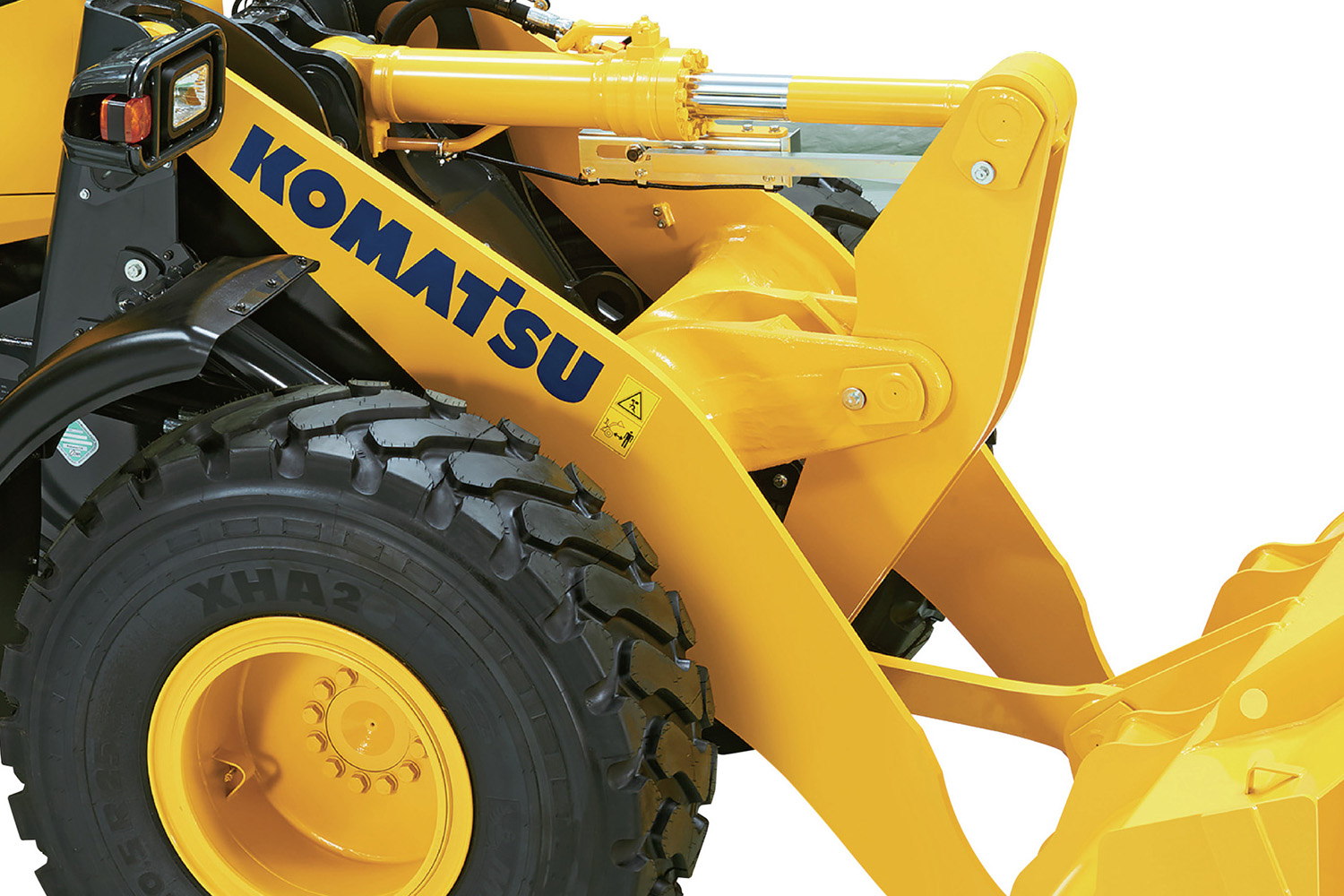

Versatile PZ linkage plus high breakout force
Powerful breakout force and stability. Parallel-lift linkage with large break-out force feature simulates a Z-bar, which promotes material retention, helping operators save time and finish jobs faster.
Powerful performance, low fuel consumption
Save fuel while remaining productive. Komatsu's powerful engine and SmartLoader logic automatically creates enough torque for each work phase, reducing fuel consumption with no decrease in production.

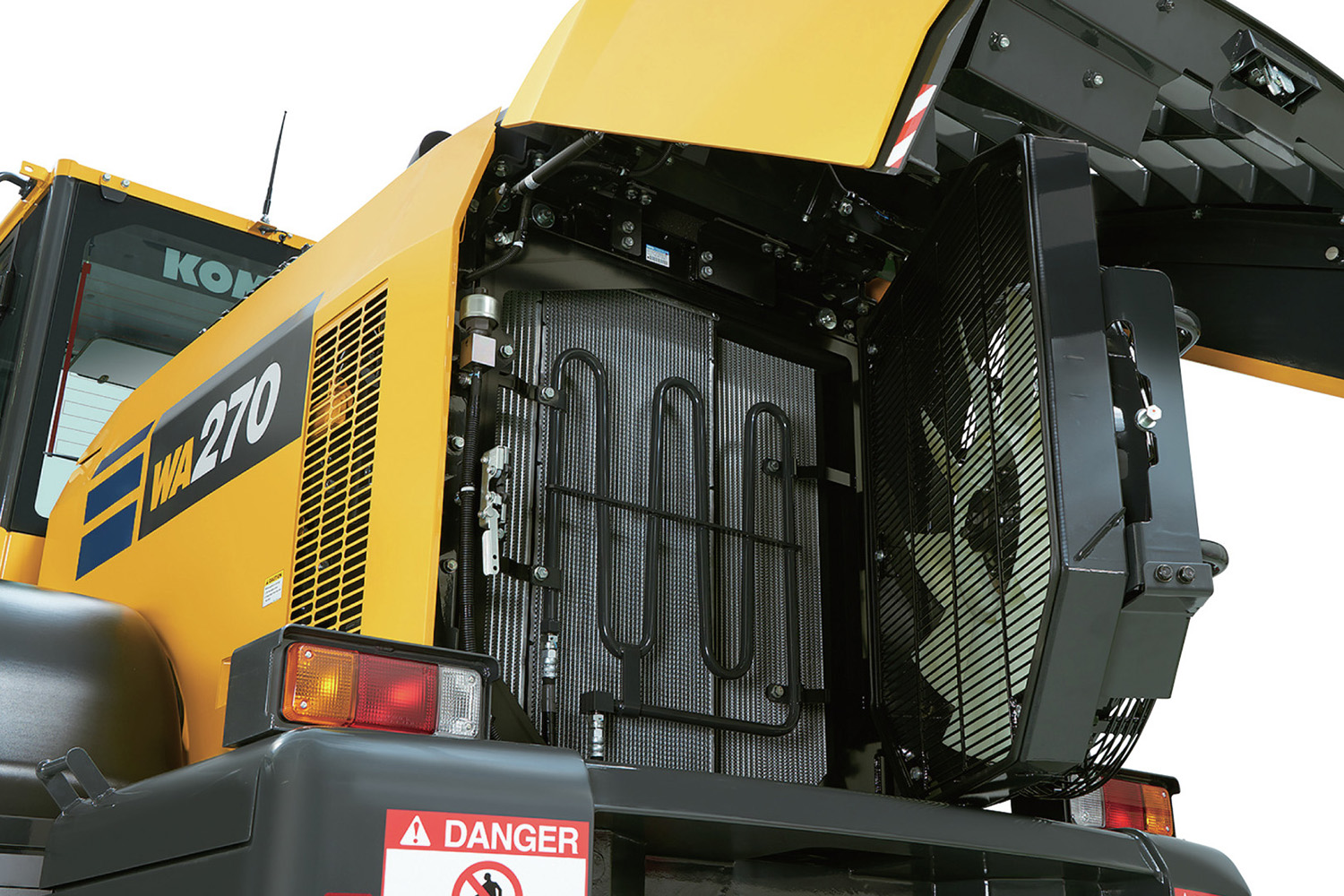

Designed for easy maintenance
Swing out, hydraulically driven cooling fan that runs as needed, with new wider fin spacing and programable auto-reversing function makes cleaning easier. Gull-wing engine doors provide quick, convenient access for daily checks and service items.

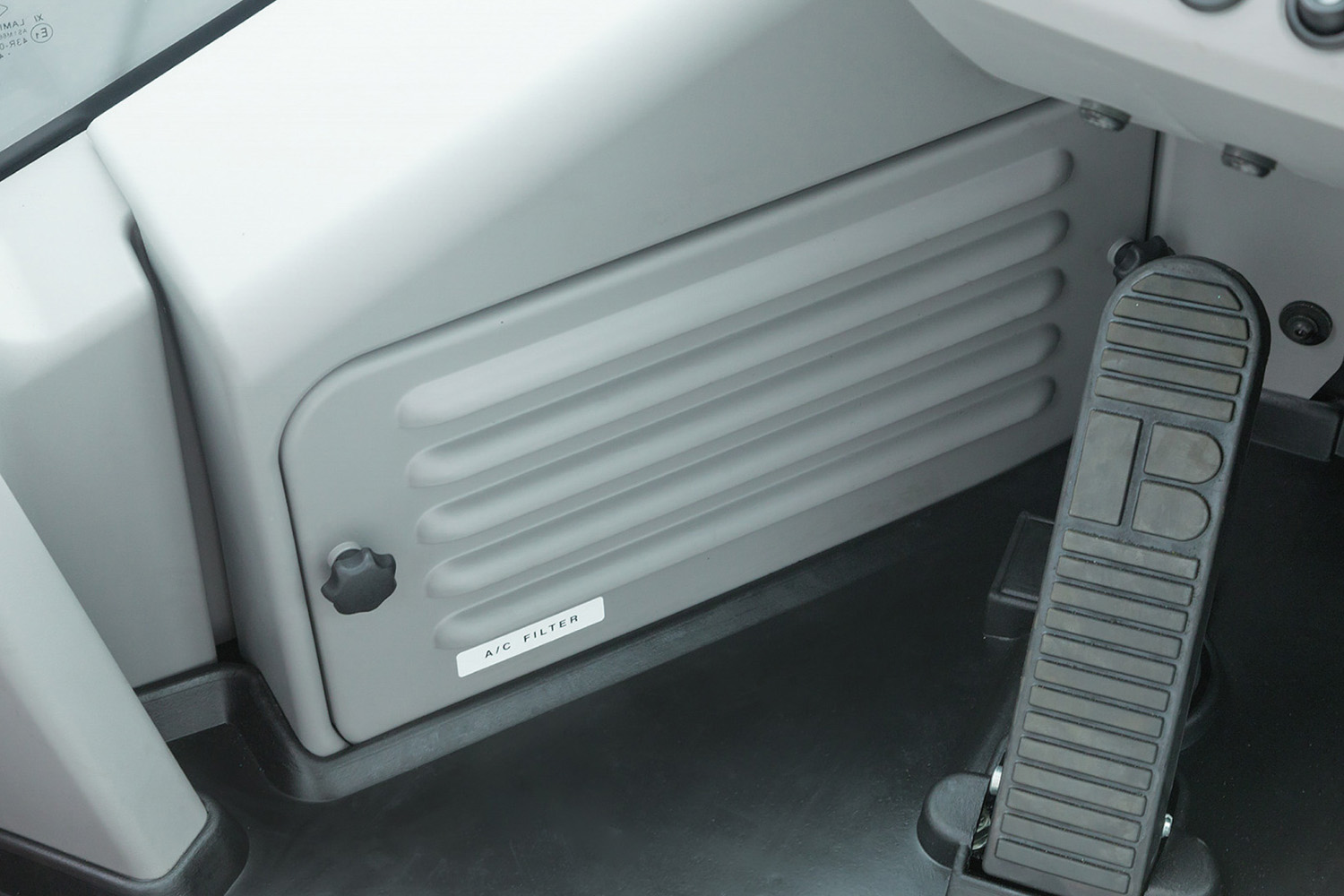

Single-pedal operation
HST dynamic braking allows single-pedal operation which helps reduce periodic service, helps increases brake life, and promotes enhanced productivity, particularly among novice operators.

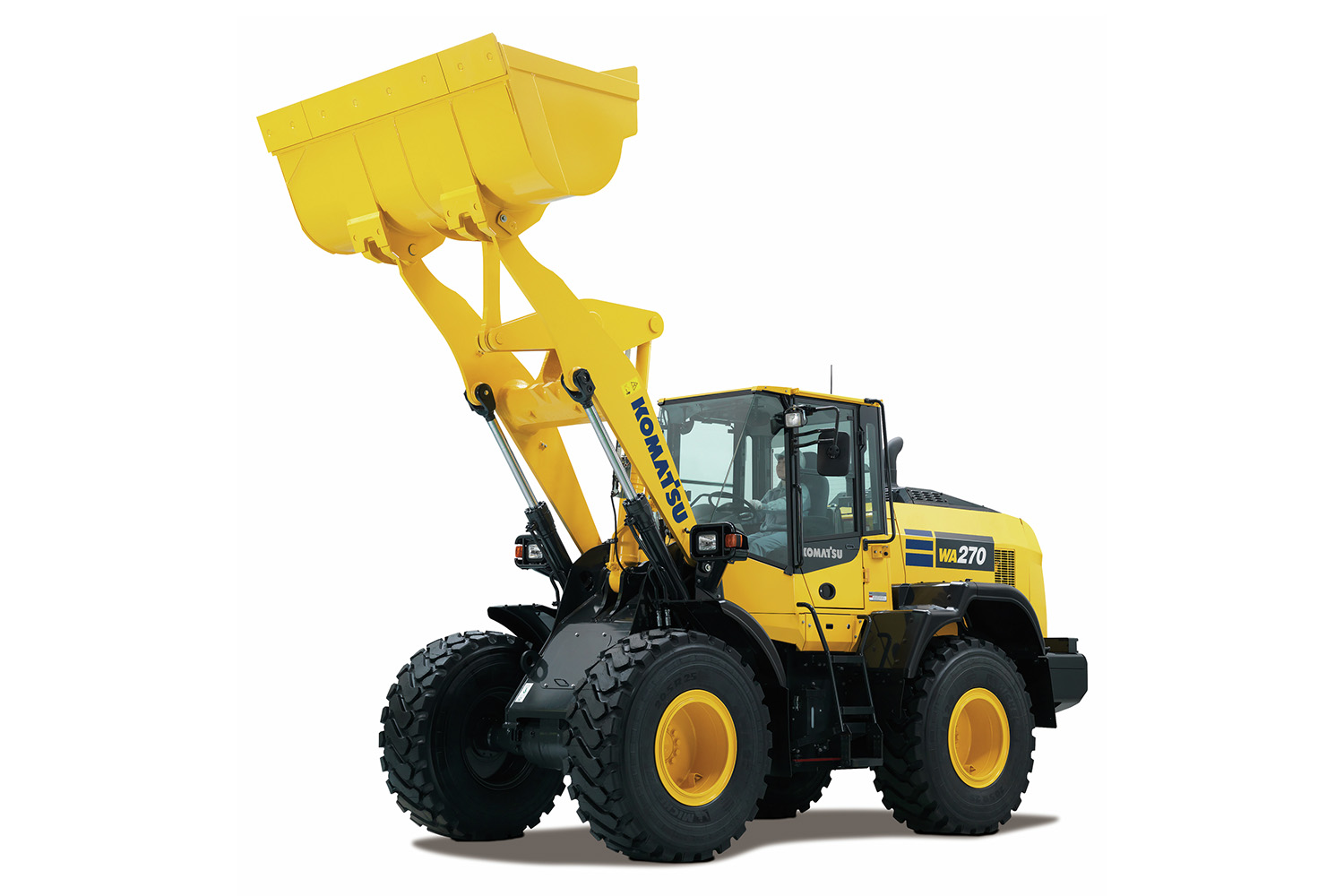

Optional high lift booms
Extend machine reach and application versatility with optional high lift booms, third spool hydraulics and quick coupler options, allowing owners to tackle bigger and more diverse projects.
Specifications
- Full specs
- Standard equipment
- Optional equipment
- Type of hydrostatic: 1 pump, 2 motors with speed range select
-
Travel speed
- Travel speed: Measured with 20.5-R25 tires
- 1st, forward (mph): 0.6 - 8.1
- 1st, forward (kph): 1.0 - 13.0
- 1st, reverse (mph): 0.6 - 8.1
- 1st, reverse (kph): 1.0 - 13.0
- 2nd, forward (kph): 13
- 2nd, forward (mph): 8.1
- 2nd, reverse (kph): 13
- 2nd, reverse (mph): 8.1
- 3rd, forward (kph): 19
- 3rd, forward (mph): 11.8
- 3rd, reverse (kph): 19
- 3rd, reverse (mph): 11.8
- 4th, forward (kph): 38
- 4th, forward (mph): 23.6
- 4th, reverse (kph): 38
- 4th, reverse (mph): 23.6
- Engine Model: Komatsu SAA6D107E-3*
- Cooling Type: Water-cooled, 4-cycle
- Aspiration: Variable geometry turbo-charged, after-cooled, cooled EGR
- Number of cylinders in engine: 6
- Bore x stroke of engine (mm): 107 x 124
- Bore x stroke of engine (in): 4.21 x 4.88
- Piston displacement (L): 6.69
- Piston displacement (in^3): 408
- Governor: All-speed, electronic
- Model footnote: *EPA Tier 4 Final emissions certified
-
Horsepower
- SAEJ1995 - Gross (kW): 115
- SAEJ1995 - Gross (HP): 153
- ISO 9249 / SAE J1349 - Net (HP): 149
- ISO 9249 / SAE J1349 - Net (kW): 111
- Rated RPM: 2,000
- Fan drive method for radiator cooling: Hydraulic
- Fuel system: Direct injection
- Max power - ISO 14396 @ 1,650 rpm (HP): 149
- Max power - ISO 14396 @ 1,650 rpm (kW): 111
-
Lubrication system
- Method: Gear pump, force-lubrication
- Filter: Full-flow type
- Air cleaner: Dry type with double elements and dust evacuator, plus dust indicator
-
Cylinders
- Lift cylinder - 2 (mm): 110 x 717
- Lift cylinder - 2 (in): 4.3 x 28.2
- Bucket cylinder - 1 (mm): 140 x 480
- Bucket cylinder - 1 (in): 5.5 x 18.9
- Control valve: 2-spool type
-
Loader control
- Hydraulic cylinder type for loader control: Double-acting, piston type
- Hydraulic pump: Piston pump, in common with steering system
- Capacity (at rated rpm) (US gpm): 39.6
- Relief valve setting (psi): 4,554
- Capacity (at rated rpm) (L/min): 150
- Relief valve setting (Mpa / kgf/cm^2): 31.4 MPa, 320 kg/cm²
-
Steering System
- Hydraulic pump for steering system: Piston pump, in common with loader control
- Capacity for steering system (at rated rpm) (US gpm): 39.6
- Capacity for steering system (at rated rpm) (L/min): 150
- Relief valve setting (psi): 3,000
- Relief valve setting (kgf/cm^2): 210
- Hydraulic cylinders type for steering system: Double-acting, piston type
- Relief valve setting (MPa): 20.6
- Number of cylinders in hydraulic cylinders: 2
- Bore x stroke (in): 2.76 x 17.8
- Bore x stroke (mm): 70 x 453
-
Hydraulic cycle time (rated load in bucket)
- Raise (s): 6
- Dump (s): 2
- Lower (Empty) (s): 3.2
-
Control positions
- Boom: Raise, hold, lower, and float
- Bucket: Tilt-back, hold, and dump
- Cooling system (US gal): 8.8
- Cooling system (L): 33.3
- Fuel tank (US gal): 49.1
- Fuel tank (L): 186
- Engine (US gal): 6.1
- Engine (L): 23
- Hydraulic system (L): 80
- Hydraulic system (US gal): 21.1
- Axle front (US gal): 4.9
- Axle front (L): 18.5
- Axle rear (US gal): 4.8
- Axle rear (L): 18
- DEF tank (US gal): 3.7
- DEF tank (L): 14
- Transfer case (US gal): 1.8
- Transfer case (L): 7
- Steering system type: Articulated type, fully-hydraulic power steering
- Steering angle: 38° each direction (40° to max end stop)
- Minimum turning radius at the center of outside tire (ft , in): 17 ft. 0 in
- Minimum turning radius at the center of outside tire (mm): 5 175
- Service brake: Hydraulically actuated, wet disc brakes actuate on four wheels
- Parking brake: Wet, multi-disc brake on transfer output shaft
- Drive System: Four-wheel drive
- Front Axle: Fixed, semi-floating
- Axle Rear: Center-pin support, semi-floating, 24° total oscillation
- Final reduction gear: Planetary gear, single reduction
- Differential gear: Torque proportioning
- Reduction gear: Spiral bevel gear
- 2-spool valve for boom and bucket control
- Alternator, 24 V/ 90 A
- Automatic hydraulic-driven fan with automatic reverse rotation
- Back-up alarm
- Batteries, 92 Ah/12V (2), 680 CCA
- Battery disconnect
- Boom kick-out, in-Cab adjustable
- Bucket positioner
- Color, rear-view camera and monitor
- Counterweight, standard and additional
- Electronically Controlled Suspension System
- Engine, Komatsu SAA6D107E-3 diesel
- Engine shut-off system, electric
- Equipment Management Monitoring System (EMMS):
-- Lights (central warning, brake oil pressure, Engine oil pressure, parking brake, cooling fan reverse, KDPF restriction, seat belt caution, Komtrax message)
-- Gauges (DEF level, Engine water temperature, ecology, Fuel level, HST oil temperature, speedometer/tachometer), variable speed display - Front fenders
- Fuel pre-filter with water separator
- Horn, electric
- Hydrostatic transmission
- Komatsu SmartLoader Logic
- Komatsu Auto Idle Shutdown
- KOMTRAX® Level 5
- Lift cylinders and bucket cylinder
- Lights:
-- Back-up light
-- Stop and tail light
-- Turn signal lamps, 2 front and 2 rear with hazard switch
-- Working lights, 2 front Cab mount
-- Working lights, 2 front fender mount
-- Working lights, 2 rear grill mount - Loader linkage with standard lift arm
- Multifunction mono-lever loader control with transmission F/R switch
- Parking brake, electric
- Radiator, wider core
- Radiator mask, swing up
- Rear view mirrors, outside (2) inside (2)
- Rims for 20.5-R25 Tires
- ROPS/FOPS Cab Level 2:
--2 x DC12V electrical outlets
--Ashtray
--Cigarette lighter, 24V
--Color LCD/TFT multi-monitor
--Cup holder
--Floor mat
--Operator seat, reclining, air suspension type, heated
--AM/FM Bluetooth Radio with AUX input jack
--Rear defroster, electric
--Seatbelt, 2-point retractable, 3" width
--Space for lunch box
--Steering wheel, tilt and telescopic
--Sun visor, front window
--Windshield washer and wiper, front with intermittent
--Windshield washer and wiper, rear - Service brakes, wet disc type
- Starting motor, 5.5 kW
- Transmission speed ranges, 4 forward and 4 reverse
- Vandalism protection kit, padlocks for battery box (2)
- 2-spool valve for boom and bucket control
- Alternator, 24 V/ 90 A
- Automatic hydraulic-driven fan with automatic reverse rotation
- Back-up alarm
- Batteries, 92 Ah/12V (2), 680 CCA
- Battery disconnect
- Boom kick-out, in-Cab adjustable
- Bucket positioner
- Color, rear-view camera and monitor
- Counterweight, standard and additional
- Electronically Controlled Suspension System
- Engine, Komatsu SAA6D107E-3 diesel
- Engine shut-off system, electric
- Equipment Management Monitoring System (EMMS):
-- Lights (central warning, brake oil pressure, Engine oil pressure, parking brake, cooling fan reverse, KDPF restriction, seat belt caution, Komtrax message)
-- Gauges (DEF level, Engine water temperature, ecology, Fuel level, HST oil temperature, speedometer/tachometer), variable speed display - Front fenders
- Fuel pre-filter with water separator
- Horn, electric
- Hydrostatic transmission
- Komatsu SmartLoader Logic
- Komatsu Auto Idle Shutdown
- KOMTRAX® Level 5
- Lift cylinders and bucket cylinder
- Lights:
-- Back-up light
-- Stop and tail light
-- Turn signal lamps, 2 front and 2 rear with hazard switch
-- Working lights, 2 front Cab mount
-- Working lights, 2 front fender mount
-- Working lights, 2 rear grill mount - Loader linkage with standard lift arm
- Multifunction mono-lever loader control with transmission F/R switch
- Parking brake, electric
- Radiator, wider core
- Radiator mask, swing up
- Rear view mirrors, outside (2) inside (2)
- Rims for 20.5-R25 Tires
- ROPS/FOPS Cab Level 2:
--2 x DC12V electrical outlets
--Ashtray
--Cigarette lighter, 24V
--Color LCD/TFT multi-monitor
--Cup holder
--Floor mat
--Operator seat, reclining, air suspension type, heated
--AM/FM Bluetooth Radio with AUX input jack
--Rear defroster, electric
--Seatbelt, 2-point retractable, 76mm width
--Space for lunch box
--Steering wheel, tilt and telescopic
--Sun visor, front window
--Windshield washer and wiper, front with intermittent
--Windshield washer and wiper, rear - Service brakes, wet disc type
- Starting motor, 5.5 kW
- Transmission speed ranges, 4 forward and 4 reverse
- Vandalism protection kit, padlocks for battery box (2)
- Auxiliary steering (SAE)
- Centrifugal Engine air pre-cleaner
- Cutting edge (bolt-on type)
- Engine oil and coolant heater
- Guarding package
- High lift boom and bucket cylinder
- Limited slip differential (F&R)
- Lube system
- Quick coupler
- Rear full fenders
- Three-spool valve (will utilize integrated proportional control switch included in the multi-function mono-lever) and piping
- Various tire options, radial and bias
- Various bucket and fork options
- Auxiliary steering (SAE)
- Centrifugal Engine air pre-cleaner
- Cutting edge (bolt-on type)
- Engine oil and coolant heater
- Guarding package
- High lift boom and bucket cylinder
- Limited slip differential (F&R)
- Lube system
- Quick coupler
- Rear full fenders
- Three-spool valve (will utilize integrated proportional control switch included in the multi-function mono-lever) and piping
- Various tire options, radial and bias
- Various bucket and fork options
