Wheel loaders
WA500-8 yard loader
Large wheel loaders
- Horsepower (HP) 353 HP @1,900 rpm
- Horsepower (kW) 263 kW @ 1,900 rpm
- Operating weight (kg) 37 352 - 37 688
- Operating weight (lbs) 82,349 - 83,090
- Full turn tip load (kg) 6.3 - 7.5
- Full turn tip load (lbs) 8.2 - 9.8
Make every pass count
If you're looking to load, transport or move material, Komatsu yard loaders offer a great combination of productivity, fuel efficiency, operator comfort and ease of maintenance. A newly designed, bigger bucket and auto-digging system helps maximize bucket fill while minimizing operator fatigue. Tailor-made for loading in quarry environments that require a powerful engine and excellent stability, the WA500-8 yard loader has durable long life frames, axles and driveline components for efficient loading.
- Optimized bucket load for efficiently moving processed materials
- Enhanced operator comfort
- Increased productivity*
- Reduced fuel costs*
Note: *compared to the prior model
Features and benefits

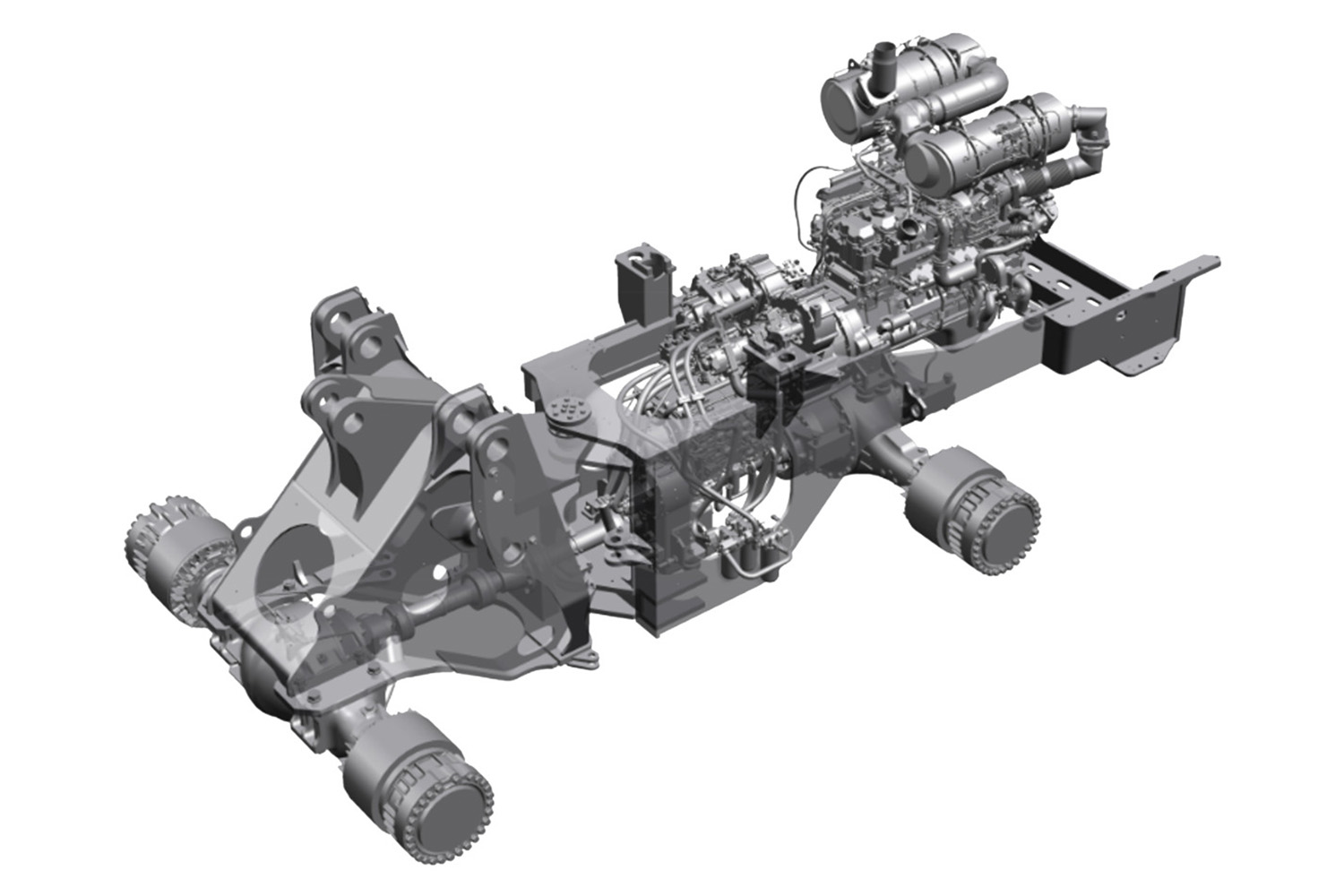

High performance powertrain
Designed to help reduce fuel consumption, this loader features a large-capacity torque converter that combines with Komatsu's SmartLoader Logic engine control system to automatically create enough torque for each work phase and bolster productivity.
Trusted brake cooling system
Help get efficient performance and added confidence in load-and-carry situations with this vehicle’s front and rear brake cooling system.

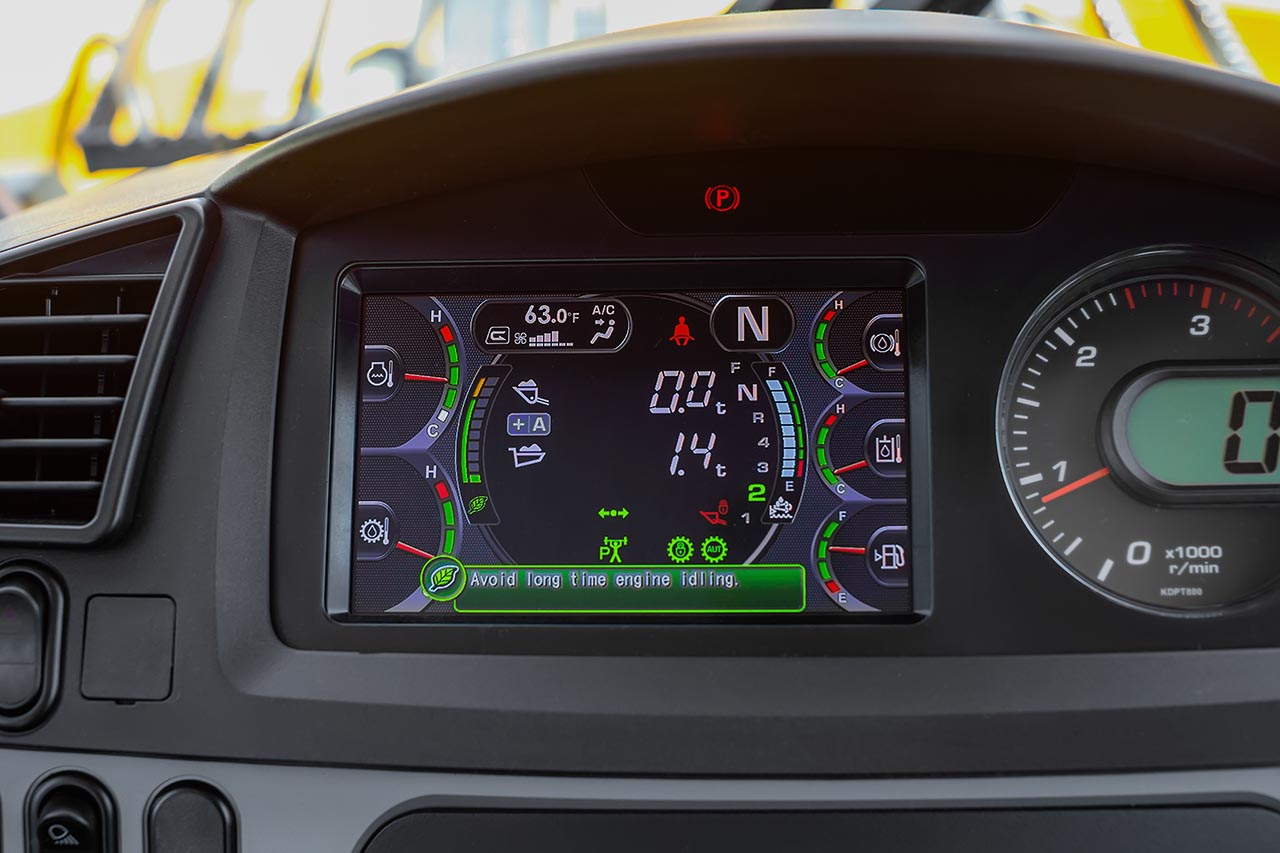

Lower fuel consumption
Reduce idle time and save fuel with auto idle shutdown. Komatsu’s SmartLoader Logic acquires data from various sensors in the loader and controls engine torque based on job requirements.

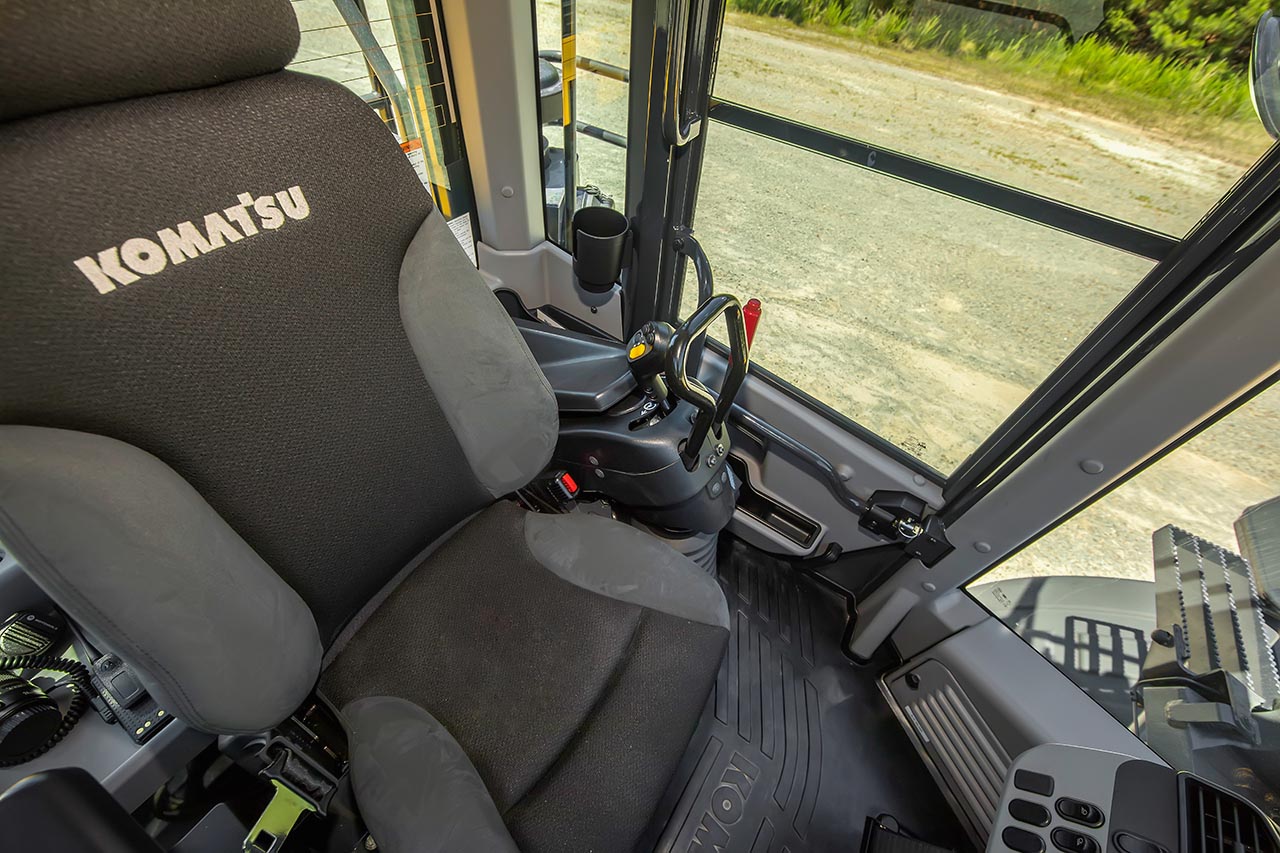

Increased operator comfort
Get a more comfortable ride with a new standard, heated, air-suspension seat that provides enhanced support on rough roads. A large, quiet, pressurized cab provides excellent visibility.
Ease of access
Efficient maintenance with ease of access with large, gull-wing-type engine doors and large steps on each side of the frame and front of the cab.

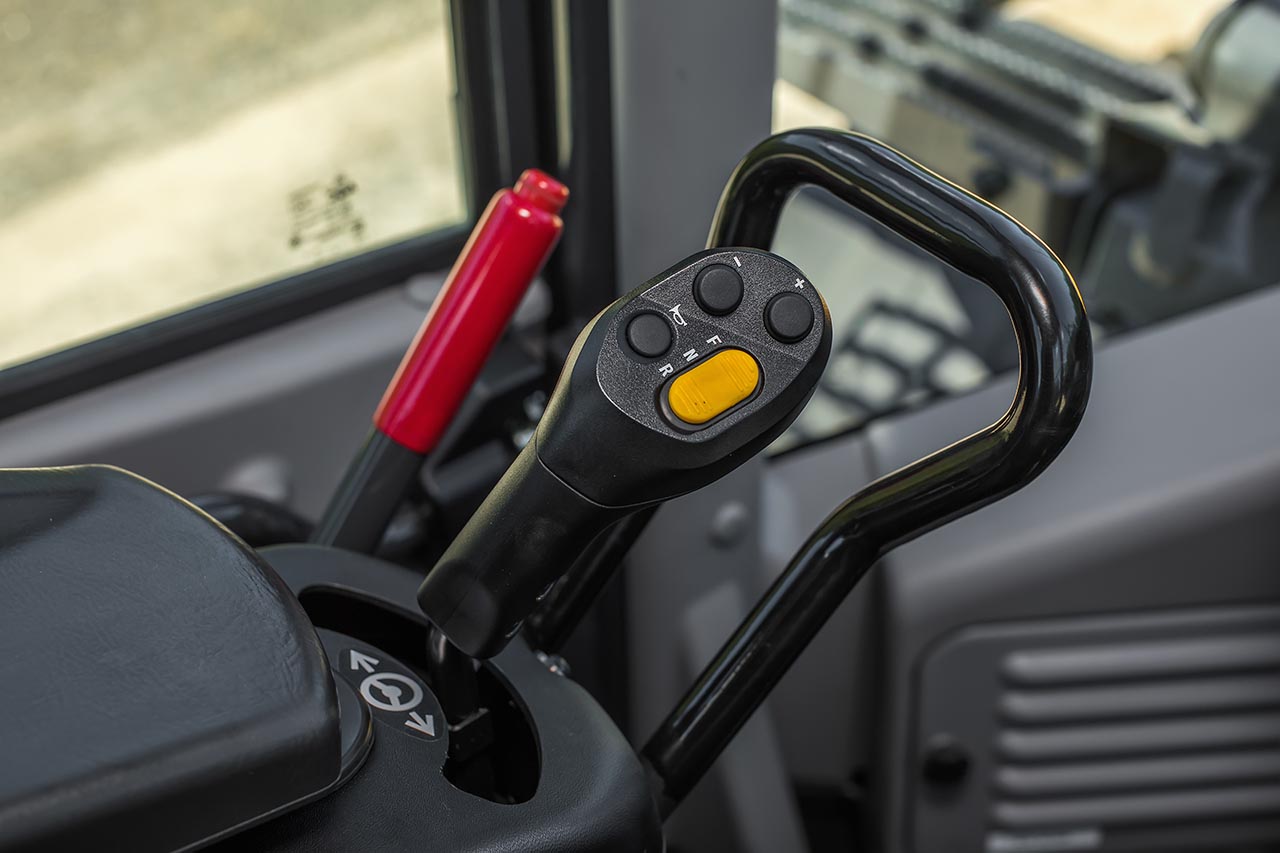

Increase maneuverability
Designed to reduce operator fatigue, the Advanced Joystick Steering System (AJSS) allows wrist and finger control of steering and directional travel.
Move more material
Get increased power and control to help handle big bucket loads with this yard loader's large capacity bucket cylinder.

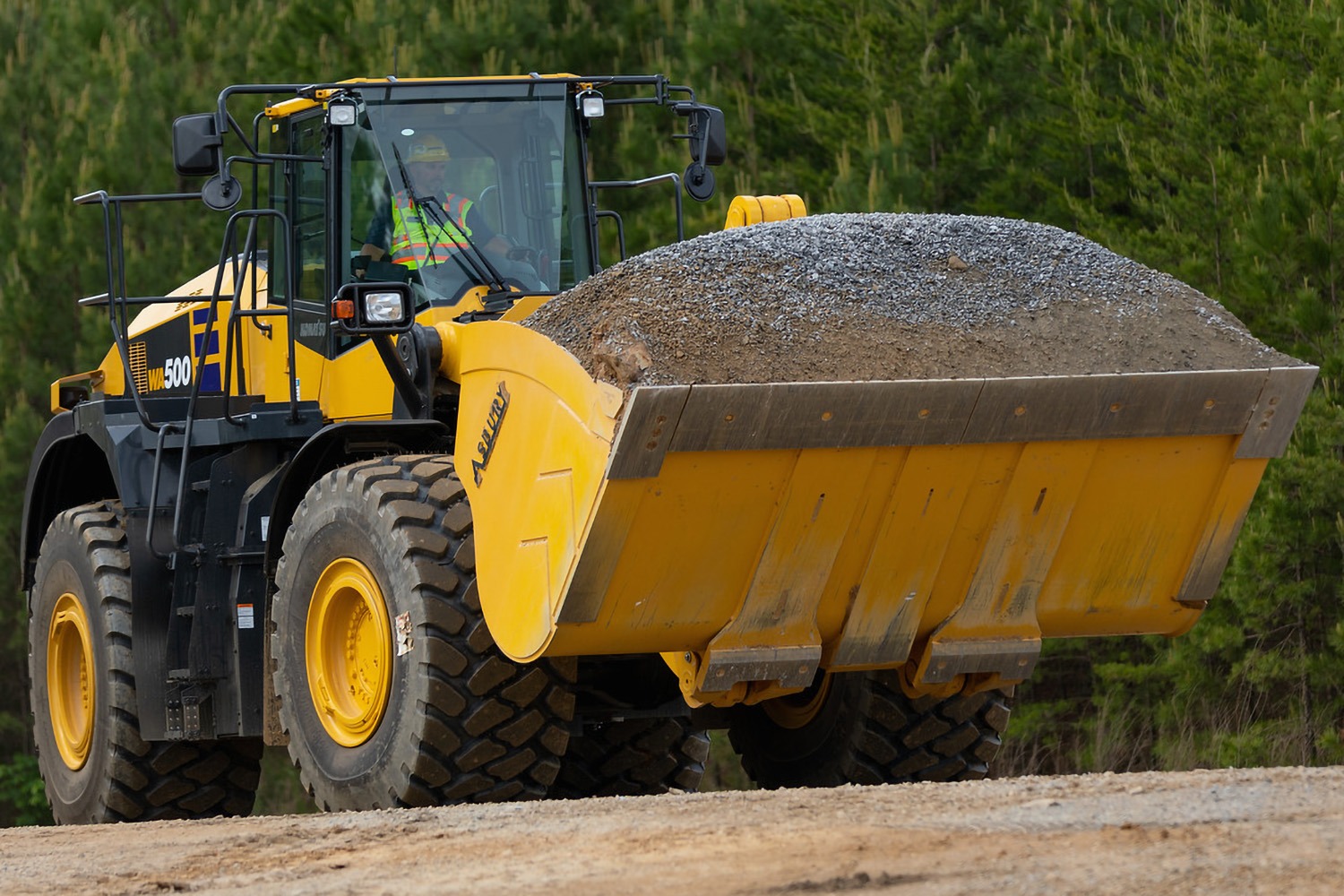

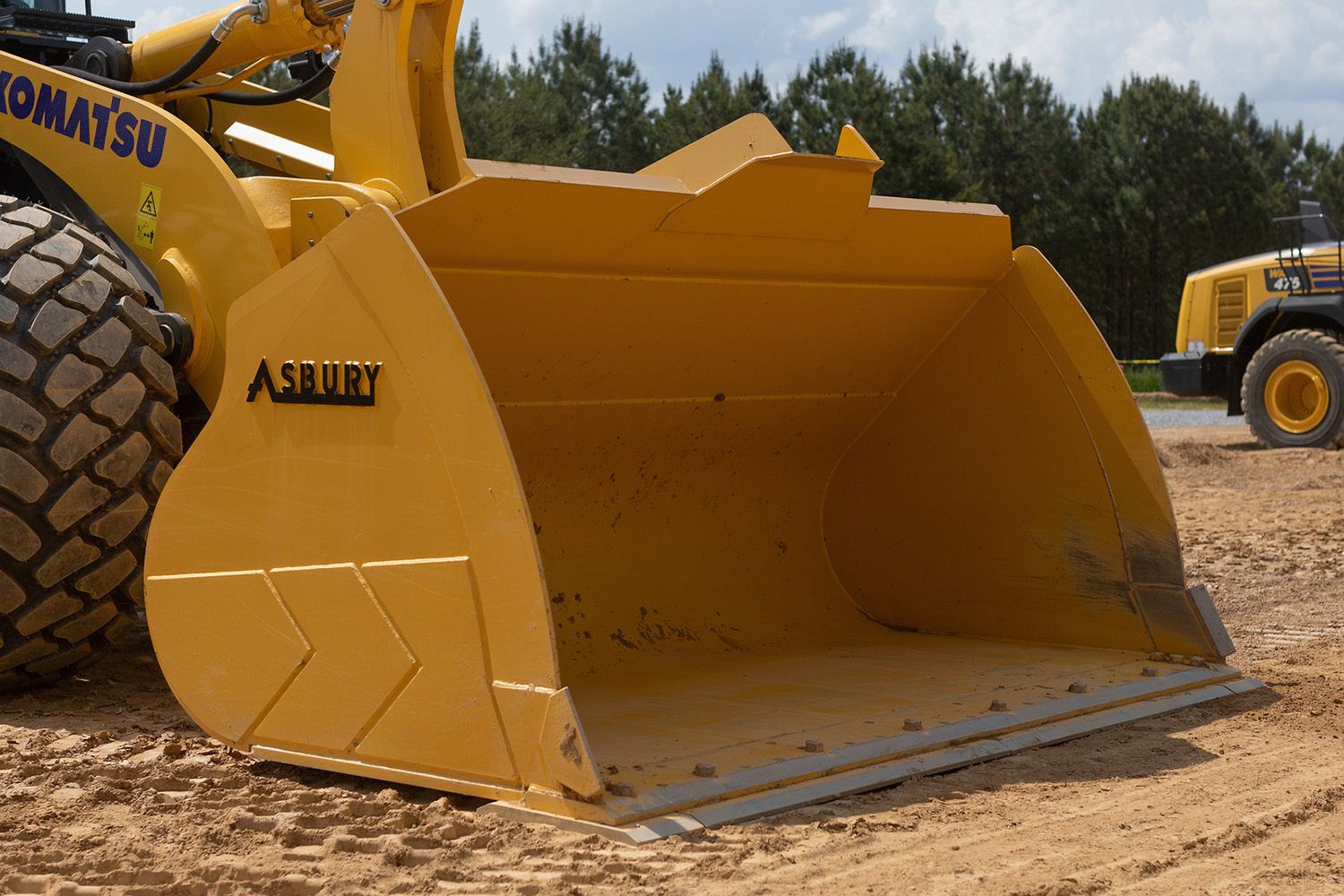

Optimized capacity
The large capacity bucket is optimized based on material density, with up to 9.8 yd3 capacity.

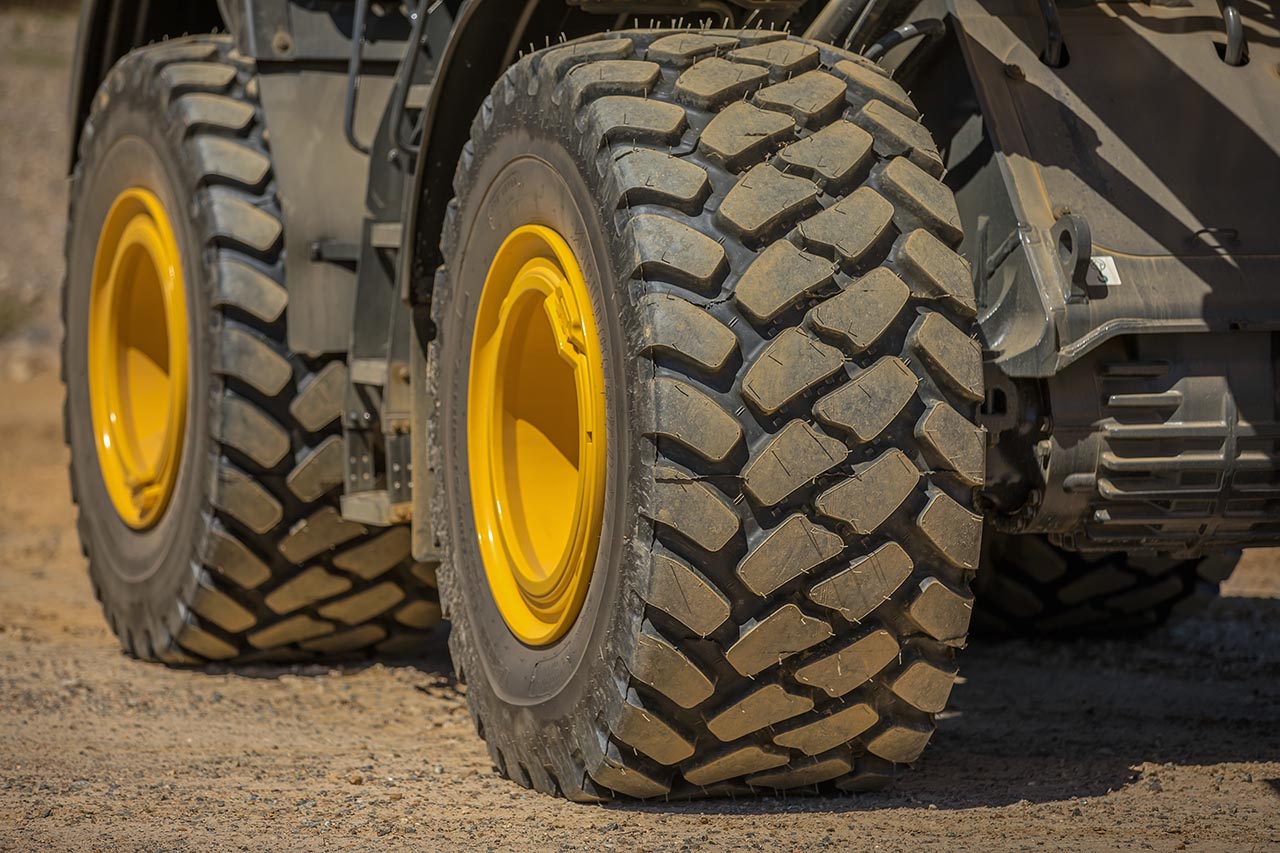

Stay stable with increased ground contact
875/65 tires increase ground contact area to help improve stability. The low profile also reduces sidewall flex to provide more balance while dumping into trucks or hoppers.
Specifications
- Full specs
- Standard equipment
- Optional equipment
-
Steering System
- Hydraulic pump for steering system: Piston pump
- Capacity for steering system (at rated rpm) (US gpm): 31.7
- Capacity for steering system (at rated rpm) (L/min): 120
- Relief valve setting (psi): 3555
- Relief valve setting (kgf/cm^2): 250
- Hydraulic cylinders type for steering system: Double-acting, piston type.
- Relief valve setting (MPa): 24.5
- Number of cylinders in hydraulic cylinders: 2
- Bore x stroke (in): 3.9 x 19.1
-
Loader control
- Hydraulic cylinder type for loader control: Double-acting, piston type.
- Hydraulic pump: Piston pump
- Capacity (at rated rpm) (US gpm): 84.8
- Relief valve setting (psi): 4980
- Capacity (at rated rpm) (L/min): 320
- Relief valve setting (Mpa / kgf/cm^2): 34.3 MPa / 350 kgf/cm²
- Number of cylinders: Bore x Stroke:
-
Cylinders
- Boom cylinder - 2 (in): 6.3 x 35.4
- Boom cylinder - 2 (mm): 160 x 898
- Bucket cylinder - 1 (mm): 185 x 675
- Bucket cylinder - 1 (in): 7.3 x 26.6
- Control valve: 2-spool type
-
Control positions
- Boom: Raise, hold, lower, and float
- Bucket: Tilt-back, hold, and dump
-
Hydraulic cycle time (rated load in bucket)
- Raise (s): 7.2
- Dump (s): 1.7
- Lower (Empty) (s): 4.2
- Torque converter: 3-elements, 1-stage, 2-phase; transmission is full-powershift, planetary type
- Type of hydrostatic: Full-powershift, planetary type
-
Travel speed
- Travel speed: Measured with 23.5-25 tires
- 1st, forward (kph): 7.5
- 1st, forward (mph): 4.7
- 1st, reverse (mph): 5.3
- 1st, reverse (kph): 8.5
- 2nd, forward (lock-up clutch ON) (mph): 8.1
- 2nd, forward (kph): 12.9
- 2nd, forward (mph): 8
- 2nd, forward (lock-up clutch ON) (kph): 13.1
- 2nd, reverse (lock-up clutch ON) (mph): 8.1
- 2nd, reverse (kph): 12.9
- 2nd, reverse (lock-up clutch ON) (kph): 13.1
- 2nd, reverse (mph): 8
- 3rd, forward (lock-up clutch ON) (mph): 14.7
- 3rd, forward (kph): 22.2
- 3rd, forward (mph): 13.8
- 3rd, forward (lock-up clutch ON) (kph): 23.7
- 3rd, reverse (kph): 24.7
- 3rd, reverse (lock-up clutch ON) (mph): 16.5
- 3rd, reverse (lock-up clutch ON) (kph): 26.6
- 3rd, reverse (mph): 15.3
- 4th, forward (kph): 35.5
- 4th, forward (lock-up clutch ON) (mph): 23.2
- 4th, forward (lock-up clutch ON) (kph): 37.3
- 4th, forward (mph): 22.1
- 4th, reverse (lock-up clutch ON) (mph): 23.6
- 4th, reverse (kph): 38
- 4th, reverse (mph): 23.6
- 4th, reverse (lock-up clutch ON) (kph): 38
- Cooling system (US gal): 29.1
- Cooling system (L): 110
- Fuel tank (L): 473
- Fuel tank (US gal): 124.9
- Engine (L): 37
- Engine (US gal): 9.8
- Hydraulic system (US gal): 89
- Hydraulic system (L): 337
- Axle front (L): 95
- Axle front (US gal): 25.1
- Axle rear (L): 95
- Axle rear (US gal): 25.1
- Torque converter and transmission (US gal): 18.8
- Torque converter and transmission (L): 71
- DEF tank (US gal): 9.5
- DEF tank (L): 36
- Service brake: Hydraulically actuated, wet disc brakes actuate on four wheels
- Parking brake: Wet disc brake
- Emergency brake: Parking brake is commonly used
- Engine Model: Komatsu SAA6D140E-7*
- Cooling Type: Water-cooled, 4-cycle
- Aspiration: Variable geometry turbo-charged, after-cooled, cooled EGR
- Number of cylinders in engine: 6
- Bore x stroke of engine (in): 5.51 x 6.50
- Bore x stroke of engine (mm): 140 x 165
- Piston displacement (L): 915.24
- Piston displacement (in^3): 930
- Governor: All-speed, electronic
- Model footnote: *EPA Tier 4 Final emissions certified
-
Lubrication system
- Method: Gear pump, force-lubrication
- Filter: Full-flow type
- Air cleaner: Dry type with double elements and dust evacuator, plus dust indicator
-
Horsepower
- SAEJ1995 - Gross (HP): 357
- SAEJ1995 - Gross (kW): 266
- ISO 9249 / SAE J1349 - Net (HP): 353
- ISO 9249 / SAE J1349 - Net (kW): 263
- Rated RPM: 1900
- Fan drive method for radiator cooling: Hydraulic
- Fuel system: Direct injection
- Drive System: Four-wheel drive
- Front Axle: Fixed, full-floating
- Axle Rear: Center-pin support, full-floating, 20° total oscillation
- Final reduction gear: Planetary gear, single reduction
- Differential gear: Conventional type
- Reduction gear: Spiral bevel gear
- Steering system type: Articulated type, full-hydraulic power steering
- Steering angle: 36° each direction (40° to max end stop)
- Minimum turning radius at the center of outside tire (ft , in): 23 ft. 2 in
- Minimum turning radius at the center of outside tire (mm): 7 050
- Alternator, 90 A
- Auto shift transmission with mode select system
- Automatic digging system
- Automatic hydraulic-driven fan with automatic reverse rotation
- Back-up alarm
- Batteries, 160 Ah/12 V (2)
- Battery disconnect
- Boom kick-out, in-Cab adjustable
- Bucket positioner, in-Cab adjustable, 3 positions
- Color rear view camera and monitor
- Counterweight, standard and additional
- Electronically Controlled Suspension System (ECSS)
- Engine, Komatsu SAA6D140E-7 diesel
- Engine shut-off system, electric
- Engine shutdown secondary switch
- EPC fingertip controls with F-N-R switch, two levers
- Equipment Management Monitoring System (EMMS)
--Lights (central warning, brake oil pressure, Engine oil pressure, parking brake, cooling fan reverse, KDPF restriction, seat belt caution, Komtrax message)
--Gauges (Engine water temperature, ecology, Fuel level, DEF levels, Hydraulic oil temperature, speedometer/tachometer) - Front fenders
- Fuel pre-filter with water separator
- Horn, electric
- Komatsu SmartLoader Logic
- Komatsu Auto Idle Shutdown
- KOMTRAX® Level 5
- Lift cylinders and bucket cylinder
- Lights:
--Back-up light, LED
--Stop and tail light, LED
--Turn signal, two front and two rear with hazard switch
--Working lights, halogen, two front Cab mount
--Working lights, halogen, two front fender mount
--Working lights, halogen, two rear - Load meter*
- Loader linkage with standard lift arm
- Lock-up torque converter
- Parking brake, electric
- Radiator, wider core
- Radiator mask, swing out
- Rear full fenders
- Rear view mirrors, outside (2) inside (2)
- Rims for 29.5-25 Tires
- ROPS/FOPS Cab Level 2:
--2 x DC12V electrical outlets
--Auto air conditioner
--Cigarette lighter, 24V
--Color LCD/TFT multi-monitor
--Cup holder
--Floor mat
--Operator seat, reclining, air suspension type, heated
--Radio, AM/FM with AUX input jack
--Rear defroster, electric
--Seatbelt, two-point retractable, 3” width
--Space for Lunch box
--Steering wheel, tilt and telescopic
--Sun visor, front window
--Windshield washer and wiper, front with intermittent
--Windshield washer and wiper, rear - Service brakes, wet disc type
- Starting motor, 11 kW
- Transmission, four forward and four reverse
- Two-spool valve for boom and bucket control
- Vandalism protection kit
- Alternator, 90 A
- Auto shift transmission with mode select system
- Automatic digging system
- Automatic hydraulic-driven fan with automatic reverse rotation
- Back-up alarm
- Batteries, 160 Ah/12 V (2)
- Battery disconnect
- Boom kick-out, in-Cab adjustable
- Bucket positioner, in-Cab adjustable, 3 positions
- Color rear view camera and monitor
- Counterweight, standard and additional
- Electronically Controlled Suspension System (ECSS)
- Engine, Komatsu SAA6D140E-7 diesel
- Engine shut-off system, electric
- Engine shutdown secondary switch
- EPC fingertip controls with F-N-R switch, two levers
- Equipment Management Monitoring System (EMMS)
--Lights (central warning, brake oil pressure, Engine oil pressure, parking brake, cooling fan reverse, KDPF restriction, seat belt caution, Komtrax message)
--Gauges (Engine water temperature, ecology, Fuel level, DEF levels, Hydraulic oil temperature, speedometer/tachometer) - Front fenders
- Fuel pre-filter with water separator
- Horn, electric
- Komatsu SmartLoader Logic
- Komatsu Auto Idle Shutdown
- KOMTRAX® Level 5
- Lift cylinders and bucket cylinder
- Lights:
--Back-up light, LED
--Stop and tail light, LED
--Turn signal, two front and two rear with hazard switch
--Working lights, halogen, two front Cab mount
--Working lights, halogen, two front fender mount
--Working lights, halogen, two rear - Load meter*
- Loader linkage with standard lift arm
- Lock-up torque converter
- Parking brake, electric
- Radiator, wider core
- Radiator mask, swing out
- Rear full fenders
- Rear view mirrors, outside (2) inside (2)
- Rims for 29.5-25 Tires
- ROPS/FOPS Cab Level 2:
--2 x DC12V electrical outlets
--Auto air conditioner
--Cigarette lighter, 24V
--Color LCD/TFT multi-monitor
--Cup holder
--Floor mat
--Operator seat, reclining, air suspension type, heated
--Radio, AM/FM with AUX input jack
--Rear defroster, electric
--Seatbelt, two-point retractable, 76mm width
--Space for Lunch box
--Steering wheel, tilt and telescopic
--Sun visor, front window
--Windshield washer and wiper, front with intermittent
--Windshield washer and wiper, rear - Service brakes, wet disc type
- Starting motor, 11 kW
- Transmission, four forward and four reverse
- Two-spool valve for boom and bucket control
- Vandalism protection kit
- Auxiliary steering (SAE)
- Brake cooling system
- Engine pre-cleaner with extension
- High lift boom
- Joystick/wheel steering control system
- Limited slip differential (F&R)
- Mono-lever loader control with transmission F-N-R switch
- Power train guard
- Three-spool valve with lever and piping
- Various tire options, radial and bias
- Various bucket options
- Auxiliary steering (SAE)
- Brake cooling system
- Engine pre-cleaner with extension
- High lift boom
- Joystick/wheel steering control system
- Limited slip differential (F&R)
- Mono-lever loader control with transmission F-N-R switch
- Power train guard
- Three-spool valve with lever and piping
- Various tire options, radial and bias
- Various bucket options
